AUQ1 din rail mounting 16A Changeover Switch

Product Overview

Description

Function and Feature:

Handle with 3 stage:I-O-II

Changeover switch with zero position in middle

Modularized and Din Rail mounting



Function and Feature:

Rated Current(In): 6,10,16,20,25,32,40A

Rated Voltage(Un):230V/400V

Shell -grand Rated Current(In): 40A

Short-term Tolerance Rated Current:800A

Electrical endurance:10000 cycles

Mechanical endurance:20000 cycles

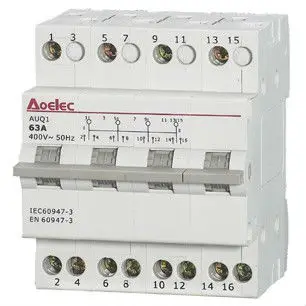

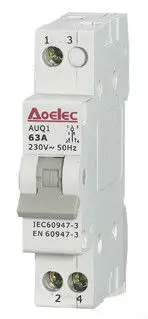

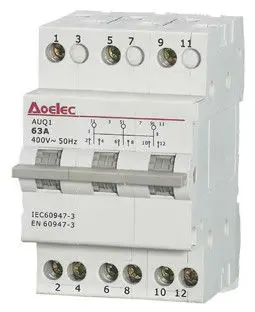

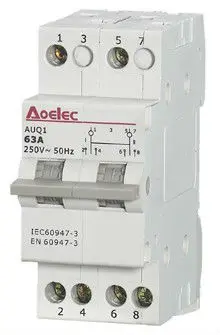

Numbers of Poles:1P,2P.3P.4P

Type of Terminal: Lug Type

Terminal Capacity: Cable up to  25mm²

Width: 17.6mm/module

Life: Operating cycle number 10000, which contained 1,500 (operating frequency

       for the 120 / h)

Use Category:AC-22

Protection Degree:IP20

Standards: IEC60947-3

Catalog No.                                                                                                               CTN Size:46.5x24x17.5cm

In(A)	Model No.	QTY/Box	QTY/CTN
6A	AUQ1 2P 6	6	60
10A	AUQ1 2P 10	6	60
16A	AUQ1 2P 16	6	60
20A	AUQ1 2P 20	6	60
25A	AUQ1 2P 25	6	60
32A	AUQ1 2P 32	6	60
40A	AUQ1 2P 40	6	60





Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our  Changeover Switch have KEMA,TUV,SEMKO,CB and CE certificates.
