Product Overview

Description


75Ohm F Connector PCB End Launch Jack



1. ISO 9001 & IATF 16949 certified
2. RoHS & REACH compliant
3. Made in Taiwan








Features:



  1. Excellent insertion/withdrawal characteristics

  2. Multiple PCB mount types

  3. BeCu contact is available from 0.55~1.02mm center conductor sizes

  4. Zinc ally body available


Applications:



  1. CATV

  2. Set Top Boxes

  3. Cable Assemblies

  4. Cable Modems


Electronical Specifications





















Impedance75Ω
Frequency RangeDC-1 GHz
Return Loss30 dB @ DC-1 GHz
RF-Leakage100 dB min. @ 1 GHz







Material Specifications




































Parts NameMaterialFinish
Center ContactMaleBrass3u" Gold or Bright Tin per requirement
FemaleBeCu, P. Bronze or BrassBright Tin
Body, Metal PartsBrass or Zinc AlloyNickle or Tin per requirement
InsulatorsPTFE, P.P. or DerlinNone
Crimp FerrulesCopper or BrassNickle or Tin per requirement




Note: Other Material/Finish is available on request





0AaFactoryISO9001TS16949





F Connector

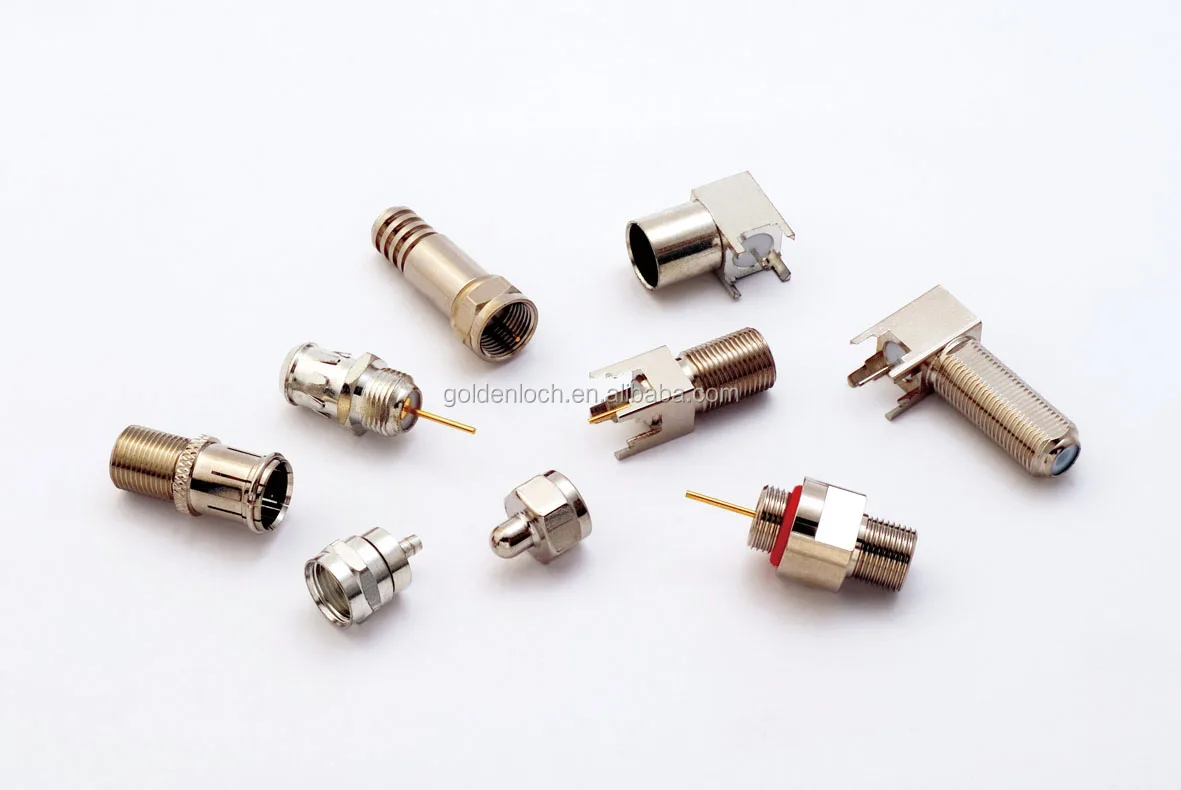

f&G
