Motor Slide Gate Valve High Pressure High Temperature Manual General for Cement Plant Alloy

Product Overview

Description

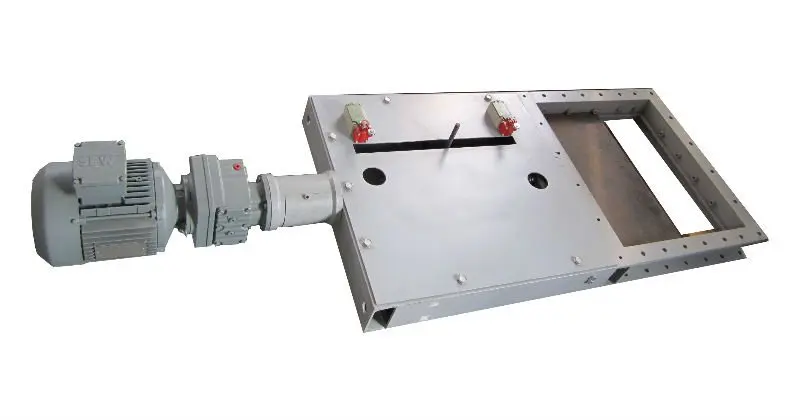

Motor slide gate valve for cement plant

HV series gate valve is the main flow control transmission equipment for powder, grain materials, and small particles. The wear parts of this gate valve is used of wear-resistant materials, meanwhile fully considered the hard characteristics of particle, so there was almost no valve jammed phenomenon, it can operate in a poor environment for a long-term without troubles. HV Series gate valve is equipped with the manual, electric drive device to control valve’s operation, is the ideal facility for flow regulation

(1)It has a pleasing appearance, compact structure, small size, light weight, non resistance, and no angle limit.

(2)The valve plate is using high-quality heat-resistant materials, with good properties of anti-corrosion in high temperature, wear resistance, no leakage. (3)The German original (SEW) Schneider transmission motor can achieve reversion, smooth transmission with low vibration and noise rate.

HV series manual gate valve is operated through the rotation of hand wheel. The clockwise rotation of the hand wheel drives the valve plate to one side of the hand wheel through the rotation of the screw, thus valve is increase opened. When the hand wheel is an anti-clockwise rotation, the valve is increase closed. HV-Series electric gate valve is drive by Schneider transmission motor. When the motor is rotating which drives the valve plate move to one side of the motor through the screw, and thus the valve increased opened. When the motor runs reversely, the valve plates moving away from the motor side, and the valve is increase closed.

Technical Parameters

Nominal Path(mm)	200	250	300	400	500	600
Route(mm)	200	250	300	400	500	600
Handwheel(mm)	φ200
Transimission Motor	RF37DT90L4				RF37DT90L2	RF37DV100L4
Power	AC220V,AC380V    50Hz
Motor power(KW)	0.75		1.5		2.2	3.0
Speed(r/min)	71		119		146	148
Temperature(°C)	≤550
