EOC8A/OZ8A,EOC10A/OZ10A,EOC12A/OZ12A ,EOC16A/OZ16A,EOC20A/OZ20A,EOC25A/OZ25A,EOC32A/OZ32A DIN6388A OZ or EOC COLLET
- Category: >>>
- Supplier: Dezhou Zhongyi Industry And Commerce Co. Ltd.
Share on (523005206):
Product Overview
Description

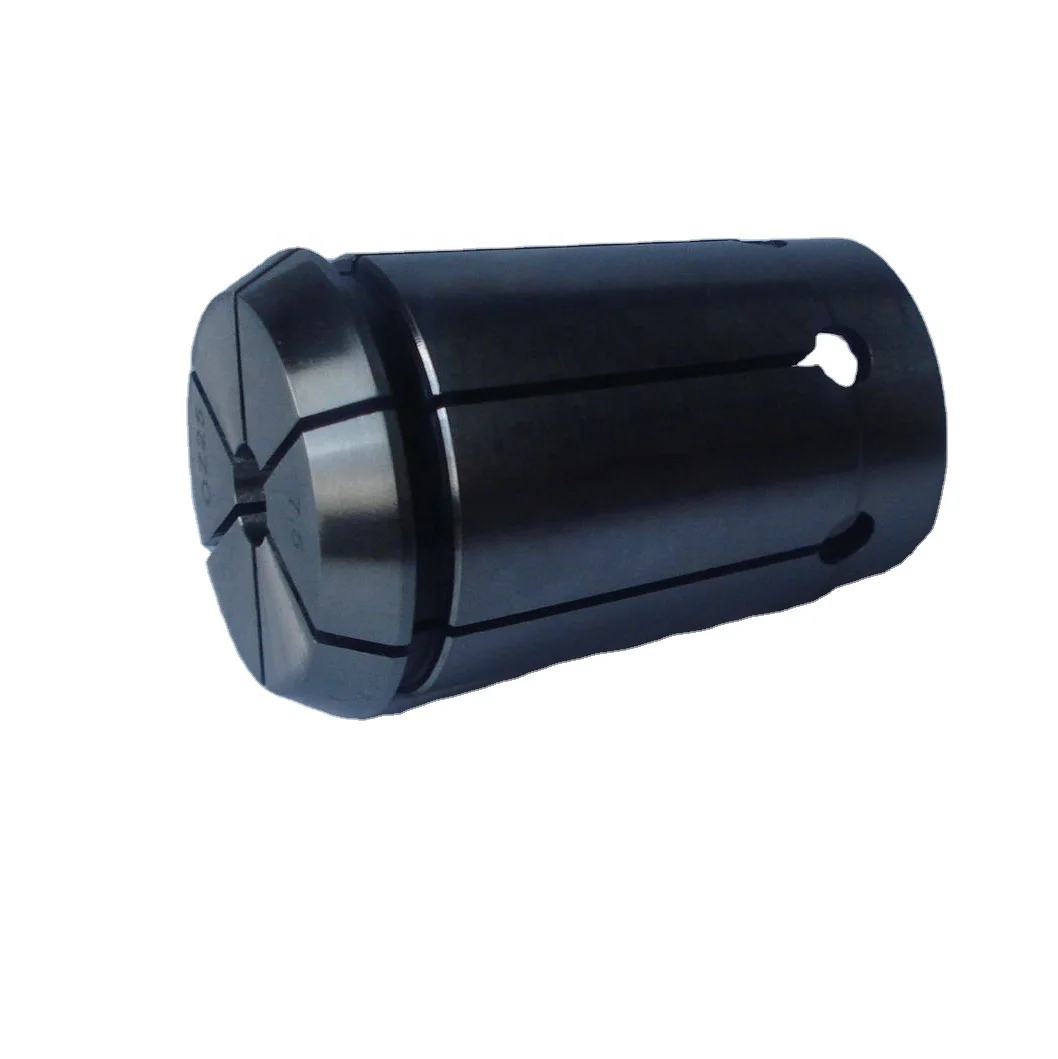

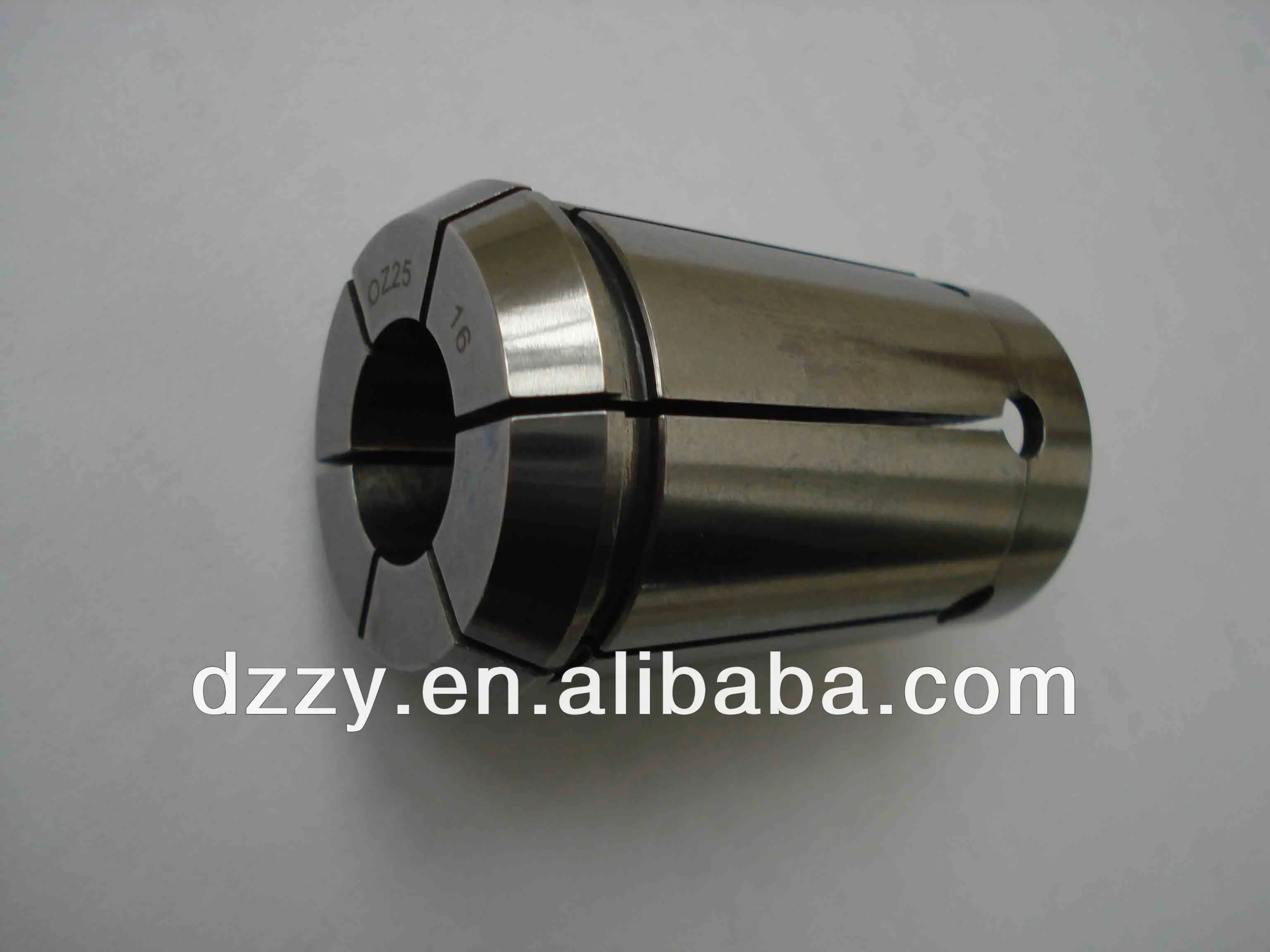

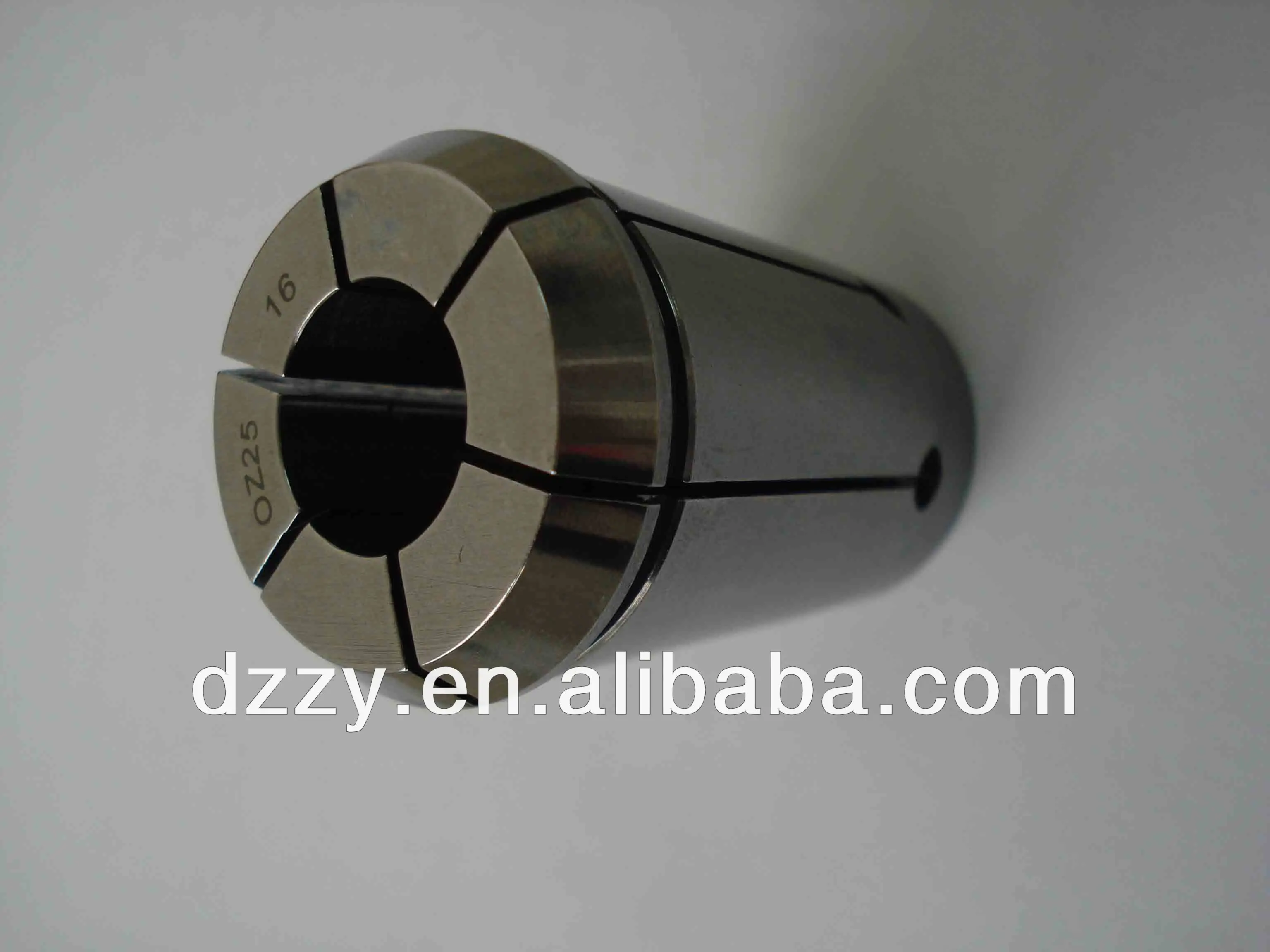

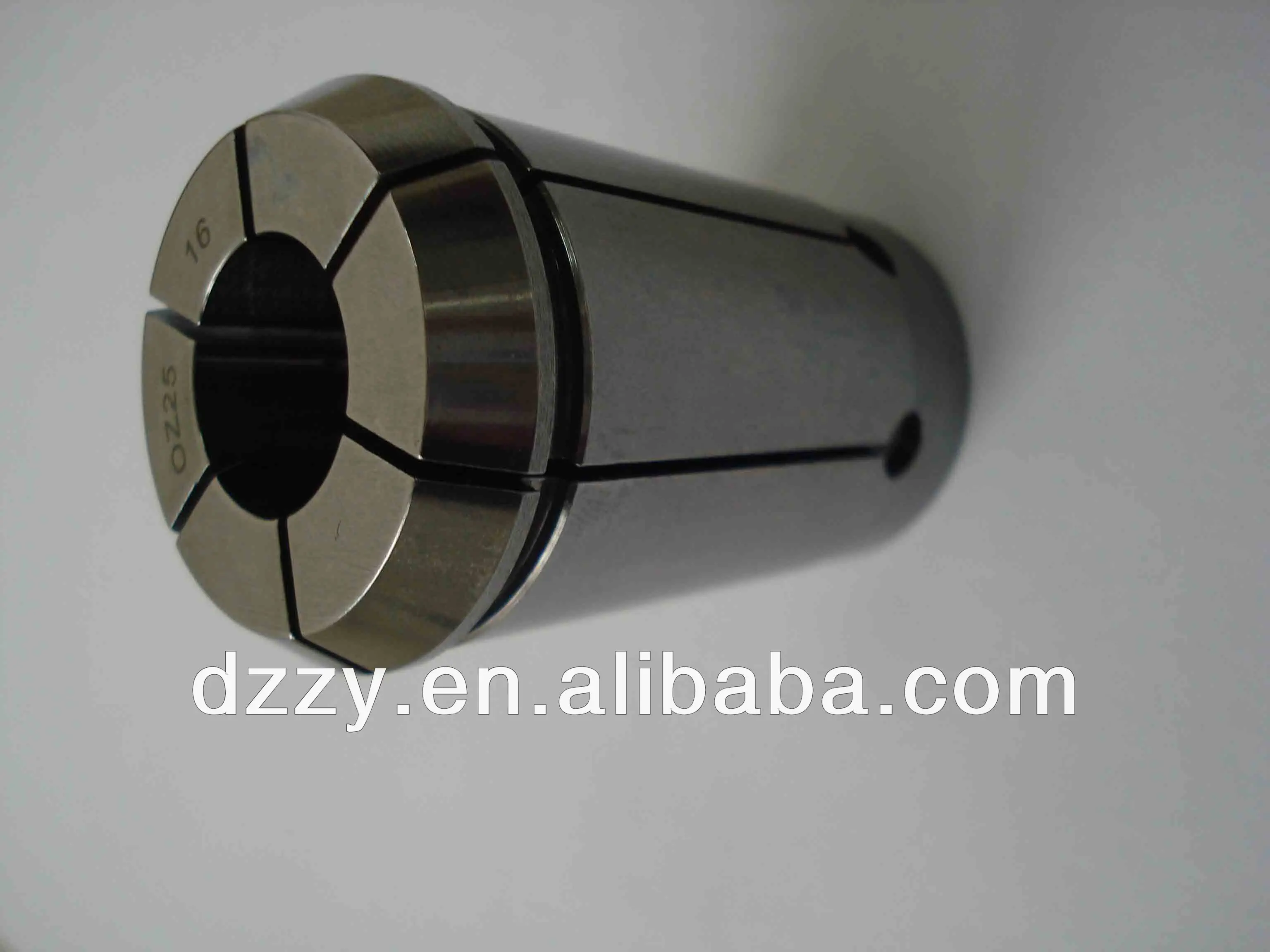

DIN6388A OZ or Eoc collet:
1.Material:65Mn
2.hardness:Hrc44-48
3.the sizes details are given below:
| model no. | D | D1 | d | L | L1 | L2 | L3 |
| EOC/OZ6A | 10 | 11.5 | 1-6 | 21 | 3.5 | 0.5 | 4 |
| EOC/OZ8A | 12.65 | 14.5 | 1-8 | 26 | 4 | 0.8 | 4.5 |
| EOC/OZ10A | 15.15 | 17.2 | 1-10 | 30 | 4.5 | 0.8 | 4.5 |
| EOC/OZ12A | 17.75 | 19.8 | 1-12 | 34 | 5 | 1.1 | 4.5 |
| EOC/OZ16A | 22.65 | 25.5 | 2-16 | 40 | 5.5 | 1.2 | 5.5 |
| EOC/OZ20A | 27.4 | 29.8 | 2-20 | 45 | 6 | 1.35 | 6 |
| EOC/OZ25A | 32.9 | 35.05 | 2-25 | 52 | 6 | 1.4 | 6 |
| EOC/OZ32A | 41.3 | 43.7 | 4-32 | 60 | 6 | 1.45 | 7 |
| EOC/OZ40A | 49.7 | 52.2 | 6-40 | 68 | 6 | 1.45 | 8 |
| EOC/OZ50A | 61.1 | 63.8 | 8-50 | 80 | 7 | 1.55 | 9 |
Remarks:Clamp workpiece or tool shank tolerance h11
