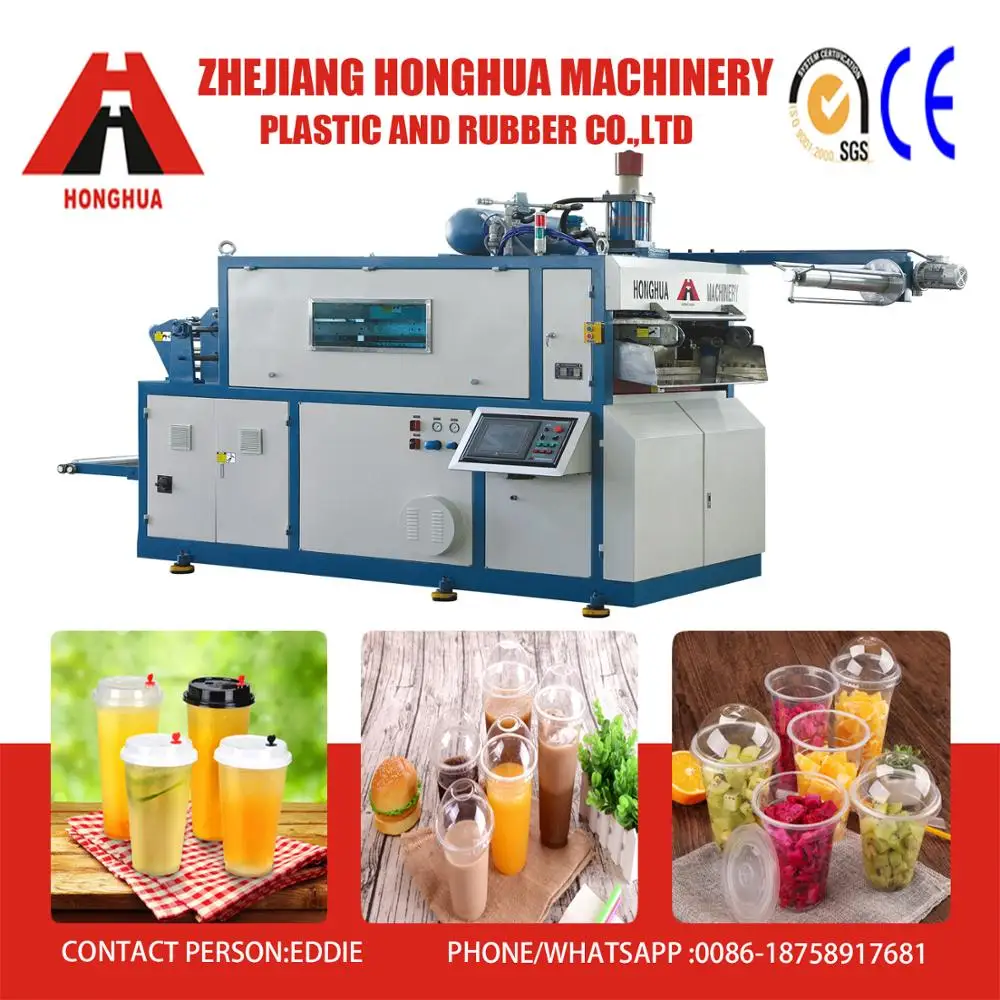

HSC-660A Semi automatic thermoforming machine for plastic products
Product Description
Specification information
Forming area
250X580mm
Forming depth
120mm
Sheet thickness
0.2-2mm
Sheet roller diameter
710mm
Width of sheet
300-600mm
Air pressure
0.7Mpa
Water consumption
100L/min
Air consumption
2000L/Minute
Speed
10-35cycle per minute
Power
380V,50HZ
Heating power
60kw
Main motor power
5.5kw
Feeding motor power
2.2kw
Rewinding motor power
0.37kw
Weight
4000KG
INTRODUCTION:
it is used for forming PP,PS,HIPS,PVC,AND PET plastic sheets,which can be widely used to produce all kinds of plastic boxes,containers and other plastic wares,such as ice-cream cups,milk cups,chocolate package boxes,candy boxes and fast-food boxes etc.
MAIN FEATURES:
HSC-660A thermoforming machine is a combination of mechanical,electrical and pneumatic components,and the whole system was controlled by micro PLC.it is operates with man-interface,which can works all by itself.it combines the material feeding,heating,drawing,forming,cutting and transporting into one process.
