Solar Water Heater (Solar Geyser)

Product Overview

Description

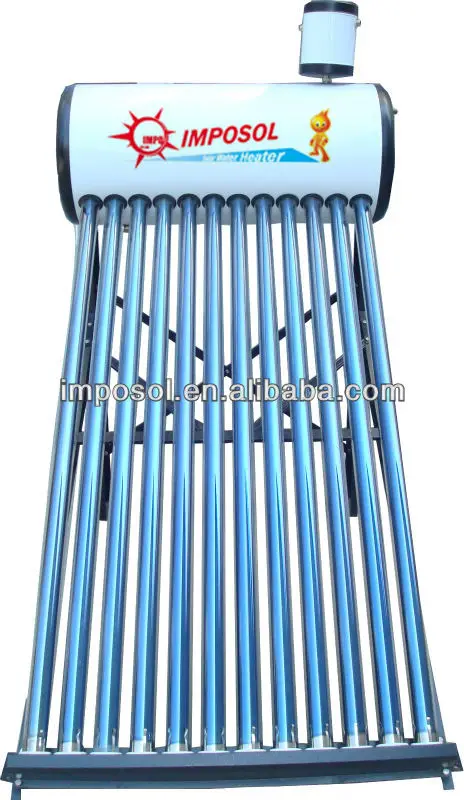

Solar Water Heater (Solar Geyser)

Product name: Solar water heater /solar heater
Solar water heater is a Non-pressure compact system. It's a most economic system with higher efficiency. Working principle depends on Gravity. It'd be installed on the roof as top as possible to get enough hot water flow pressure. The simple controller can be used to show water temperature, level and control cold water supply or electric element work at preset time.

Solar water heater Feature
1) spray-paint and looks like China paint crust
2) Stable and reliable performance and well wind resistance
3) Vacuum heat-collecting tubes at high temperature with new triangle elements
4) Dual-purpose brackets for both flat and inclined roof
5) Meeting the requirement of washing clothes, abstersion and bathing
6)Economical goods

Solar water heater Specifications:
1) Thickness of bracket: 1.5mm
2)-1 Heat-pipe tube: 58mm x 1.8m -47mm x 1.5m

   -2 Glass vacuum tube: 58mm x 1.8m  47mm x 1.5m thickness:2.0mm

3) Inner tank: SUS304-2B food grade stainless steel

4) Outer tank: Colorful steel
5) Capacity: 98/110/130/150/180/210/240/300/300L
6) Insulating layer thickness: 50mm - 60mm
7) Inner tank thickness of: 0.8mm

8) Tank diameter: 470mm/420mm
9) Pressure: 0PA
10) Heat preservation: 72hrs
11) Hail resistance: 25mm



MODEL	Lighting	vacuum tube			Cubage	GW	Qty.per20’/40’
	(m2)	diameter	length	No.	(L)	(kg)	Container
420-1500/47-18-C	1.95	Φ47mm	1500mm	18	100	62	60/116
420-1500/47-20-C	2.2	Φ47mm	1500mm	20	111	68	56/108
420-1500/47-24-C	2.55	Φ47mm	1500mm	24	133	76	47/91
420-1500/47-30-C	3.1	Φ47mm	1500mm	30	166	86	37/95

MODEL	Lighting	vacuum tube			Cubage	GW	Qty.per20’/40’
	(m2)	diameter	length	No.	(L)	(kg)	Container
470-1500/47-18-C	1.95	Φ47mm	1500mm	18	139	68	56/108
470-1500/47-20-C	2.2	Φ47mm	1500mm	20	150	72	48/93
470-1500/47-24-C	2.55	Φ47mm	1500mm	24	179	79	41/79
470-1500/47-30-C	3.1	Φ47mm	1500mm	30	226	91	34/65

MODEL	Lighting	vacuum tube			Cubage	GW	Qty.per20’/40’
	(m2)	diameter	length	No.	(L)	(kg)	Container
470-1800/58-18-C	2.66	Φ58mm	1800mm	18	150	84	41/79
470-1800/58-20-C	2.99	Φ58mm	1800mm	20	165	90	37/71
470-1800/58-24-C	3.56	Φ58mm	1800mm	24	200	110	32/61
470-1800/58-30-C	4.42	Φ58mm	1800mm	30	250	130	25/48
