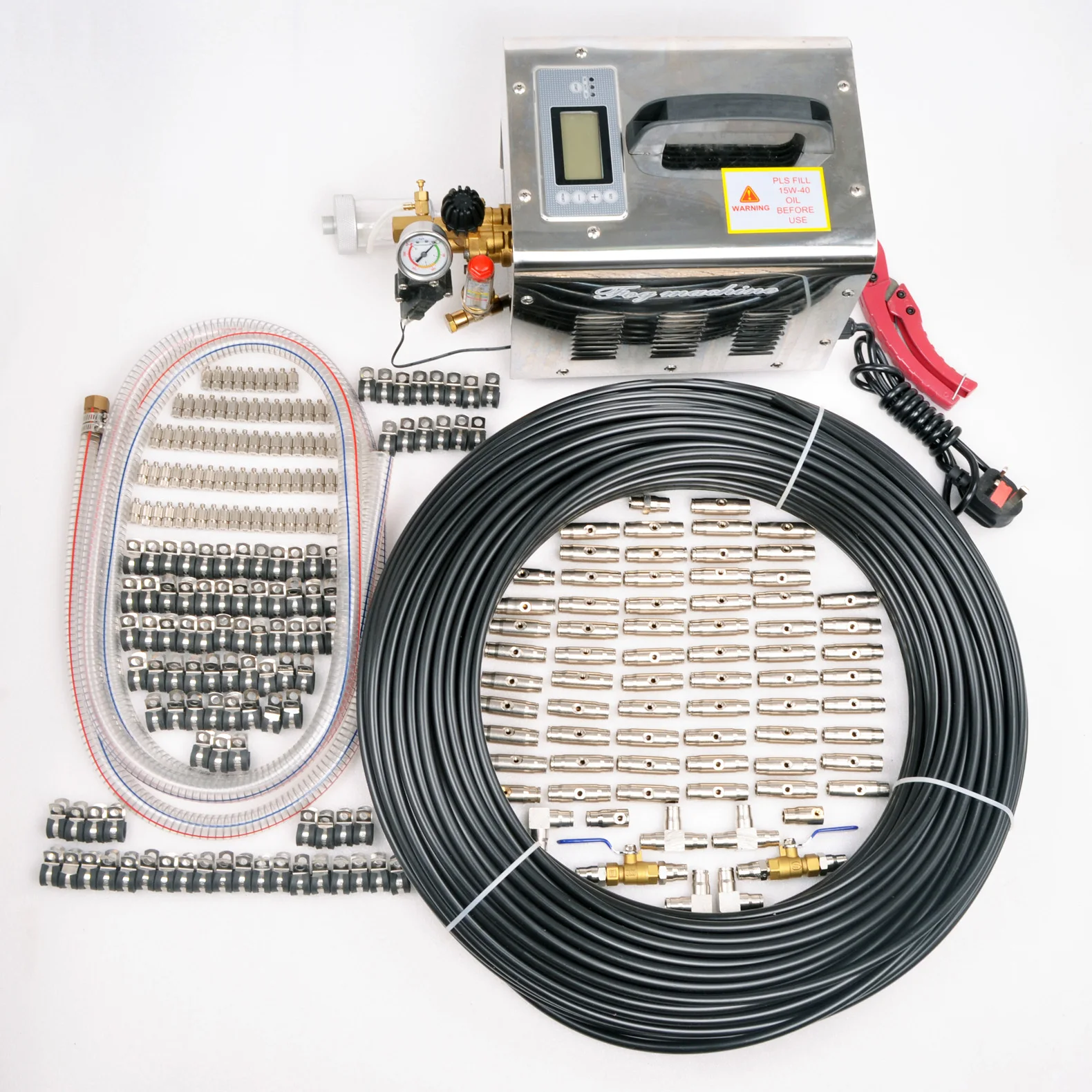

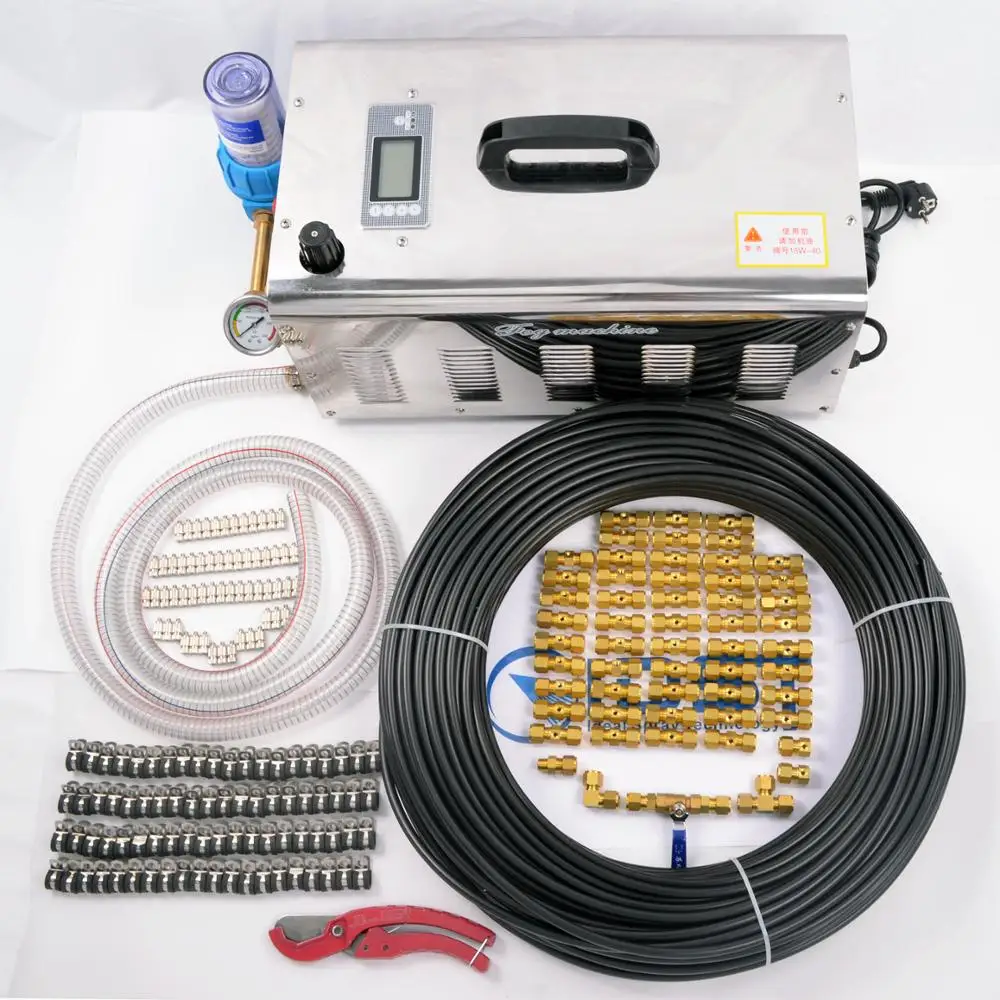

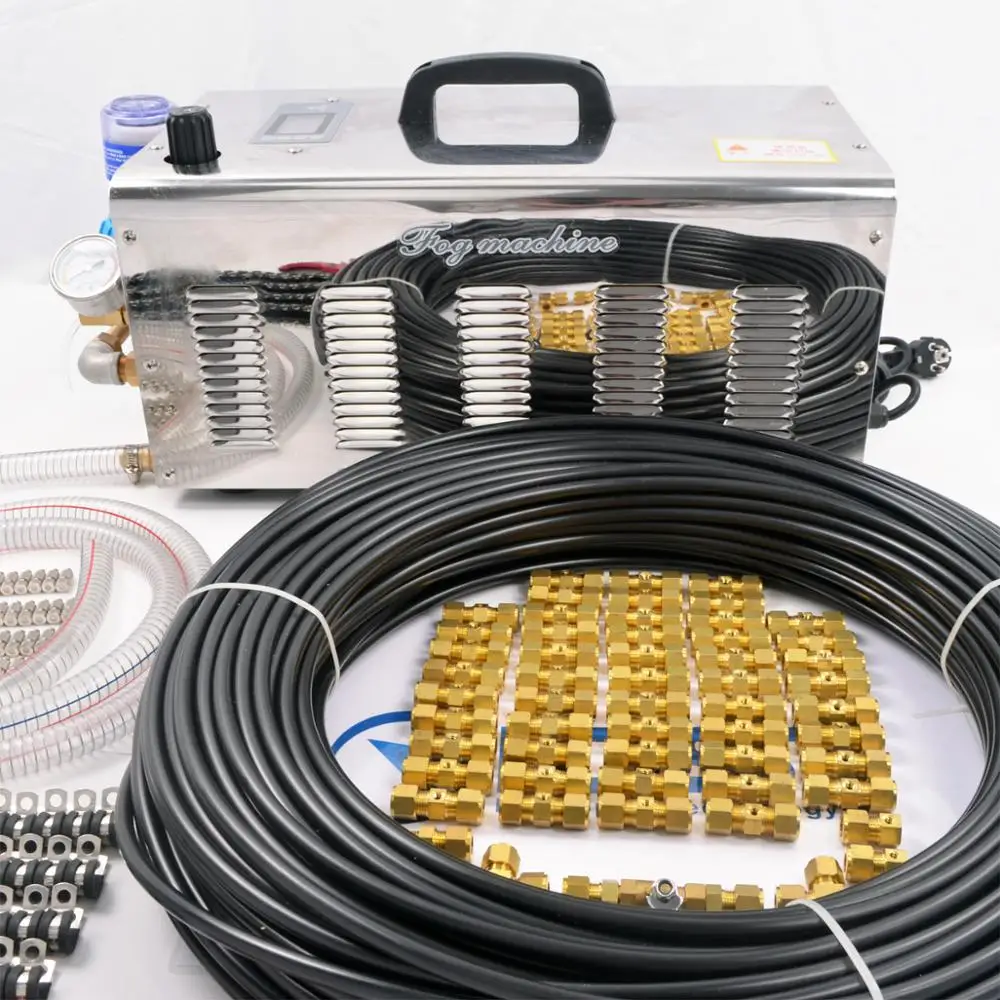

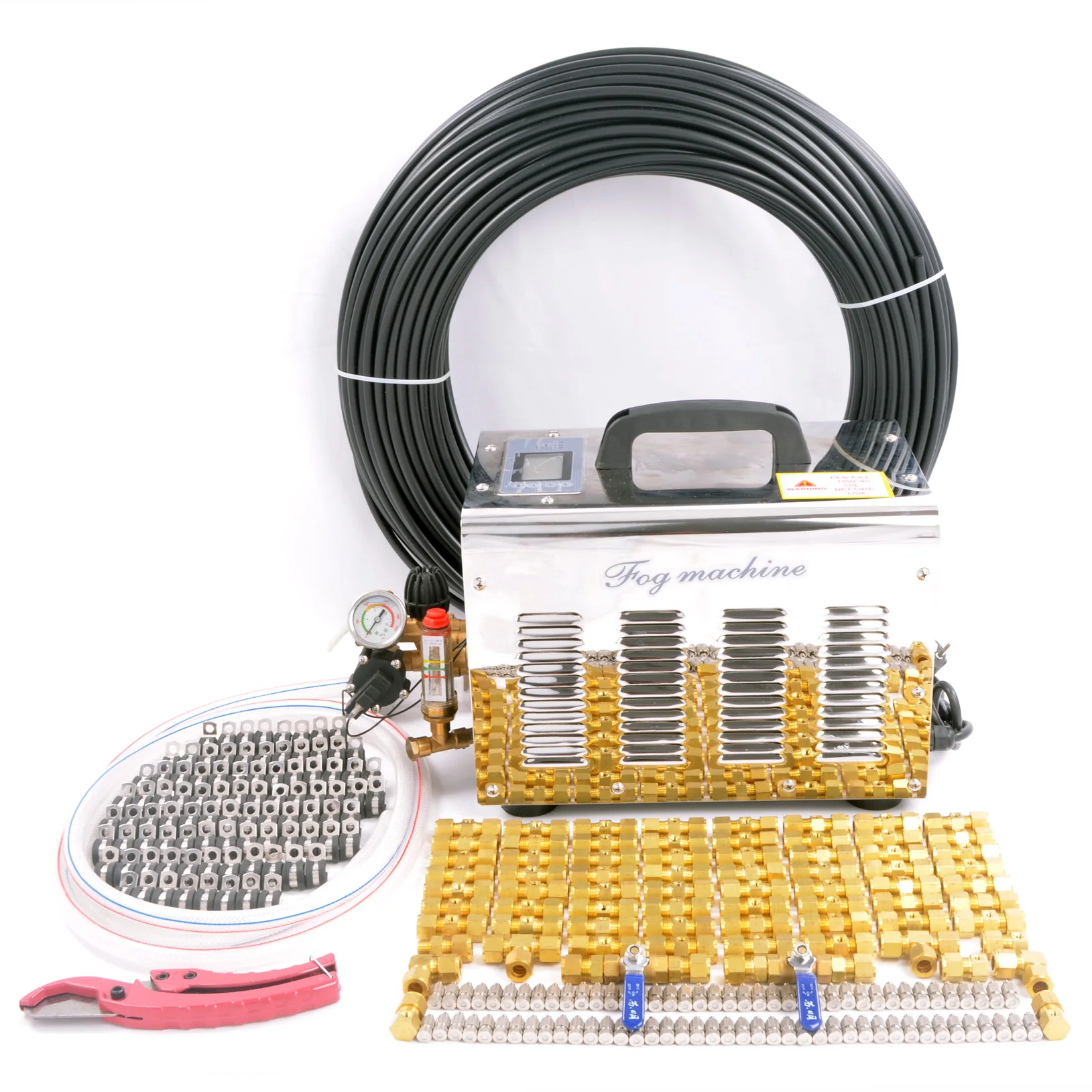

1000PSI high pressure fog machine spray water misting system for restaurant greenhouse mushroom house outdoor poultry cooling

Share on (523873924):


Price:RUB 22,876.55 - RUB 221,879.58

Quantity:


Product Overview

Description

HIGH PRSSURE MISTING SYSTEMS - THE OUTDOOR AIR CONDITIONER
High pressure misting systems are best patio misters and the most efficient and economical way for outdoor cooling and
mist landscape.Adding humidity and cooling with water fog is eco friendly and cost effective. Maintaining proper humidity levels can be crucial to manufacturing efficiency, avoidance of static buildup, preserving product quality, and the safety and comfort of workers. With over 10 years in the industry, we have the expertise to simplify the process. Whether for cooling, humidification, greenhouse propagation or dust/odor control, we can help define the products and the placement of the system to provide maximum performance.
Another benefit of high pressure misting system is how little energy it uses. It uses roughly 80% less energy than an air
conditioner -- not that you would lug an air conditioner into the dugout. In fact, even if you were to bring that air conditioner
along, it wouldn't have nearly the open-air cooling power of a misting system. So, for less energy (which means less money), you
get a more powerful outdoor cooling system. And, since it doesn't use freon, it is more environmentally safe, too!

Our industry leading misting systems utilize ultra fine water “Mist” droplets to reduce outdoor temperature up to 30 degrees. Mist cooling is one of the most cost effective, and efficient, methods available for cooling open outdoor areas which cannot be covered by AC units. Our quality mist systems are cost fractional compared to our competitors. Mist cooling kits force water through our specially designed misting nozzles to create a fog of ultra fine water/mist droplets. The finer the mist, quicker it will evaporate, creating a immediate cooling zone. We utilize evaporative cooling and the science of thermal dynamics; that is, the fact that water requires energy to evaporate. In this case, energy comes from sun. Exchange of sun’s energy will result in evaporation of the mist and drastically lower the ambient temperatures.
Someone else was faster? You can find our online price list of standard high pressure misting system here.
Please click on the required misting system.

7.0 L/Min high pressure misting system
2.0 L/Min high pressure misting system
28/.0 L/Min high pressure misting system
3.0 L/Min high pressure misting system
1.0 L/Min high pressure misting system
0.3 L/Min high pressure misting system
3 L/Min push in fittings misting system
1 L/Min push in fittings misting system
0.3 L/Min push in fittings misting system
Thanks to extensive standardization of the most common misting system, the costs for your desired misting system are reasonable –and can be calculated exactly. We will gladly answer any questions you may have and provide you with further information at any time. If required,we will also provide you with an individual quotation matched to your needs and wishes.
IDST(Ideal Spray Tech.Co.,Ltd.) is now focused on producing variety of mist-fog nozzles, mist fans, portable misting systems, line based misting systems, and insect/mosquito control systems. Our highest quality mist systems for indoor and outdoor cooling, industrial cooling, dust suppression, odor control, humidification or special effects. We always try to provide our customers with the best selection of low, medium, and high pressure misting systems and parts available on the market today. from our complete misting systems, add on kits and high efficiency portable mist fan systems, to our largest custom built misting system.
Talk to us: You want to know it exactly? Then you are in the right place with us. We are happy to advise you and look forward to your call at AlibabaApp, WhatsApp: +8613728795801, Mobile :+86 13728795801, Phone +86 755 86381258. Or simply send an inquiry online / an e-mail.
Our product range includes stainless steel fog lines, a proprietary line of cooling and humidification misting fans, specialized
humidity and temperature controllers, and both standard and cleanable fog nozzles. Our product range also includes standard and custom pump designs. The pump selection provides an extensive list of custom pump additions including variable frequency drive, 1 phase or 3 phase voltages, multiple zones, remote control capability, and integration with existing controllers and low voltage signaling.
Perfect entry level misting system for residential or light commercial misting application. Instantly reduces temperatures up to 30 degrees. Please select the pump type you want - based on your requirements.
Our high pressure utilize the 1000 PSI and 1500 PSI misting pumps for finer mist. Our 1500 PSI misting pumps come equipped with improved safety and performance features for better performance of misting systems for residential, restaurant, commercial and industrial misting system applications.

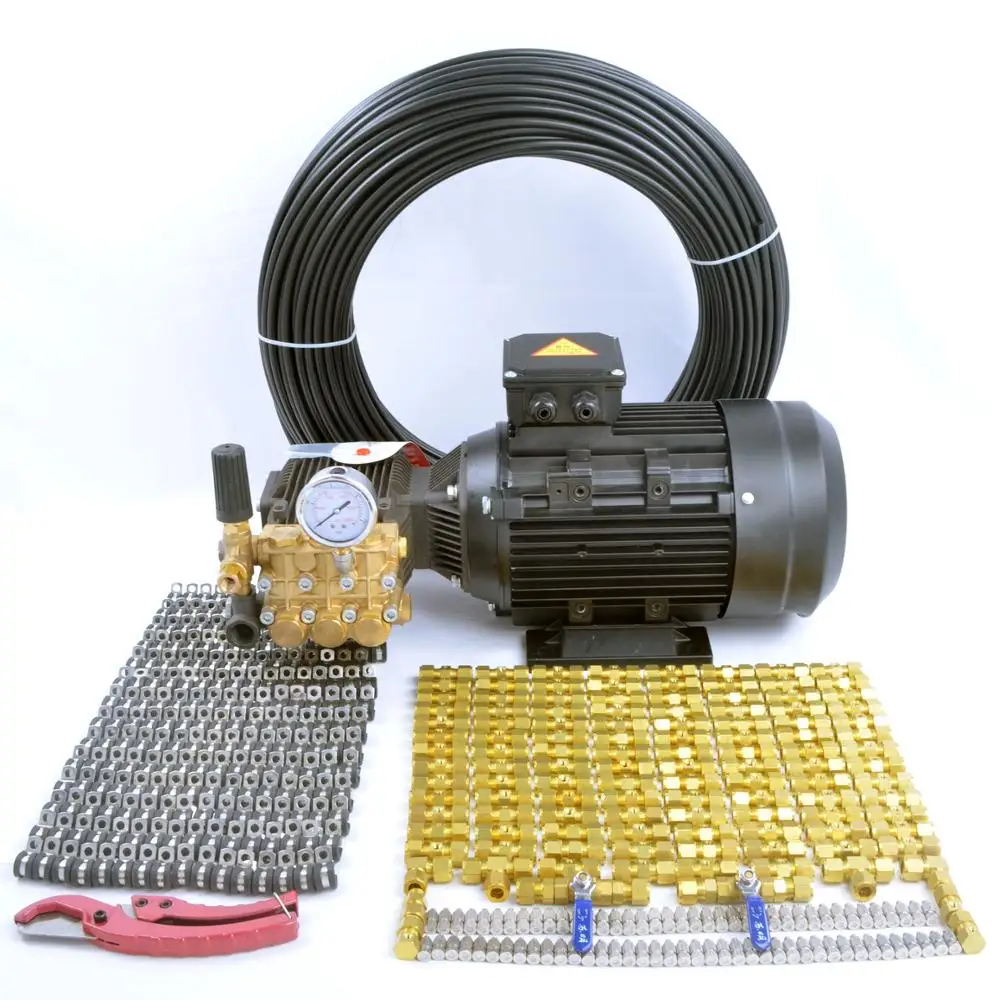

Commercial misting sytsem with 1500PSI high pressure mist pump rated for industrial misting applications.
1
1500 PSI misting pump
2
3/8 Inch OD flexible nylon tubing
3
 3/8 compressiion misting parts and accessories
4
For large scale commercial misting applications including data centers, AC pre-cooling, dus suppression misting
5
Add elbows, unions and 3 way tees to customize your misting system
Product Paramenters
High-quality misting nozzles
The misting nozzle converts ordinary water into billions of micron-size water particle when operated at 1000 PSI or higher pressure. It’s generates 10~15micron size water droplets which flash evaporate when floating through the air. The evaporation of 1kg of water gives the same cooling effect as the melting of 7 kg of ice, which is the most nature way to lower the temperature.
High pressure misting kit with high-quality misting nozzles, easy installation, and unparalleled performance to create a cool
outdoor space. Perfect nozzle technology to solve different misting tasks. In addition to instantly available precision nozzles
and suitable accessories, we also offer industry specific and customer specific solutions (engineered solutions) to meet your
individual requirements. With over 19 years experience and 1,000,000+ nozzles shipped, you can trust us with your spray
application. Call or contact us today to learn how partnering with IDST can make your project a success.
Our high pressure misting system kits are designed to perform flawlessly and will instantly create cool, comfortable environment
without sacrificing the looks of your outdoor living space. All kits are expandable and be customized to your specifications. Our
stainless steel mist line combines the most elegant looks with lifetime warranty. All mid pressure mist systems come standard with our exclusive cleanable misting nozzles. These nozzles are specially engineered and has longer lifespan so you can save money. Our high quality UV treated flexible tubing and push lock fittings will last for years to come. Our misting systems provide great relief for dairy cows, cattle, poultry and horses during hot summer weather. Our misting fans can be used to cool athletes at
various sporting and outdoor events. Our tent misting kits are very economical and simply great way to stay cool under the sun.
Perfect for any outdoor activities.
Nozzle Testing
To ensure quality results, each nozzle is tested 100% electronically for capacity and spray pattern.
Precise measurements have long been the basis for clearly defined spray characteristics at IDST. We attach great importance to the right nozzle measurement technology. Only the reliable detection of all functional parameters can turn a nozzle into a precision nozzle. This is the reason that we operate a large number of test benches, which are tailored to the respective field of application of our products. This allows us to document the parameters relevant to the particular nozzle application helping us to develop the optimal nozzle. For our customers this means: time savings, cost reduction and planning security.
Our company follows a path of continuous improvement of efficiency, that goes from a proper order handling, product quality and
delivery times, to the choice of the most appropriated packing materials.
We shall be happy to welcome our customers when willing to visit our engineering office, laboratory, quality control department and some production departments. Some of our machines and their operation, having been studied and developed from our company, also can be shown to visitors. All our products are designed and built in our workshop in Shenzhen, or in additional workshops belonging to our group, which gives us full control of all manufacturing operations.
Nozzles are used in many different applications. This results in various requirements for the nozzles. One of these requirements is the right spray form suitable for the respective procedural process. Our technological capabilities in our in-house laboratories and facilities, allows us to perform accurate measurements to optimize nozzles and improve their efficiency. Our laboratory, one of the best in China for the study of spraying products and systems thanks a high-level scientific instrumentation, is also available to our clients for running tests under real operating conditions.
Success can be measured.
Water droplet size that makes up the mist is the determining factor of the cooling effect. Evaporation of each of the little
droplet is what cools the air around, compared to smaller droplets; bigger ones take just about one thousandth of a second longer.
Chances are there for you to get wet, if they land on you before they are evaporated completely, on the other hand, if you end up
being in a fairly dry air, this can feel amazing, as the water evaporates off of your skin. Nevertheless, in case of extreme humid
weather it can turn out to be uncomfortable. The smaller droplets evaporating mid-air creates a stronger cooling effect which is
coined as flash evaporation.
If the diameter of mist dewdrops is condensed by one-half, the amount of droplets produced with a
given volume is amplified by octa counts.
Increasing twofold the droplet diameter will cut down the number produced by octa counts.
Listed below are the nozzle sizes' using 1000 psi / 70 bars and it denotes sampling of water droplet sizes. Measured in
microns, this will help out in estimating the water use of a misting system. 1 micron is .001mm; let's have a look at the nozzle
size and the droplets range
.012" / .3 mm - 1.6 microns to 39.1 microns
.008" / .2 mm - 1.4 microns to 37.9 microns
.006" / .15 mm - 1.2 microns to 36.4 microns
When you are aware of the water pressure you want to use then you can pick out a mist nozzle. For instance, if you choose a nozzle that uses 13.5 GPH (gallons per hour) / 51.1 LPH (liters per hour) (ballpark figure), this multiplied by the number of nozzles say 5, then it would come up to 13.5 GPH / 51.1 LPH multiplied by 5 = 67.5 GPH / 255 LPH.
Taking this a step further to estimate the water use, you will have to append the running hours of the system. For example, if its
5 hours, then 67.5 GPH / 255 LPH multiplied by 5= 337.5 gallons /1275 liters per 5 hours.
We offer the perfect conditions for practically-oriented tests andanalyses with state-of-the-art test benches, advanced nozzle
measuring technology and a high-performance infrastructure. For us, for you and for your customers.
We are now opening this test environment to you for the first time. We will gladly compare different products for each scenario – also with those of the competition. So you can decide for yourself: objectively, fairly and under the same conditions for all.
Application
For those that demand the very finest and for larger cooling projects we offer our 1000 PSI system that can be used in even the
most humid environments. Our high pressure misting systems have been featured around the world and deliver a premium cooling experience for guests, employees, athletes, personal enjoyment, and restaurant patios. These misting systems can also be used for ground-scape effects and dust and odor suppression. The combination of high pressure and tiny misting nozzles combine to produce incredible results that do not wet furniture or people, but rather just cool the surroundings.
Residential misting, commercial - restaurant cooling,industrial misting systems, sports misting, mosquito-insects control, A.C.
pre cooling-energy saver,livestock-agriculture cooling,garage misting system, greenhouse misting-humidification, special effect
mist-fogging system,dust and odor control, rental & installations, roof cooling, outdoor cooling etc.
IDST(Ideal Spray Tech.Co.,Ltd.) has been an innovative and leading manufacturer of misting systems for over a decade. Our company specializes in producing highest quality misting systems for residential, commercial, industrial and agriculture cooling applications.Because of exceptional innovative products and technical expertise coupled with extensive industry knowledge, our misting products are repeatedly chosen to cool high profile venues such as, international sporting events, famous restaurants, theme parks, major industrial plants, five star hotels and resorts, and for military training.
1
Restaurants - outdoor patios, smoking areas, employee break areas, food preservatives, meat packing
2
Residential - backyard and poolside patios, mosquito control, special effects fogging kits
3
Agriculture - poultry and animal cooling, dog kennels, horse stables, pet cooling
4
Industrial - warehouse and garage cooling, employee heat stress reduction, conveyer belts
5
Pollution Control and Waste Management - dust and odor control, waste water plants, garbage sorting facilities, recycling centers,gas cooling, fly ash treatment
6
Oil and Gas - Drilling and production platforms, petroleum storage and transfer stations, water curtains, toxic gas control, storage tanks, hazardous loading areas, equipment bays, coal conveyors, fueling and vulcanizing cabinets, warehouses, storage, personnel and evacuation structures.
7
Chemical Processing - gas conditioning, humidification, drying kilns, curing rooms, electrostatic precipitators, distribution, mixing, distributing liquids on packing & horticultural beds, scrubbing gases, evaporating ponds, dust control, cooling flue gases & temperature sensitive equipment, pollution control and evaporative cooling.
8
Pulp and Papermaking - Paper shredding, paper dust control, cooling ponds, water pollution reduction, humidification, moistening logs, heat control, heat recovery, debarking, washing.
9
Steel Industry - air pollution control, waste water evaporation, contaminated water elimination, spray coating, dust control at transfer plants, de-mist wash, ice control, hood cooling, hazardous product cooling, evaporative cooling, journal cooling, concrete slab cooling, scale removal, aeration, rust prevention, air wiping, tar chasing.
10
Green Industry - energy reduction systems, data centers, pre cooling systems, chillers, air conditioner pre cooling systems
11
Landscaping - mist scaping - special effects water falls, pool side fog, public park cooling, resorts cooling, rainforest mist effects, kids playground cooling
12
Sports Cooling - sporting arena, football sideline, soccer arena, cricket stadiums, high school sporting events
FAQ
1
Which system is the best choice for me?
Low-Pressure Misting Systems
The systems operate between 40 and 100 psi of water pressure. The variance in pressure is because they operate on your household water pressure and not a pump. Normally built with PVC or poly plastic tubing and are connected to a water hose. Typically found on outdoor patios and the misting will get you wet but cool if you are standing nearby.
Mid-Pressure Misting Systems
The systems operates between 100 and 250 psi of water pressure. A Mid-Pressure Pump is utilized to increase the pressure of the water flow. It is perfectly suited for backyard and patio misting.
High Pressure Misting Systems
The systems operate between 800 and 1200 psi (pounds per square inch) of water pressure. The systems will work very effectively in both low and high levels of humidity. Even when the humidity exceeds 90%, the effects of the system will be felt with the rapid drop in temperature and make you feel cool and more comfortable. High Pressure Systems create the most BTU's, because the systems produce smaller MIST and creating more cooling evaporation. As the micron water droplets flash evaporate they pick up heat from the air, which significantly drops the temperature between 25 and 35 degrees Fahrenheit, without making you wet.
2
Can you help me?
Yes, of course. Let us help you design the right misting system for you. Send a email to us with a description, drawings, pictures of the area to be cooled and we'll design a system that's right for you.
3
I live in a humid climate. Will a misting system work for me?
Yes. The evaporative cooling concept will work any time you are able to achieve evaporation. The more complete the evaporation, the more effective the system will work. For areas with humidity above 80%, temperature reductions will be as high as 10 degrees.For humidity levels between 40% and 80%, temperature reductions will be as high as 20 degrees. Below 40% humidity, the temperature reductions may be as much as 35 degrees
4
Will the misting system cause me to get wet?
You will only get wet if you are standing within 6' of the misting nozzle.
5
What is the water pressure required to create a mist ?
Minimum 35 Psi water pressure which is a city water supply pressure.
6
Can I hook this kit with my garden hose directly?
Yes
7
Do they produce a nice amount of moisture?
Yes, we have various nozzles option for low-high water usage.
8
Will the fog drop or rise?
It depends where and how you install. If you install at the top , fog will fall down. Or you can adjust according where the fog required.
9
Will it be warm or cool?
Off course cool, mist cooling systems, works on the flash evaporative cooling basics, the fine fog flash evaporates upon contact with heat in the surrounding area, effectively removing unwanted heat and reducing ambient temperature.
10
How long do they take to start producing a fog?
Immediately as soon as the misting tubing / pipe filled up with the water.
11
What do I need to buy if I need finer mist?
Higher the pressure - finer the mist, you can buy our low cost mid pressure booster pump working pressure 160 psi.
12
What I need to buy ultra fine mist?
High Pressure Pump / Fog Machine module 750 to 1000 psi would produce a real ultra fine mist like clouds
13
What is the PSI (Pounds per Square Inch) on mid pressure pumps?
We carry two types of mid pressure pumps 145PSI and our latest 160PSI pumps.
14
How long is the power cord on the pump?
All our pumps come standard with 6ft cord with 3 prongs.
15
Is there a limit of nozzles that I can use on each grade?
Yes, each pump has specific flow capcity. Based on that flow capacity, we calculate the number of nozzles that perticular pump can operate without loosing pressure. Please see our "Misting Pumps" and "Fog Machine" category. We have noted the maximum number of nozzles each pump can operate.
16
Can I expand my patio to a tent thats seprate from the patio? And if so what system do I have to have or use?
Most of our systems are expandable. You can expand any system to another part of the house or restaurant as long as you do not exceed the pump's nozzle capacity. For example, if you have a 20 nozzle system installed and your current pump has maximum nozzle capacity of 30. You can easily expand your mist system by additing additional 10 nozzles for the secondary area without affecting the pump performance.
17
Can I ever put 2 pumps toghter to make my pressue higher?
No, this is not recommended and will damage the pumps. We do manufacture high flow pumps for projects that require large number of nozzles to be operated with single pump.
18
Can can combine mosquito and mist cooling system in one?
No. Mosquito control and mist cooling systems are completely different. There are major variations in pump, nozzles, tubing and fittings that each system requires. In addition installation methods and operation times are completely different. Let's just say that, if it was feasable to combine these systems in one, we would have been selling it by now!
19
Can I use a low pressure pump with high pressured material/fittings?
Yes, if the tubing, fitting and nozzles are high pressure rated (1500psi), you can run them with mid pressure pump. This allows you to upgrade the pump in future while keeping the mist line the same..
20
Can I use any cleaning material for my misting system or are there any special chemical to use?
We recommend using our nozzle cleaner to clean the nozzles. It is proven effective to remove rust and scale. It is also FDA approved and environmentally friendly.
21
How far can my nozzles be from the pump to work and does the length of a misting system effect the pressure and quality for the mist?
You can place our mist pump up to 200feet away before installing the 1st nozzle. This will not affect the pressure. All nozzles will spray exactly the same on our pump based systems.
22
How many brackets can a misting fan support?
Misting fan comes with wall mounting hardware.
23
How can I get left over water to stop coming out of my misting nozzles?
You can stop the dripping by using our ANTI-DRIP or NON -DRIP nozzles. These nozzles are available for Mid and High Pressure systems only. Antidrip nozzles will give you "Instant -ON" and "Instant -OFF" effect.
24
What is the difference between the stainless steel and the nickel plated?
Stainless steel nozzles and fittings are made with all stainless steel material. Brass body and brass fittings have nickel plated coating on them to help prevent rusting. Nickel plated nozzles and fittings are the next best thing to stainless steel and allows similar functionality without the higher cost of stainless steel. Our nickel plated nozzles and fittings have passed 100 hour salt misting test and are proven to last in harsh environments. I.e. coastal areas with high salt content in the air.
25
How often should i replace the misting nozzles?
Nozzles will only need to be replaced when they stop misting. Clogging of the nozzles depends on the quality of the water and filter maintenance. Poor quality and lack of proper maintenance will clog the nozzles faster. We offer nozzle cleaning solution and 5 micron filters to increase the life of the nozzles. We also offer scale free filteration that will prevent the nozzles from clogging due to hard water scale.
26
How often should I have my system updated?
Filters should be replaced every 3-6 months on the misting system. If the pump requires oil, it should be changed every 500 hours of run time.
27
How should I keep my system safe and working during the winter?
Misting lines should be winterized and pump should be stored indoors to provent freezing during winter months. All water should be drained from the lines, filter and pump.
28
Can I put any chemical in my misting system to convert it into a misqutio system?
No. Mosquito control and mist cooling systems are completely different. There are major variations in pump, nozzles, tubing and fittings that each system requires. In addition installation methods and operation times are completely different. Let's just say that, if it was feasable to combine these systems in one, we would have been selling it by now!
29
What is the maxium number of nozzles could I use on a low pressure system and can I place more to get a better misting effect?
Most of our systems are expandable. However, on low pressure systems, this depends on the overall pressure available from the water faucet and the total distance. We found that with standard city water pressure (40-60psi), you can run up to 25 nozzles with about 100ft of tubing before you will experience large pressure and flow reduction. All our patio kits are made based on extensive pressure and flow test results so that our customers can get the best cooling results.
30
Can I convert a 110v system to 12vDC system when I require?
This can be done with use of appropriate power inverter. These power inverters convert 12vdc power in to 110vac.
31
What nozzles are best for 1000 psi misting system?
To produce the finest possible mist, we recommend use of 0.006'' or 0.008'' orifice nozzles with high pressure systems. Larger orifice nozzles can also be used if more volume is required. However, doing so may result in larger droplets.
32
How do i care for my misting system?
See our misting system care page.
33
What should I do if misting nozzles plug up?
Cleaning Nozzles - Replace or clear obstructed or clogged nozzles. Nozzles may be cleared by scraping the stainless steel end with flat surface of a knife or screwdriver. To remove nozzle, turn in counter-clockwise direction. Nozzles may be routinely cleaned by soaking in solution of LIME AWAY!" or CLR overnight. Rinse thoroughly after soaking. Replace nozzle by turning in clockwise direction until snug.
34
Where do I place my patio mist line system?
Place mist line around the perimeter of the area to be cooled. This forms a mist curtain, a cooling barrier between the protected area and the outside heat. The mist line should be mounted 8' to 10' above the ground.
35
How much water does a misting system actually use?
This will vary depending on the size of the system and the number of nozzles to be used.
36
Do I need a filter for my system?
Our high pressure systems are with filters. For our low and mid pressure systems you can use our Poly-Phosphate Filters. The unique filters actually accomplishes two things. First, it will filter out any sediment from the water supply thereby preventing it from getting into the mist line and plugging the nozzles. Second, the filter contains phosphate crystals which are designed to surround the hard water deposits (calcium, sodium, and magnesium) and prevent them from adhering to the misting nozzle. This will also help eliminate the hard water buildup and will keep the mist system operating at peak performance for a longer period of time.
37
Is there any maintenance required?
The only maintenance required for a properly designed misting system is a periodic cleaning of the nozzles and an annual check-up for the pump. This check-up may include adding or changing of the oil and tightening or replacing of fan belts (only on the pulley driven pump models), and changing of the filter cartridge. Misting fan systems require very little maintenance. We do recommend some preventative care and cleaning for the nozzles.
38
How many nozzle can I use with the product line? ( High Pressure )
This is depending on the size of the pump and the size of nozzles.
39
Nozzle Questions?
We have answers.
With over 19 years experience and 1,000,000+ nozzles shipped, you can trust us with your spray application.
Call or contact us today to learn how partnering with IDST can make your project a success.
Free System Design
Not sure about what misting system is right for you? No worry. We will provide custom system design and free consultation to our customers. Our push lock fittings require no tools and can be installed very quickly. All systems are customized to fit the space and environment that you wish to cool. We offer a wide variety of outdoor high pressure cooling systems for all applications.
1
What application will this system be used for? (Ex: Cooling Restaurant Patio…)
2
Please send pictures, drawing or a basic sketch of the floor plan with dimensions.
3
Hours per day the system will need to run?
4
Does location have access to city water pressure based water source and electrical? 110vac or 220vac?
5
Will you require fans? If so, what size? 14'', 18'', 24''OSC or 30''OSC?
6
Any controls/timers needed?
7
What is the appx. distance to the proposed location of the pump? (near water/electrical sources)
8
Do you prefer flexible or rigid stainless steel tubing?
9
Any additional requirements?
10
When will you require delivery?
11
What category of mist system are you interested in? (Low Pressure, Mid Pressure or High Pressure?)
Please, take the time to send us your questions, comments, suggestions or feedback. We try to answer all inquiries on the same day.We give the technical problems to our available customers a higher priority.
Contact us
Get In Touch! If you leave us a message with your name and email address we'll get back to you soon.
Within our misting system selections we have low pressure, mid pressure, high pressure and fogging systems to choose from. When exploring a solution to satisfy the cooling needs of your next project or event, please don’t hesitate to share your design
thoughts with our friendly experts so the proper selection can be made. As with all IDST products, what we enjoy most is seeing you satisfied and that leads to the ultimate success of our company.
Please contact us so that we may help you in the selection of misting system that will work for specific application. If you need
a non-standard product or material, be sure to let us know! We pride ourselves on our outstanding customer service, and look
forward to making your next project a success. It is with your vision and ours that we create unheard of solutions to help create
the experience you desire.

0.197 s.
