Pressurized Solar Water Heater Collector With Super Heat Pipe SCM12 58/1800 01
- Category: >>>
- Supplier: Zhejiang Shentai Solar Energy Co. Ltd.
Share on (523900795):
Product Overview
Description
Pressurized Solar Water Heater Collector With Super Heat Pipe SCM12-58/1800-01
Solar Water Heater Collector, Solar Collector, Solar Collectors, Solar thermal Collector
The pipeline is made of all the red copper and conducted By heat transfer medium liquid. Water can't flow in vacuum Tubes and operated when confined. The manifold uses Aluminum alloy mould material of high strength with Air flow design. It is furnished in good style.
Can withstand high pressure when it works.
Module design, arbitrary combination, which can meet the demand of large water consumption.
Manifold (interior): red copper
Manifold (exterior): aluminum alloy
Glass tube dimensions: 58mm x 1.8m
Daily efficiency: ≥55% (≥42% in winter )
Hail resistance: 25mm
max pressure: 12 bar
Coating of vacuum tube: ALN/AIN-SS/CU
Heat Pipe: anti-freezing > -35 °C
Inlet/outlet: 22mm(3/4″)
manifold casing: silver (AL original), Black
Model name | SCM12-58/1800 | SCM15-58/1800 | SCM20-58/1800 |
number of tubes | 12 | 15 | 20 |
Gross size(mm) | 1010*1980 (W*L) | 1235*1980 (W*L) | 1610*1980 (W*L) |
aperture area M2 | 1.108 | 1.397 | 1.876 |
Absorber area M2 | 0.964 | 1.199 | 1.603 |

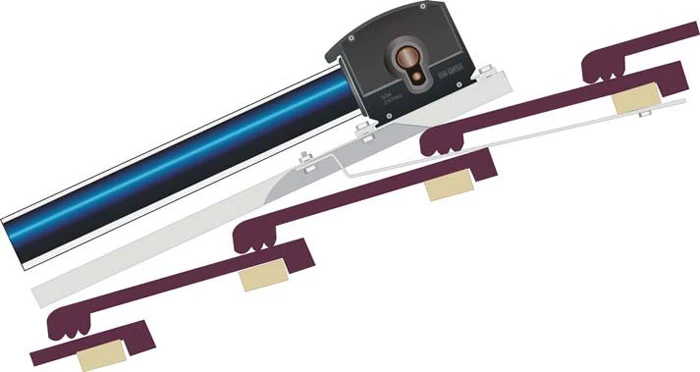

flat roof installation size | 1420*1010*1420mm (L*W*H) | 1420*1235*1420mm (L*W*H) | 1420*1610*1420mm (L*W*H) |
weight empty (KG) | 40.7 | 56 | 64.4 |
fluid volume( L) | 0.8 | 1 | 1.37 |
Heat transfer medium | pure water/glycol | pure water/glycol | pure water/glycol |
working pressure | 6 bar | 6 bar | 6 bar |
Max testing pressure | 12 bar | 12 bar | 12 bar |
Max working temperature | 280°C | 280°C | 280°C |
efficiency n° | 0.788 | 0.79 | 0.795 |
inlet/outlet connection | 22mm | 22mm | 22mm |
manifold packing mm | 1*2000*200*160 | 1*2000*200*160 | 1*2000*200*160 |
tubes packing mm | 1*1940*280*270 | 1*1940*350*270 | 2*1940*350*180 |
certificate | EN12975-1,2 SOLAR KEYMARK | EN12975-1,2 SOLAR KEYMARK | EN12975-1,2 SOLAR KEYMARK |
| |||
Material |
| ||
vacuum tube | high borosilicate glass | ||
size | 58*1800mm | ||
coating | SS-CU-AIN/ALN | ||
heat pipe material | TU1 copper | ||
heat pipe length | 1790mm | ||
heat pipe diameter | condenser dia14mm, body dia 8mm | ||
manifold header pipe | TP2 copper dia 35mm | ||
manifold casing | anodized aluminum alloy | ||
insulation | rock wool with polyurethane foam | ||
bracket | galvanized steel | ||
tube holder | UV stabilized nylon | ||
seals | silicon seal | ||
contact sheets | aluminum fin | ||
