8.5 20 tractor/trailer/truck bus wheel rim

Product Overview

Description

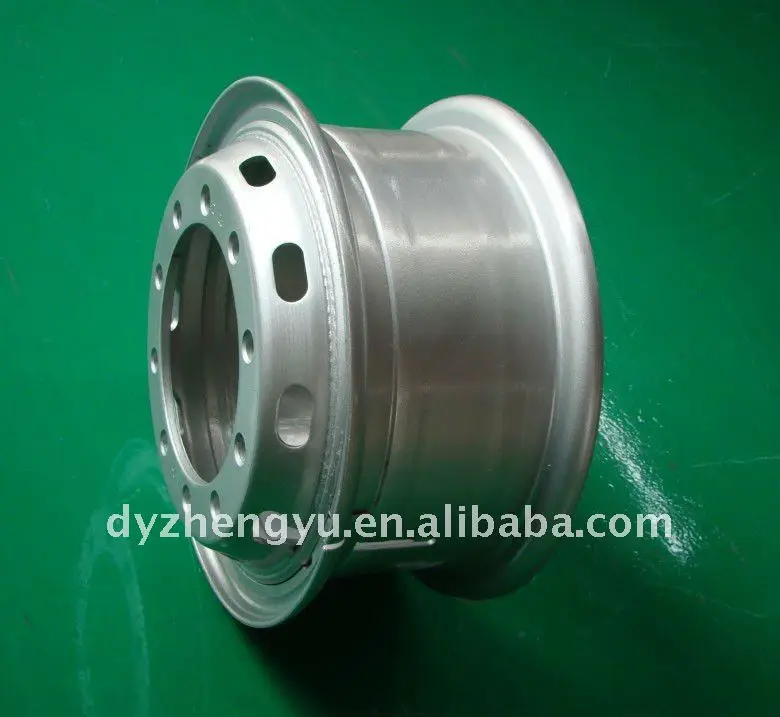

bus  wheel rim 8.5-20
color silver black
certification iso
material T420/T380
10-15 days delivery time

factory directly

non-woven/pallet

disc 14/16mm

rim standard/reinforced

good welding surface



Product range

Tubeless steel wheel   22.5x11.75   22.5x9.00   22.5x8.25   22.5x7.50   22.5x6.75

                     19.5x7.50   19.5x6.75   19.5x6.00   17.5x6.75   17.5x6.00

Tube steel wheel     5.5F-16    6.00G-16   6.50-16   7.00-16

                  7.5V-20    8.00V-20   8.5-20    8.5-24



tube steel wheel rim  truck/tractor/trailer/bus wheel rim



16inch 20inch 24inch wheel rim

bus  wheel rim 8.5-20
color silver black
certification iso
material T420/T380
10-15 days delivery time

factory directly

non-woven/pallet

disc 14/16mm

rim standard/reinforced

good welding surface



Wheel size	Bolt Hole			P.C.D (mm)	Center  Bore  DIA (mm)	DISC  Thick (mm)	Offset (mm)	TEC.TYPE	QTY/20 GP
	Hole  DIA(mm)	NO	NUT Pedestal
8.50-20
8.50-20	26	10	1*45	335	281	16          14	171	12.00-20	320
8.50-20	32	10	SR22	285.75	222		175
8.50-20	26	10	1*45	285.75	220		171
8.50-20	32	8	SR22	285	221		175
8.50-20	32	8	SR22	275	214		170
8.50-20	26	8	1*45	275	221		175
