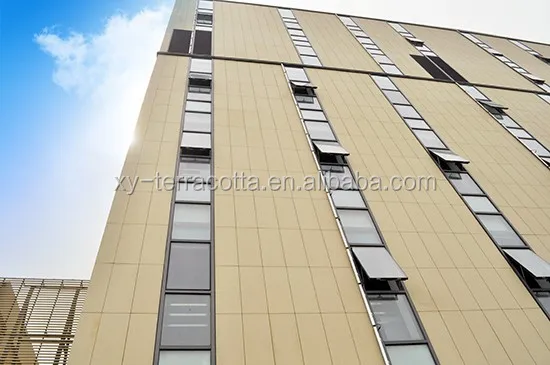

red stone grill for facade wall clading

Product Overview

Description

 Company Superiority



X & Y Terracotta Panel Manuacturing Co., Ltd

Our terracotta plant is located in Fujian Province covering an area of 200,000 SQM

Showroom has an area of 3000 m2 in Guangdong Province.





1) Domestic longest roller kilns in 260 meters keep products in good stability.



2) 80,000 m2 open stockyard and 150,000 tons capacity indoor storage can meet continuous large production needs for 6 months.

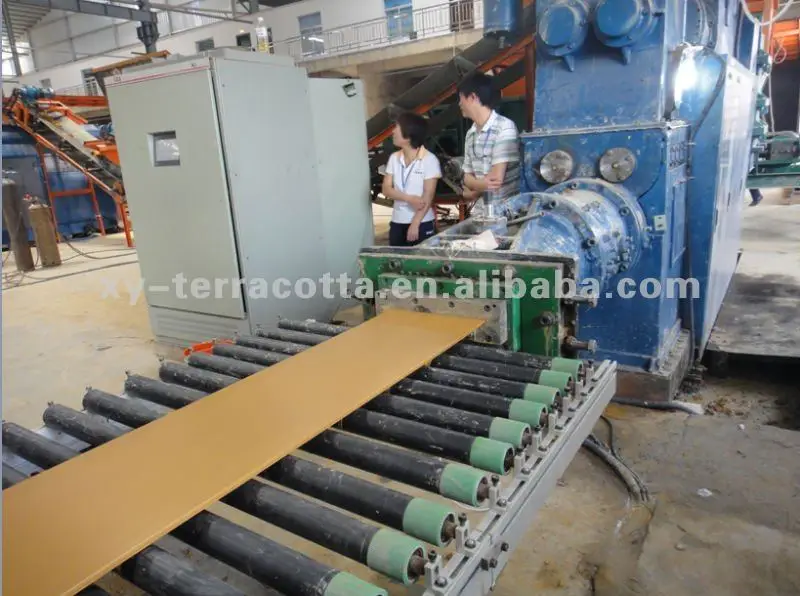

3) Automatic production lines with imported molding machines assure panel quality.



What we can do for you:

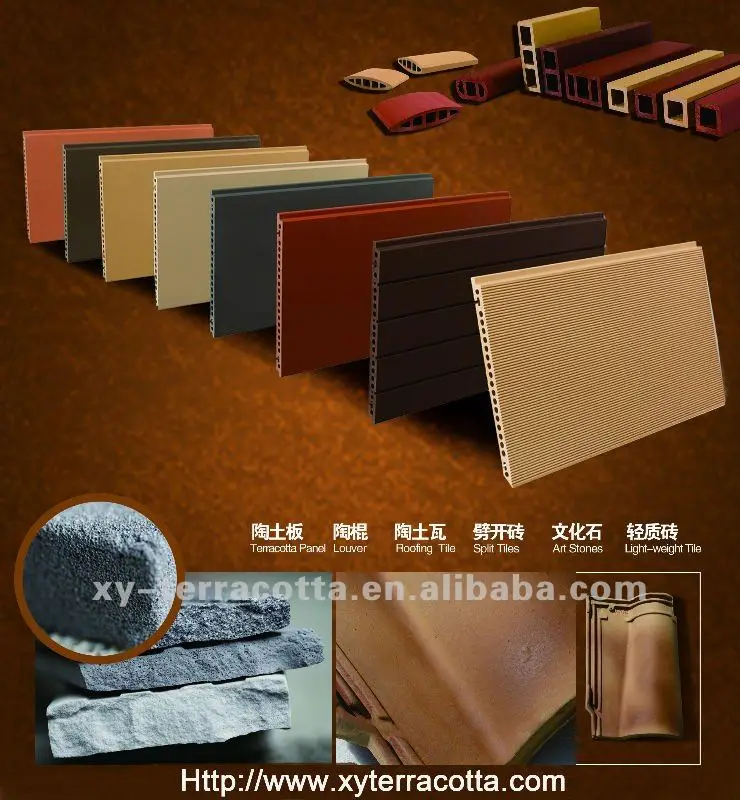

1) Terracotta Panel Products

2)  Full Sets of Fixing Accessories/Installation Elements

3) Technical Consultation

4)  Intallation Instruction

5)  After Sales Service



Contact: Gloria NOW for more information.

Tel:+86-757-83930956

Mobile:+86-15818052805

Skype: gloria-ching08

QQ: 2328758767

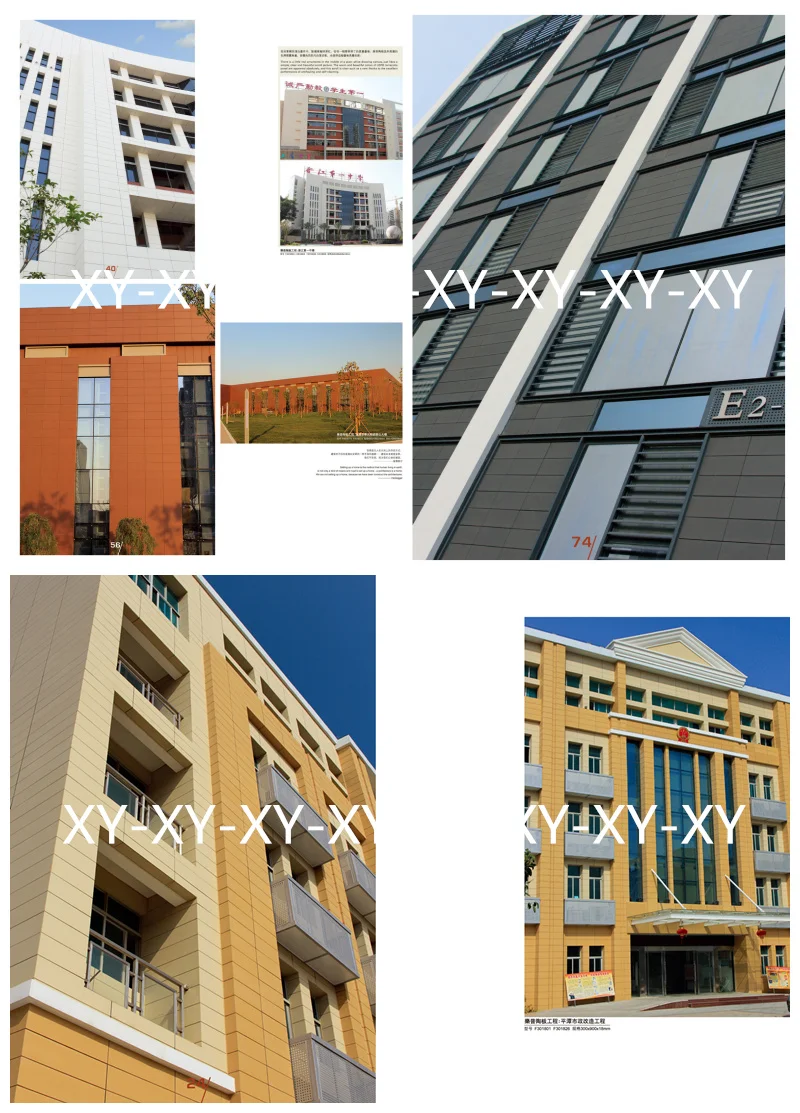

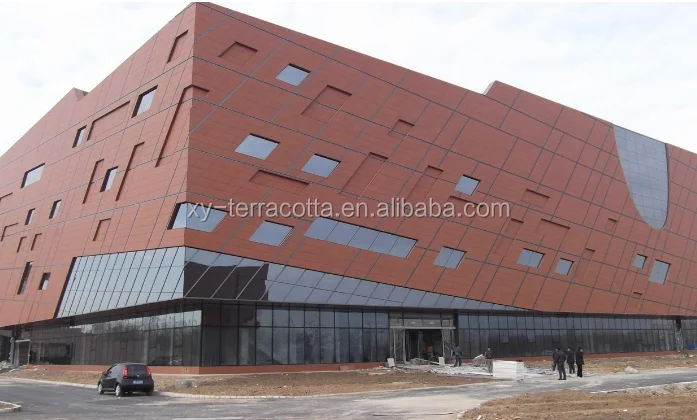

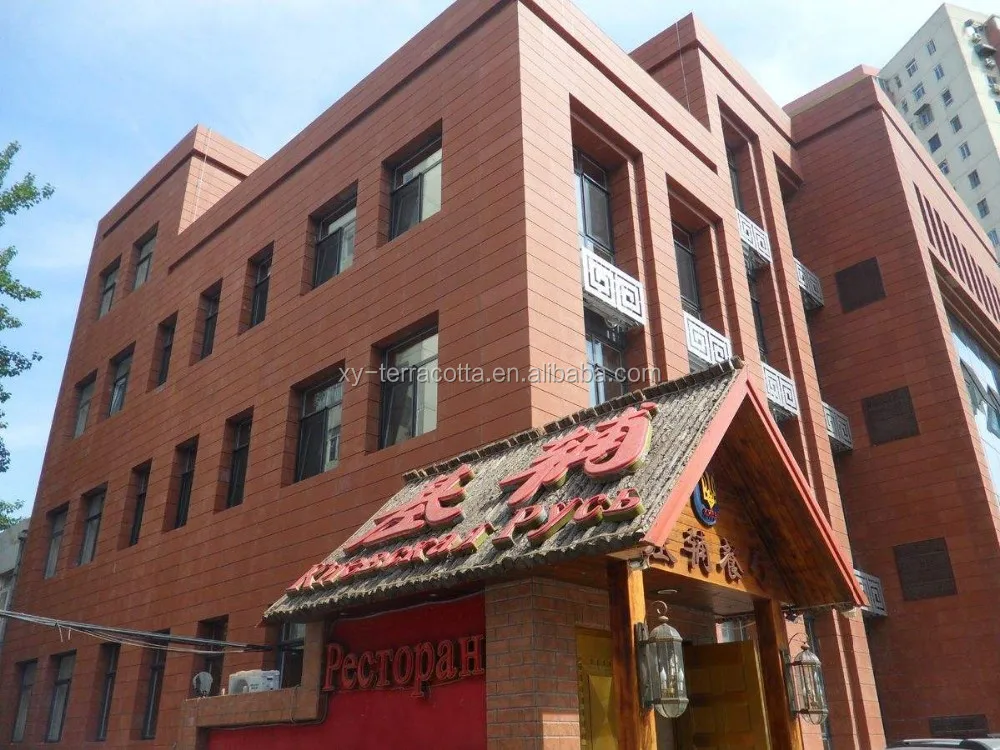

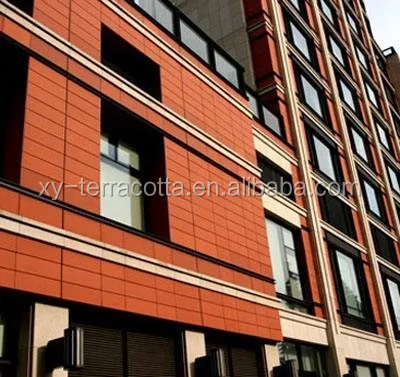

Some of OUR Projects Reference

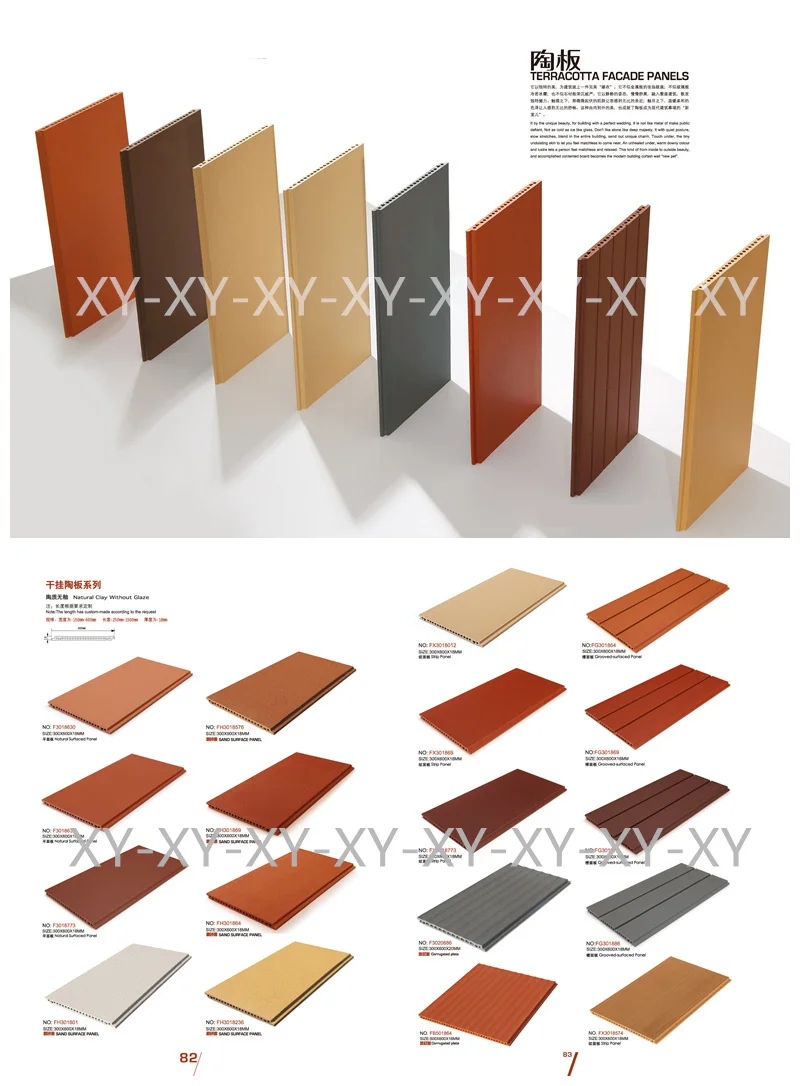

Dry-Hanging Facade Terracotta Panel



Raw material: Natural Clay



Structure :   Hollow



Usage: Exterior wall & Interior wall



Application:

Commercial Building/ Hospital / Hotel / Airport / Subway/Residential Area/ School /Municipal Building/ Theaters / Renovation of Antique Building etc.



Remark:Terracotta Panel HS Code: 69049000, NO European Anti-Dumping Tax

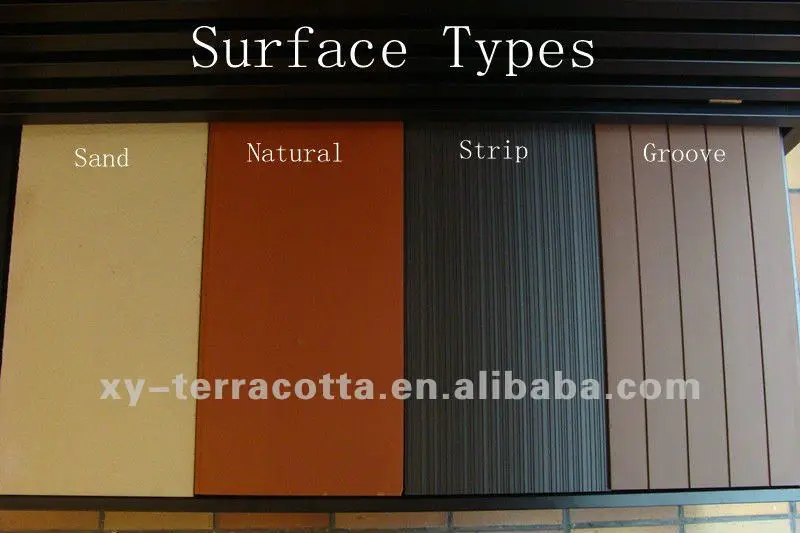

Surface Treatment:

Sand, Natural, Strip, Groove









Normal Sizes:

*Thickness: 18 ,22, 24, 30,45mm

*Width: 300 , 400 ,450 , 500, 600mm

*Length: 250 , 300,450, 600, 900, 1000, 1200,1500mm

*Available Size: 300/400/450/500/600* 600/900/1000/1200/1500*18/22/24/30mm

*OEM and ODM are welcome





Various Colors:

*Red: Bright Red, Coral Red, Burgundy Red, Coffee

*Gray : Light Gray, Great Wall Gray, Deep Gray , Dark Gray

*Yellow : Ivory , Wheat Yellow, Maize Yellow, Orange Yellow



Bright Red, Coral Red are natural colors, which are much ECONOMICAL!







Characteristics:



*Color non-fading

*Eco-Friendly

*Wind-Resistant

*Heat preservation and sound Insulation

*Fireproof & anti-freezing

*No-static and no-radiational product

*Non of the Light pollution

*Light weight

*Self-cleaning





 Products Combination in Projects



1) gradient colors combination        (eg. bright red  & coral red panels)

2) light  & dark colors combination (eg. ivory & great wall grey panels)

3) different types combination         (eg. natural surface & stripy surface panels)

4) different products                         (eg. panels & louvers, panels & glass curtain)



 Ask Gloria for pictures and projects reference.

Email from here or add Skype:gloria-ching08





MAIN HARDWARES







CHOICE 1 : Alumium Short Beam / Alumium Clips / Plastic Sealing



CHOICE 2 :  Alumium Long Beam / Alumium Clips / Plastic Sealing











Easy Installation





Unique dry-hanging installation can lower the cost of the whole curtain wall system as well as increase firmness.



1. Measurement & line laying



Take a theodolite or level to mark the horizontal and vertical lines for supporting poles.



2. Columns  Installation



Secure columns on the main structure with brackets and stainless stell bolts, adjust the verticality of the supporting columns.



3.  Brackets/Supporting Rails Installation



Secure them on the columns with stainless steel bolts/screws, adjust the verticality and horizontality of the columns.



4. Terracotta Panels Installation



1) Apply the adhesive tapes on supporting rails or columns as the joint pieces.



2) Position terracotta panels and clips, adjust the verticality and horizontality of the terracotta panels by clips.



3) Fix panels from bottom up to finish the installation.



5.Sealant Application



There is no need to apply sealant for open system, while for closed system is necessary to do so in the vertical and horizontal joints of terracotta panels.



6. Curtain Wall Cleanup



Cleanse the installed terracotta panels with water.







Packing



1) Net weight: 31kgs/sqm for 18 mm thickness

                         42kgs/sqm for 30 mm thickness



2)Loading: 600-700sqm/19-22tons/20’container for 18mm thickness

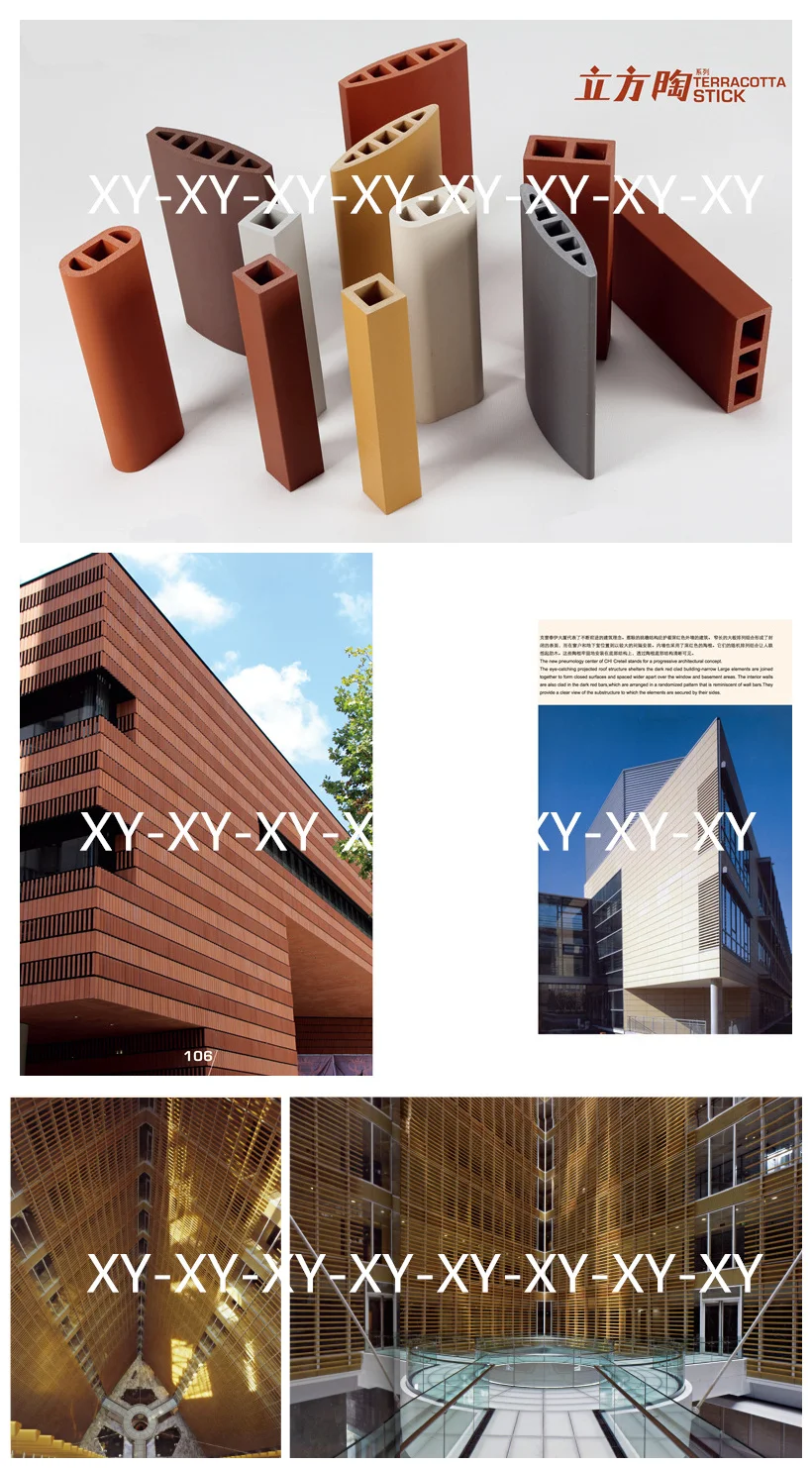

TERRACOTTA LOUVER FOR COMBINATION

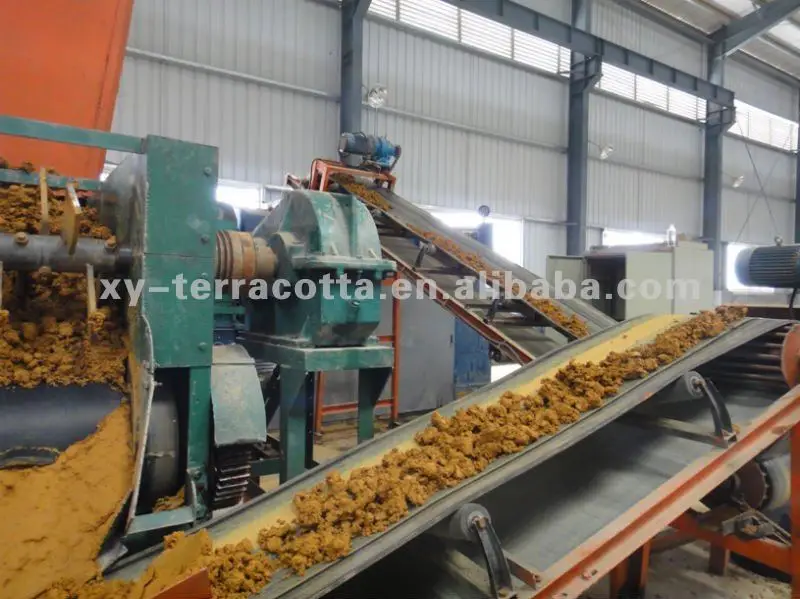

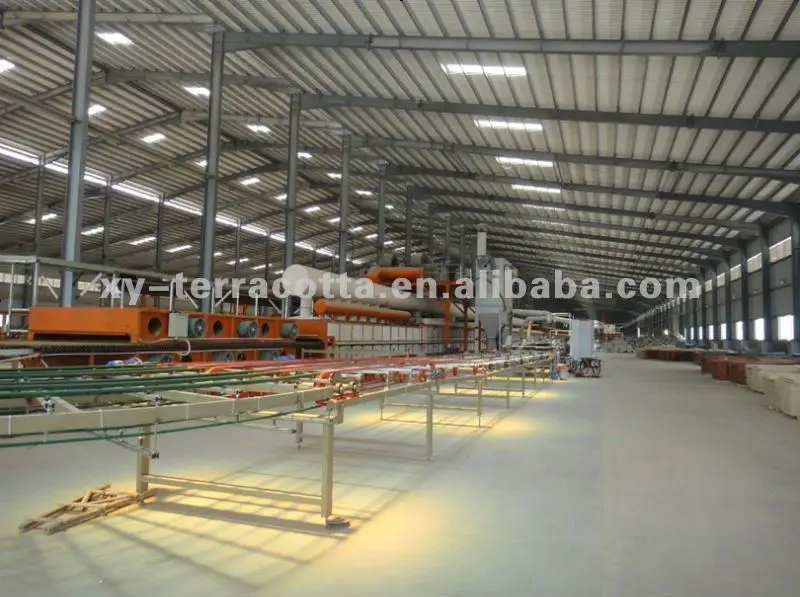

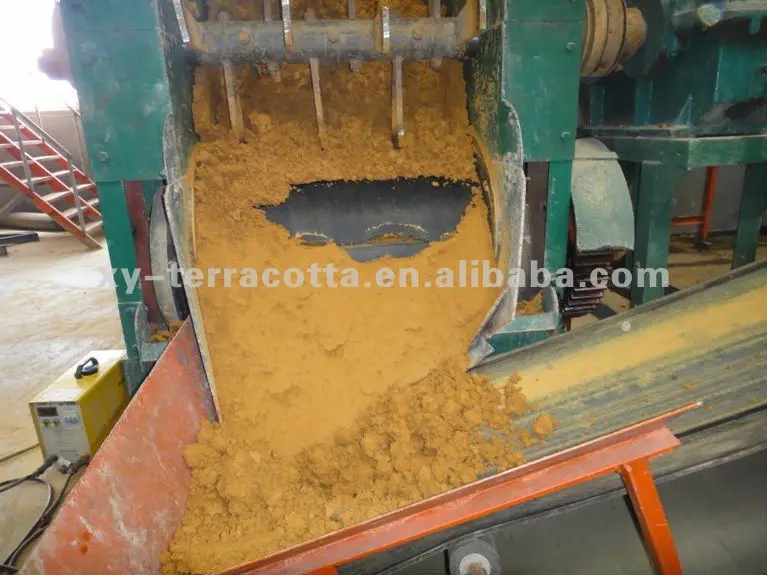

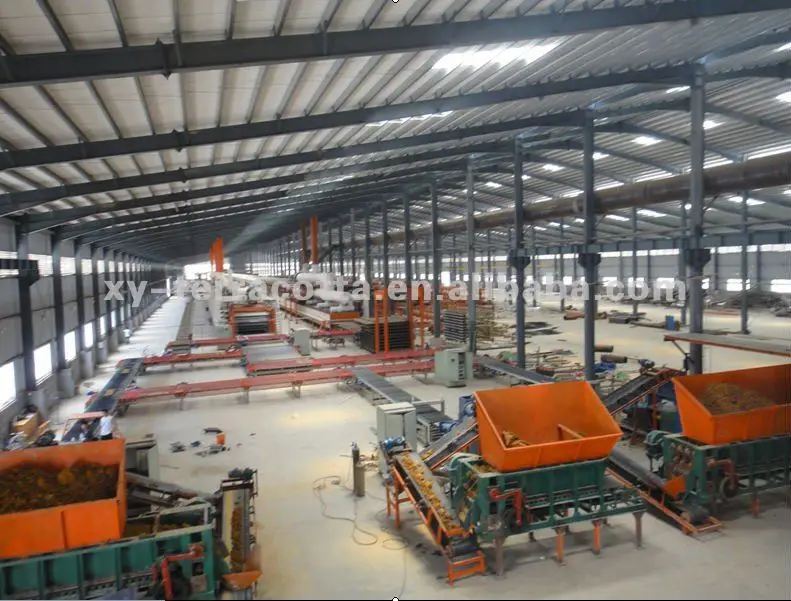

OUR PRODUCTION BASES







OUR SHOWROOM
