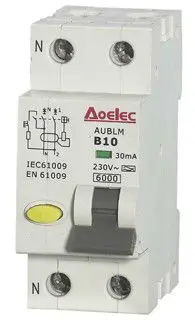

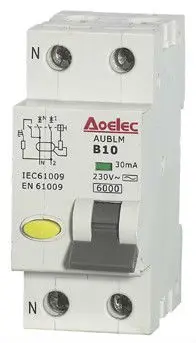

AUBLM Modular Electronic RCD/MCB Combined Device/RCBO

Product Overview

Description

Function and Feature:

Provides protection against earth fault/leakage current,short circuit,overload,function of isolation

Provides complementary protection agaginst direct contact by human body

Effectively protects electric equipment against insulating failure

Provides comprehensive protection for household and commercial distribution systems

Handle can be locked with pad-lock prevent unwanted operation for safety



Technical Data:

Rated current(In):6,10,16,20,25,32,40A

Rated voltage(Un):230/240VAC

Breaking capacity(Icn):6kA

Rated frequency:50/60Hz

Rated residual current:30mA,100mA,300mA

Tripping characteristics:B,C

Number of poles:1P+N

Electrical endurance:4000 cycles

Mechanical endurance:10000cycles

Terminals:pillar type

Cable termination:25mm2

Torque of screw:2.5Nm

IP degree:IP 20

Standards:IEC/EN 61009-1

Catalog No.                                                                                                            CTN Size:48x26x18cm

In(A)	30mA	100mA	300mA	QTY/Box	QTY/CTN
	Model No.	Model No.	Model No.	PCS	PCS
6A	AUBLM 3P+N 6A	AUBLM 3P+N 6A	AUBLM 3P+N 6A	1	30
10A	AUBLM 3P+N 10A	AUBLM 3P+N 10A	AUBLM 3P+N 10A	1	30
15A	AUBLM 3P+N 15A	AUBLM 3P+N 15A	AUBLM 3P+N 15A	1	30
16A	AUBLM 3P+N 16A	AUBLM 3P+N 16A	AUBLM 3P+N 16A	1	30
20A	AUBLM 3P+N 20A	AUBLM 3P+N 20A	AUBLM 3P+N 20A	1	30
25A	AUBLM 3P+N 25A	AUBLM 3P+N 25A	AUBLM 3P+N 25A	1	30
32A	AUBLM 3P+N 32A	AUBLM 3P+N 32A	AUBLM 3P+N 32A	1	30
40A	AUBLM 3P+N 40A	AUBLM 3P+N 40A	AUBLM 3P+N 40A	1	30



About us:



Aoelec Electrical was established in 2003,with 50 office guys and 240 workers now.Our products are present in more than 30 different countries from Middle Ease to South American,from Europen to Australia,from Southeast Asia to North Africa.And our product have KEMA,TUV,SEMKO,CB and CE certificates.
