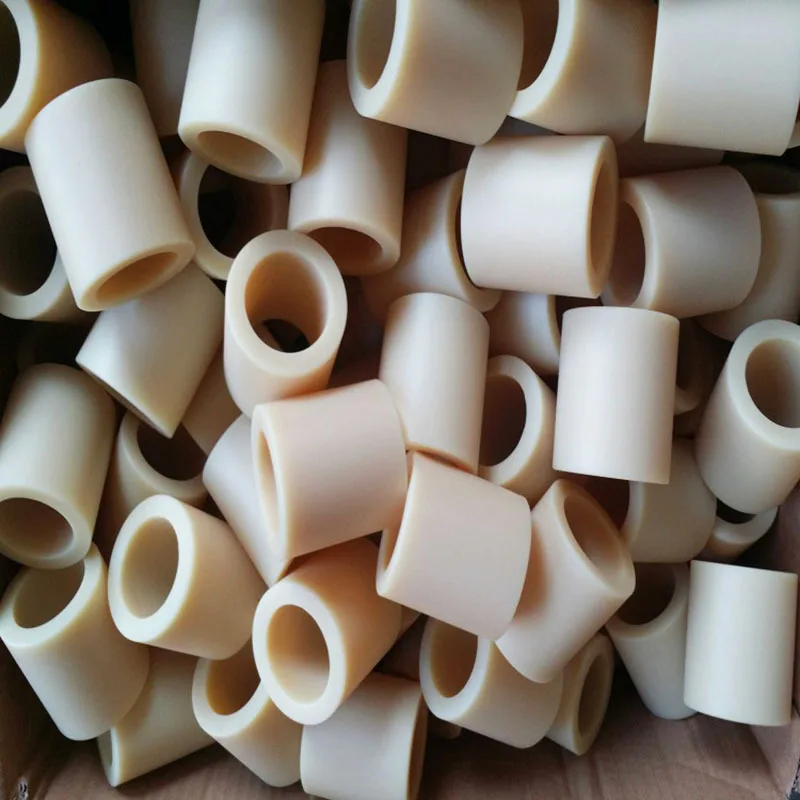

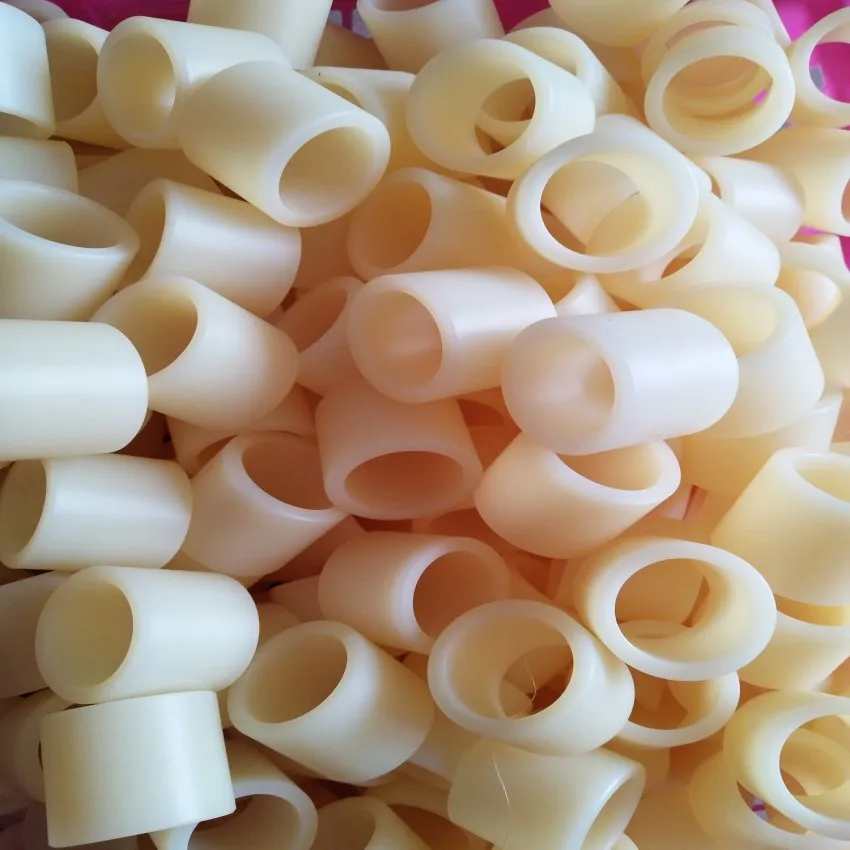

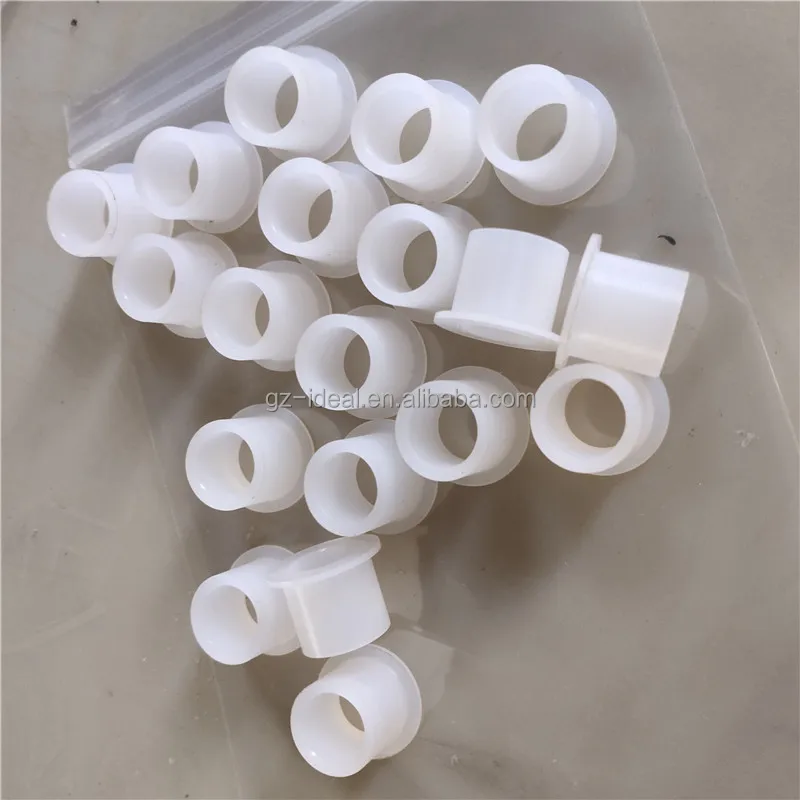

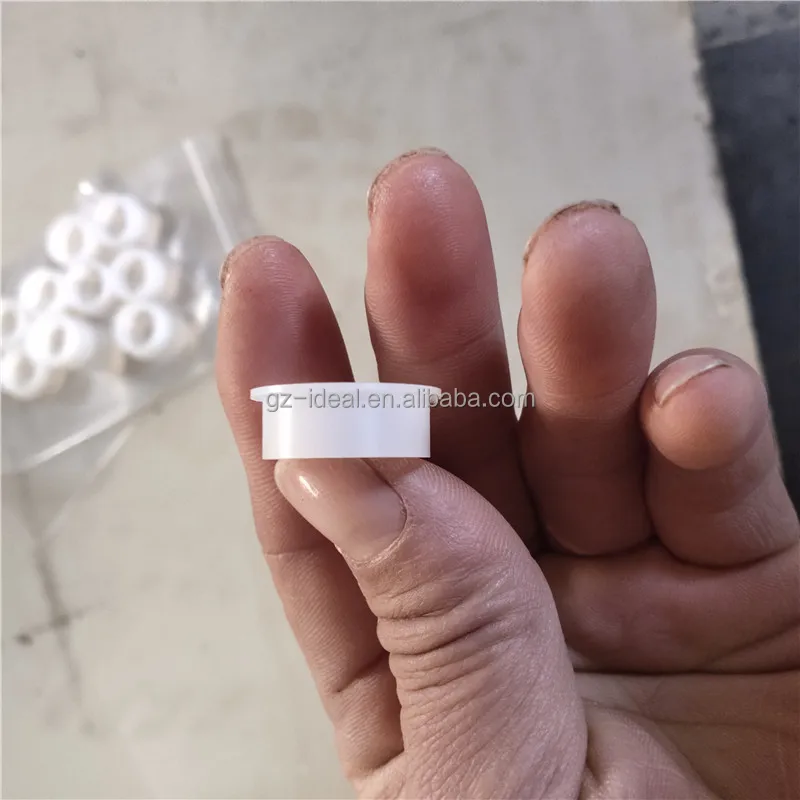

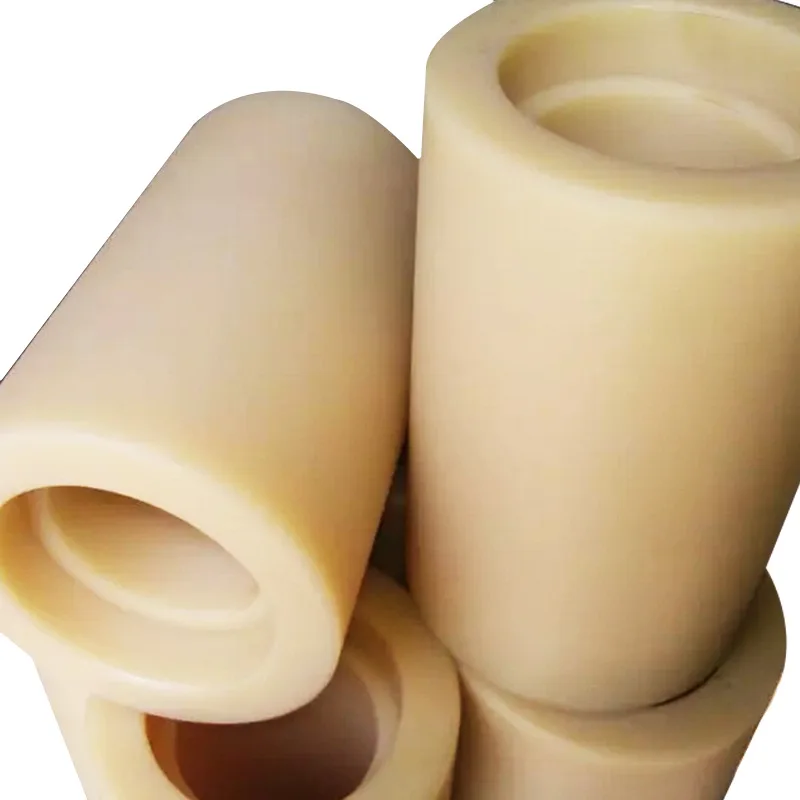

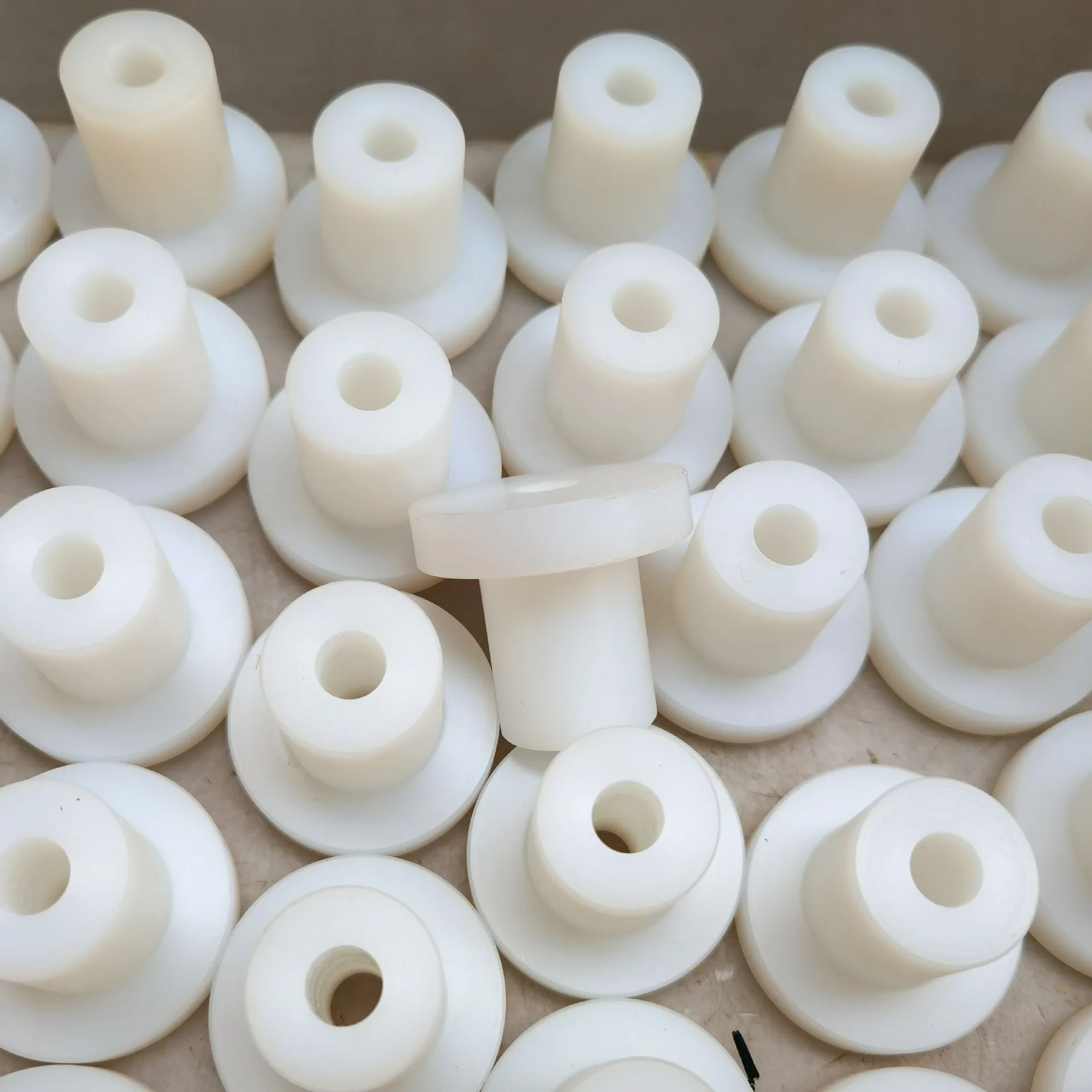

White Nylon/PA Bush, Plastic Bushing

Share on (524712666):


Price:

Quantity:


Product Overview

Description



Nylon description


  PA (Polyamide),commonly known as Nylon,are elements on the main chain amide group containing duplicate(NHCO) general term for the thermoplastic resin.It is a translucent or white crystalline resin and his molecular weight is generally 1.5-3 million.Nylong has high mechanical strength,high softening point,heat resistance,low coefficient of friction,wear-resisant,self-lubricating,shock-absorbing,oil resistance,weak acid,alkail and general solvents;good electric insulation,self-extinguishing nature,non-toxic,odorless,weather resistance and so on.Nylon and glass fiber affinity is very good,so easy to enhance.However, the dyeing properties of Nylon bad, it is not easy coloring,The absorbent nylon influence dimensional stability and electrical perfermance,fiber-reinforced resin to reduce water absorbtion,so that it can be at high temperature,high humidity to work.For the burning of nylon UL94-V2 class,oxygen index for the 24-28.Decompositioon temperature of the nylon>299°C,at 449°C-499°C spontaneous combustion occurs.The mobility of nylon melt well,so product can be as small as wall thickness 1mm.










































































































































ItemTest conditionTest standardUnitPA-66PA-6PA-610PA-612PA-1010PA-11PA-12
Density23°CISO1183g/cm³1.141.141.091.071.051.041.02
Melting point23°CDSC°C260225213210200-210187178
Mold shrinkage ISO294-4%0.8-1.50.6-1.61.21.11.0-1.51.20.3-1,5
Tensile strength23°CISO527-1,2MPa80756062555550
Tensile modulus23°C ISO-178GPA2.92.52.02.01.61.31.3
 Elongation at break23°CISO527-1,2 % 6050200200 250 300 300
Flexural modulus23°CISO-178GPa 3.0 2.6 2.2 2.0 1.3 1.0 1.4
 Impact strength(notch)23°CISO-179kJ/m2 4 5.5 5.5 5.4 4.0-5.0 4.0 5.0
 Rockwell hardness23°CD785  118 114 116 114 95 108 106



Item:  White Nylon/PA Bush, Plastic Bushing


Material: Nylon, Nylon 6. Nylon 66. Oil Nylon.MC Nylon, or Nylon Modification material (PA10,PA12....)


Color:  white, black, or as per requirement


Size:  according to custom's requirement, drawing will be highly appreciated.


Weight:  from 0.01gram to 10kgs


Tolerence: +/-0.04-0.1mm, according to requriement


Processing:  precision CNC machine or injection molding.








Properties:


1. Working temperature: -40-160 degree (GF or CF reinforced)


2. Excellent Wearproof/mechanical properties
3. High-strength, self-lubrication. good toughness
4. Easy to be colored (white, yellow,blue, red, green....)








Industry Application:
Gear/worm/cam


bearing


wheel/pulley/sheave/collar


sleeve/screws/nuts


washer/bushing


High pressure pipeline


storage containers


Oil Tank
