25A 24V 600W LCD solar charge controller MPPT solar charge controller solar regulator

Product Overview

Description

PRODUCT DESCRIPTION:

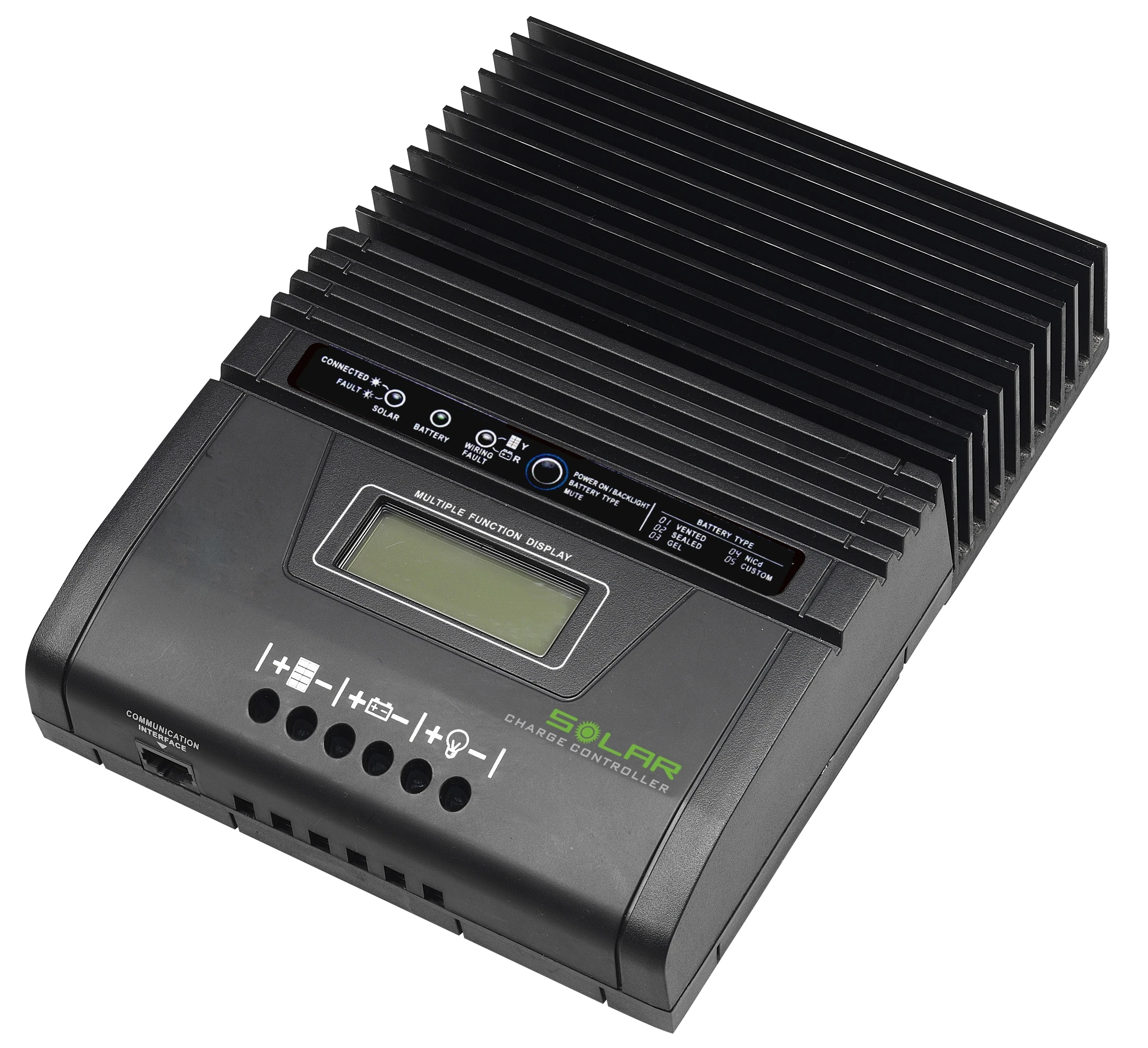

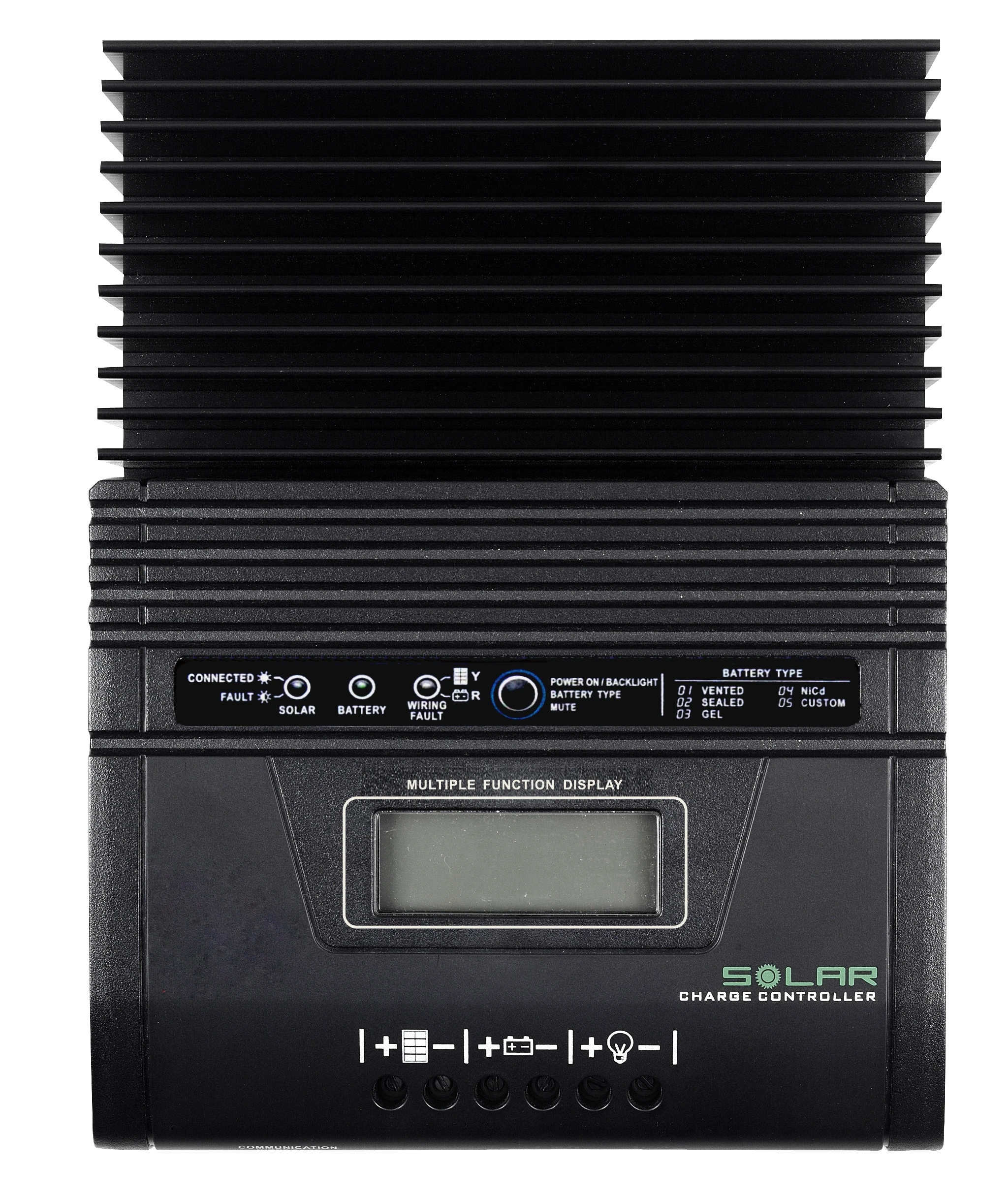

PCM3024 is an MPPT solar charge controller with maximum charging power of 25A. It is compatible with 24V battery systems as well as 12V/18V/20V/24V/32V PV modules (nominal voltage). It is capable of supporting up to 600W PV module with an maximum efficiency of 97%. It is suitable for operators of small, compact PV system who is looking to extract the MAXIMUM POWER from the PV modules.











MAIN FEATURES:

• NEW! Wider MPPT range allows better compatibility with different panels Vmp=30~66V
• NEW! Toroidal transformer improves efficiency
• NEW! LVD/LVR/HVD/HVR parameters
•  Integrated MPPT capability increases performance by 20~30%
• Intelligent 3-stage charging optimizes system performance
• Designed for 24V systems (max 600w)
• Charging power up to 25A to reduce overall charging time
• Maximum efficiency 97%
• Automatic load detection
• Automatic battery voltage detection
• Support all popular battery types including wet, sealed, AGM, Gel, or NiCd batteries
• Large LCD displays for system parameters
• Full battery protections
• Suitable for vertical mounting

SPECIFICATIONS:

	PCM-3012	PCM-3024
ELECTRICAL SPECIFICATIONS
MPPT Range @ Operating Voltage	15V~33V@12V	30V~66V@24V
Max PV Input Voltage	50V	75V
Max PV Input Current	18A
Max PV Input Power	300W	600W
Recommended Battery Type	Sealed Lead-Acid Batteries, AGM or Gel
Nominal Battery Voltage	12V	24V
Max Charging Current	25A
Ripple Voltage	<± 1V
Max Efficiency	0.97
Standby Power	<1W	<2W
Charging Schemes	3 stages, bulk, absorption and floating
Protections	Battery Reverse Polarity, Reverse Current at Night,
	LVD/LVR, HVD/HVR, Overload (>110%)
LCD Indicator	Solar and Output Power, Battery Voltage, Charging Current, and Fault Conditions
LED Indicator	3 LED
GENERAL SPECIFICATIONS
Conformity / EMC	CE /  EN61000-6-1, EN61000-6-3
Operating	-20°C~55°C
Enclosure Type	Indoor, IP43
Working Humidity	100%RH Max Non-Condensing
Dimension	135*170*57.5mm	200*170*57.5mm
Weight	0.92Kg	1.85Kg



WARRANTY:

• 100% QC before shipment. Product designed by Taiwanese company using reliable quality component.
• Standard 1 year product warranty
• Contact us directly for warranty issues.
