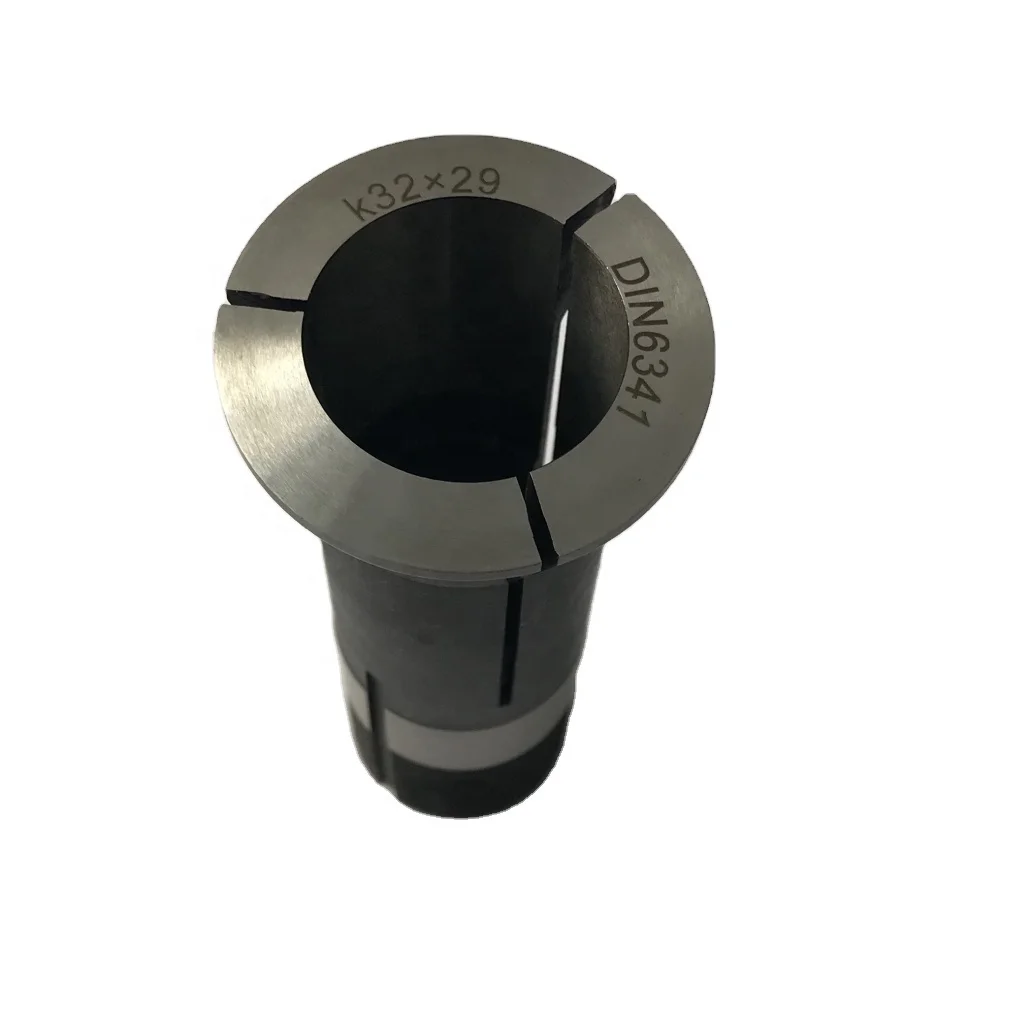

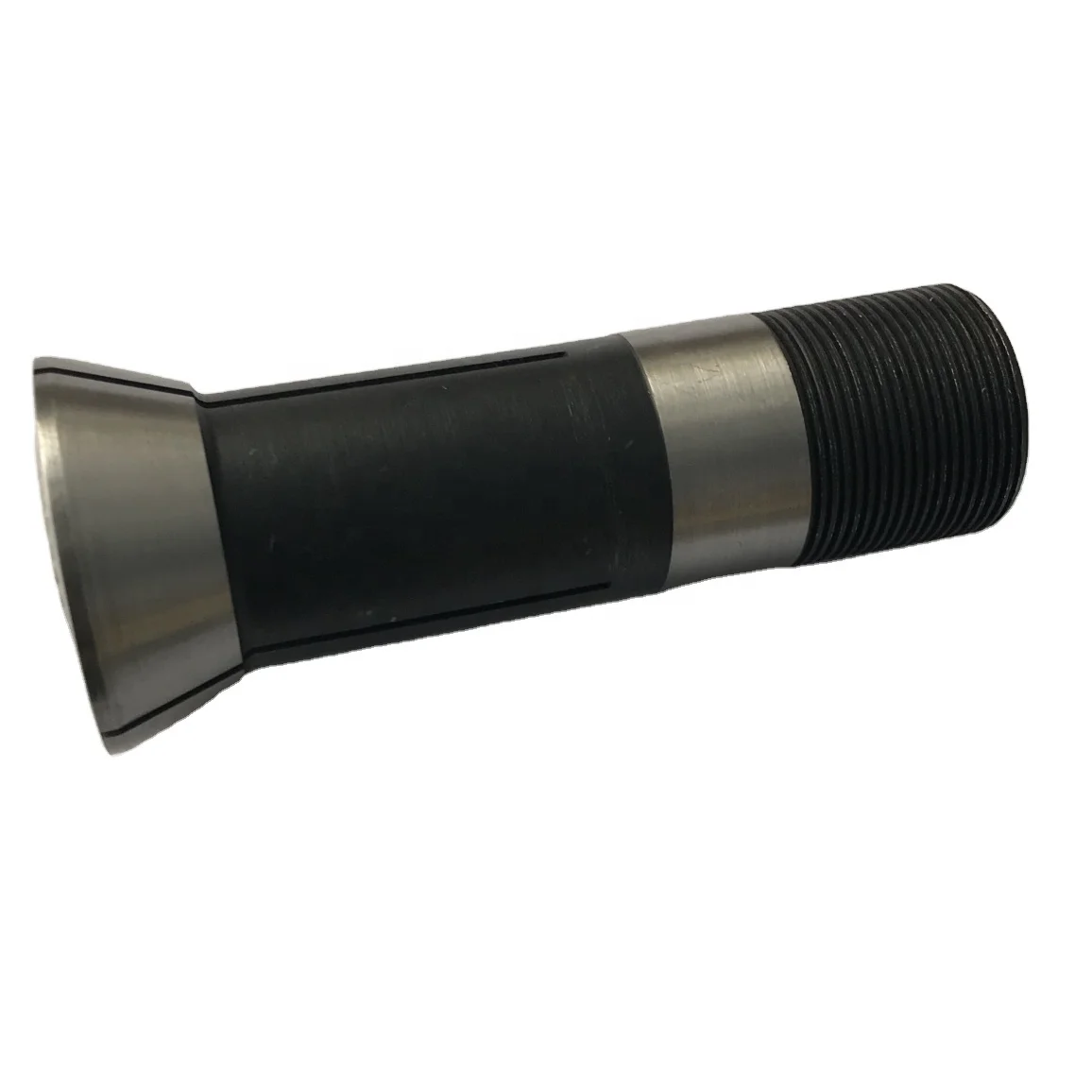

355E 386E Stndard DIN6341 Draw in COLLET

Product Overview

Description

355E 386E standard DIn6341 draw-in collets:

1.Material:65Mn
2.Hardness:clamping part HRC55-60
                  Elastic part HRC40-45 .

3.The collets are used for all kinds of automatic lathes.

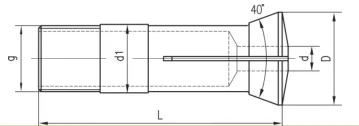

4.The size and specifications is shown as below:

model no.	d1(mm)	D(mm)	L(mm)	dmax(mm)	g	wt(kg)
k8-d	8	12	45	5	M8x0.75	0.06
k10-d	10	15	52	6	Tr10x1	0.09
k12-d	12	18	60	8	Tr12x1	0.11
k16-d	16	24	70	11	Tr16x1.5	0.12
k20-d	20	28	80	15	Tr20x1.5	0.15
k23-d	23	32	90	18	Tr23x1.5	0.21
k28-d	28	38	100	22	Tr28x1.5	0.23
k32-d	32	45	110	27	Tr32x1.5	0.27
k45-d	45	60	140	36	Tr45x2	0.32





packaging way:Inner packing is by plastic box.The outer packing is by cartons.Pallet is available upon the customer's request.



Shipment way:We can send the goods by sea,air or courier(DHL,TNT,FEDEx etc) according to the customer's requirement.



Quality: Each product are inspected durding the production.And then rendomly are selceted for inspection by quality-person.We have exported our goods to around the world and get good feebacks.



Our Services and reputation: we have been the supplier at Alibaba for 14(fourteen) years.

 We always keep our promise and are responsible for the problems if occured after sales.Pls be assured.
