Product Overview
Description
Product Description

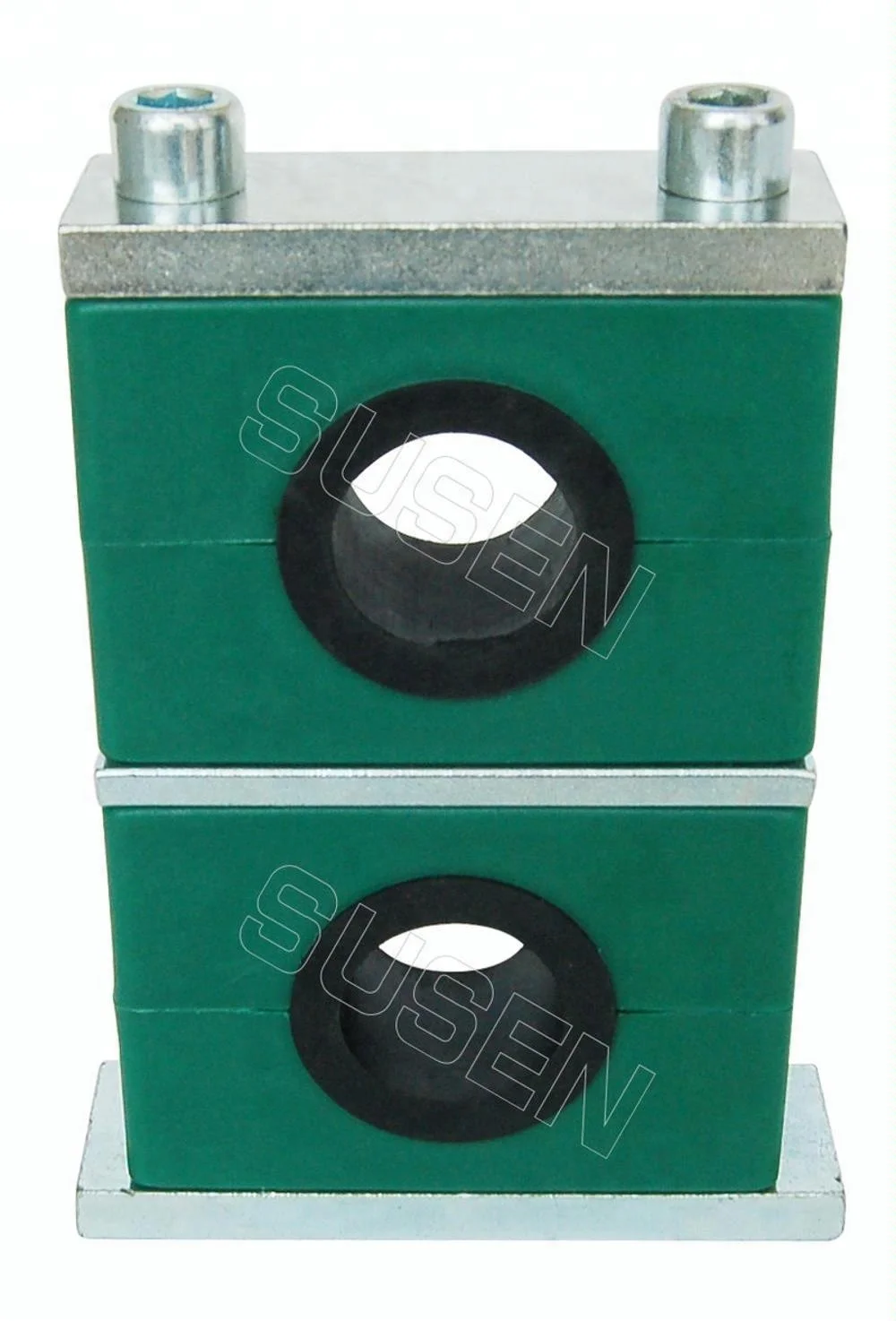

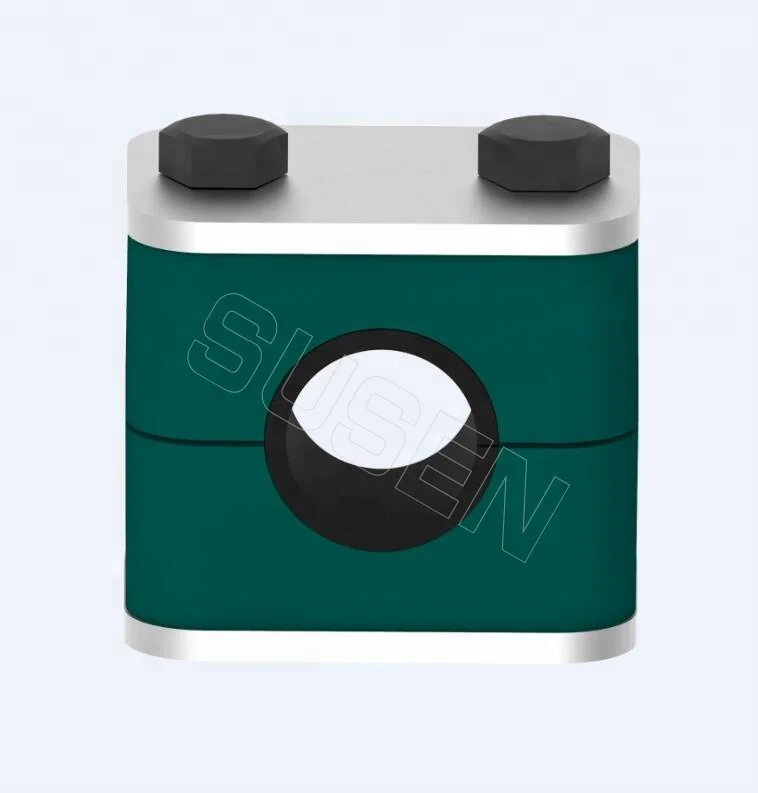

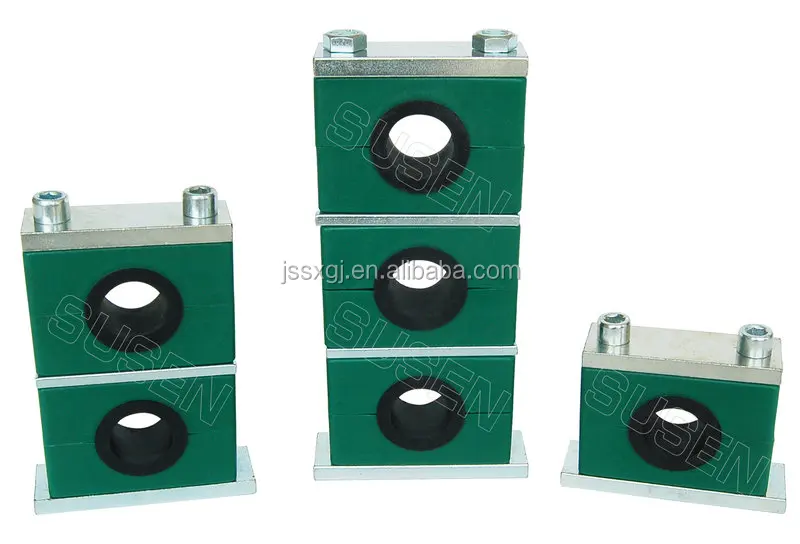

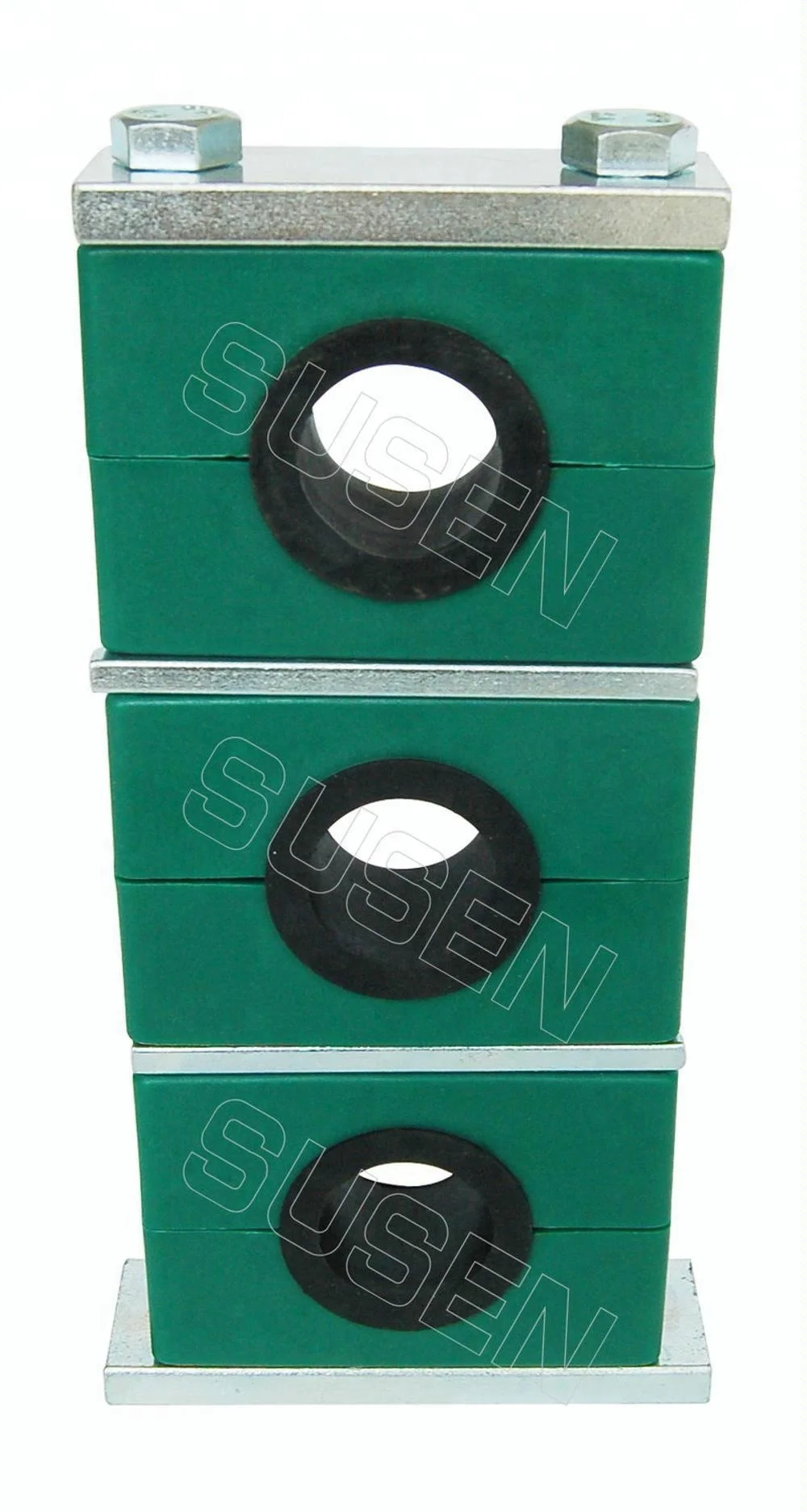

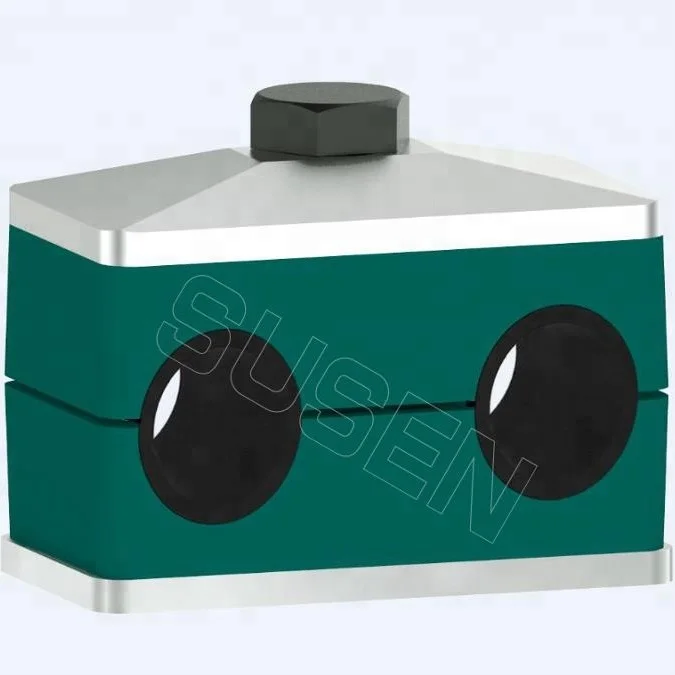

Clamp is made as per DIN3015 and meets national heavy machinery standard. This model has 8 series (fixing pipe outer diameter from 6mm~102mm),applicable to the pipeline fixing environments of low mechanical strength. It is used to fix the pipelines of medium pressure and low pressure (PN≤8Mpa)with oil, water and gas as medium in the mechanical hydraulic systems of meltallurgy, ship-making, petroleum, chemistry, oceaneering, engineering machinery and such other industries.
| 1. Structure |
| Hexagon head bolt/hexagon socket bolt+cover plate+clamp body+welded base plate/rail nuts+rubber insert |
| 2. Material |
| Clamp body: plastic PP-polypropylene /PA-polyamide /AL-aluminium |
| cover plate: carbon steel (Zn-galvanised) or stainless steel (SS 304/316) |
| Bolt: carbon steel (Zn-galvanised) or stainless steel (SS 304/316) |
| 3. Temperature |
| PP: -30°c up to + 90°c green |
| PA: -40°c up to + 120°c dark |
| AL: -80°cup to 300°c grey |
Jiangsu Susen clamps manufacturing Co., LTD. A Chinese professional tube clamps manufacture company.
Our company was established in 1999, is China's only professional only produce tube clamps of enterprises.
Welcome the friends from anywhere in the world, as long as you have about tube clamps demand, please contact us!
