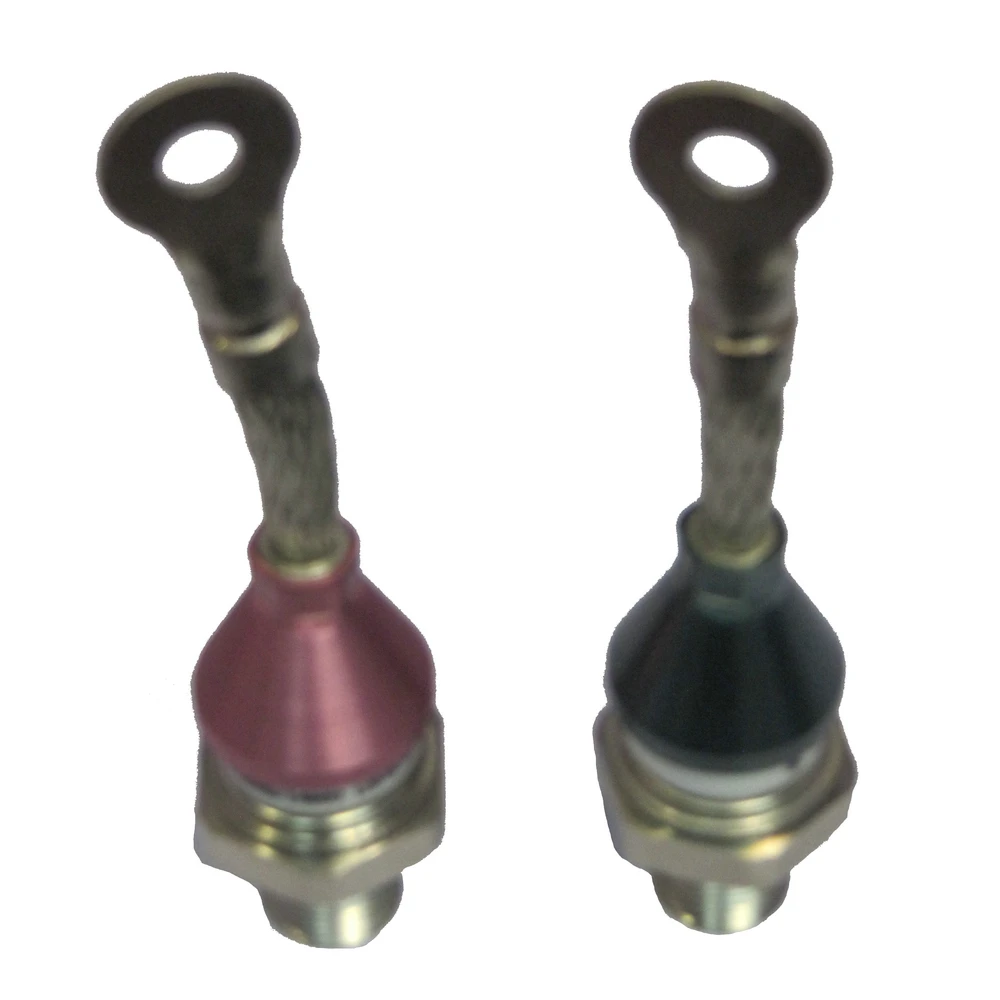

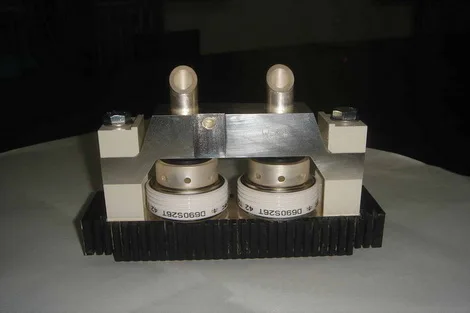

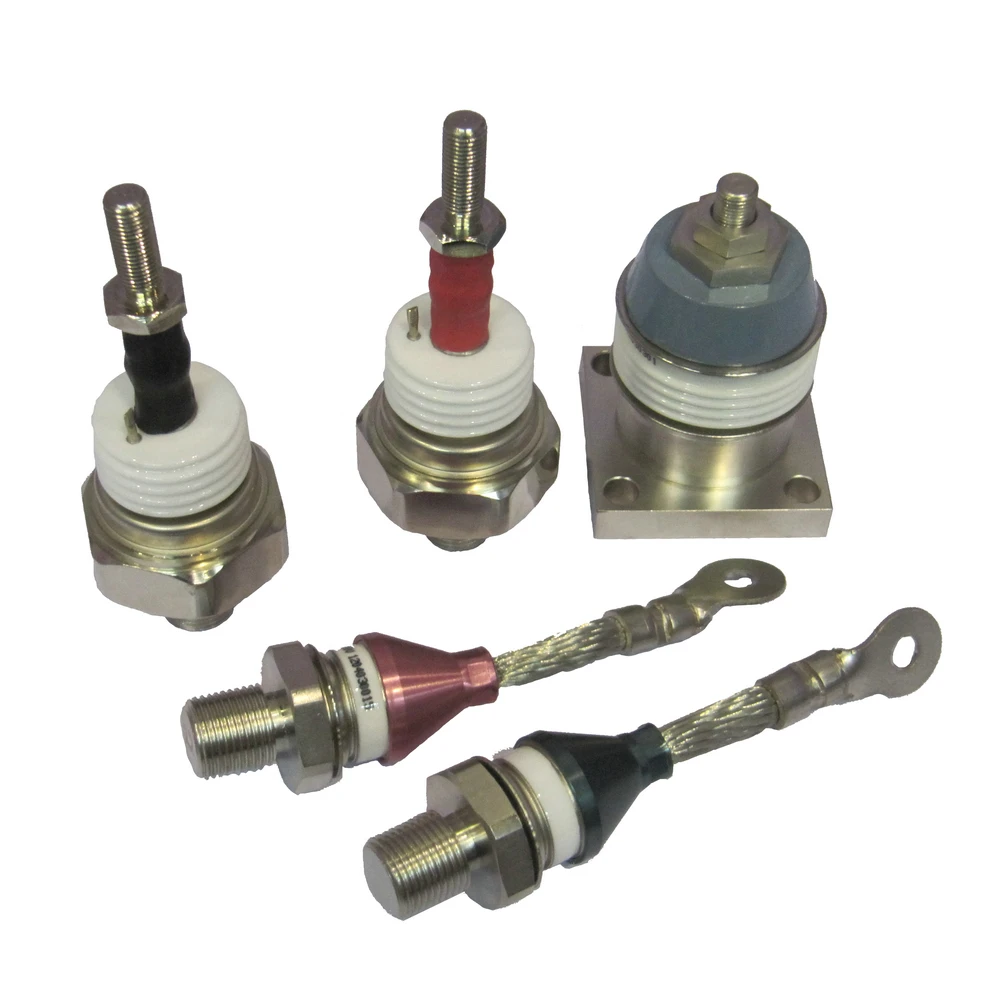

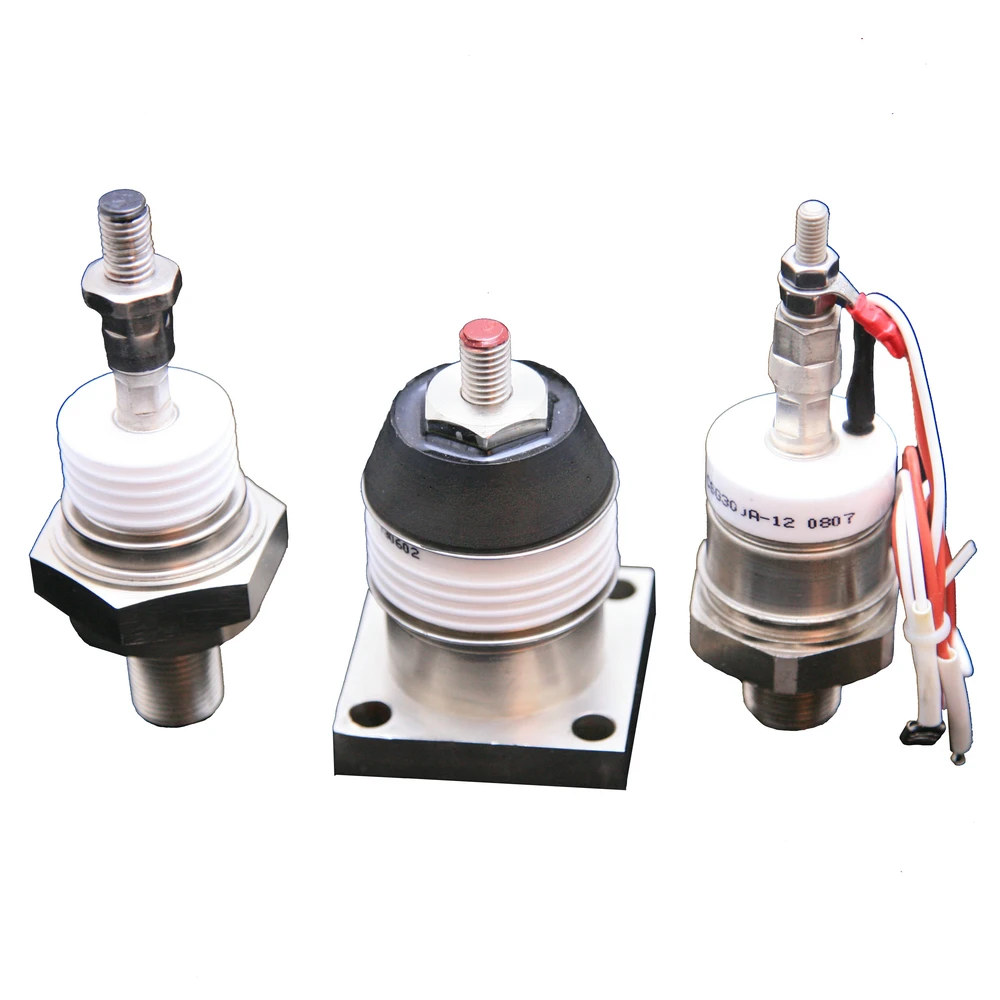

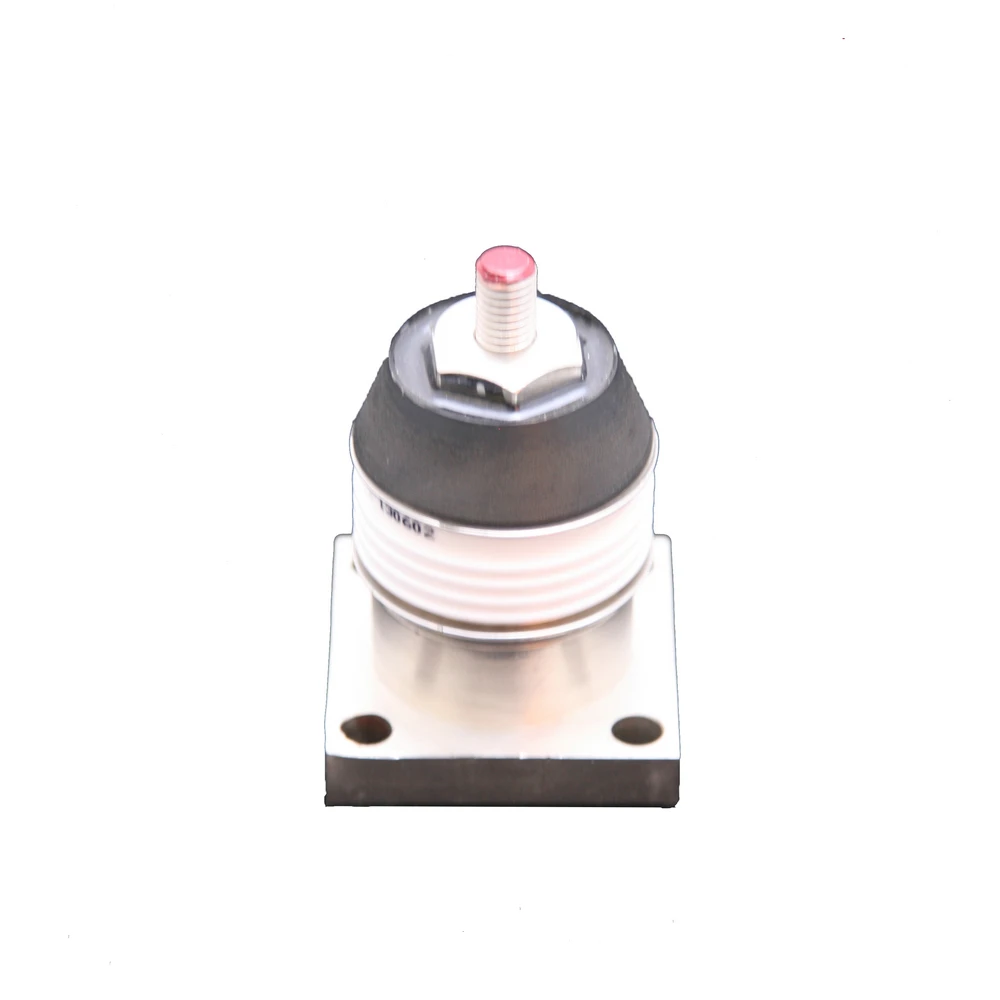

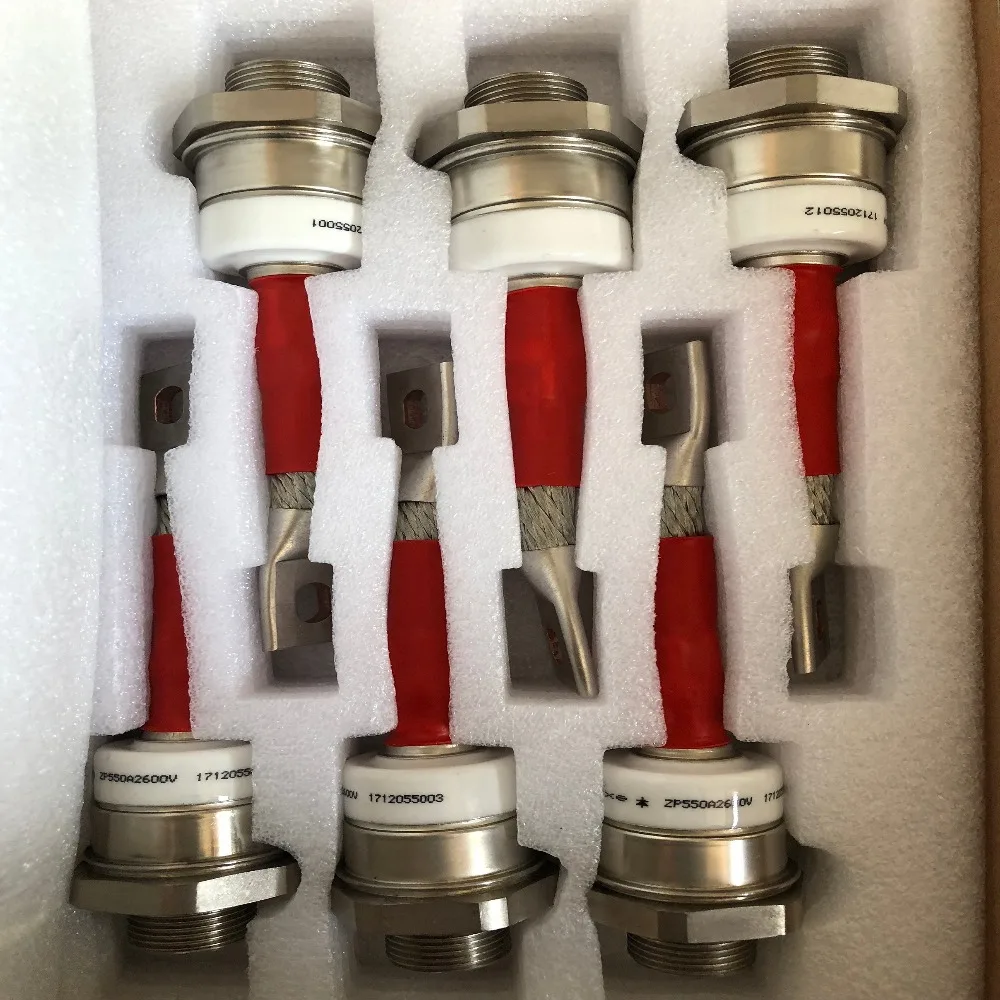

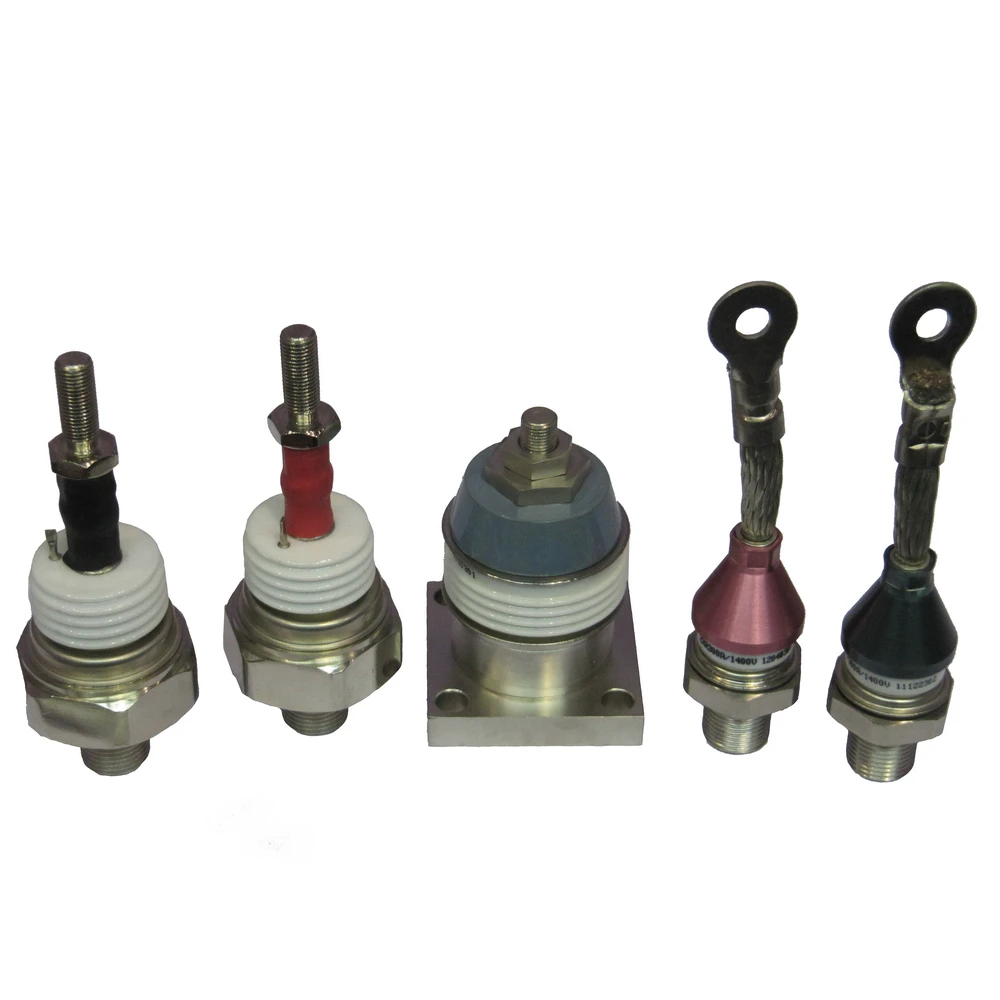

Rotation rectifier diode for exciter

Price:RUB 7,667.53 - RUB 76,675.30

Quantity:

Product Description

Feature

- Working under great centrifugal force

Application

- Generator or electromotor of rotation excitation

Rotation Rectifier Diodes -- Stud Type

Model	I_F(AV) @T_C = 85℃ A	V_RRM V	V_FM	I_RRM mA	I_FSM @50Hz kA	R_thjc ℃/W	T_jm ℃	Centrifugal force kN	Outline
V	@I_FM A
ZX16	16	100 ~1600	≤1.3	45	≤1	0.23	1.8	150	1.5~2.0	ZX1
ZX25	25			75	≤1	0.3	1.2		1.5~2.0	ZX1
ZX40	40			120	≤3	0.4	0.8		3.0~3.5	ZX2
ZX70	70			210	≤5	1.0	0.45		3.0~3.5	ZX2
ZX100	100	100 ~2800	≤1.6	300	≤7	1.5	0.30		12~14	ZX3
ZX200	200			600	≤12	3.0	0.20		15~17	ZX3,6
ZX300	300			900	≤20	4.5	0.11		15	ZX4,5,6,7
ZX400	400			1200	≤25	6.2	0.09			ZX8,9,10
ZX500	500			1500	≤30	7.5	0.068			ZX11
ZX860	1000			1800	≤40	13.0	0.065		15~22	ZX12
