Z F 2500 Longitudinal Seam Welding Lathe weld smart welder

Product Overview

Description

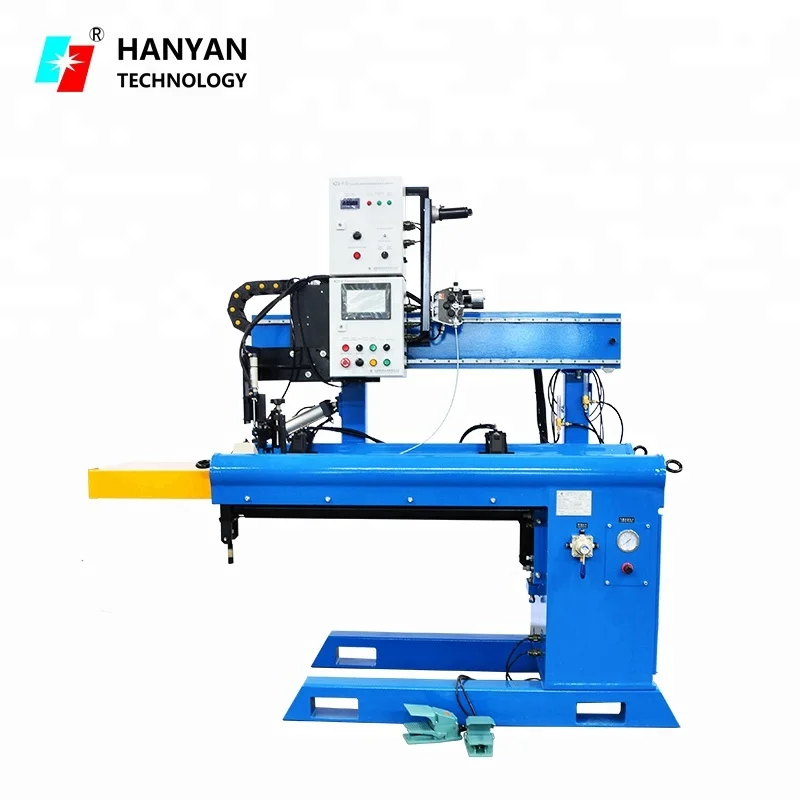

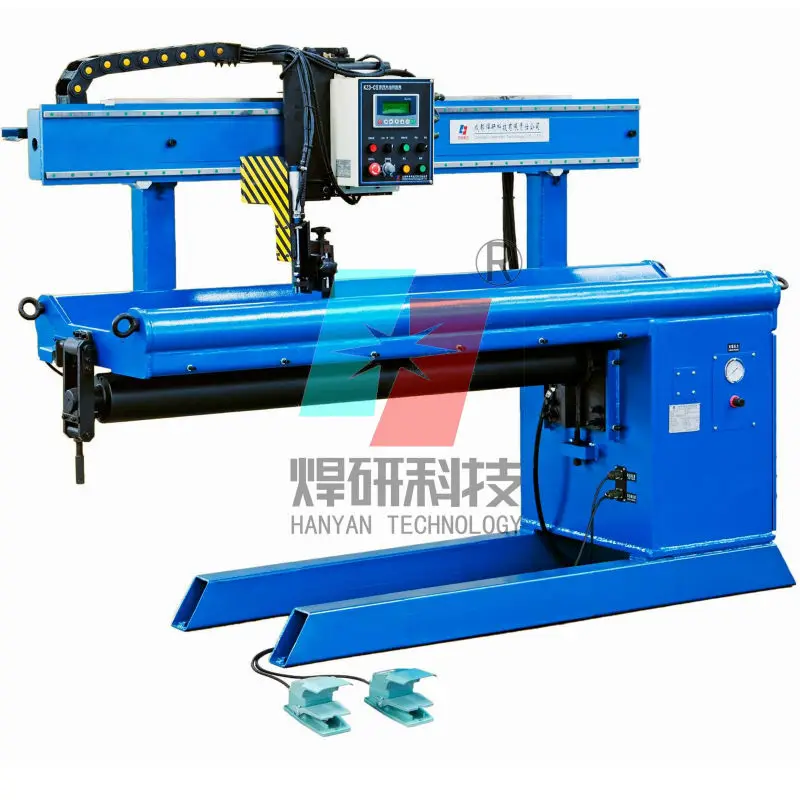

ZF-2500 Longitudinal Seam Welding Lathe weld smart welder



Introduction

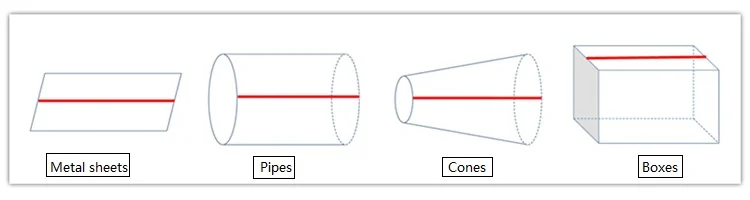

ZF-2500 Longitudinal Seam Welder is one of the standard product with hold down finger-type clamping device to provide consistent clamping force and chilling of workpiece,and absorb and dissipate additional heat from the workpiece. This design can make sure weld free from melt-through, shrinkage and distortion. It is designed to weld all weldable materials such as stainless steel, carbon steel, heat resisting alloy, titanium alloy. For application to form the material into a desired shape such as flat sheets, round tube, cone open ended cone and open ended box. It can be assembled with power supply and torch in application for TIG, MIG/MAG, PAW, SAW welding processes.



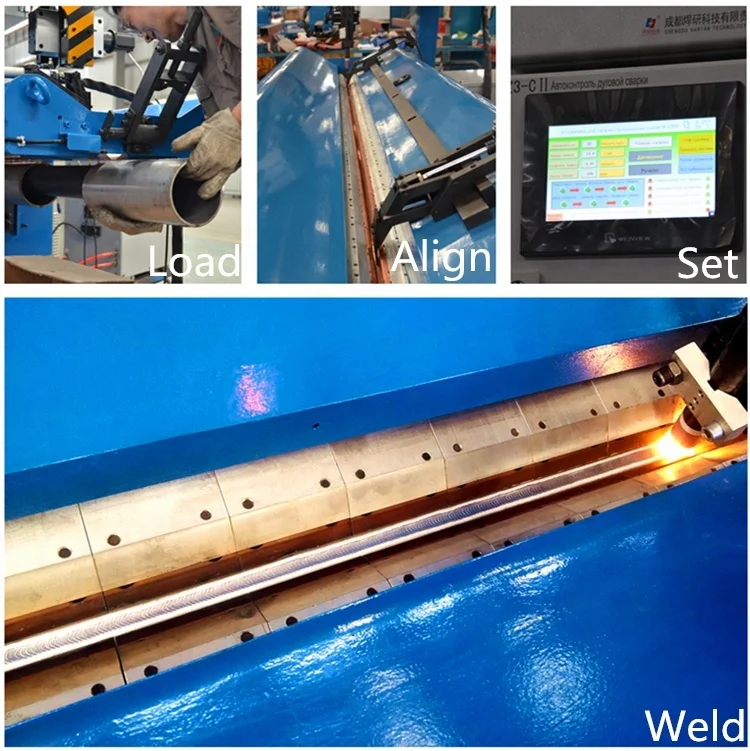

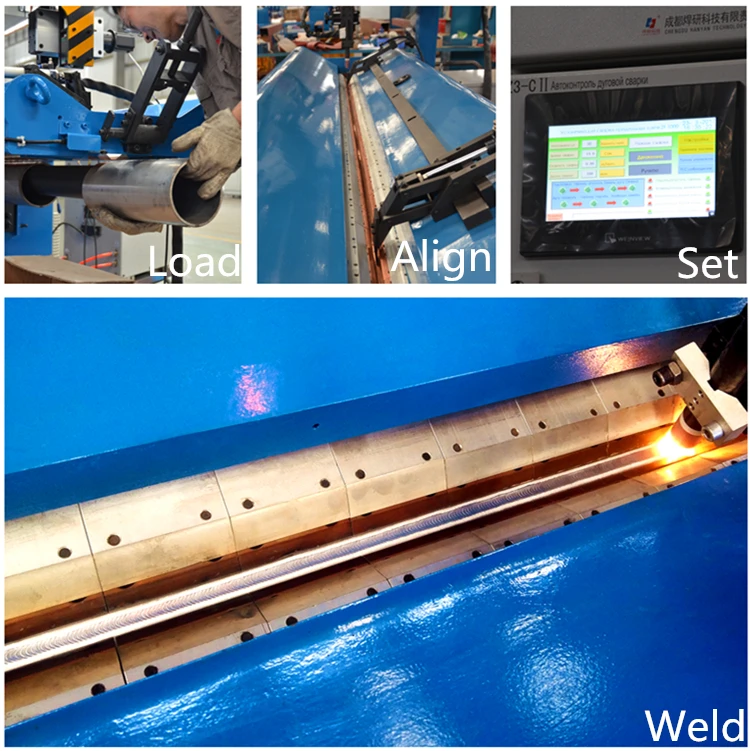

Welding process:

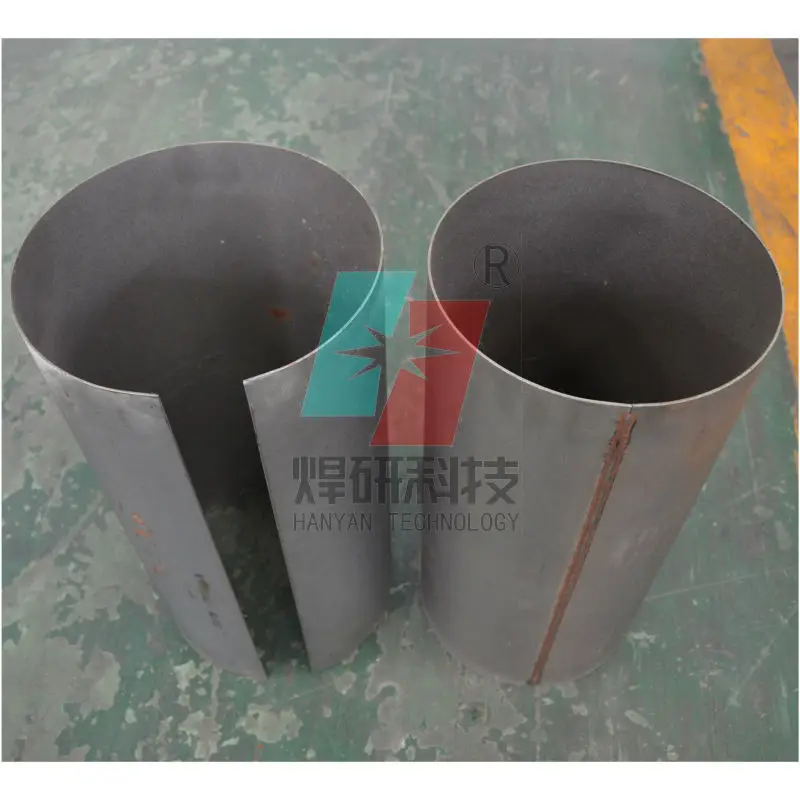

  It is mainly designed to weld thin plate workpiece and can be applied for TIG (with filler) welding process. Special design to minimize shrinkage and distortion of workpiece.



Features

1.The lathe is composed of mainframe, pneumatic finger-type clamping device, side beam, mandrel, electrical retractor, pneumatic torch elevator, 3D torch adjustment device, gas hoses and electrical control system.

2.Pneumatic torch elevator

3.The torch retractor is driven by DC servo motor

4.Finger-type clamping device and copper back-up bar provide even pressure and form seam back.

5.Torch starting position can be adjusted by 2D adjustment.

6.The distance between mandrel and finger-type clamping device is adjustable.



Technical parameters

ZFJ2500A series No.	QB-0856
Control power supply	Single phase 50Hz AC 200V
Welding power supply	Three phase 50Hz AC 380V
Workpiece thickness	0.5~6.0mm
Workpiece diameter	700≥φ≥200mm
Workpiece effective length	≤2500mm torch vertical  ≤2200mm torch tilt
Retractor speed range	100~1800mm/min
Torch elevating range	100mm
Torch manual adjusting range	Y=±30mm,Z=±30mm
Mainframe max. welding current	500A
