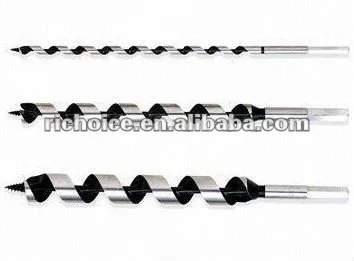

Wood Working Auger Drill Bits

Product Overview

Description

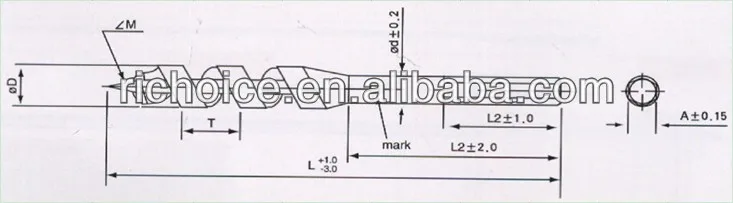

DIA(mm)	L(mm)	L1(mm)		L2(mm)	A(mm)	T(mm)	M(mm)	D(mm)
6	75 /100/ 150/ 200/ 230/ 250/ 300/ 400/ 460/ 500/ 600	L75                         L100                     L10-149               L150-200           L201-320             L330-400             L460-1500	L1=35                     L1=40             L1=50                 L1=60               L1=75             L1=80               L1=100	L1=35                     L2=25               L1≤60                 L2=28               L1>60             L2=232	5.0	18	1.25	5.6
8					6.7	18	1.5	7.6
10					8.7	20	1.5	9.6
12					10.7	24	1.75	11.6
14	100/ 150/ 200/ 230/ 300/ 400/ 460/ 500/ 600/ 900/ 1200/ 1500				11.2	28	1.75	12.5
16					11.2	28	1.75	12.5
18					11.2	32	2.0	12.5
20					11.2	32	2.0	12.5
22					11.2	36	2.0	12.5
24					11.2	36	2.0	12.5
26					11.2	40	2.5	12.5
28					11.2	40	2.5	12.5
30					11.2	44	2.5	12.5
32					11.2	44	2.5	12.5
34					11.2	44	2.5	12.5
36					11.2	44	2.5	12.5
38					11.2	44	2.5	12.5
40					11.2	44	2.5	12.5

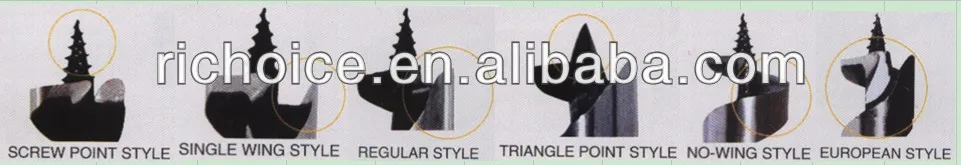

Type of Cutter





Description:

material of tunsteng carbide tip		45# steel
heating treatment		yes
hardness for carbide tip		HRC42-48°
shank style		6-edge hex shank H11

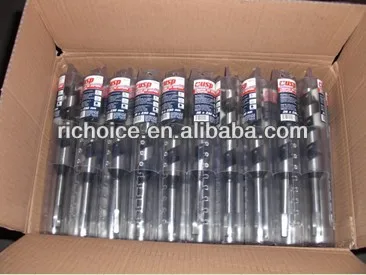

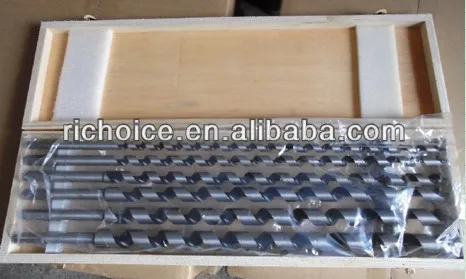

package		plastice tube/ wooden case
