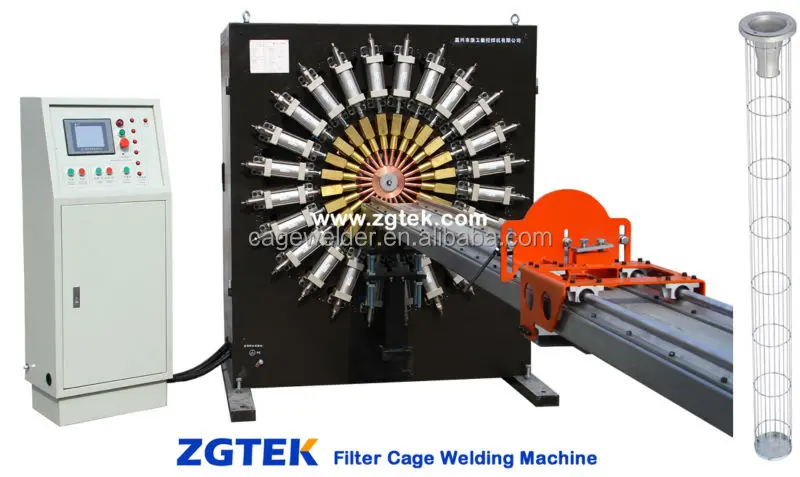

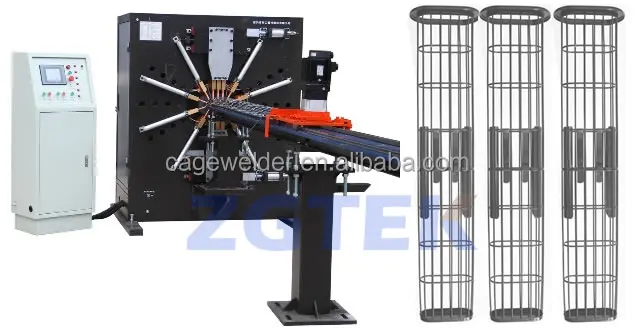

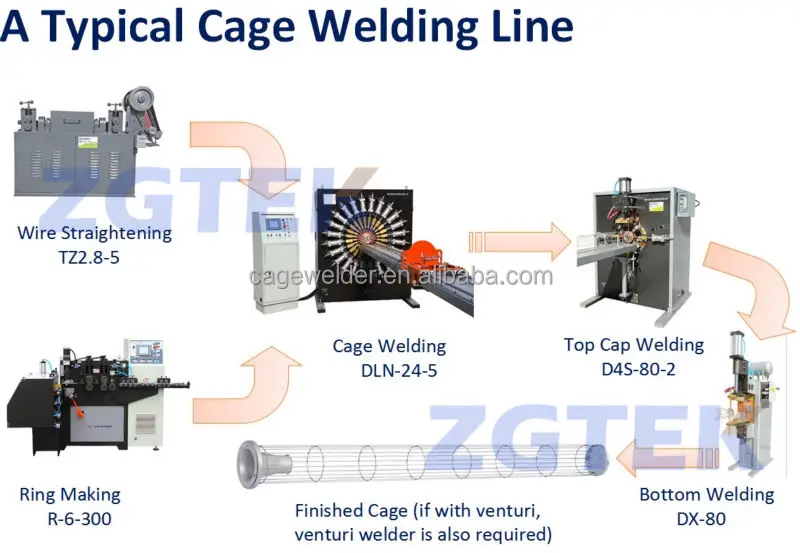

Dust collector cage making welding machine

24-wire round cage welder

• Model: DLN-24-5
• Wire Qty: 8/10/12/16/20/24 (14,18,22 optional)
• Ring space: No restriction
• Cage outer diameter: 100-200mm

• Input voltage: 380V(2-phase) or specified by customer
• Power frequency: 50/60Hz
• Power capacity: 80KVA
• Instant power in sync mode: 36KVA
• Instant power in async(time-sharing) mode: 18KVA
• Transformers: 2sets
• Air pressure: 0.6-0.8MPa
• Air flow: 300L/min
• Cooling method: natural cooling
• Weight: about 1200KG

Features

• Touch screen control, 54 groups of ring spacing setting
• Bad weld detection and auto re-welding

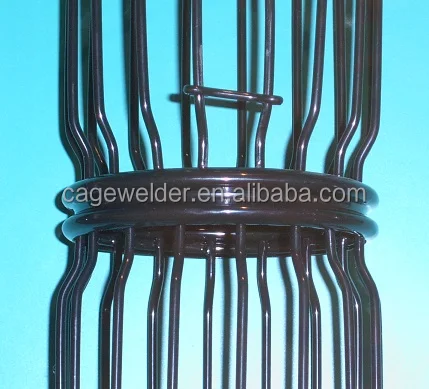

• Material selection function, short ring spacing auto compensation
• Ring space is programmable and bag cage is pulled by step motor; ring space precision is 0.1mm; pulling speed is 0.4m/s

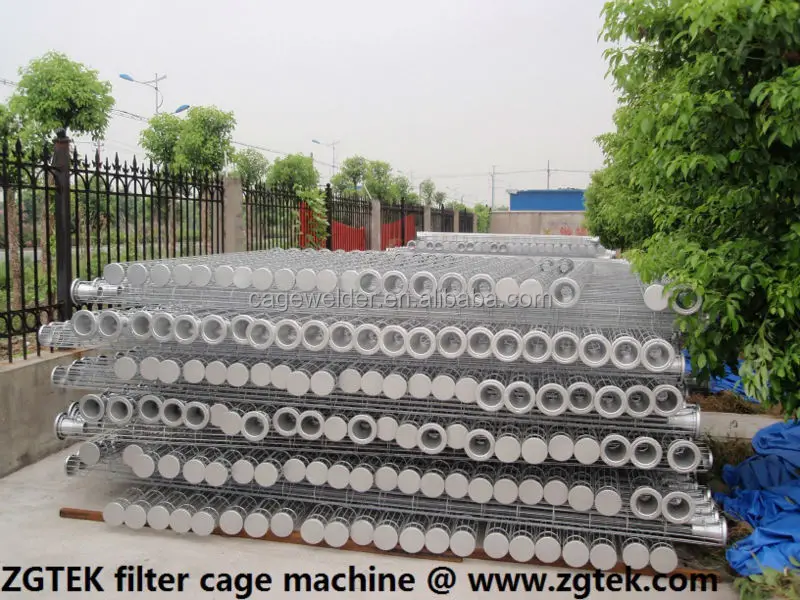

• Rails (standard 7500mm, up to 9000mm) and material shelf equipped and connected to the welding unit. The front end of the rail is adjustment-free. Good linearity can be achieved for wire cages
• Equipped with auto feeding unit, no restrictions on ring space
• Four air tanks, short air route inside the machine ensures quick response of the cylinder
• 25mm thick front plate resulted from one-time machining, firmly secure that the welding cylinders are on the same plane and perpendicular to the axes, thus the linearity of the cage can be ensured
• Stroke-adjustable cylinders increase welding speed, pre-pressing only takes 0.08s
• Controlled by micro-computing unit
• Time-sharing power-on transformer reduces the burden on local electricity grid
