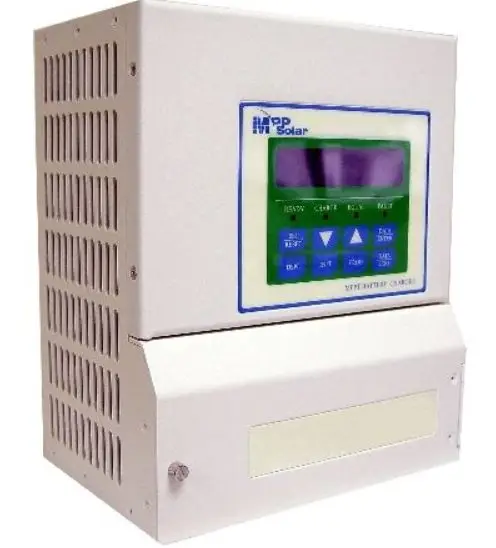

MPP Solar PCM40CX MPPT Solar charger 40A for 12v 24v 36v 48v battery Max PV input 2600W 240v MPPT solar charge controller

Product Overview

Description

40A 12v 24v 48v Max PV input 240v MPPT solar charge controller

PRODUCT DESCRIPTION:

PCM 40CX1 MPPT Solar charge controller (also a wind charge controller) is an advanced 40A MPPT solar charger  controller packed with many programmable features. Supporting large array up to 2600W, this controller has a maximum voltage input of 240V and is suitable to handle battery systems from 12V ~ 48V. Such high voltage input allows you to series-connect your PV modules and save money on combiner boxes & breakers!

*Product is certified by national and EMC standard and 100% made in Taiwan, with very reliable quality.





MAIN FEATURES:

MAXIMUM PERFORMANCE & COST EFFICIENT

• ULTRA HIGH INPUT VOLTAGE OF 240VDC, IDEAL FOR SERIES-CONNECTED PV ARRAY


• SAVES MONEY ON COMBINER BOX, BREAKERS etc..


• MPPT capability increases PV energy harvest by up to 30%


• Maximum efficiency up to 92% at peak output

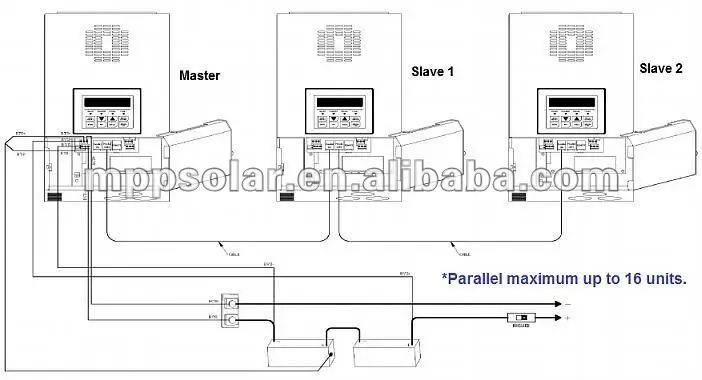

• Easy parallel up to 16 units to maximize charging current


• Supports large PV array up to 2600W


• 2/3/4-stage high-efficiency battery charging up to 40A

VERSATILITY & PROGRAMMABILITY

• Built-in BEM (Battery Energy Monitor) to keep track energy production and consumption


• Built-in datalogger stores up to 90 days of energy-harvest history


• Supports FLA, Gel, AGM batteries


• Programmable settings include:



  • Unit settings (system date, time, temperature, input/output voltage/current, SOC etc)


  • Battery settings (voltage, type, capacity)


  • Charging stage settings (absorption/float/equalize, time and voltage)


  • MPPT settings (san frequency, %Voc etc)


  • Auxiliary relay settings


  • Parallel settings (address etc)


  • Datalogging settings






• BVS (Battery voltage sensing) built-in to ensure precise charging of battery


• BTS (Battery temperature sensing) built-in to ensure charging safety (BTS wire included)


• BCS function available with optional shunt


• May be used for WIND systems (require optional rectifier & braking unit)

EXTENSIVE RELIABILITY & PROTECTIONs

• Over temperature


• PV input and output overload


• Reverse current


• Battery overcharge/overdischarge

NETWORKING & COMMUNICATIONS

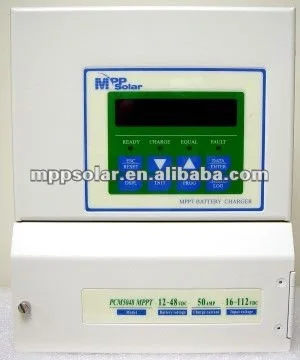

• Large control panel with LCD to adjust system parameters & display message


• 4 LED indicators to display system modes and information

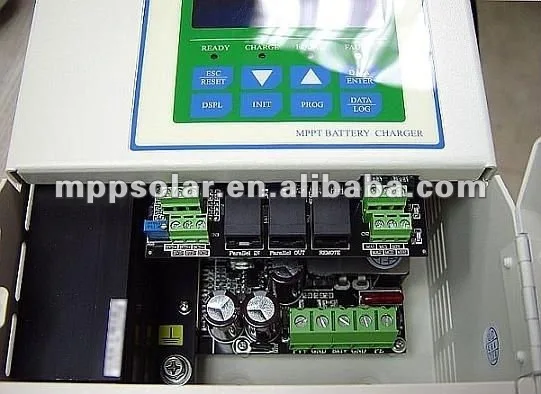

• Communication ports built-in to parallel with other controllers


• 2 sets of auxiliary relay terminals to help control dump loads

SPECIFICATIONS:

ELECTRICAL SPECIFICATIONS
MPPT Range	16~192VDC
Max PV Input Voltage/Current	240VDC (Open Circuit) / 30A
Compatible System Voltage	12, 24, 36, 48V
Max PV Input Power	2600W
Recommended Battery Type	Flooded, GEL, or AGM Lead Acid
Nominal Battery Voltage	12/24/36/48V
Max Charging Current	40A
Standby Power	<2W
Charging Schemes	Bulk, Absorption, Float, Auto/Manual Equalization
Battery Temp. Compensation	Built-In, -5.0mV/°C/cell
Protections	Over Temperature, Reverse Current, Input/Output Overload, Batt Overcharge/Overdischarge
LCD Indicator	PV Input Voltage/Current/Power, Battery Voltage/Current/Temp/SOC, System Date/Time/Temp, Voltage Setting, Data Log Information
LED Indicator	4, Ready/Charge/Equal/Fault
Parallel Connections	Yes, Up to 16 Units
Data Logging	Built-In, Up to 90 Days
GENERAL SPECIFICATIONS
Certification / EMC	CE / EN61000-6-1, EN61000-6-3
Operating/Storage Temp.	-20°C~50°C/ -40°C~70°C
Enclosure Type	Indoor , IP20
Working Humidity	~95%RH Max Non-Condensing
Dimension	268*196*147mm
Weight	4.3Kg



WARRANTY/QUALITY:

• CE certified/ EMC EN61000-6-1, EN61000-6-3


• 100% QC before shipment.


• Standard 1 year product warranty


• Contact us directly for warranty issues.
