Chemical mineral fertilizer Powder material hydraulic mechanical high pressure no binder NPK nugget briquetting machine
- Category: >>>
- Supplier: Changzhou Shengong Granulation Equipment Co. Ltd.
Share on (526410338):
Product Overview
Description

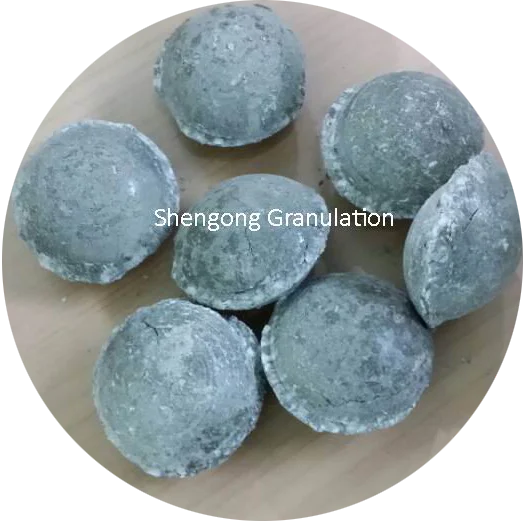

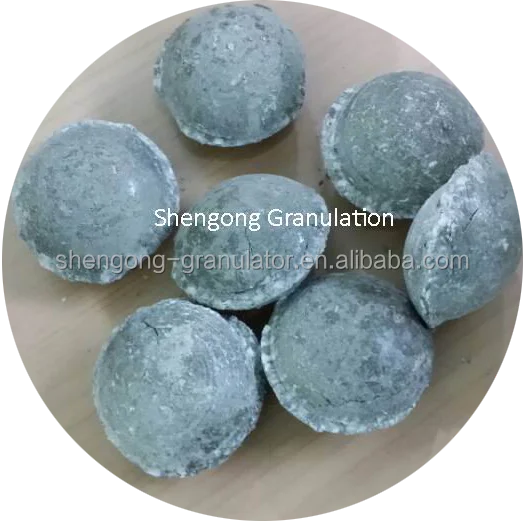

NPK nuggets/briquettes
Briquetting machine (takes FGD gypsum for instance)
Type Item | SG-360B | SG-500B | SG-600B | SG-650B |
Roller dia. (mm) | Φ360 | Φ504 | Φ600 | 650 |
Roller width (mm) | 180 | 300 | 310 | 330 |
Roller speed (r/min) | 16 to 22 | 14 to 20 | 12 to 18 | 10 to 16 |
Power of screw feeder (kw) | 7.5 | 11 | 11 | 15 |
Pre-pressure of accumulator (Mpa) | 5 to 6 | 6 to 10 | 8 to 10 | 8 to 12 |
Linear pressure (kN/cm) | 55 | 55 | 55 | 55 |
Briquette's shape and size (mm) | On request | On request | On request | On request |
Briquette output (kg/h) | 3,000 to 5,000 | 6,000 to 8,000 | 8,000 to 10,000 | 10,000 to 12,000 |
Power of compacting machine (kw) | 30 | 75 | 90 | 110 |
Installed capacity (kw) | 42 | 88 | 104 | 129 |
Dimension (l*w*h) (mm) | 1,850*1,5000*1,650 | 3,650*2,250*2,500 | 3,660*2,450*2,700 | 4,000*2,600*3,300 |
Weight of feeder and compacting machine (kg) | 6,000 | 15,000 | 20,000 | 25,000 |
Production time(d) | 30 | 45 | 60 | 60 |
Briquetting machine applications
We are small factory but dedicated in only roller compactor for granulating & briquetting powders

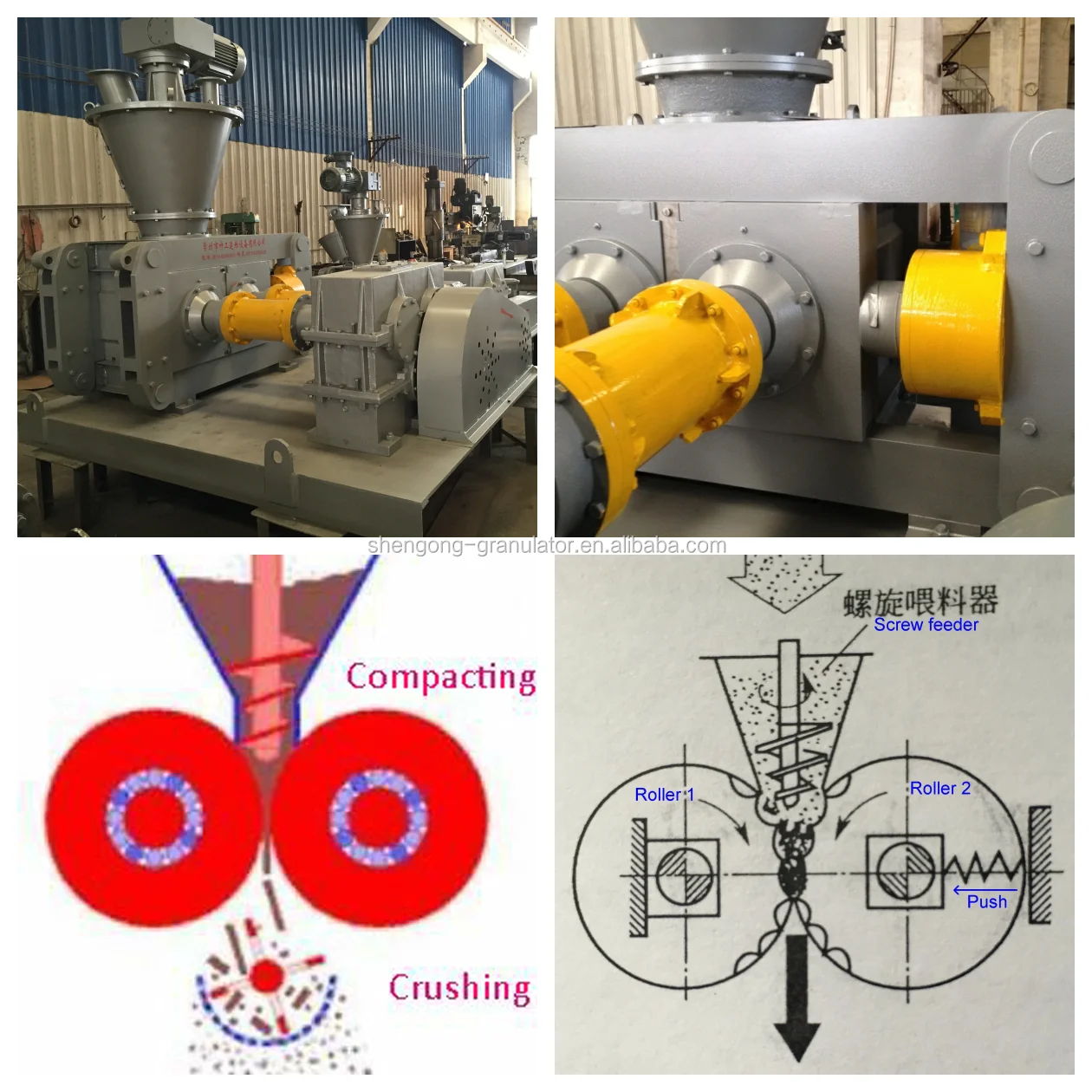

Briquetting machine line principle
Difference of Briquetting machine A and B.
Briquetting machine consists of screw feeder (upper taper) and double roller compactor

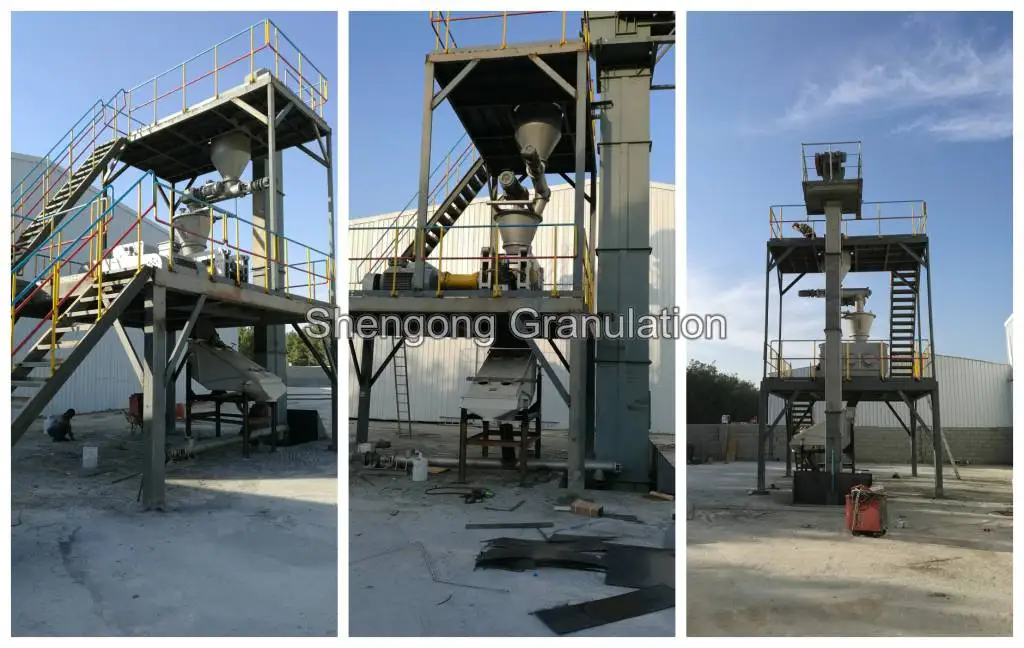

Briquetting machine peripheral equipments

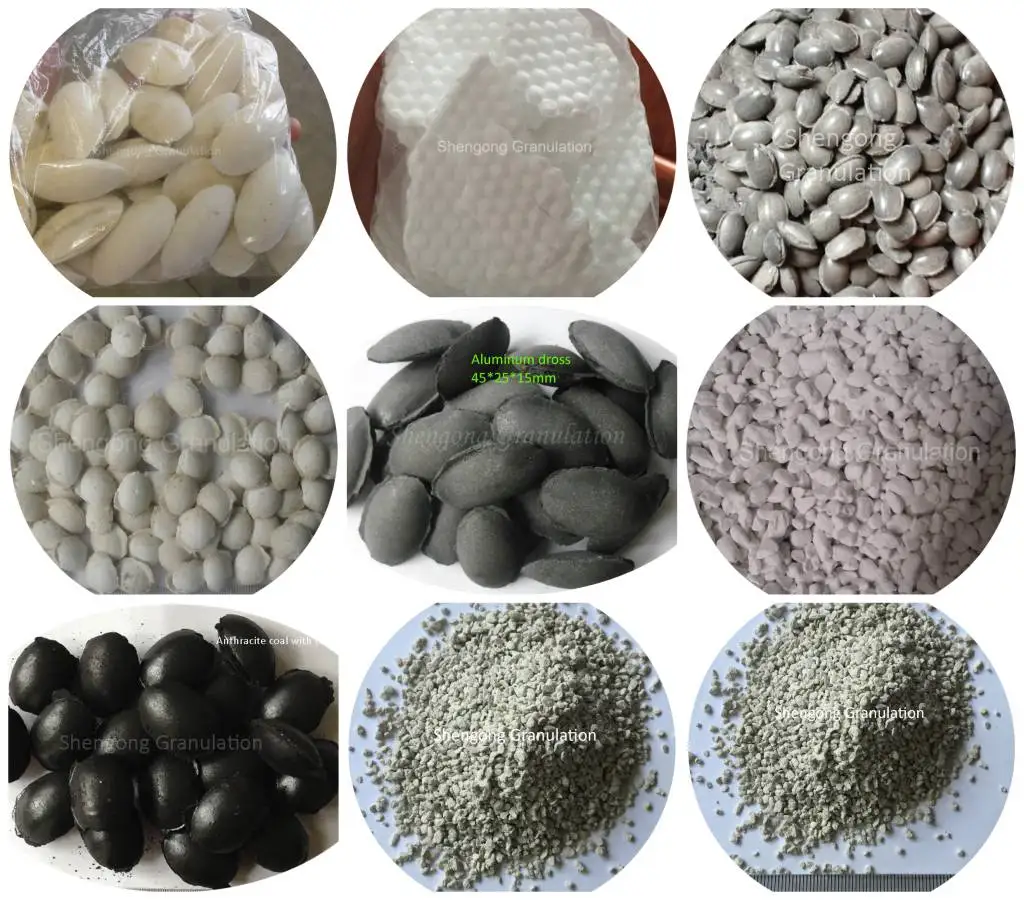

Briquette vairable shape

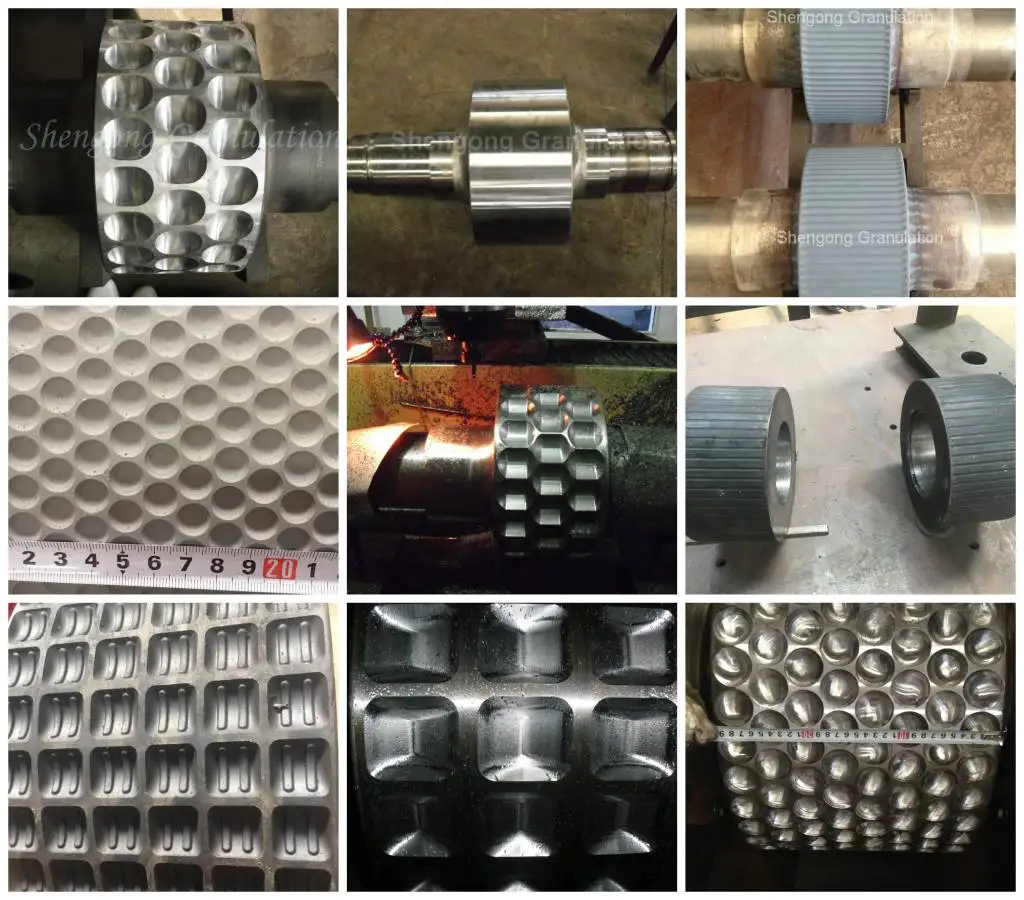

Briquette and its rollers
Briquetting and its peripheral equipments are being loaded in one 40ft. container
