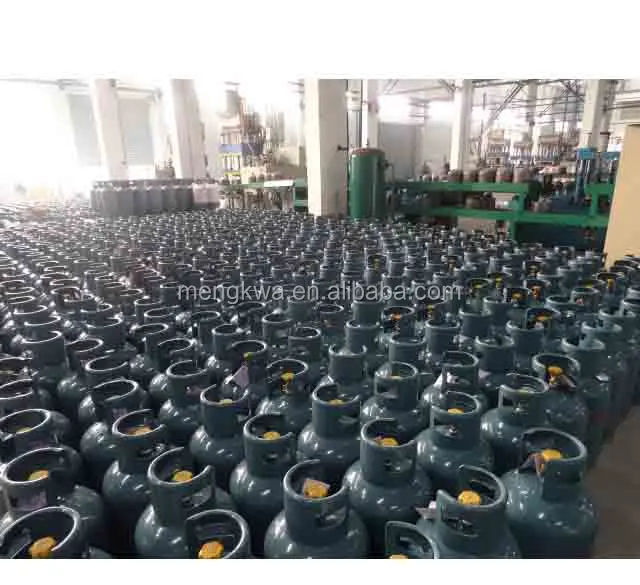

full automatic 12.5kg LPG cylinder production line

NAME

QTY

(SET)

TIME REQUIRED PER CYLINDER (second/pc)

not include   auxiliary time

ELECTRITY

REQUIRED PER MACHINE

(KW)

DESCRIPTION

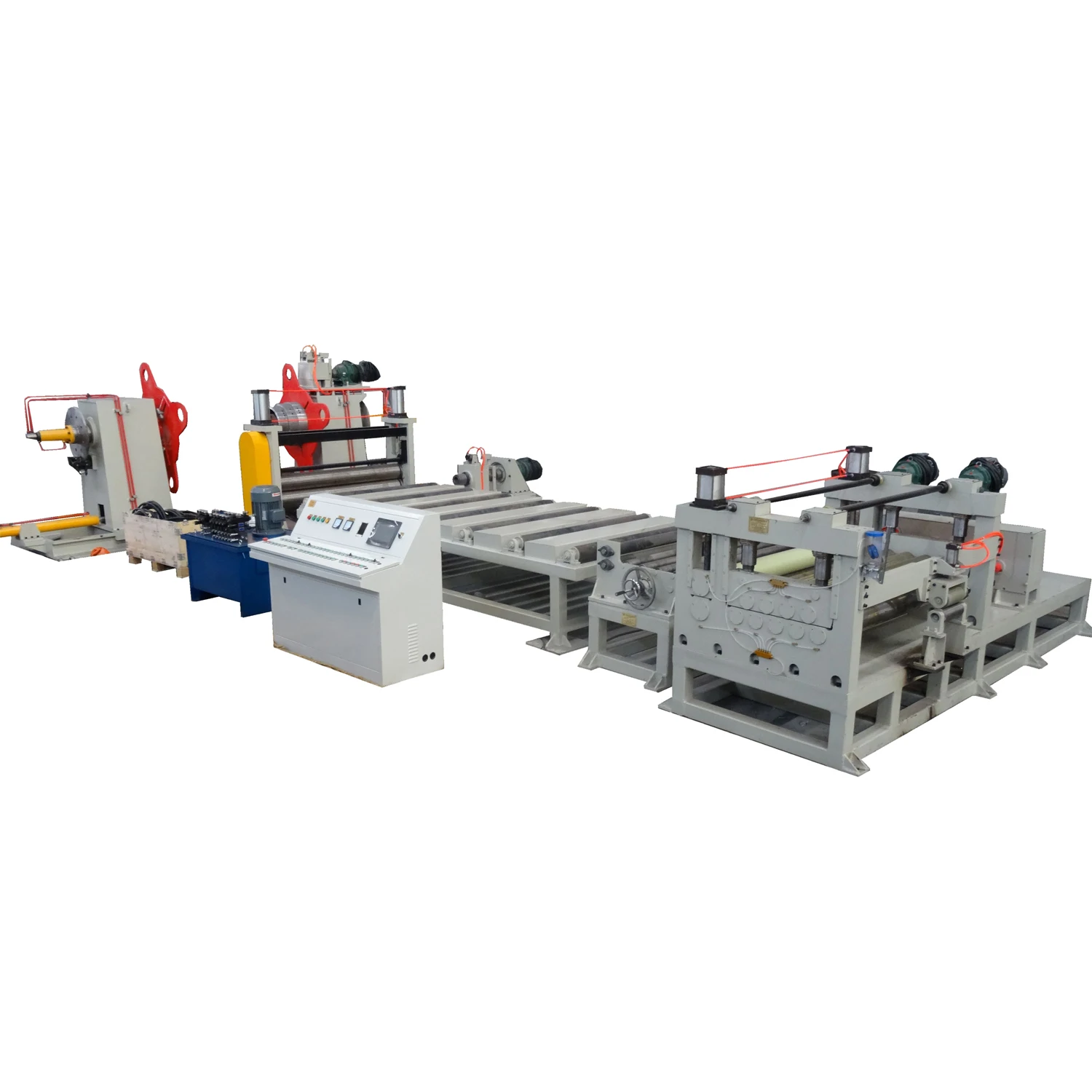

Production line of blanking

1

15pcs/min

62

1 set of coil bracket

1 set of main

 machine,

1 set of coil

 tightening device ,

1 set of feeding

 clamping system,

1 set of lateral

 limitation devices.

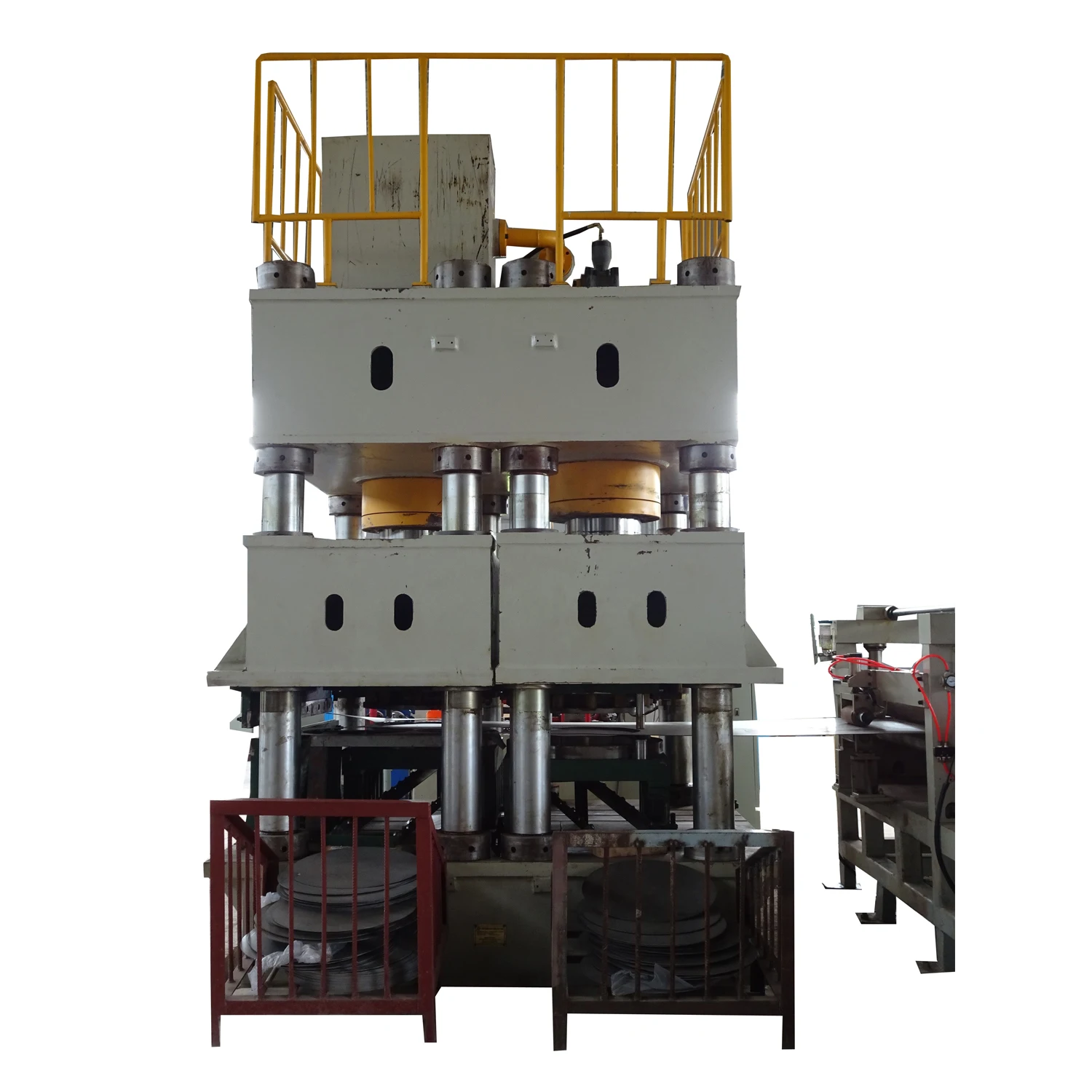

1 set 630T hydraulic press

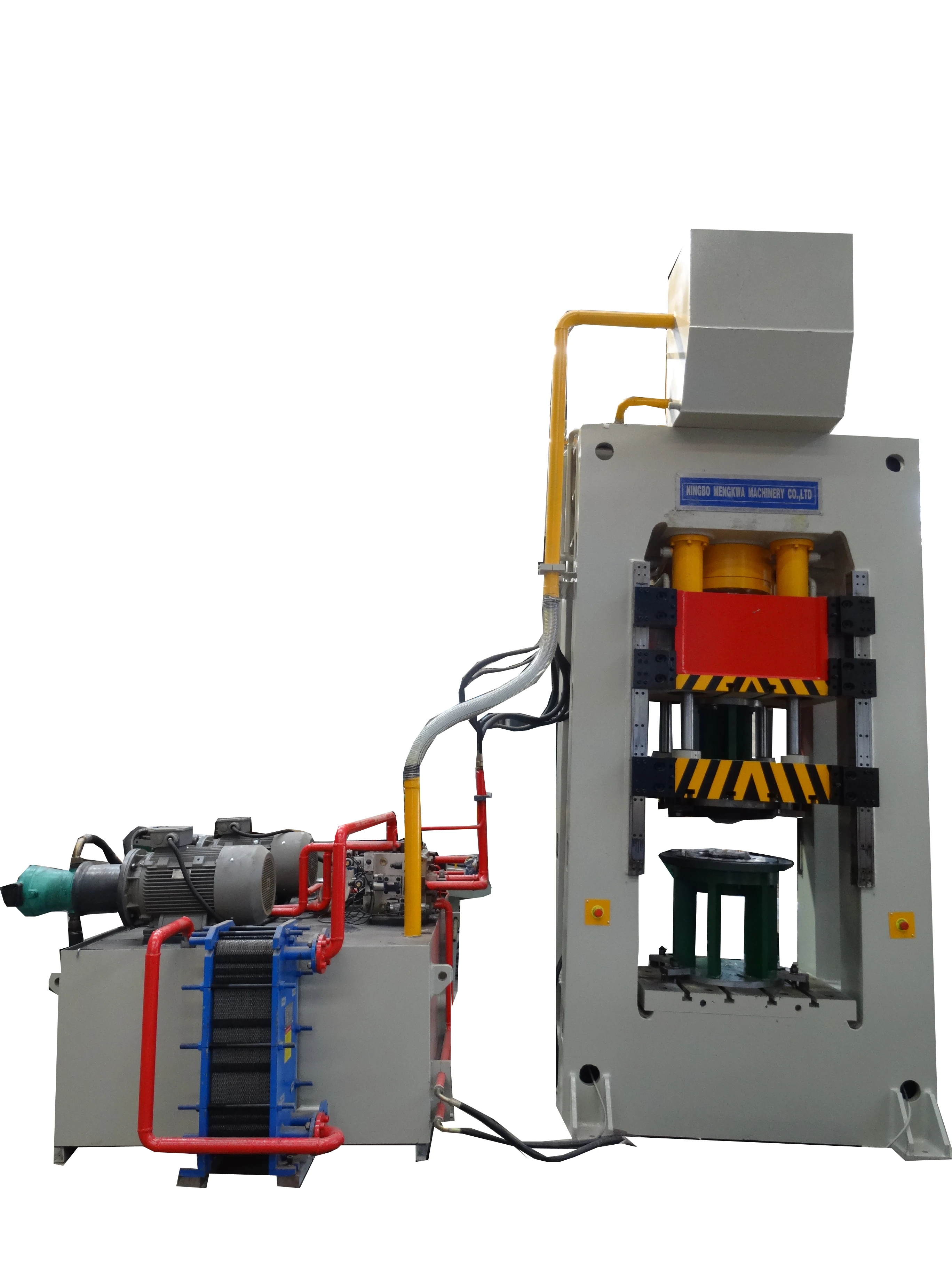

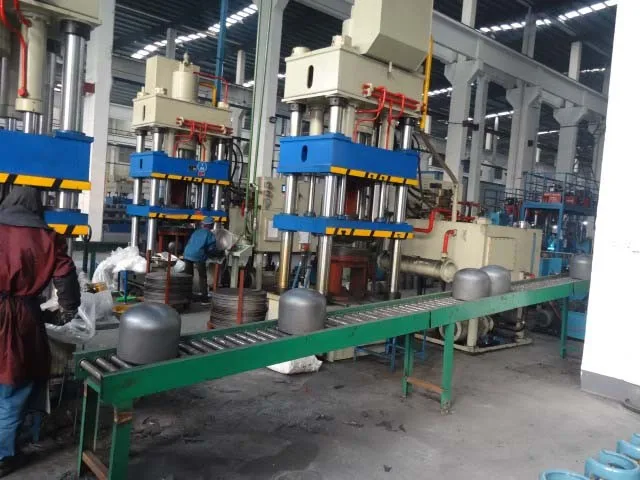

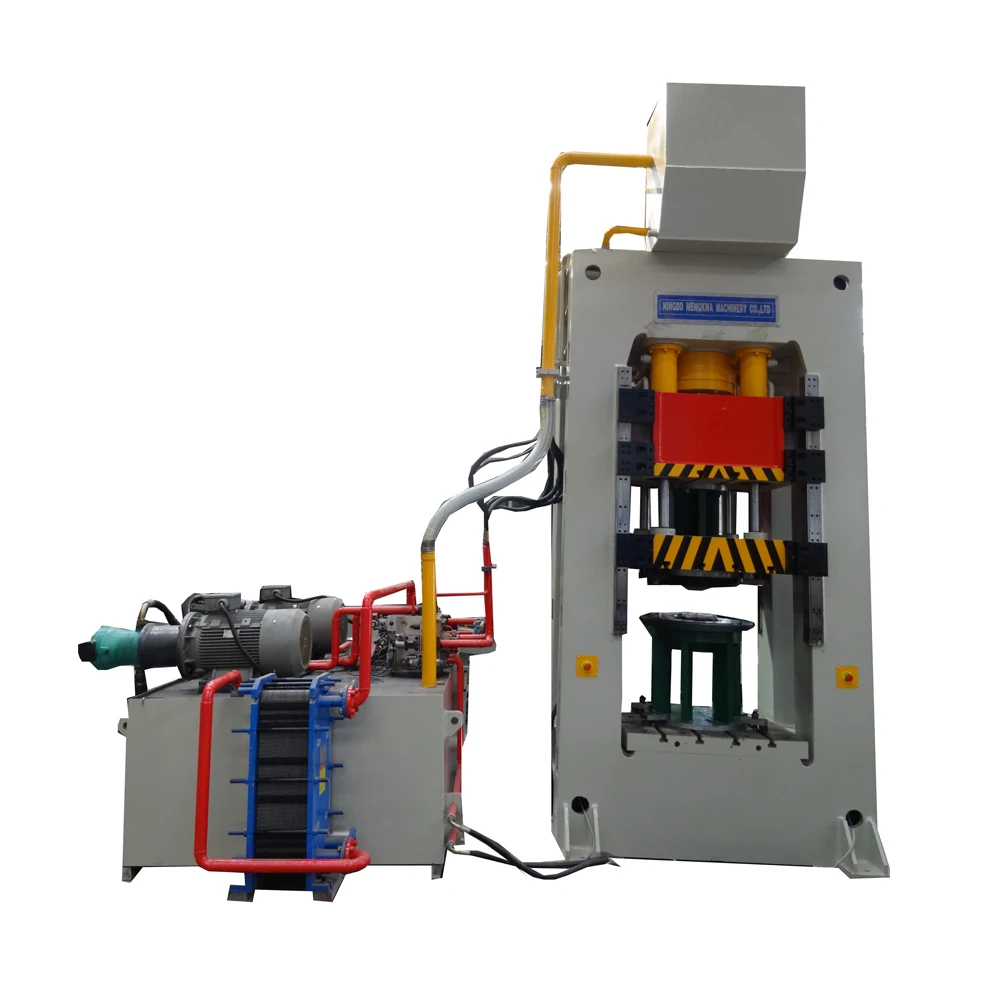

Stretching

machine

4

25s/pc

44

Main machine,

Trimming cut machine

4

 30s/pc

4

Main machine,

1pc of fit cutting knife

Forming

machine

2

30s/pc

4

Main machine ,

1 pc of offsetting knife

Rust

removing

machine

2

23s/pc

4.77

Main machine,

with 2pcs of polishing wheel

Punching machine

2

  20s/pc

   5.5

Main machine, with a set of punching dies

Valve base welding

2

20s/pc

16

Auto welder

Base skirt welding

3

30s/pc

16

Auto welder

Handle welding

3

30s/pc

16

Cylinder body

welding machine

7

100s/pc

35

Include welding machine

Annealing furnace

1

20s/pc

3.22

Furnace, combustion, By gas/oil

Hydraulic

pressure

testing

machine

2

40s/pc

6

Main machine, pressurized cylinder. 8 stations

3.4Mpa

Sandblast

machine

3

30s/pc

32

main machine, Including dust removal system,

without consumables

(sandblast). Horizontal

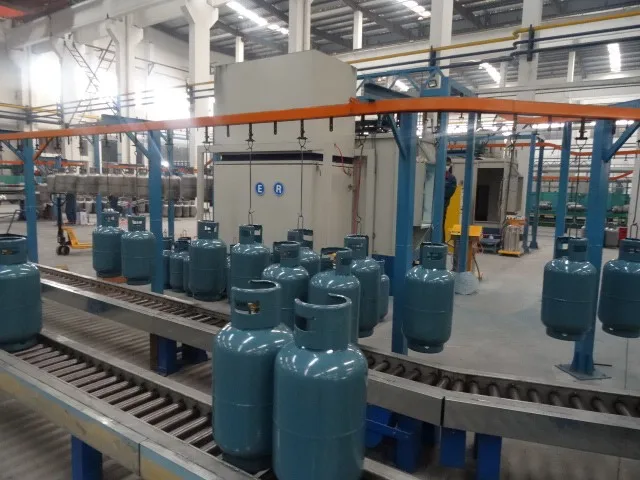

Painting line

1

1.7m/min

32

Curing bake Solidify road,

liquefied gas stove, automatic powder spraying room, filter collector,

 electrostatic, generator, hanging conveyor systems,

electrical control cabinet.

spray gun made in China

Valve tightening machine

2

20s/pc

1.5

Main machine with

special spanner

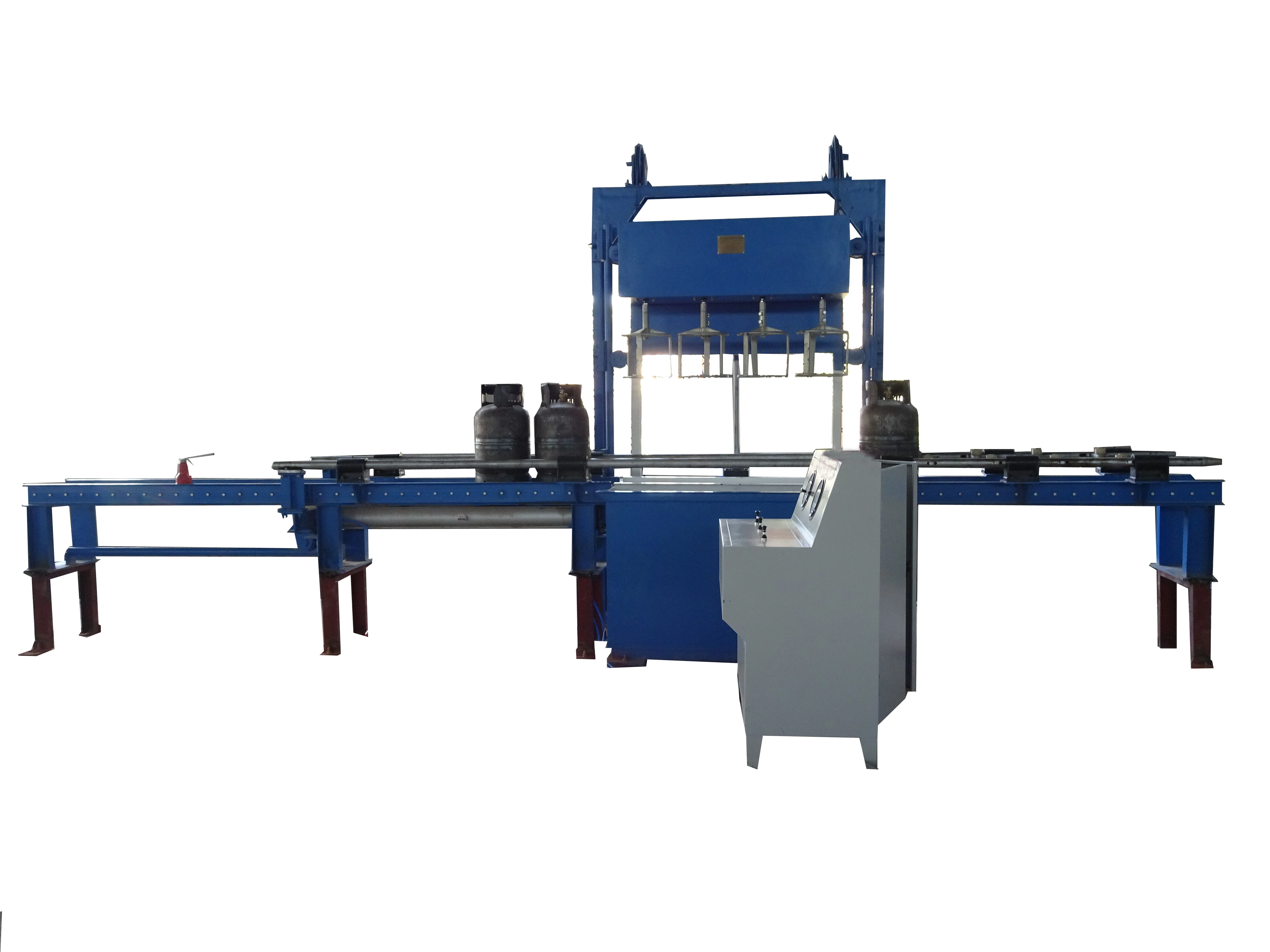

Leakage

testing

machine

2

90s/4pcs

4 station

silk screen printer

2

One colour

Conveyor

line

   0.2/m

retaining plate,

driving shaft,

tensioning devices,

feeding power,

bending roller

and so on.

According to practical

consumption

Zinc spraying line

1

3 sets of Zinc spraying machines

Cylinder assembling machine

1
