600w 12V AC to DC power inverter charger 10a battery charger
- Category: >>>
- Supplier: MPPSOLAR INC. [Taiwan China]MPPSOLAR
Share on (526540625):
Product Overview
Description
PIM-612C is a ac to dc power inverter 600W continuous / surge 1500w 12VDC input Modified Sine Wave power inverter charger with 220~240V/50Hz output and a built-in 10A battery charger. Suitable for wide variety of loads including personal, home and office equipments. Through its built-in AC battery charger, the inverter can work like a UPS by providing charging power to battery as well as relaying power to loads. This inverter may also be used in vehicle or other mobile applications. This inverter features a stable modified sine wave output with intelligent AVR +/- 5%. Unit is 100% made in Taiwan, using Taiwan/Japan/US components, with full after sale support direct from factory. Buy with confidence!
**Note: standard model is available only in 220~240V (50Hz), 100~120V (60Hz) may be special-ordered.
MAIN FEATURES:
- Continuous 600w modified sine wave output
- Built-in 10A AC battery charger
- 12V input / 220~240V, 50Hz output
- Surge power up to 1500w
- High efficiency >88%

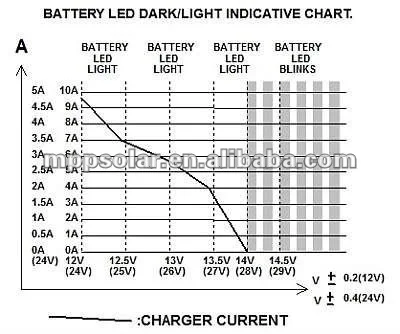

- Full battery LED indicator
- ±5% Intelligent AVR
- Overload/over temperature/short circuit, and battery reverse polarity protections (by fuse)
- Suitable for wall mounting
- 100% MADE IN TAIWAN with all reliable quality component from Taiwan/Japan/US.
- CE approved
SPECIFICATIONS:
| PIM-612C | |
| ELECTRICAL SPECIFICATIONS | |
| Continuous/Surge Output | 600W / 1500W |
| Output Voltage | 220~240V ±5% Intelligent AVR (100~120V may be special ordered) |
| Output Waveform | Modified Sine Wave |
| Output Frequency | 50Hz, 55Hz, OR 60Hz Crystal controlled (fixed) |
| Peak Efficiency | >88% |
| Charging Current | Max 10A |
| Input VDC / Range | 12V: 10V~15V |
| Standby Current | <0.5A |
| Transfer Time | AC <-> Inverter 16ms |
| AC Outlet | 1 |
| Batt. Voltage Detect | Auto-Detecting Wrong Batty (12V / 24V) |
| PROTECTIONS | |
| Batt. Reverse Polarity | By Fuse |
| Overload (Pre-Alarm/Shutdown) | >620W/>660W |
| Over Temperature | > 60°C Pre-Alarm; > 65°C Shut Down |
| Low Battery | <10.5V±0.5V Pre-Alarm, <9.5V±0.5V Shut Down |
| Short Circuit | Shut off output voltage |
| LED Indicators | 3 |
| ENVIRONMENTAL / MECHANICAL SPECIFICATIONS | |
| Certification / EMC | CE / EN61000-6-3. EN61000-6-1 EN55022 EN55024 |
| Operating Temp. | -10°C~ +55°C |
| Operating/Storage Humidity | 20~90%RH Non-Condensing |
| Storage Temp. | -20°C~ +70°C |
| Dimension | 280*176*65mm |
| Weight | 2.8 Kg |
ACCESSORIES:
- user manual *1,

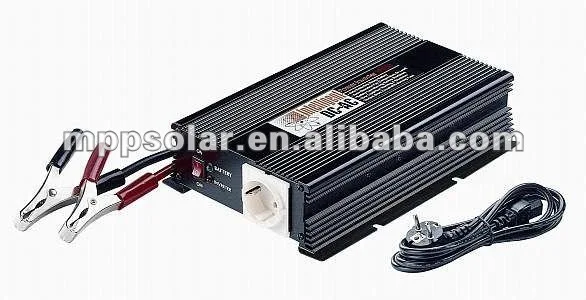

- alligator cable*1
- AC power cord*1
