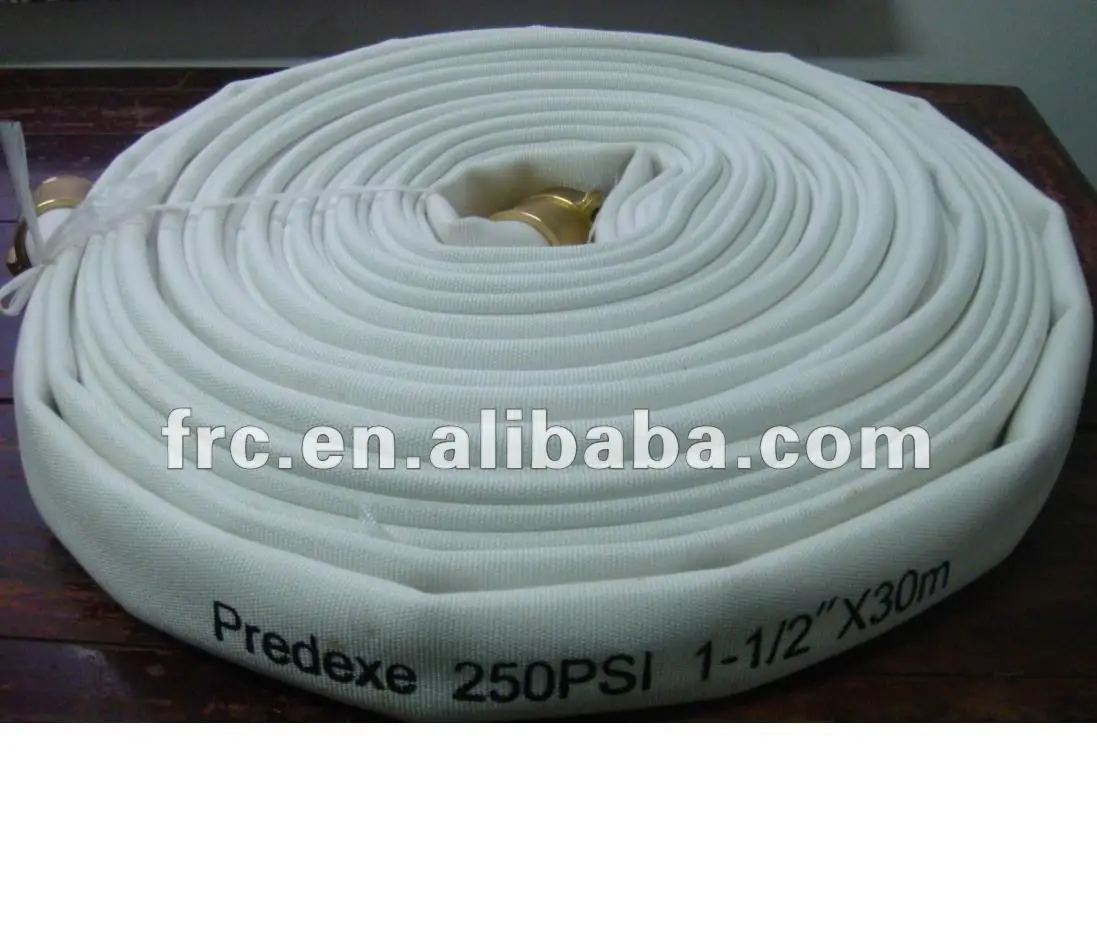

Double jacket fire hose

Product Overview

Description

Double jacket fire hose / double jacket mill hose:

Features:
1) this hose include a second closely woven jacket outside for extra durability. Safety factor.

2) Polyester jacket is constructed of warp in polyester staple and weft in polyester filament.
3)Lined with rubber ,PU or PVC

4)high pressure, anti-wear ,anti-corrosion, non-permeable

5) Low water-flow resistance ,quick water output
6) Length:15,20,25,30 or 40m

7.)with bass American NST couplings

TECHNICAL PARAMETERS Modle Inner Dia (inch) Inner Dia(mm) Working Pressure  (Bar/Psi) Test Pressure(Bar/Psi) Burst Pressure(Bar/Psi) C13 1 1/2 40 13/190   20/290   ≥39/565   2 50 2 1/2 65 3 75 4 100 C16 1 1/2 40 16/235   24/350   ≥48/700   2 50 2 1/2 65 3 75 C20 1 1/2 40 20/290   30/435   ≥60/870   2 50 2 1/2 65 3 75 C25 1 1/2 40 25/360   37/540   ≥75/1080
