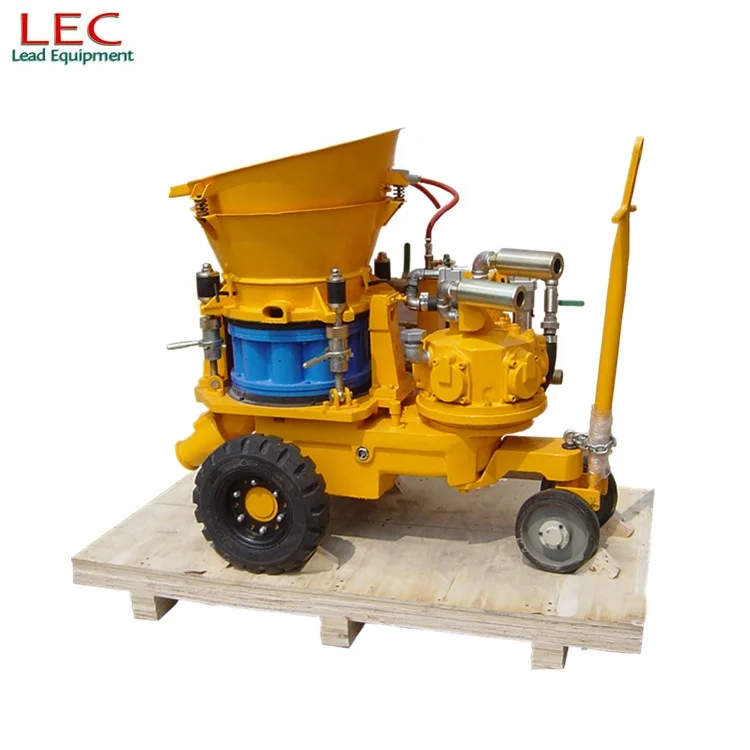

Good Quality ISO and CE LZ-3 Spraying Concrete or Refractory Gunning Machine
Product Description

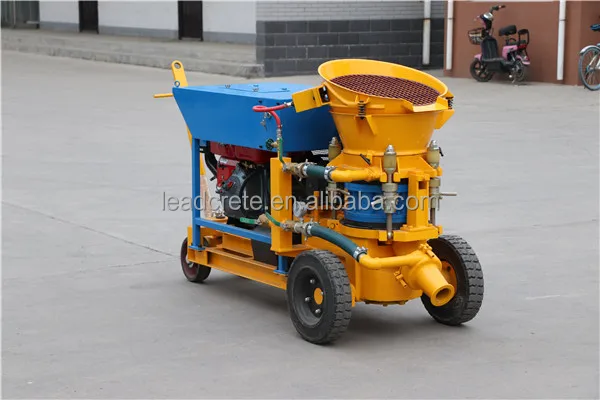

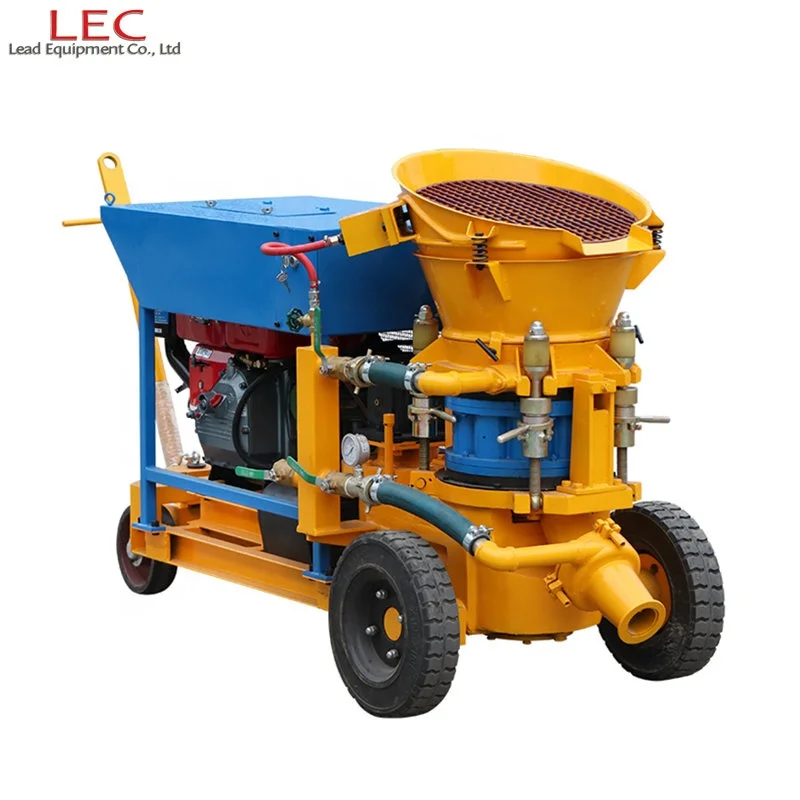

LZ-3D small job used diesel drive dry mix shotcrete machiner for the dry spraying process.
LZ-3D small job used diesel drive dry mix shotcrete machiner can be used as well for small jobs, such as joint filling, swimming pool, refractory application and extensive slope consolidation work, etc.

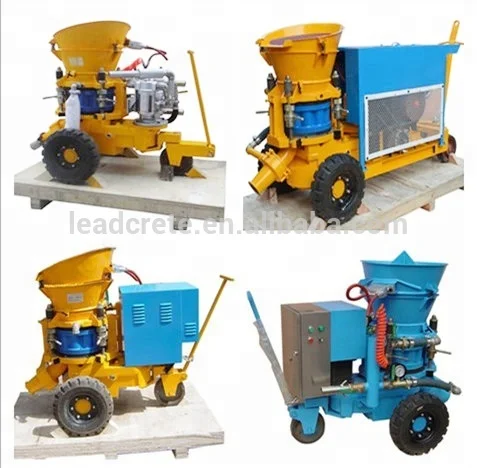

LZ-3 concrete sprayer is available in following versions:

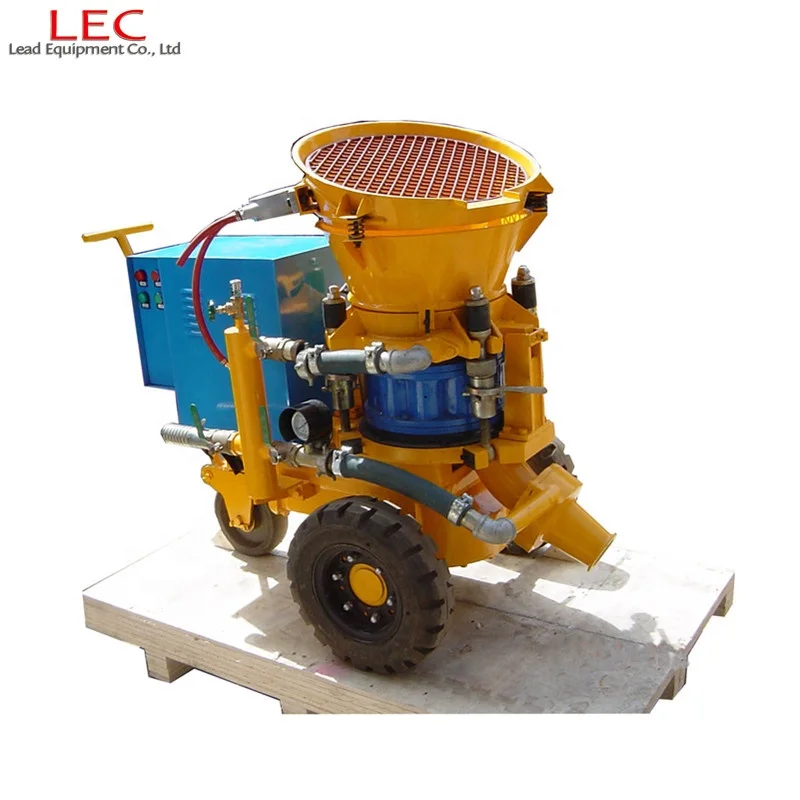

Basic: electric drive can be combined with tyre chassis
Extended (optional): air motor or diesel drive combined skid or rail-wheel
LZ-3D small job used diesel drive dry mix shotcrete machiner can be used as well for small jobs, such as joint filling, swimming pool, refractory application and extensive slope consolidation work, etc.
LZ-3 concrete sprayer is available in following versions:
Basic: electric drive can be combined with tyre chassis
Extended (optional): air motor or diesel drive combined skid or rail-wheel
Technical parameters
Rated output | 2-3m 3 /h |
Max. Horizontal conveying distance | 200m |
Suitable mix ratio(cement/sand) | ≤ 1: 3~5 |
Max. aggregate size | Φ 10 mm |
Conveying hose inner diameter | 38/51mm |
Operating air pressure | 0.2-0.4MPa(29-58PSI) |
Air consumption | 5~6m 3 /min(180-215CFM) |
Diesel engine | 10hp,2200rpm |
Diesel engine starting | Electric start |
Clutch type in diesel engine | Automatic clutch |
Material charging height | 0.9m |
Rotor speed | 9-13r/min |
Overall dimension(L× W× H) | 1.8× 0.8× 1.2m |
Net weight | 480kg |
Advantage

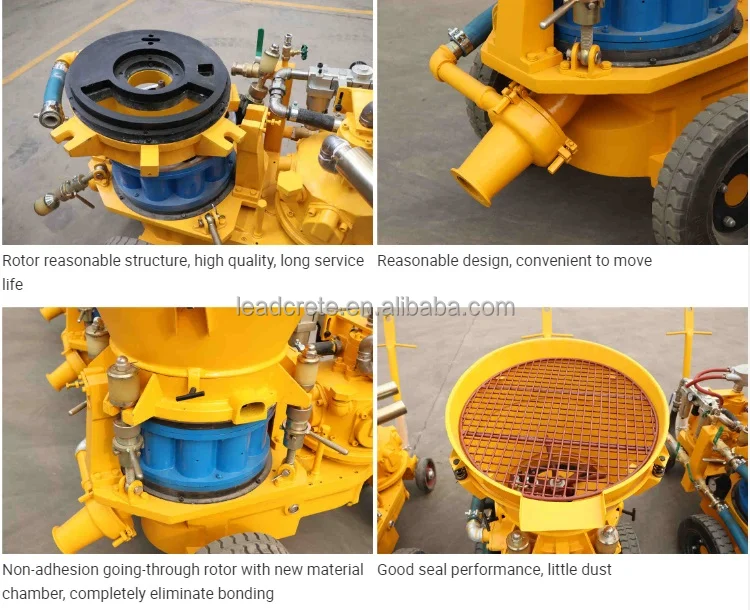

1. High quality, reliable performance.
2. Good seal performance, little dust.
3. Reasonable design, convenient to move.
4. Convenient operation and longevity of service.
5. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to
reduce clearance and maintenance period.
6. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete
quality.
7. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak
and prolong consumption parts life.
8. Widely used in mining, tunnel, culvert, revetment etc.
2. Good seal performance, little dust.
3. Reasonable design, convenient to move.
4. Convenient operation and longevity of service.
5. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to
reduce clearance and maintenance period.
6. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete
quality.
7. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak
and prolong consumption parts life.
8. Widely used in mining, tunnel, culvert, revetment etc.
