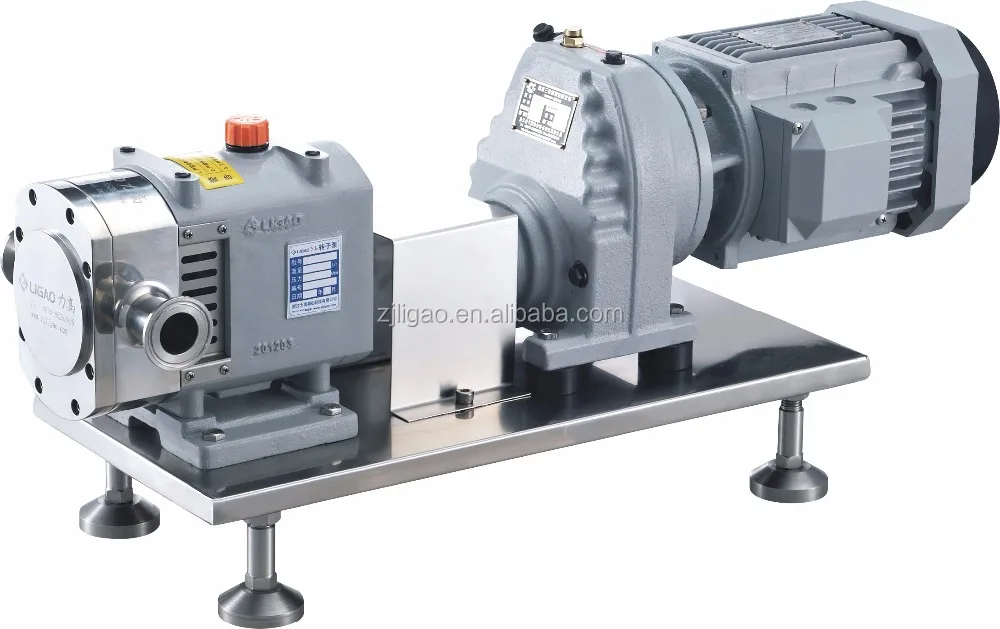

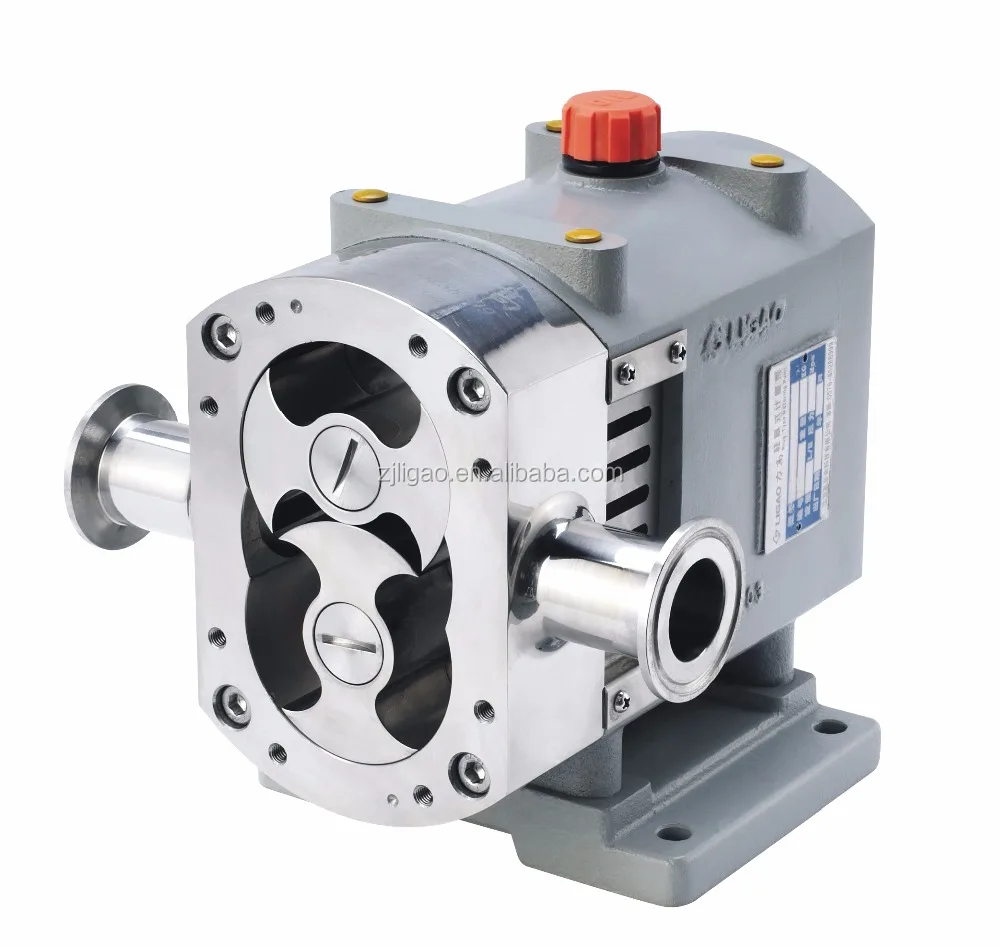

three lobe rotor pump

Product Overview

Description

Rotor Pump is also named Colloid pump, cam pump, trefoil pump,high concentration pump,etc,It depends on two synchronic rotators.The two rotators are driven by a pair of outer-set synchronic gear boxes and the transmission shaft .They move synchronically in counter-clockwise directions.Which consequently,builds up high vacuum capacity and emission pressure.





Principal

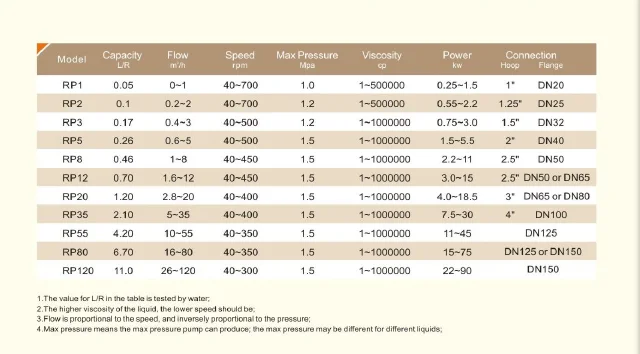

Technical Parameter





Note:

1. 1.       The motor power should be increased when delivering high viscosity liquid,and adopts stepless speed regulator or frequency transformer to adjust the speed;
2. 2.       The flow in tile table fefers to the aata tested taking  water as the medium;
3. 3.       You can choose Hoop / thread and flange.
