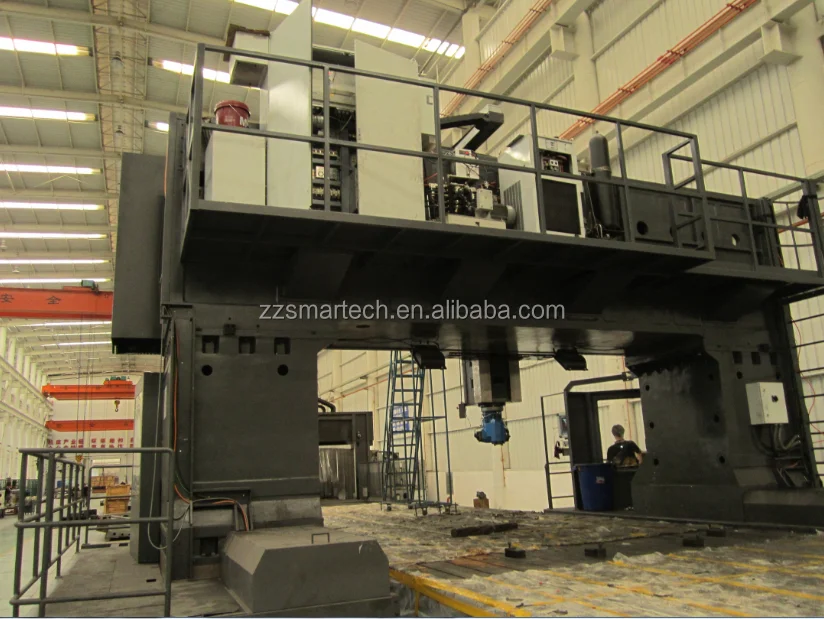

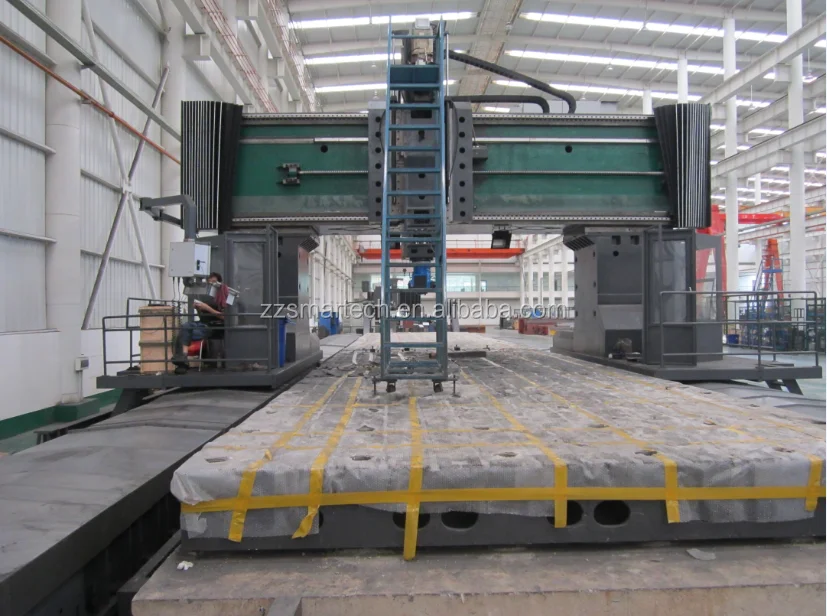

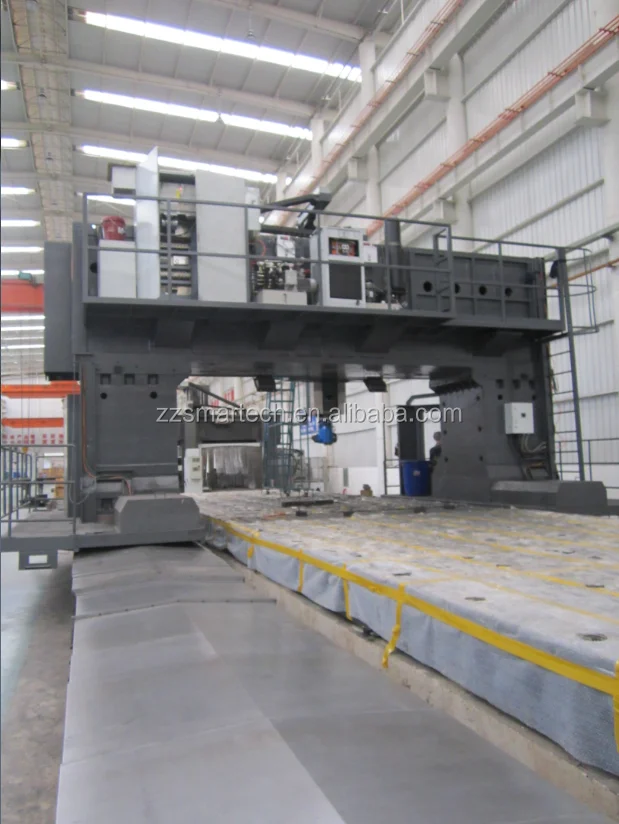

Moving Gantry Machining Center GSP 5032
- Category: >>>
- Supplier: Smartech Machinery & Equipment Co. Ltd. (shenzhen)
Share on (527835091):
Product Overview
Description
SMARTECH CNC GANTRY MOVING MACHINING CENTER
- MACHINE FEATURE:
1 High-class casting by resin sand and wood mould;
2 Top class imported ball screws sets and bearing ;
3 Imported spindle & tool clamping system ;
4 Imported drive connectors;
5 Column moving
6 Telescopic protection on X/Y axis ;
7 Central lubrication system;
8 Spindle trunk hydraulic balance system;
9 Imported coupling;
10 Harden&ground on all slideways and Turcite-B coated with precise scraping;
OPTIONAL: Different type milling heads
|
MODEL |
GANTRY MOVING GSP-5032 |
|
Table Size |
4000 x 32000 |
|
Travel X |
32000 |
|
Y |
5000 |
|
Z |
1500 |
|
Distance between columns |
5000 |
|
Spindle Nose to table surface |
400-1900 |
|
T-Slot(QTY/size/distance) |
15/36/250 |
|
Spindle Taper/ outside dia |
BT50/230 |
|
Spindle Speed(max) with ZF Gear box |
2500rpm |
| Spindle Speed(max) standard |
2500rpm(Direct Drive) |
|
X axis Ball Screw Spec. |
Pinion and Rack |
|
Y axis Ball Screw Spec. |
80/20(nut rotating) |
|
Z axis Ball Screw Spec. |
63/16 |
|
Drive motors recommended X/Y/Z |
60/40/40Nm |
|
Table Work Load |
5000Kg/m2 |
|
Net Weight |
300T |
