GW 63 II HMC Horizontal Milling Machine Machining Center Structure

Product Overview

Description

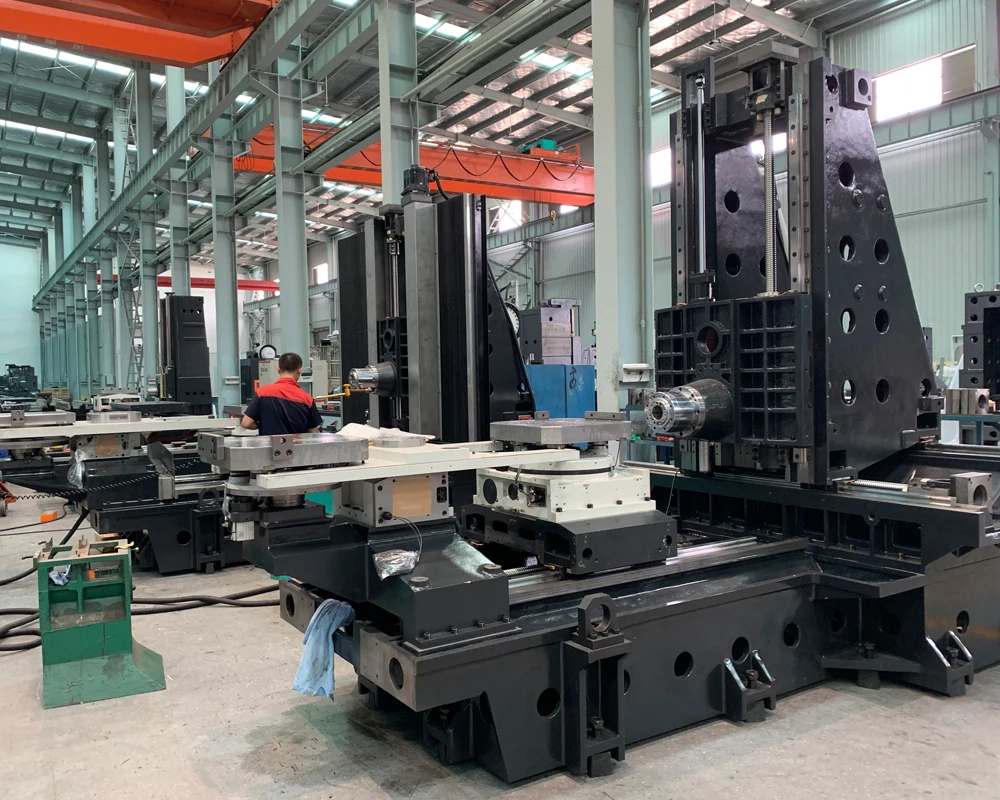

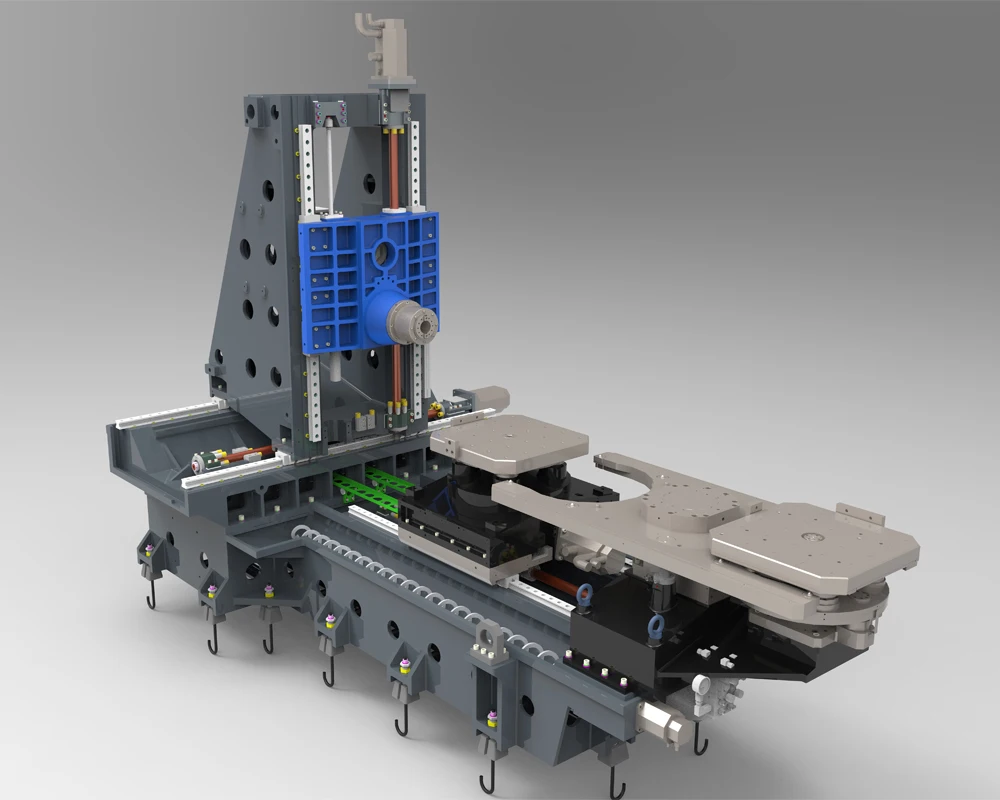

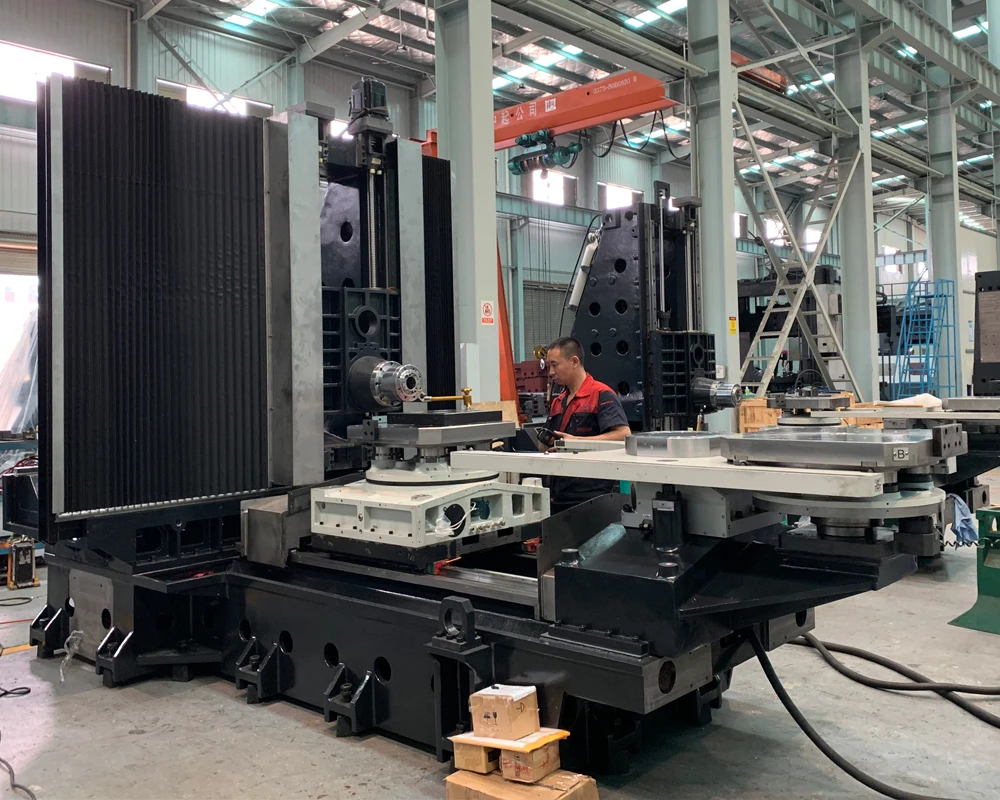

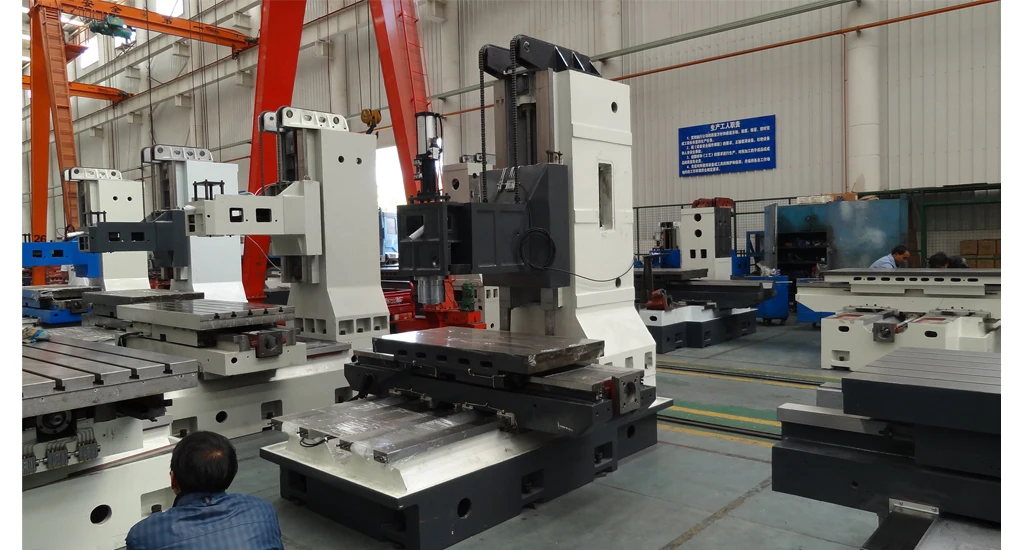

SMARTECH CNC HMC FRAME



Standard Components of Frame:

1) High-class casting processed with resin sand wooden mould;

2) Imported ball screw=HIWIN or PMI;

3) Imported roller linear slideways = INA;

4) Imported complete spindle= Taida (Taiwan);

5) Imported bearings for screw=NSK;

6) Imported coupling=R+W;

7) Rotary work tables (Yantai made in Mainland or Detron made in Taiwan);

8) Customized Paint;

9) Lubrication system ;

10) Leveling bolts and pads ;

11) Tools (spanner , screw driver and so on ) and tool box ;

12)Protections for X/Y/Z axes;

13)Hydraulic-cushion system for spindle box;

14)Hydraulic station for work table;



REMARKS:

This is the HMC machine frame, not including X/Y/Z servo motors and drivers, controller and other electrical parts.



Model	GW-63-II
Optional Frame 1	Frame with Yantai (Mainland) worktables
Optional Frame 2	Frame with Detron (Taiwan) worktables
Optional Components	Heidenhain Encoder
	ZF or BF reducer
	Coolant through spindle
	Automatic Tool Changer
	(Bei Jyu, Hydraulic holding, 60-tool)
	Full Guarding (without chip conveyer)





Specification		GW-63-II
Table Size		630x630
Unit of indexing		Continuously
Travel	X	1100
	Y	800
	Z	1100
Spindle nose to table center		50-850
Spindle center to table surface		125-1225
Specification of worktable		24-M16 threaded hole (125*125)
Spindle Taper/outside dia		BT50/190
Spindle Speed		6000rpm
X axis Ball Screw Spec.		50&10
Y axis Ball Screw Spec.		50&10
Z axis Ball Screw Spec.		50&10
X Roller slideways Spec.		55 mm
Y Roller slideways Spec.		55 mm
Z Roller slideways Spec.		45 mm
X,Y&Z Motor Connnection		Direct
Spindle motor recommended		15-18.5 kw
Drive motors recommended X/Y/Z		X: 26  Y:20 (brake)  Z: 22Nm
Table Work Load		800*2 Kg
Net Weight		11000 Kg









′
