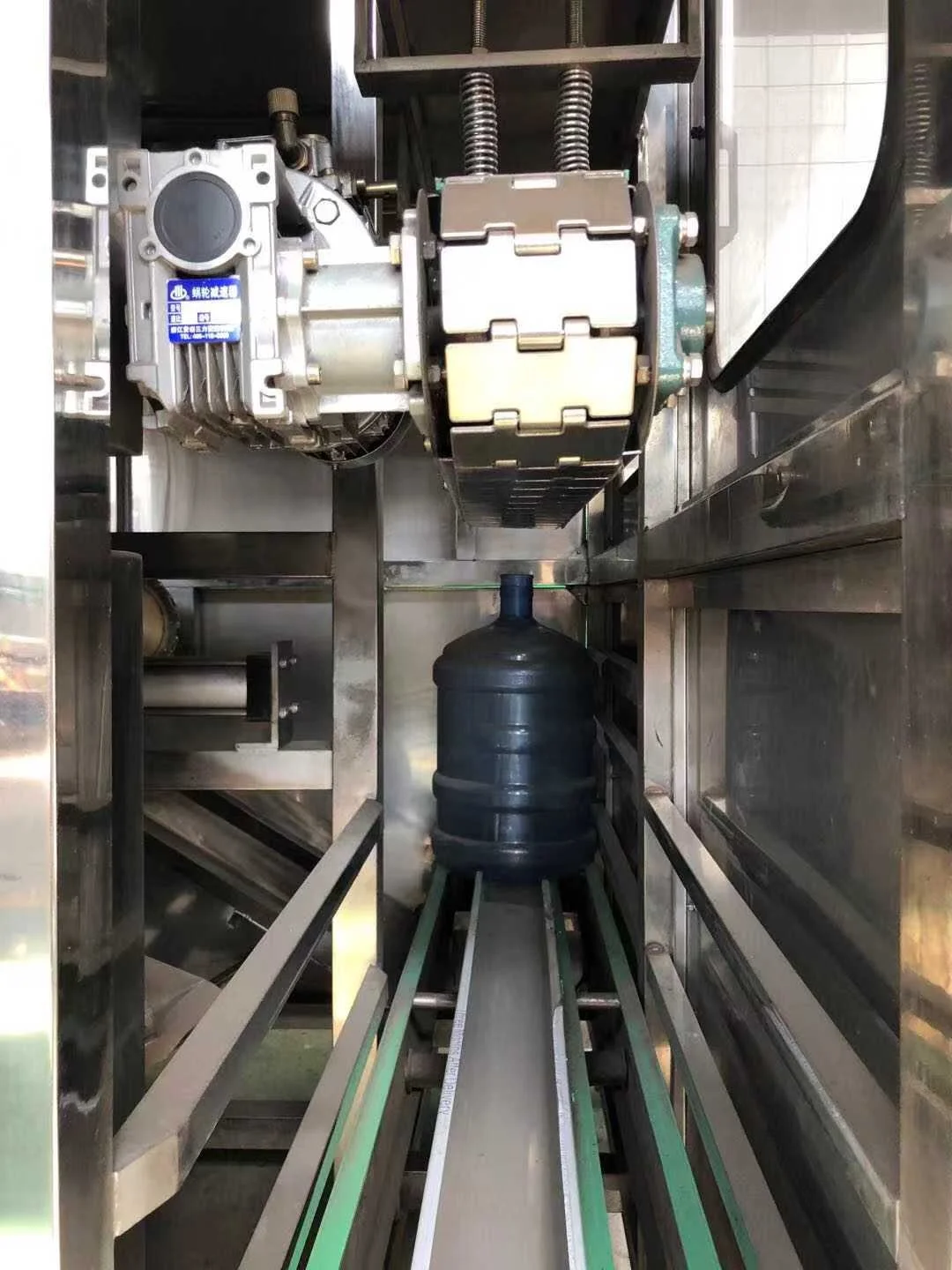

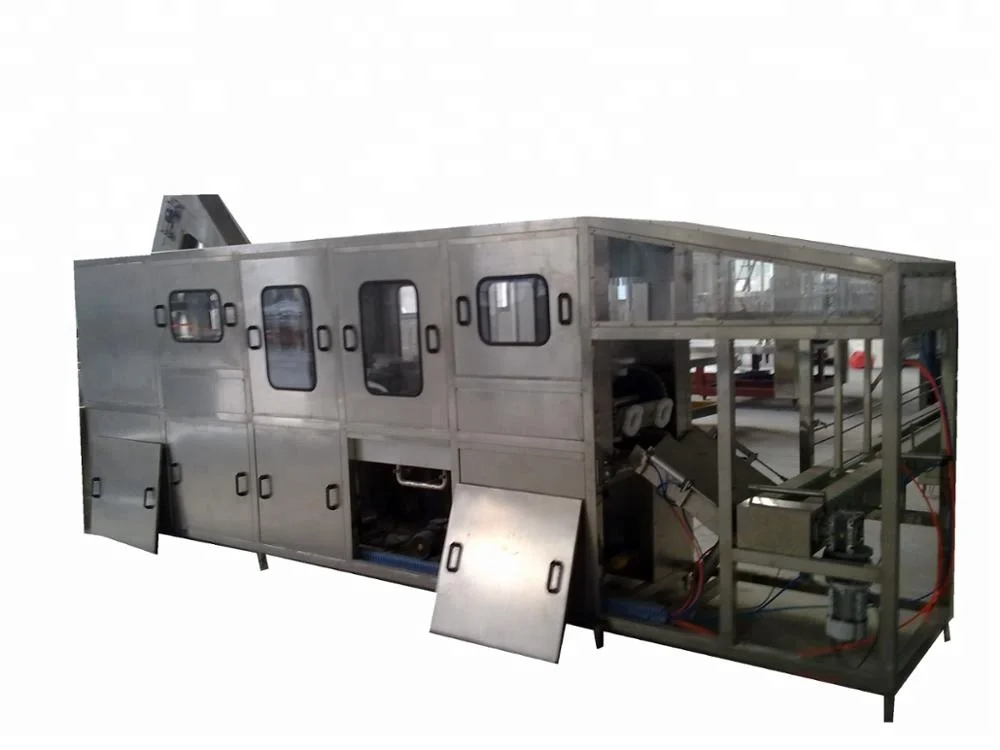

Fully Automatic Barrel Water 5 gallon Filling Machine/Line
- Category: >>>
- Supplier: Zhangjiagang Keerman Machinery Co. Ltd.
Share on (527982262):
Product Overview
Description
Product Description
Automatic Drinking Water Producing Bottling Filling Machine Line
The whole line contacts 5 main parts:
1.Bottle blowing machine
2.Water treatment sytem
3.Water barrel washing filling and capping machine

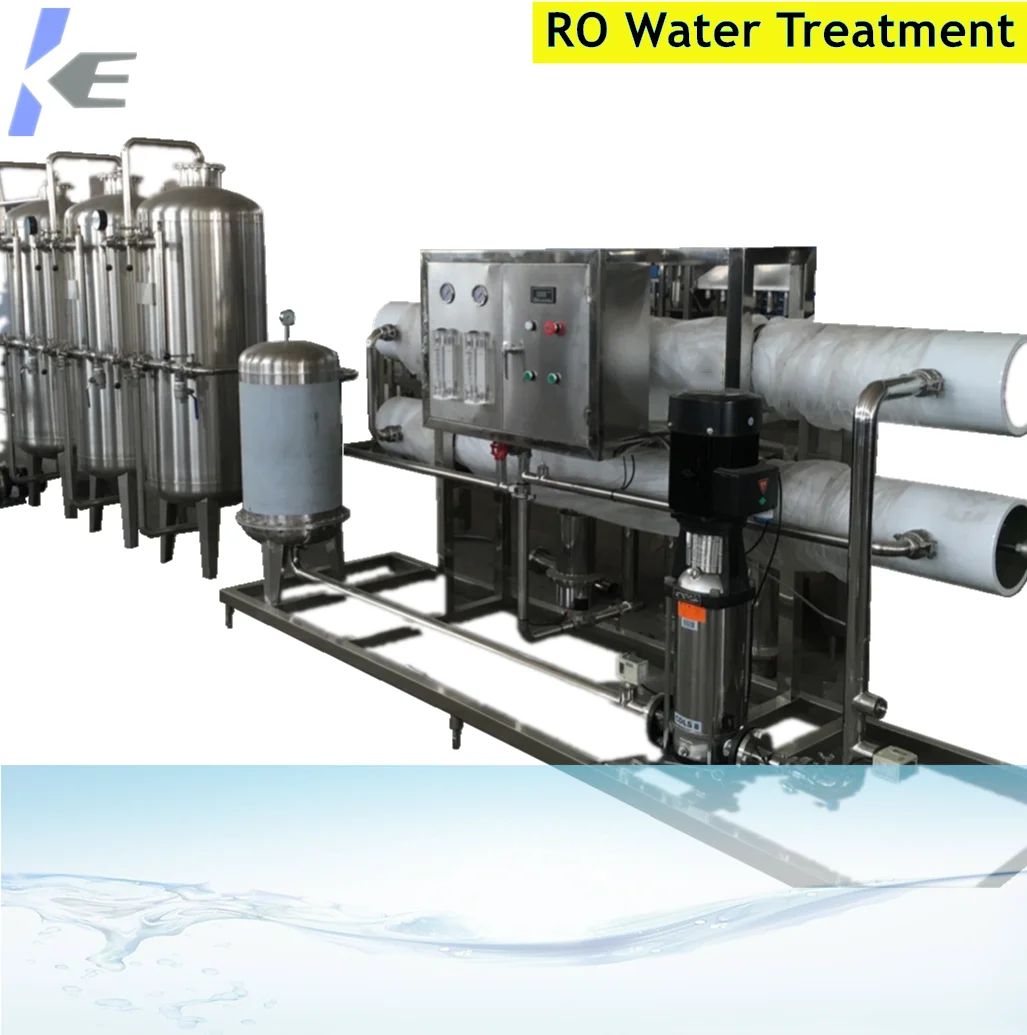

2.Water treatment sytem

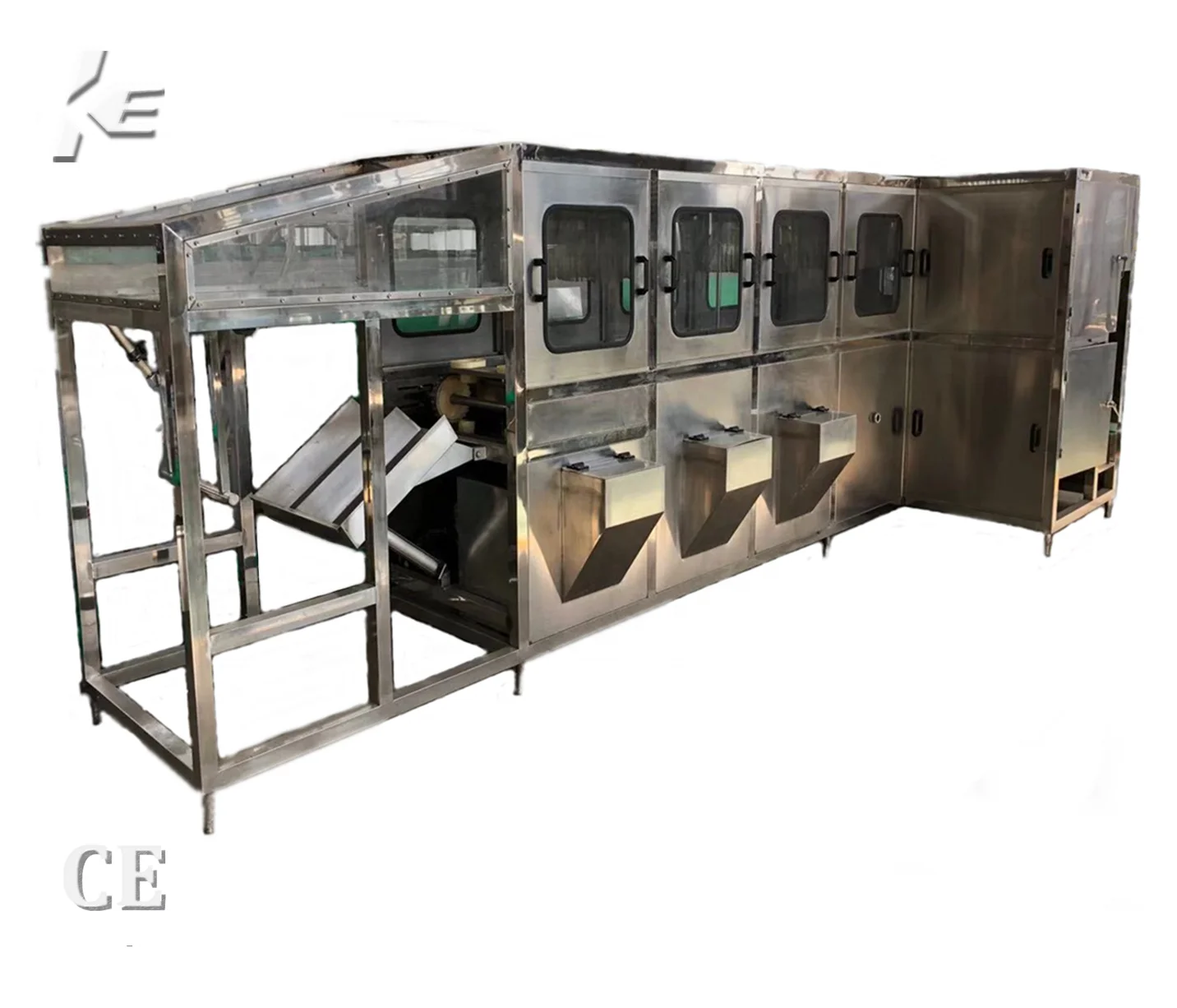

3.Water barrel washing filling and capping machine

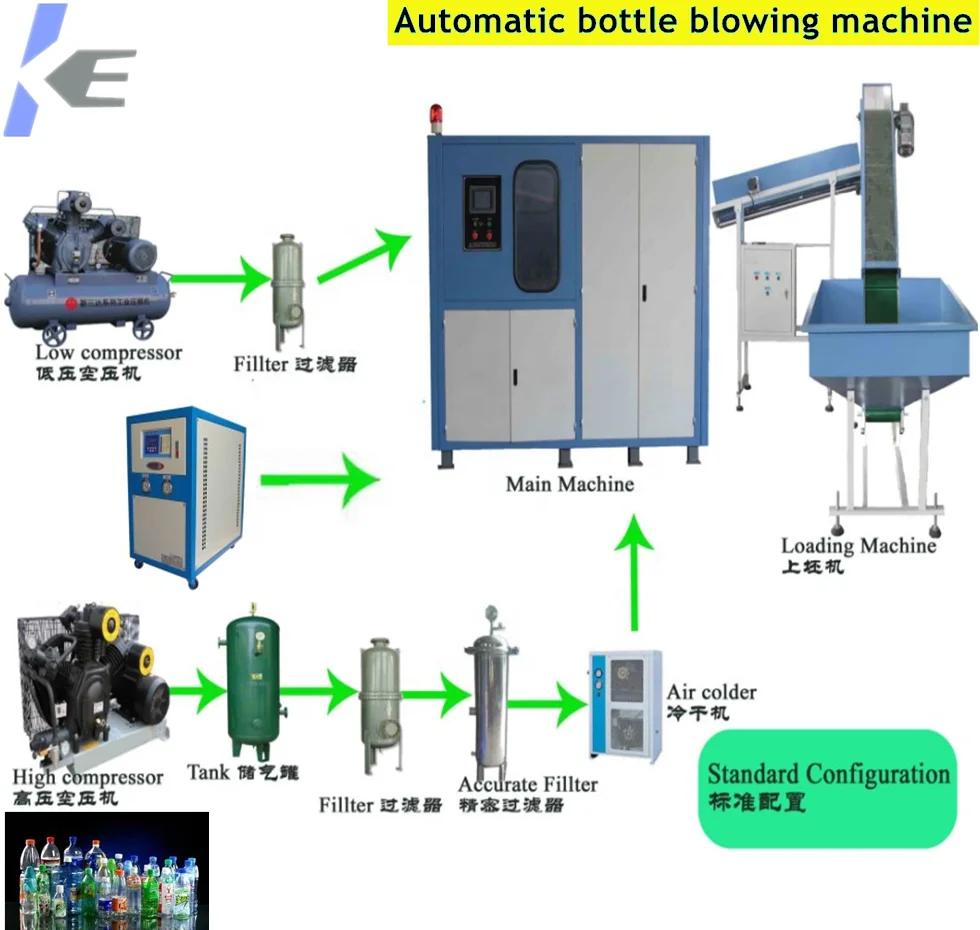

1.Bottle blowing machine
To Blow the preformers to be bottles.
To produce mineral water or pure water from well,lake,river and other source water
To wash the barrels ,fill drinking water into bottles,seal bottles with caps.

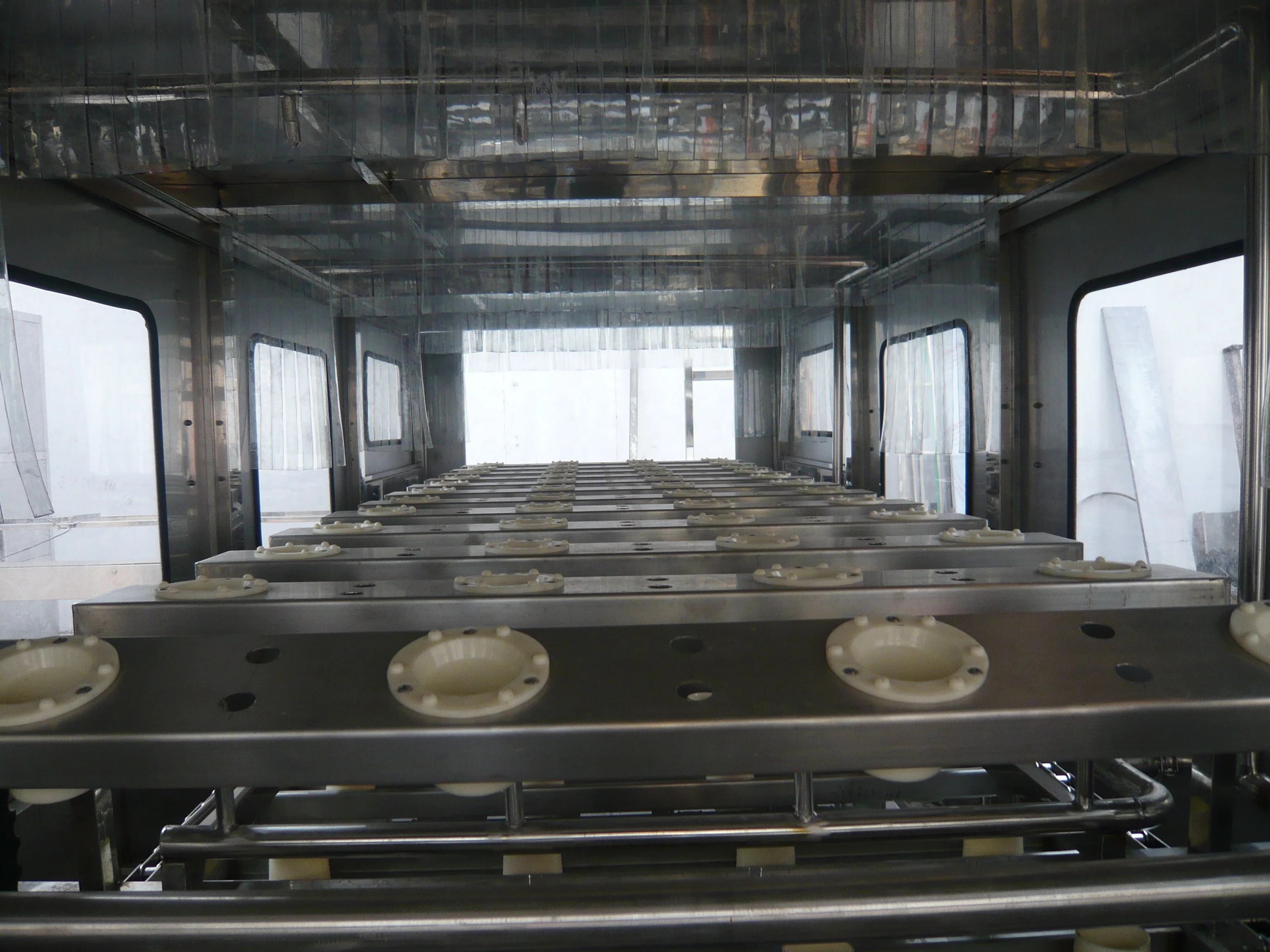

Washing bottle

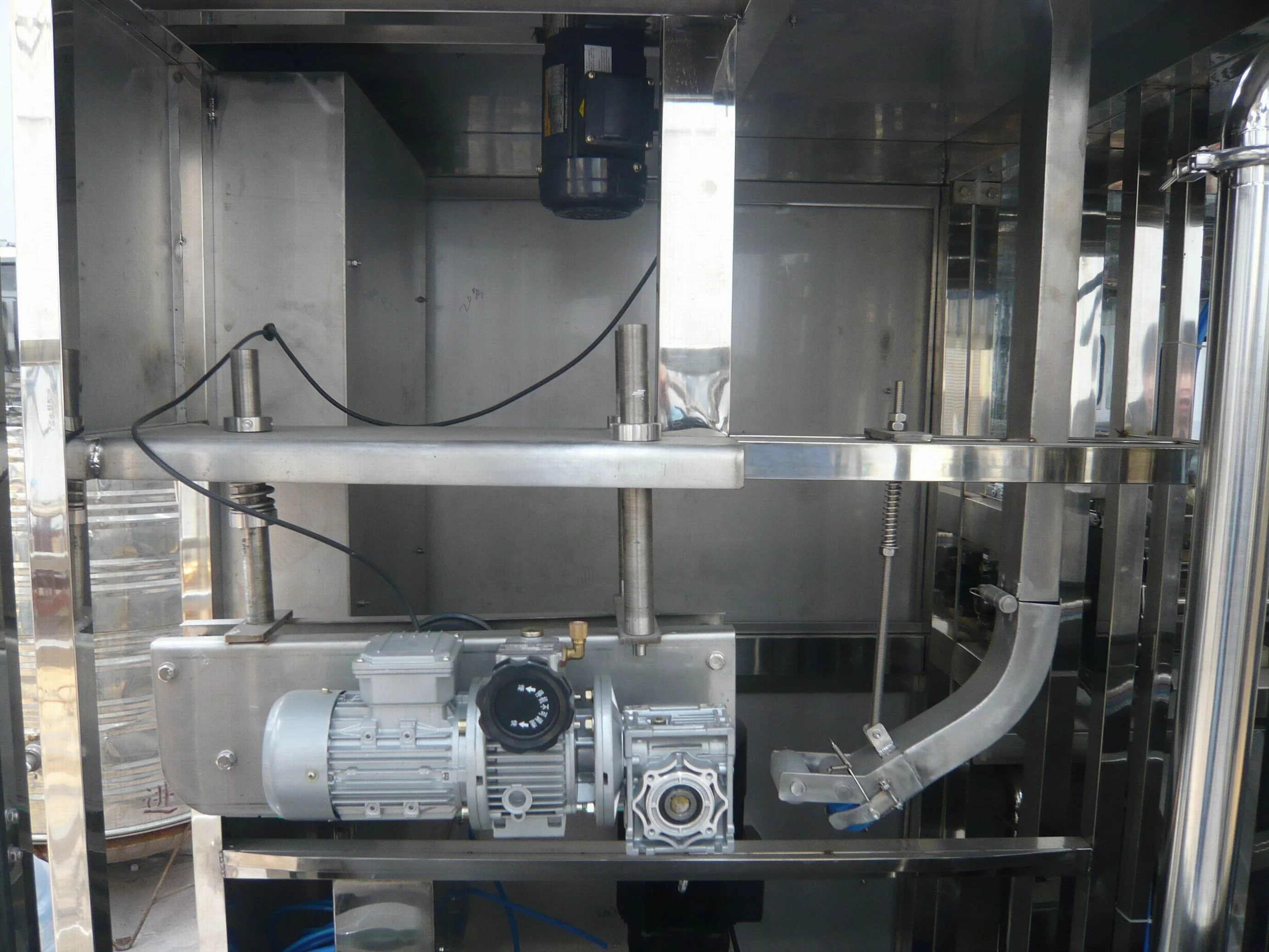

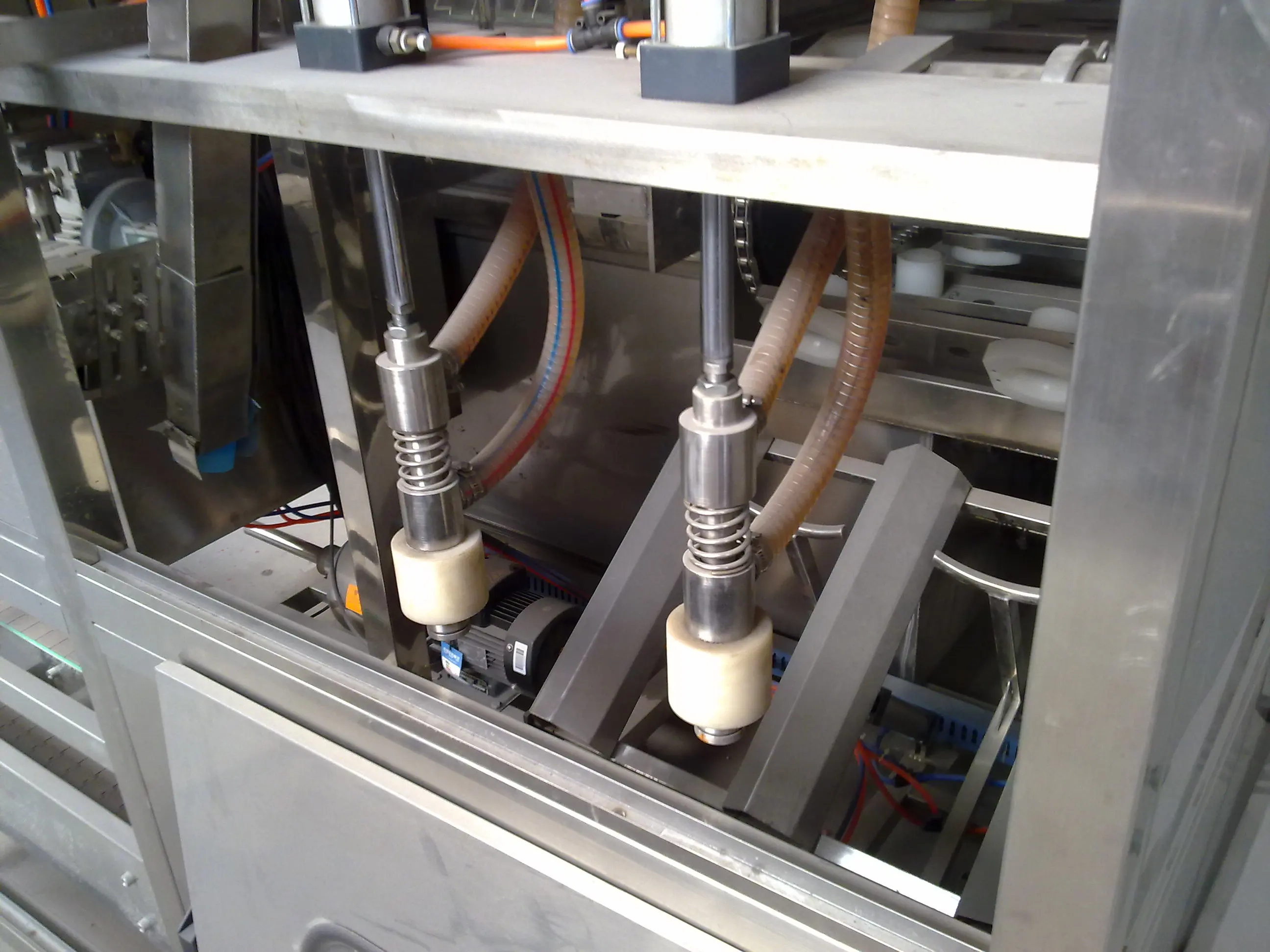

Capping machine
Product Paramenters
Main Technical parameters | ||||||||||||||
Model | QGF-100 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 | QGF-2000 | |||||||
Filling heads | 1 | 2 | 3 | 4 | 8 | 12 | 16 | |||||||
Volume(L) | 18.9 | |||||||||||||
Barrel size(mm) | φ270×490 | |||||||||||||
Capacity(B/H) | 100-120 | 200-240 | 300-400 | 600 | 900 | 1200 | 2000 | |||||||
Gas pressure(mpa) | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | |||||||
Gas consumption (m3/min) | 0.37 | 0.6 | 0.6 | 1.2 | 2.2 | 3 | 4.5 | |||||||
Motor power(Kw) | 1.75 | 3.22 | 4.8 | 8.5 | 8.5 | 8.5 | 8.5 | |||||||
Rated voltage(V) | 380V/50Hz | |||||||||||||
Outline dimension(mm) | 3790×650 ×1550 | 3550×800 ×1800 2800×1100 ×1800 | 3550×1200 ×1800 3800×1100 ×1800 | 3650×1500 ×1800 3800×1100 ×1800 | 2200×1860 ×2700 | 2560×2350 ×2750 | 3100×2800 ×2750 | |||||||
Weight(kg) | 800 | 2800 | 4000 | 5500 | 7500 | 9500 | 11800 | |||||||

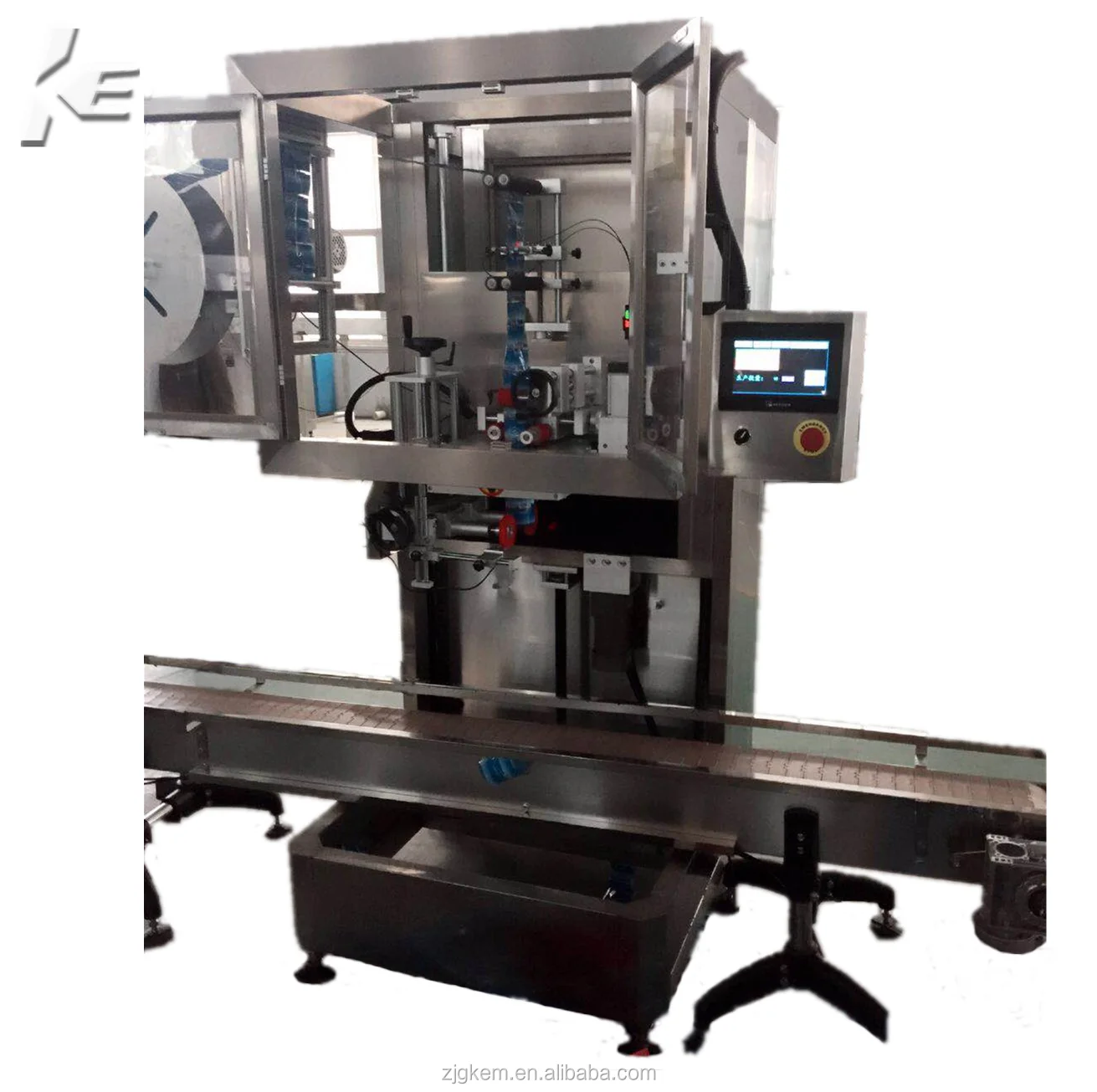

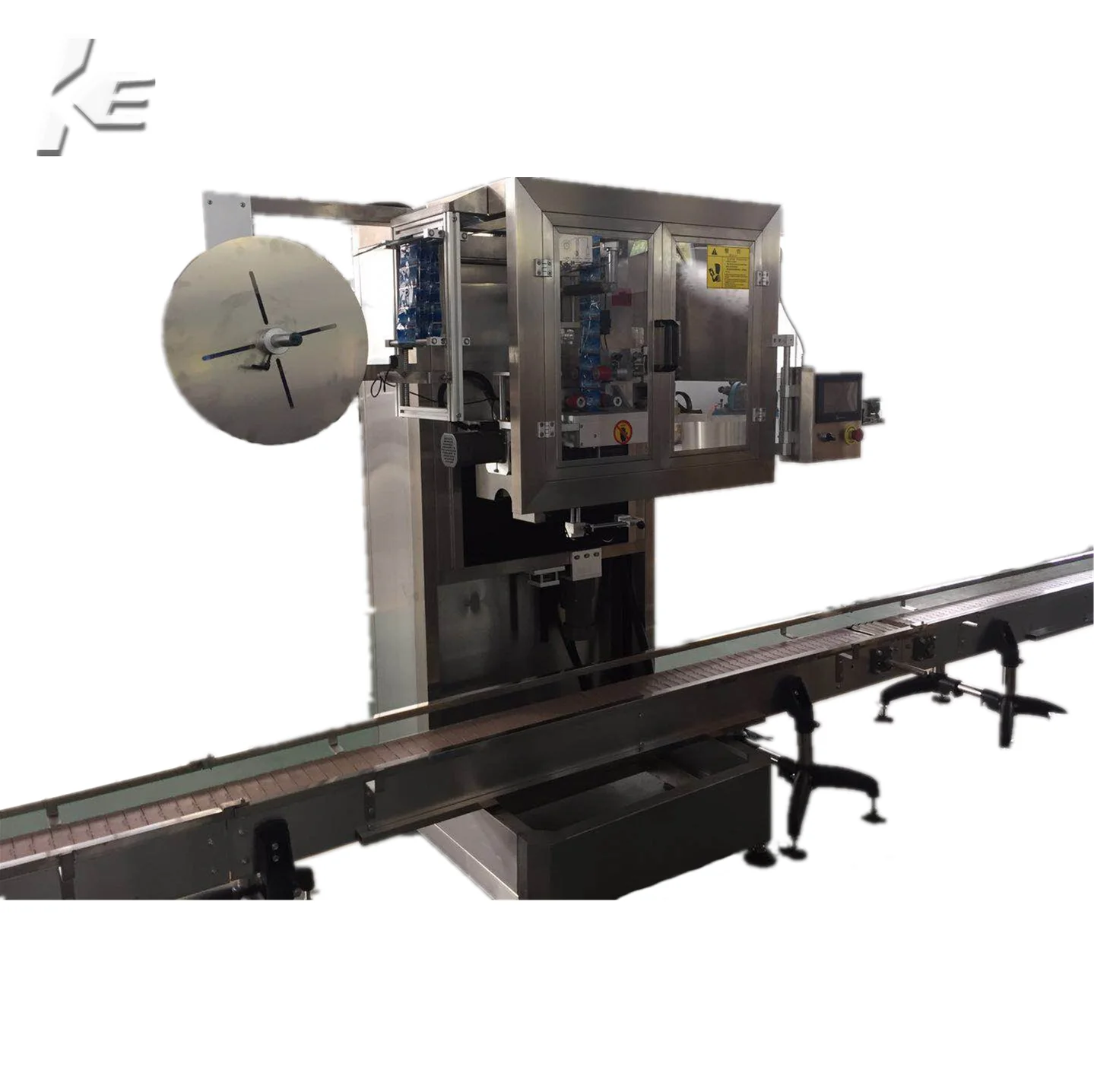

4. Sleeve labeling machine

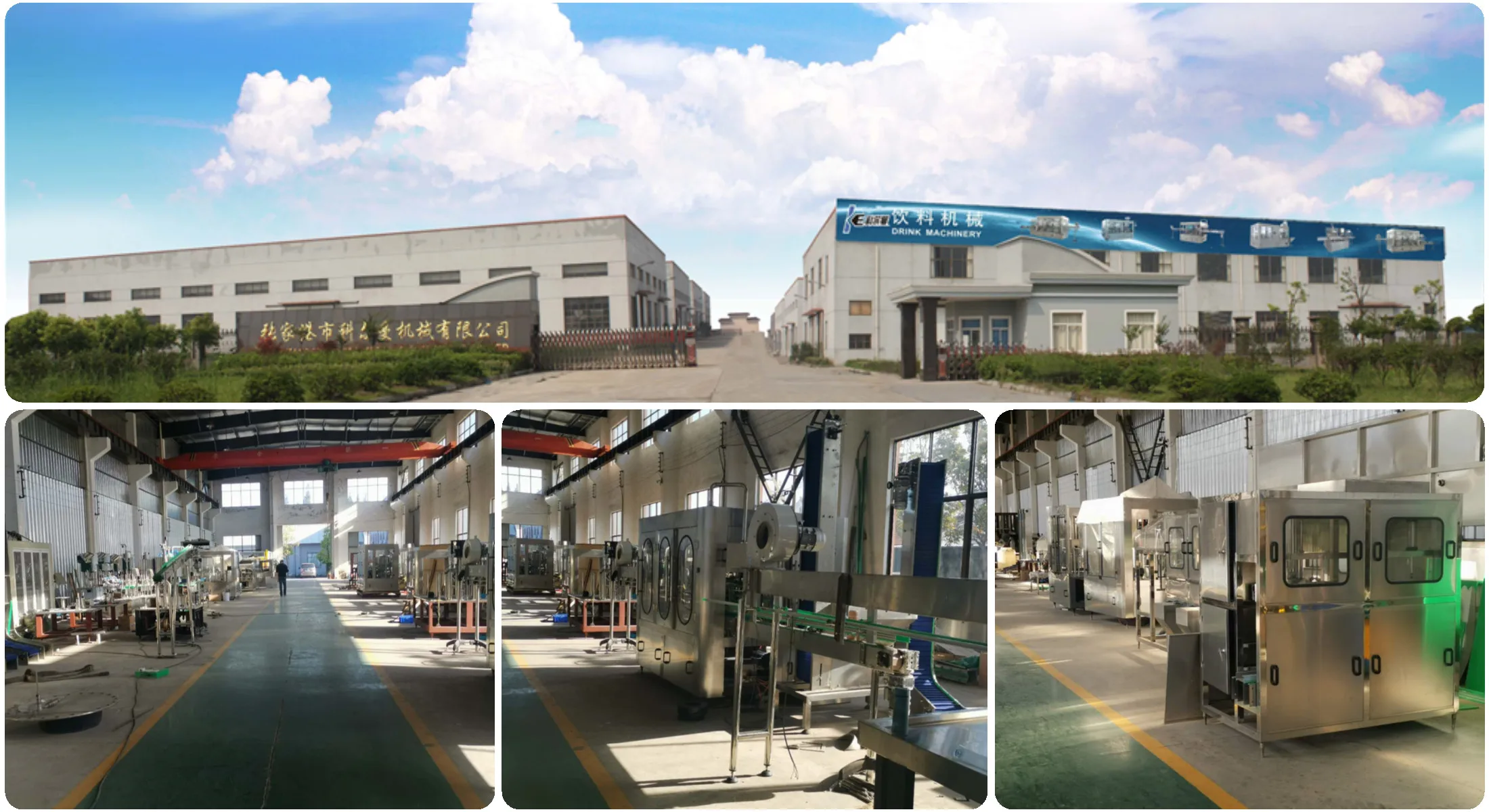

Company Profile

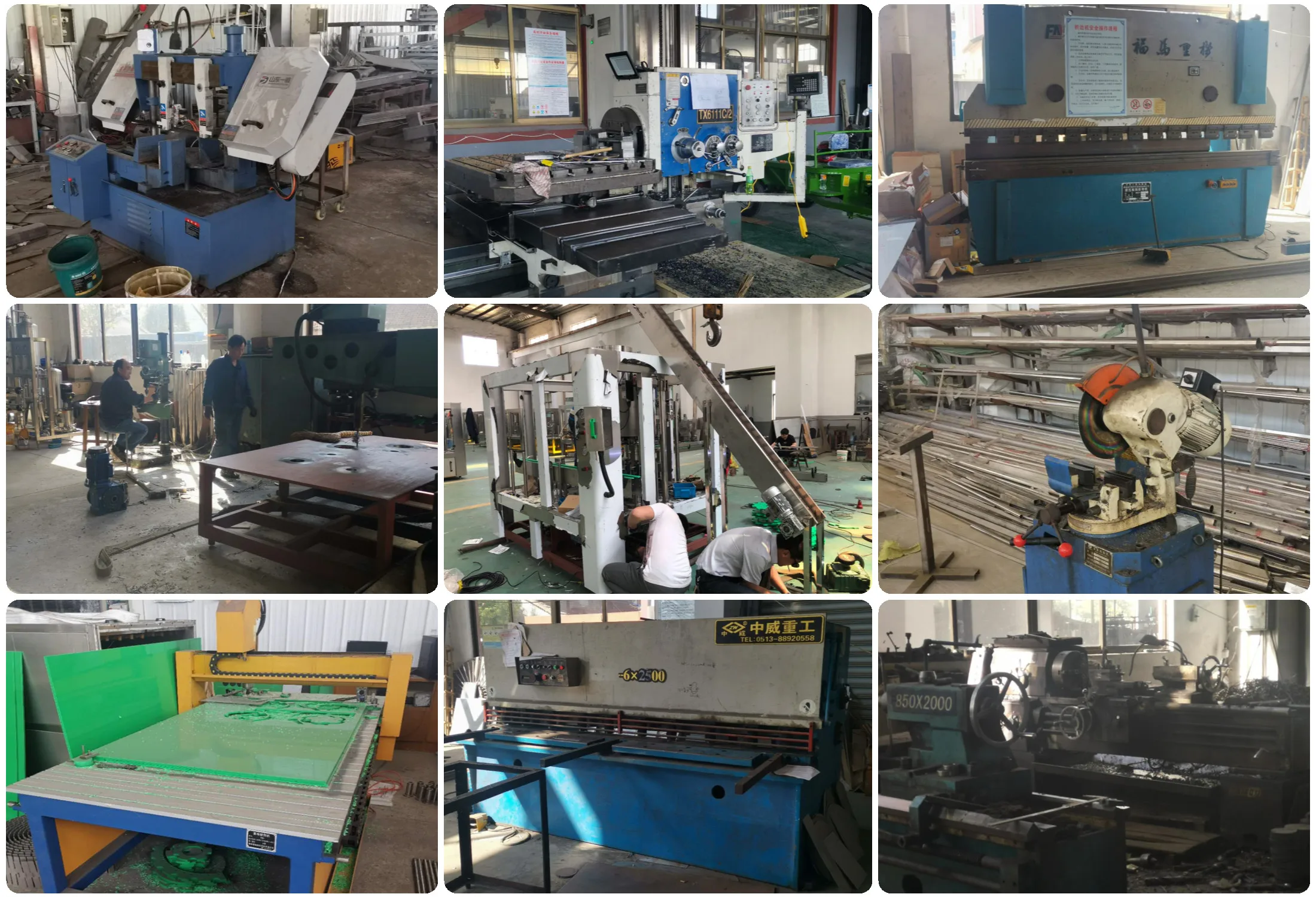

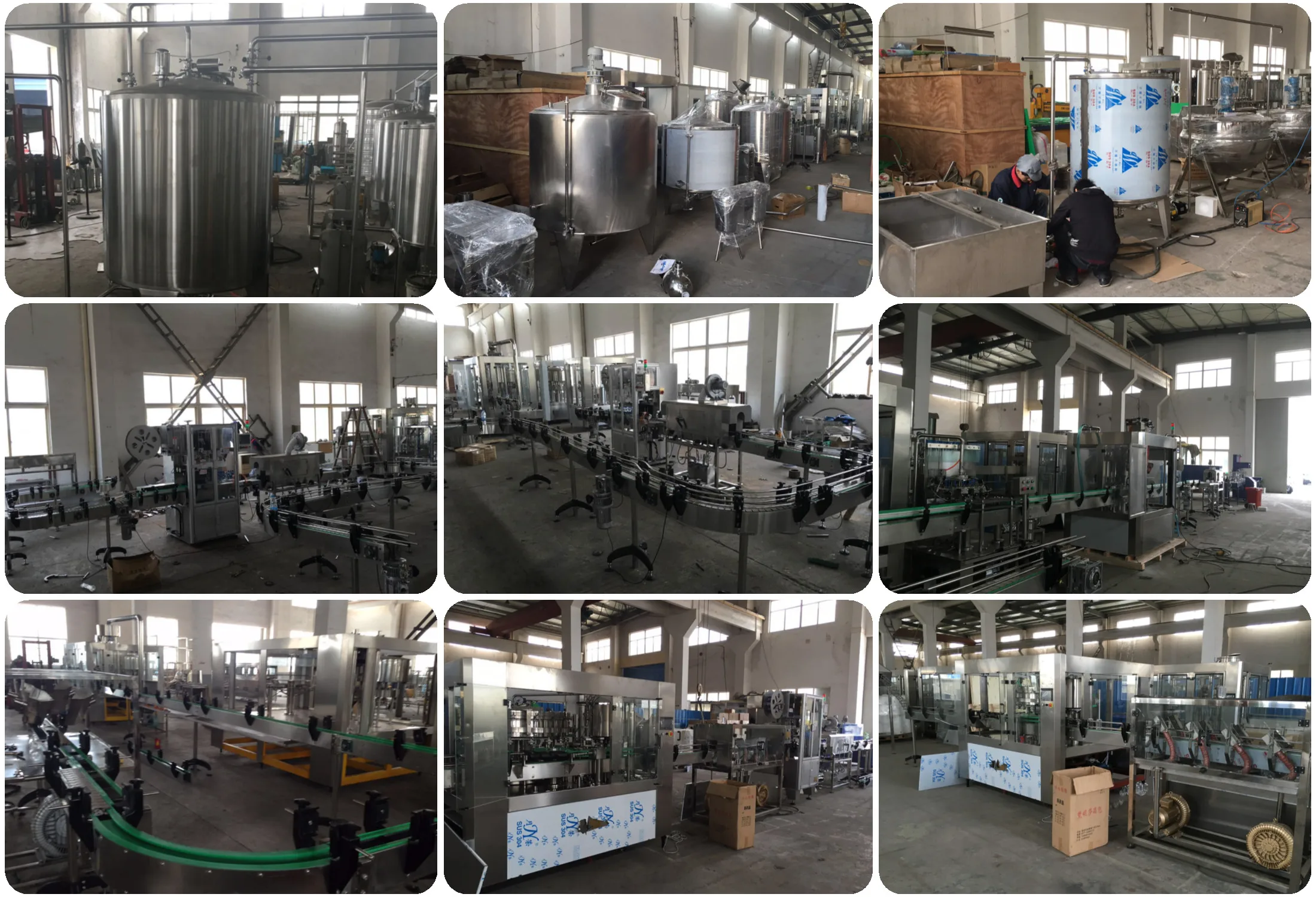

Work shop
Product packaging
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Customers Visit
Connection debugging before delivery
We will connect all the machines and pipes in the factory, simulate the operation in your factory, and disassemble and pack them into containers for transportation after they are qualified.
After sales and return visits
certificate
One year warranty
During warranty period,the spare parts is free. All spare parts will be supplied in cost price after warranty period
Remote services
solve basic questions by telephone,email,whatsapp,wechat and video call.
Engineer will go to buyer's factory to install, test machines, and teach buyer's staff how to operate, maintain machines.
Operating manuals will be sent with machine or by email.
During warranty period,the spare parts is free. All spare parts will be supplied in cost price after warranty period
Remote services
solve basic questions by telephone,email,whatsapp,wechat and video call.
Engineer will go to buyer's factory to install, test machines, and teach buyer's staff how to operate, maintain machines.
Operating manuals will be sent with machine or by email.
