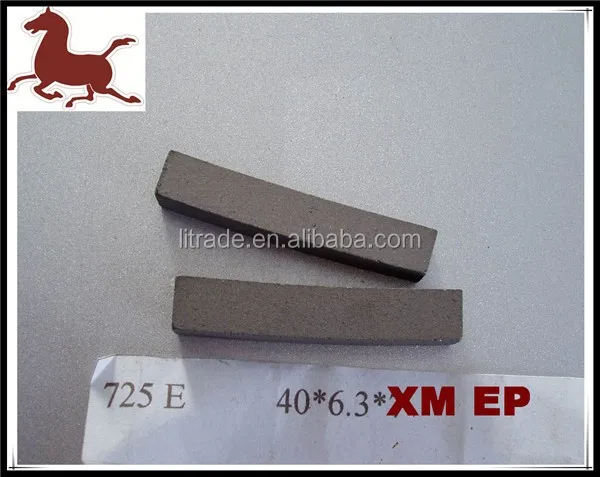

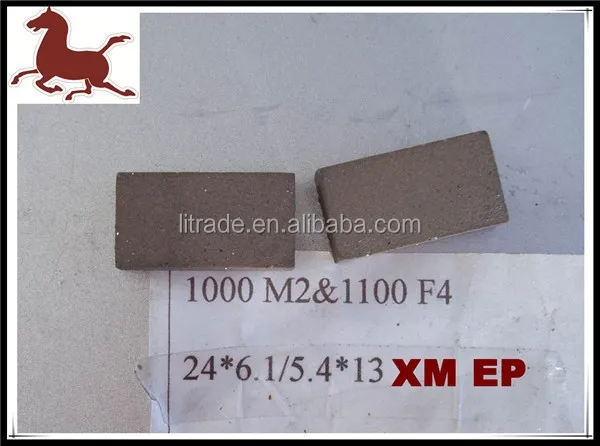

Stone Cutting Granite Marble Blade Diamond Segments
- Category: >>>
- Supplier: Xiamen Eastern Pegasus Co. Ltd.
Share on (527993548):
Product Overview
Description
Stone Cutting Granite Marble Blade Diamond Segments

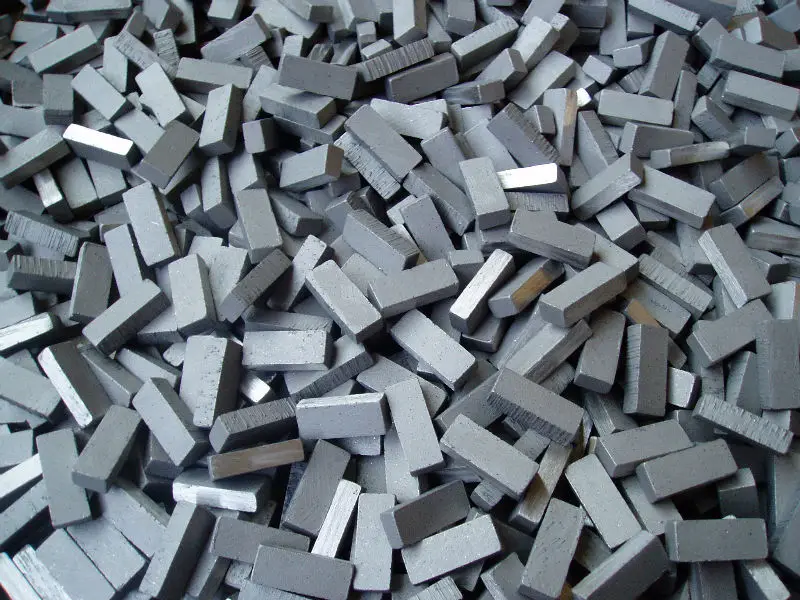

Segment is the main part of diamond tools, TIANJUN provide diamond segments for cutting granite, marble, sandstone, limestone and other stone cutting applications,also ceramic, concrete, asphalt, etc.
Our diamond segments are working very well specially on granite&marble, different diamond saw segment dimension is available according to customer's requirements. We aim to improve the diamond segments cutting efficiency meanwhile reduce the cost.
Most segments are Cobalt bond with Sandwich structure, also we produce one-layer structure segments, multi-layer structure segments and so on.
| 1) Multi Saw | |
| Diamerter (mm) | Segment Specification |
| φ1200 | 24*6.8/6.2*13 |
| φ940 | 24*8.4/7.6*13 |
| φ1600 | 24*8.4/7.6*13 |
| φ1800 | 24*8.4/7.6*13 |
| φ2000 | 24*8.4/7.6*13 |
| φ2200 | 24*8.4/7.6*13 |
| 2) Circular Saw | |
| Diameter (mm) | Segment Specification |
| φ1800 | 24*9.8/9.2*14/12K |
| φ2000 | 24*10.8/10.2*14/12K |
| φ2200 | 24*10.8/10.2*14/12K |
| φ2500 | 24*10.8/10.2*14/12K |
| φ2800 | 24*12.5/12.0/11.5*20V |
| φ3000 | 24*12.5/12.0/11.5*20V |
| φ3500 | 24*12.5/12.0/11.5*20V |
| 3) Small Saw | |
| mm | Segment Specification |

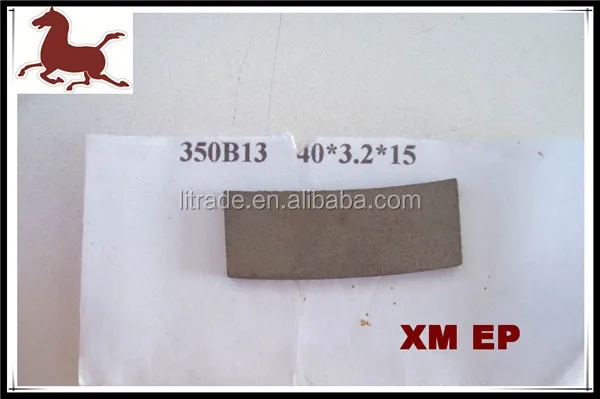

| φ350 | 40*3.2*15 |

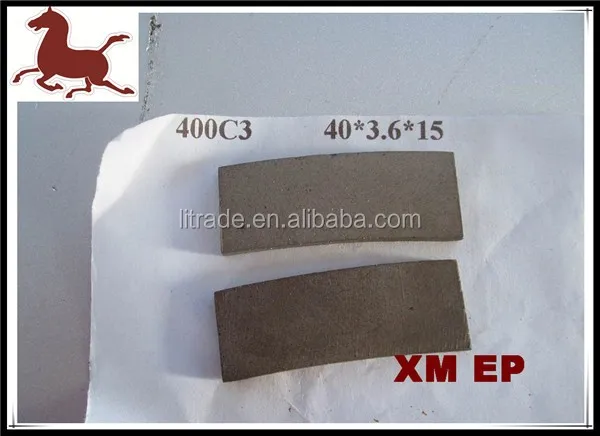

| φ400 | 40*3.6*15 |
| φ500 | 40*4.2*15 |
| φ600 | 40*4.6*15 |
| φ800 | 40*6.0*15 |
| 4) Gang Saw | |
| Diameter (mm) | Segment Specification |
| 20*5.3/4.7*8 | |
| 5) Quarry Saw | |
| Diamond (mm) | Segment Specification |
| φ1600 | 24*11*12 |
| φ2800 | 24*13*12 |
| φ3000 | 24*13*12 |
