Holter recorder’s playback time is less than 3 minutes
1 AAA battery power supply
Standard 12 channel Holter recorder (10-lead wires)
Event button to record patient abnormal events
Isolation USB playback cable to view ECG wave in real time
Connect Holter recorder with PDA by USB playback cable to view & print ECG wave in real time
Portable, environment friendly design
Technical specification:
Lead: Standard 12 channel (10 leads wires) or 3 channel (4 or 7 leads)
Resolution: 8
Sampling rate: 256-4096Hz read, write 128Hz
Memory: ≥256MB
Playback time: ≤ 3 minutes
Record time: Multi days
ECG data deletion: Two deletion methods: Inserts the new battery to delete the ECG files, USB playback deletes the ECG files
Power supply: 1 AAA alkaline battery
Dimensions: 88mm×55mm×21mm;
Weight: ≤100 grams
DMS300-4AL
Functions and Features:
Model
Parameter
DMS300-4AL
Dimension
(Length X width X high) (mm)
92×64×22
Sampling Rate (Hz)
512~10240
Material
TPU
Length
100cm
Leads(pc)
7/10
Channel
3/12
Storage Capacity(MB)
≥1024
Recording Time(h)
≥24
Power
AAA×1
Event Button
Support
LCD Recorder Dot Pitch
0.21 mm

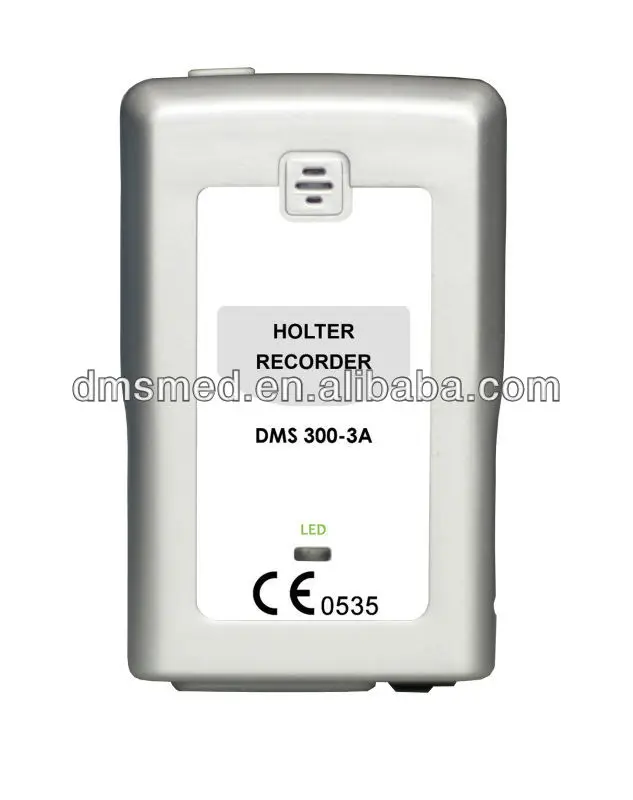

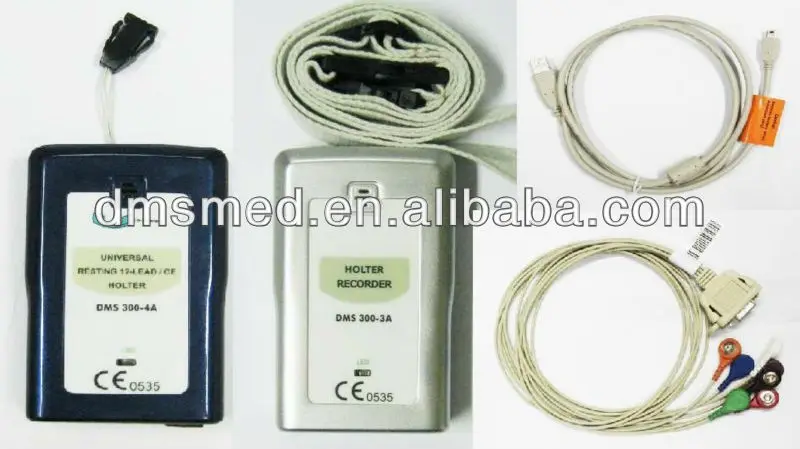

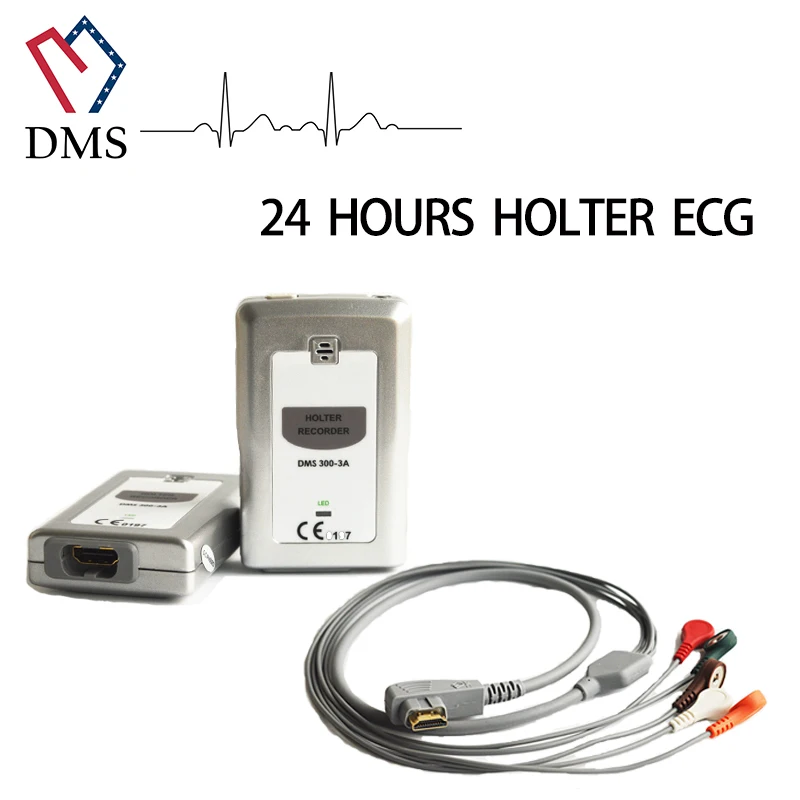

DMS300-3A
Functions & Features:
Multi-day Holter recorder upto 6 days
256-4096 Hz sample rate
Holter recorder’s playback time is less than 3 minutes
1 AAA battery power supply
Standard 3 channel Holter recorder (5 or 7 leads wires)
Event button to record patient abnormal events
Isolation USB playback cable to view ECG wave in real time
Connect Holter recorder with PDA by USB playback cable to view & print ECG wave in real time
Support SAECG (VLP) function
Portable, environment friendly design
Technical specification:
Lead: Standard 3 leads(5 or 7 leads wires)
Resolution: 8
Sampling rate: 256-4096Hz read, write 128Hz
Memory: ≥256MB
Playback time: ≤ 3 minutes
Record time: Multi days
ECG data deletion: Two deletion methods: Inserts the new battery to delete the ECG files, USB playback deletes the ECG files
Power supply: 1 AAA alkaline battery
Dimensions: 88mm×55mm×21mm;
Weight: ≤ 100 grams

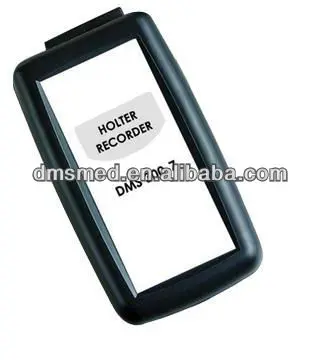

DMS300-7
Functions & Features:
Multi-day Holter recorder upto 48 hours 512Hz sample rate, 1000Hz for SAECG sampling Holter recorder’s playback time is less than 2 minutes 1 AA battery power supply Standard 3 channel Holter recorder (7-lead wires) Event button to record patient abnormal events USB test cable to view ECG wave in real time Support SAECG (VLP) function Portable, environment friendly design
Technical Specification:
Input circuit current: <= 0.1μA Input impedance: >= 2 MΩ Noise level: <= 15μVp-p Polarizing voltage: Adds ±300mV the cocurrent polarizing voltage, the sensitivity shift is not more than ±5% Frequency Response: 0.05Hz~60Hz(+0.4dB,-3.0dB) CMRR: > 60 dB Lead: Standard 3 leads(7 leads wires) Leads interface: DB-15F Resolution: 8 bits Sampling rate: 512Hz, write 128Hz Real-time playback: After inserts the real-time playback line, it automatically diagnose, then real-time playbacks 3-minute
ECG waves Storage: Compact Flash Card Memory: >=48MB Playback time: <= 2 minutes Playback interface: PCMCIA card drive Record time: <= 48 hours Event button: Record the patient’s event Power supply: 1 AA alkaline battery SAECG (Ventricular Late Potential): Available

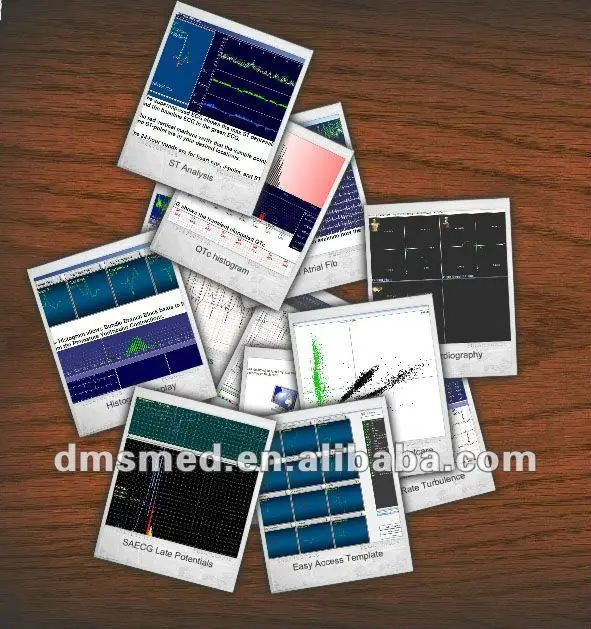

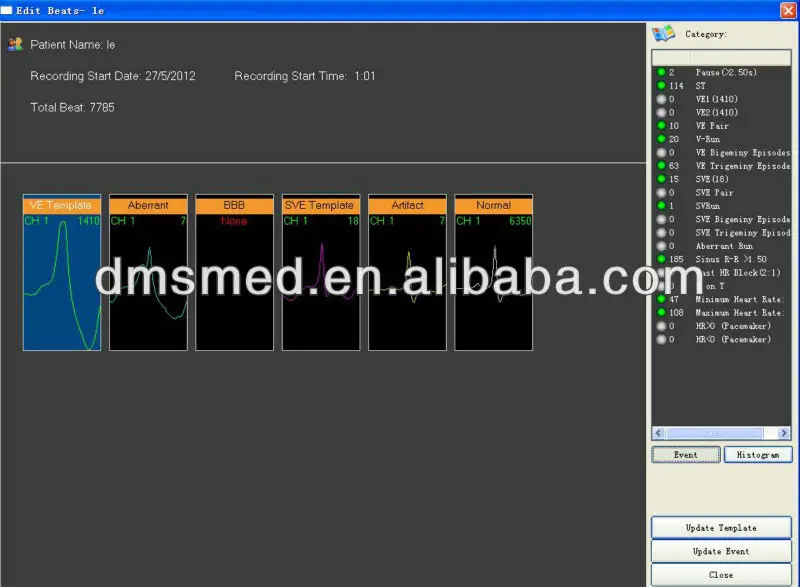

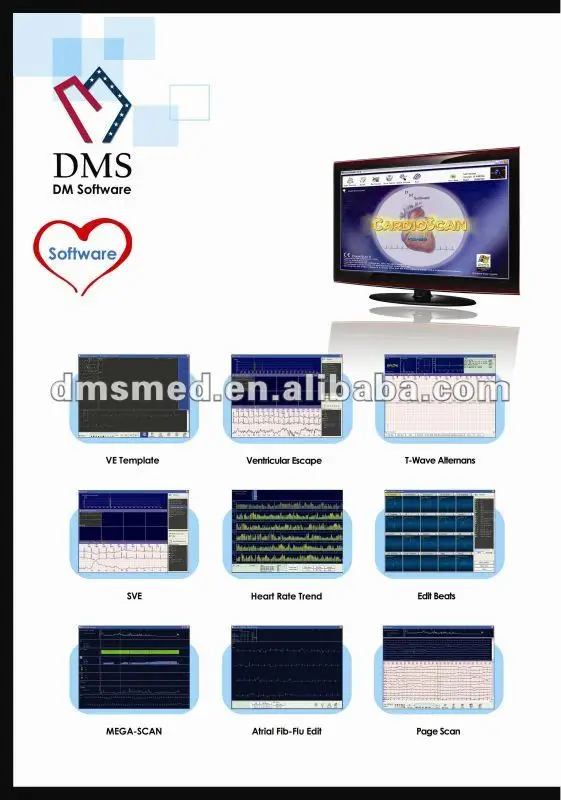

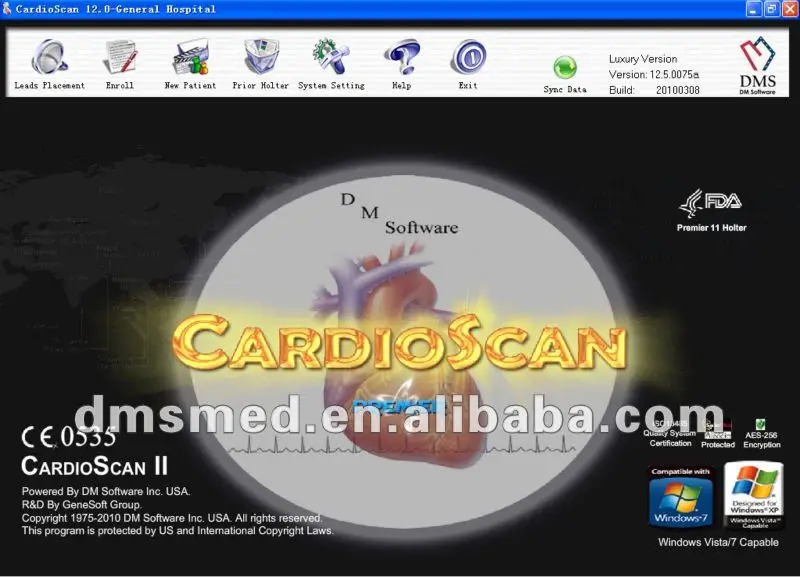

Holter Software Functions:
