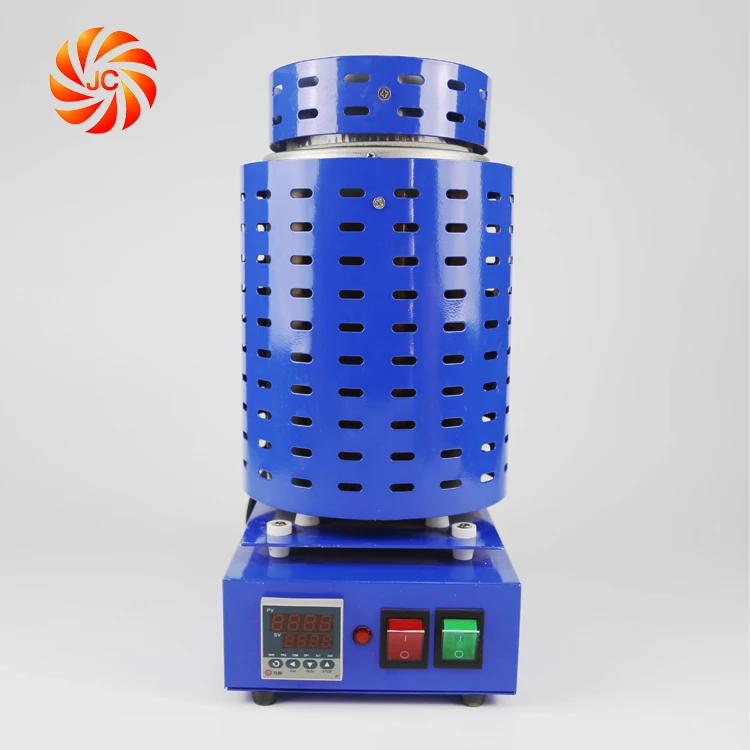

electric smelter furnace

Product Overview

Description



Features

1,Exquisite & Convenient:

Small size, light weight, can be operated independently.

2,Operated simply:

The parameters can be changed convenient by pressing arrow buttons.

The seting temperature and surveyed temperature can be showed at the same time.

Working reliably

3,Controlled precise:

Microprocessor PID control, PID auto-tuning function ensure the accuracy of the temperature control in any state

4,Working efficient:

Melt fast, efficiency highly, good insulation effect, low power consumption.

5,safety&environmental protection

Automatic, intellective, have not special requirement about working condition.

Noiseless, no radiation.

Applications:

1, Jewelry processing industry of gold, silver, copper and other metals smelting.

2, Schools, laboratories, chemical smelting . Melting and heat treatment of non-flammable, non-explosive materials.

3, Melting and heat treatment of products which need highly temperature accuracy and reliability.

4, Small temperature processing applications.





Technical Data:

Model NO.	JC-K-220-1	JC-K-220-2	JC-K-110-1	JC-L-110-2
Working Volt	220V	220V	110V	110V
Power	1KW	2KW	0.9KW	1.8KW
Specifications	210*165*350mm
Adjustable temperature	0°C——1200°C	0°C——1200°C	0°C——1200°C	0°C——1200°C
Heating rate (from 0°C to 1200°C)	35mins	25mins	35mins	25mins
Accuracy	±0.3°C	±0.3°C	±0.3°C	±0.3°C

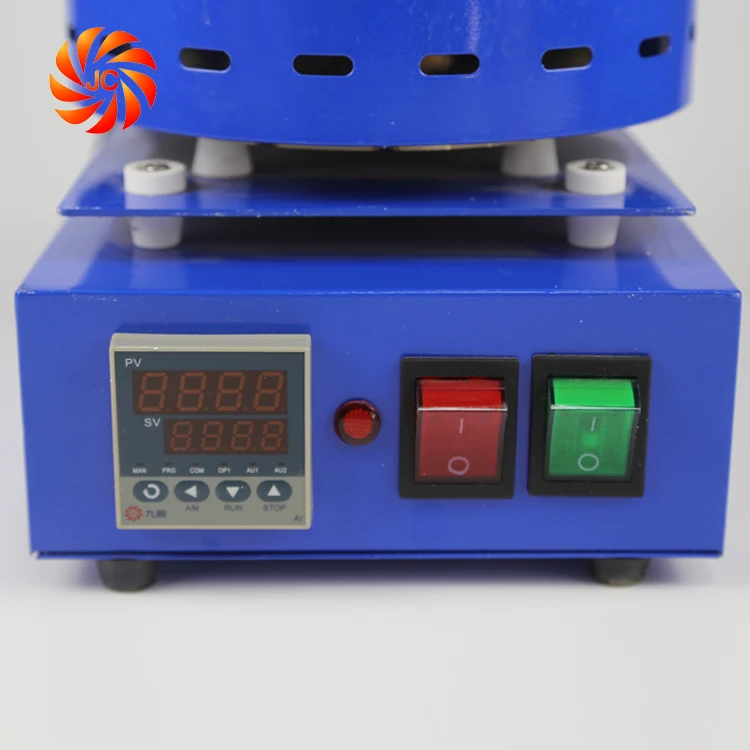

Display mode	Adopting AI PID control method; Measured values (PV), set data (SV) can be shown at the same time; Set data can be changed by arrow buttons

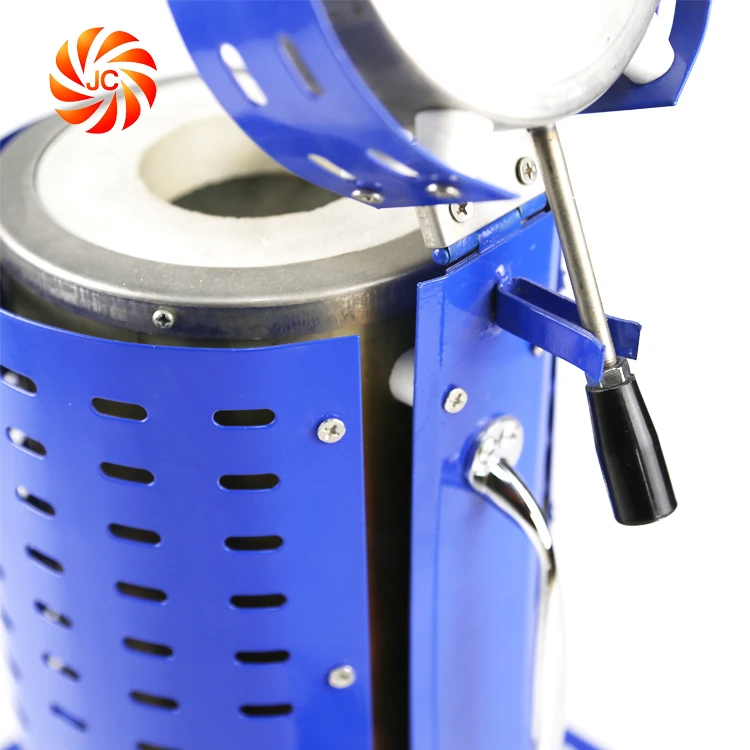

Material of the furnace liner	Ceramic fiber insulation materials

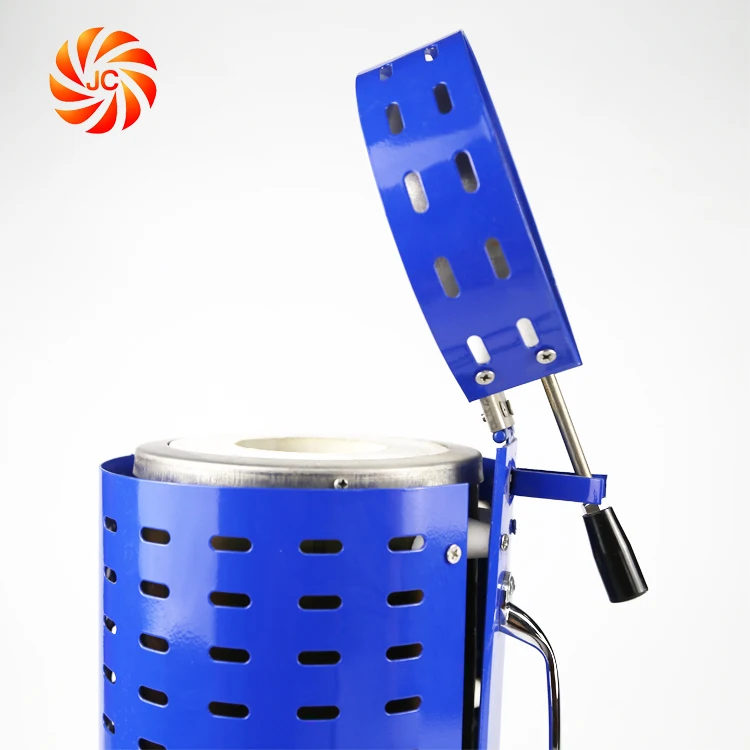

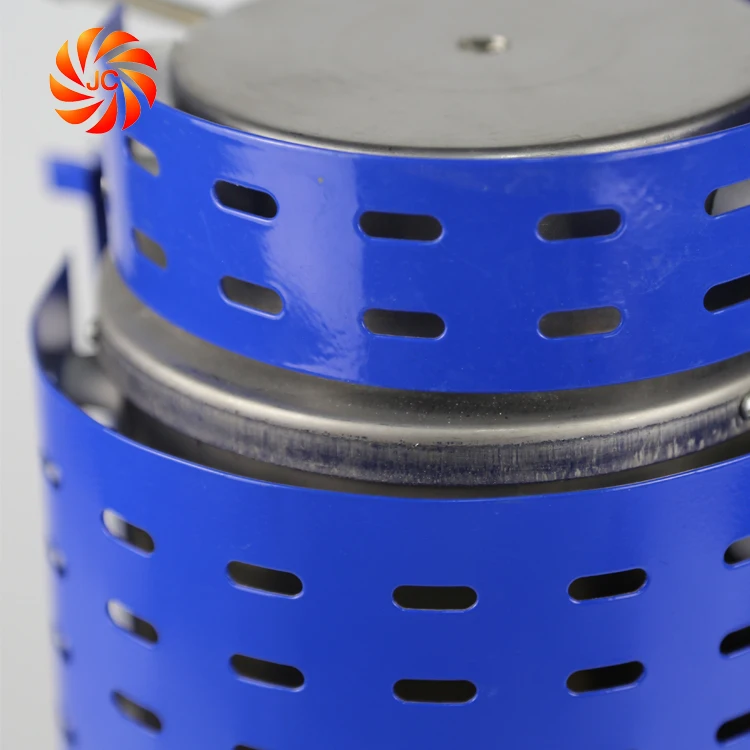

Material of the furnace cover	Stainless Steel
Note	With thermocouple input, relay output
