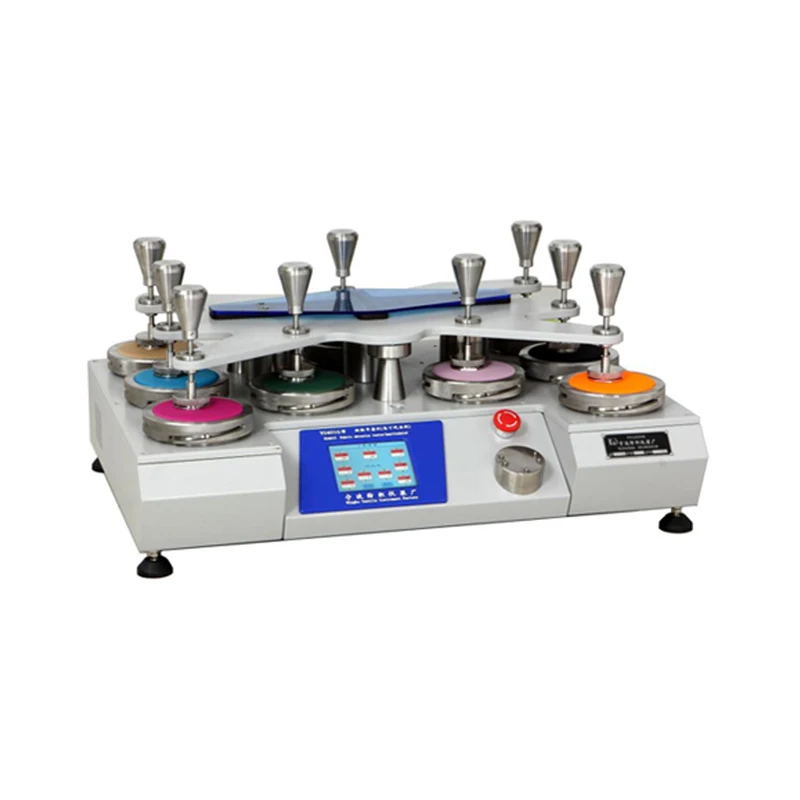

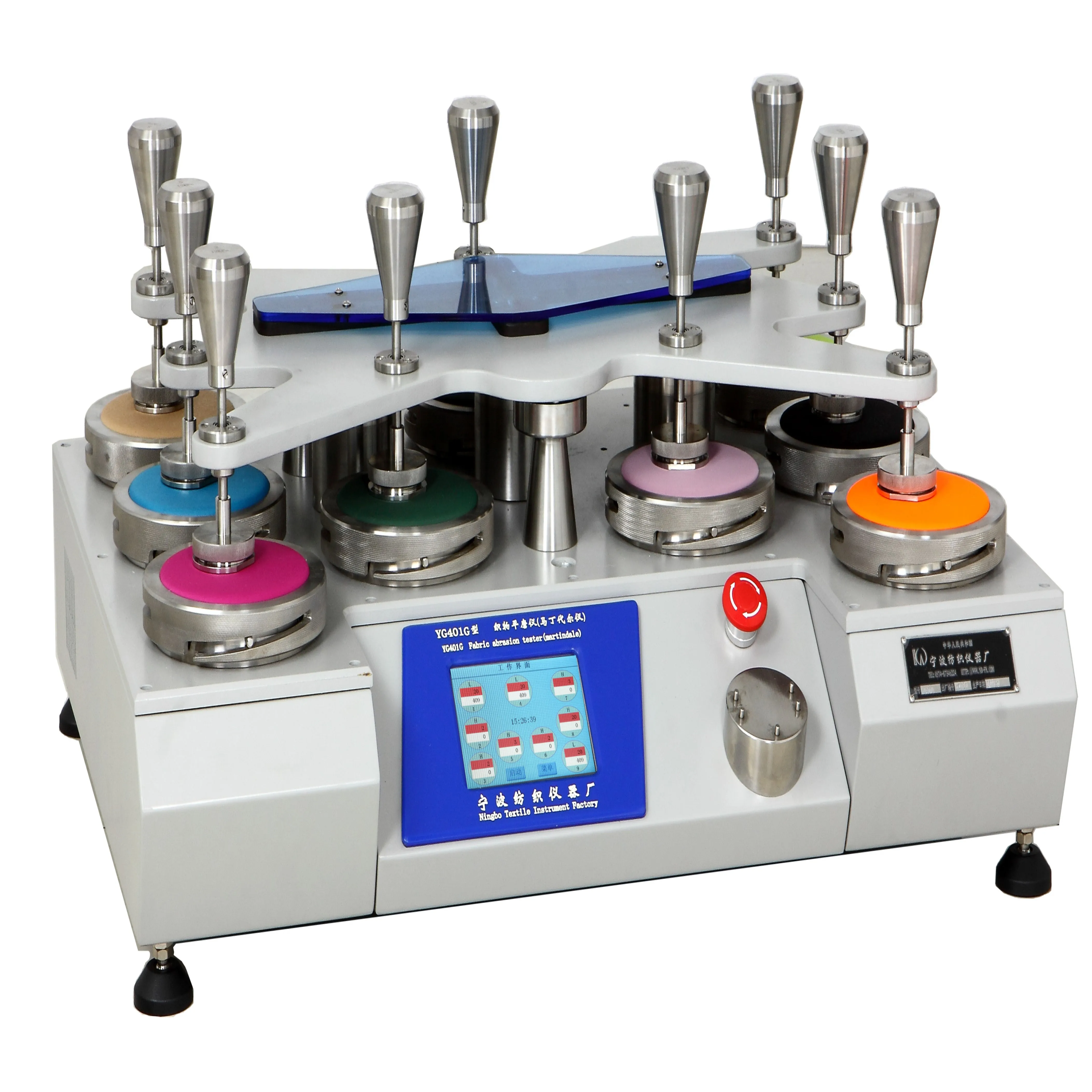

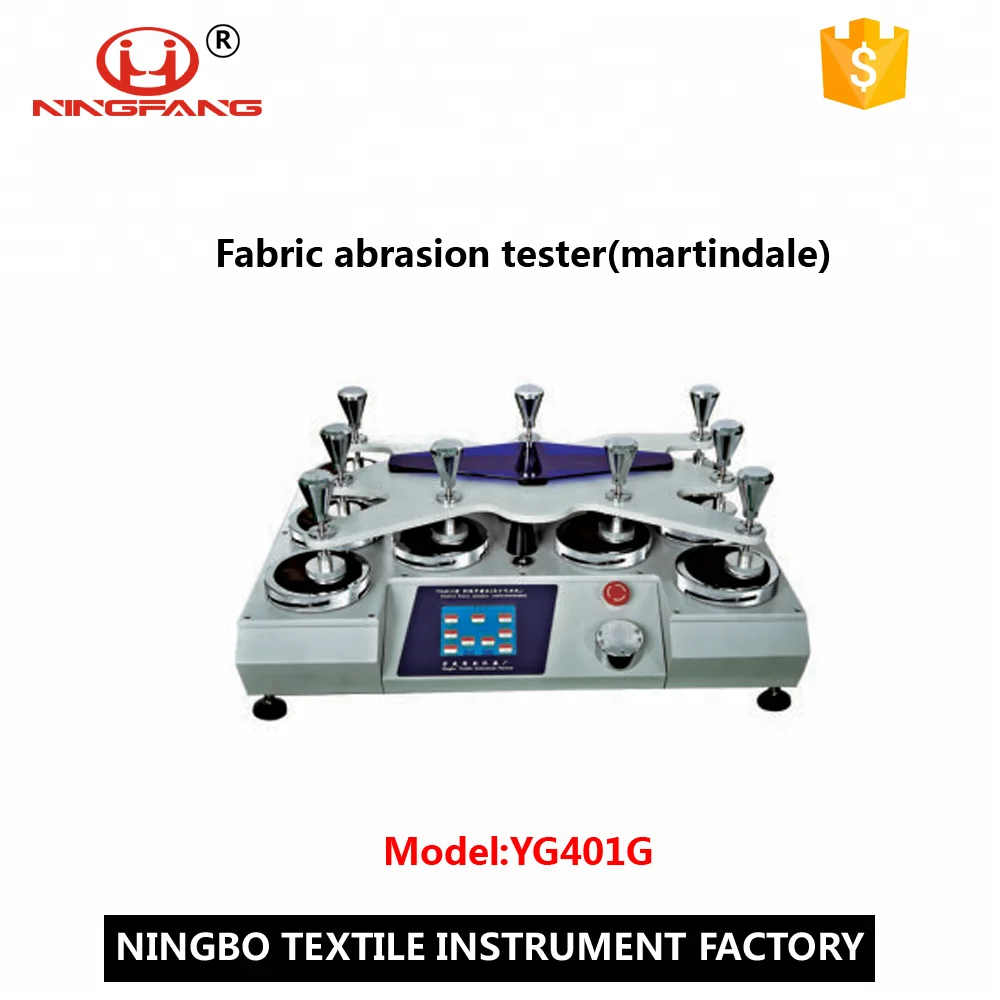

Fabric Flat Grinder For Abrasion Resistance Test Of Wool And Wool Blended Woven Fabrics Under Certain Pressure
- Category: >>>
- Supplier: Ningbo Textile Instrument Factory
Share on (528229059):
Product Overview
Description
Product Description
Specification
Scope of application | It is used for the abrasion resistance test of wool and wool blended woven fabrics, knitted fabrics and non-woven fabrics under a certain pressure and most fabrics (more suitable for wool woven fabrics), and it will start under slight pressure. In the ball performance test, the relative motion trajectory between the sample and the abrasive is a Lissajous figure. |
Method standard | GB/T4802.2 GB/T21196 ISO5470-2 ISO12945.2 ISO 12947.2 BS3424 BS EN 388/530 JIS L1096 GB/T19089 ASTM D4966/4970 is the main drafting unit of GB/T4802.2 standard. |
Number of stations | 9 |
Count display: Preset count display | 0～999999; Accumulated count display: 0～999999 |
Wear test pressure | A. Swatch holder 198g±2g B. The weight of the clothing sample is 395g±2g (converted to a pressure of 9Kpa) C. The weight of the sample for furniture decoration is 594g±2g (converted to a pressure of 12Kpa); |
Pilling test pressure | A. Swatch holder 155g±1g B. The weight of the clothing sample is 260g±1g; |
Mass of charging hammer | 2385g±10g |
Diameter of grinding table | φ120 |
Effective friction diameter of grinding head | A. Wear resistance test ø28.65mm B. Pilling performance test ø90mm; |
Running speed | 23.8±2.5rpm; 47.5±2.5rpm; 71.3±2.5rpm/min |
Dimensions | 820×605×365mm |
Weight | 168kg |
Power and power | AC220V±10%/50Hz 120w; 【Features】: |
Product Features | 1. The instrument has two Lissajous motion trajectories, and one linear reciprocating motion trajectory; 2. Using touch screen operation, each station has a count display window corresponding to the display in Chinese, which is easy to operate; 3. Six sets of running programs can be preset, a single program can be run repeatedly, and three motion speeds can be set; 4. If the instrument stops running for 30 minutes without any operation, the instrument will automatically shut down. |
For more information, such as the operation video, please contact customer service.
