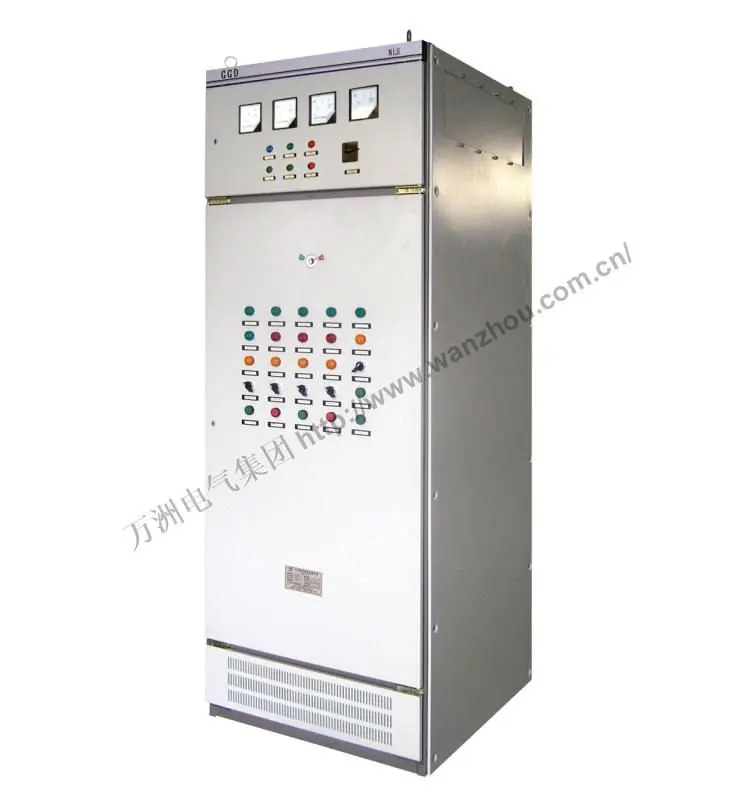

GGD low voltage electric control cabinet panel

Product Overview

Description

MODEL:GGD low voltage electric control cabinet panel



1)Main function and application place:

1* applicable to power distribution system of AC 50Hz, with rated operation voltage of 380V, rated operation current to 3150A , in power users like generators, transformer substation, mining enterprises,etc



2*It 's used in power transformation, distribution, control of driving motor, illumination and power distribution equipment.



3*the arrangment to power distribution is economic



2)Performance characteristic

 1*AC low voltage distribution cabinet adopt universal chamber body, with flexible installation

scheme, will not cause any  problem if any change need after first installation .



2*frame made from 8MF cool-bend steel.



3*for effective heat emission purpose, there are various emission holes on botton/top side of cabinet .



4*several type of breaker for choice: ME,DW15, DZ20,cw1,cm1,F,M ETC



3)Techinical data:

Rated working voltage	V	380V
Rated current	A	<=3150
Frequency	Hz	50Hz ;  3 phase
confirmity standard		IEC439;GB7251;CCC
cabinet	Protection degree	IP40
	cabinet mateial	high level cold rolling plate
working condition	Ambient temperature	-10C~ + 42C
	install place	indoor
	altitude	<=2000m
	gas	no explosive; no corrosion
