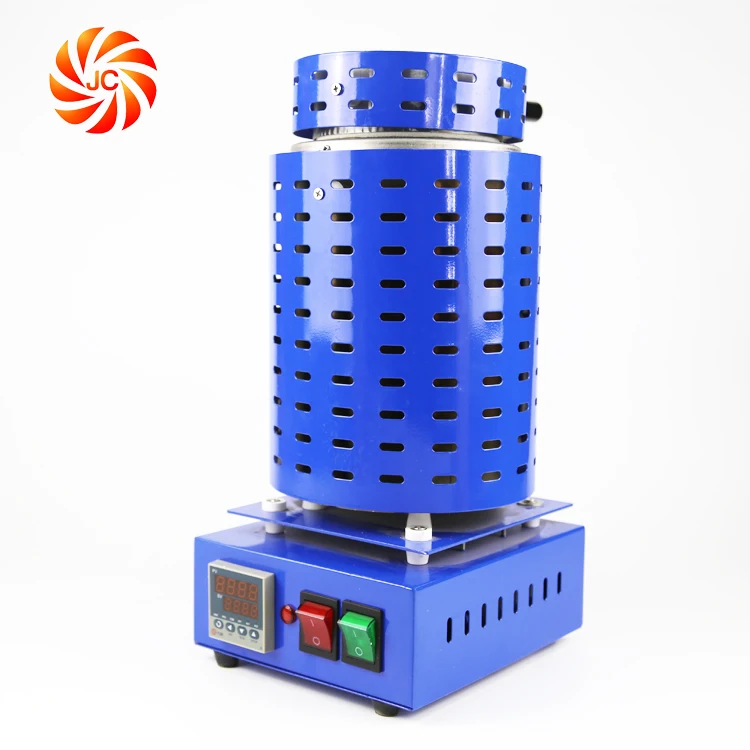

High temp Crucible Melting furnace/unit

Product Overview

Description

Small Type Crucible Melting Furnace for Sale



Jiuchen Melting Furnace is equipped with Thermocouple, SSR, AI Temp-erature Controller. It is specially designed and constructed for melting metals for casting and alloying of metal up to 1200^oC.

The furnace is an energy-efficient heating equipment with small size, high precision, easy operation, fast heating, and high efficiency.The unit is widely used in melting gold, silver, copper and other metals; Research projects of schools, laboratories; melting and heat treatment projects of non-flammable, non-explosive materials; melting and heat treatment of materials which need precise temperature controlled.It is a best choice for small heating , melting equipment.

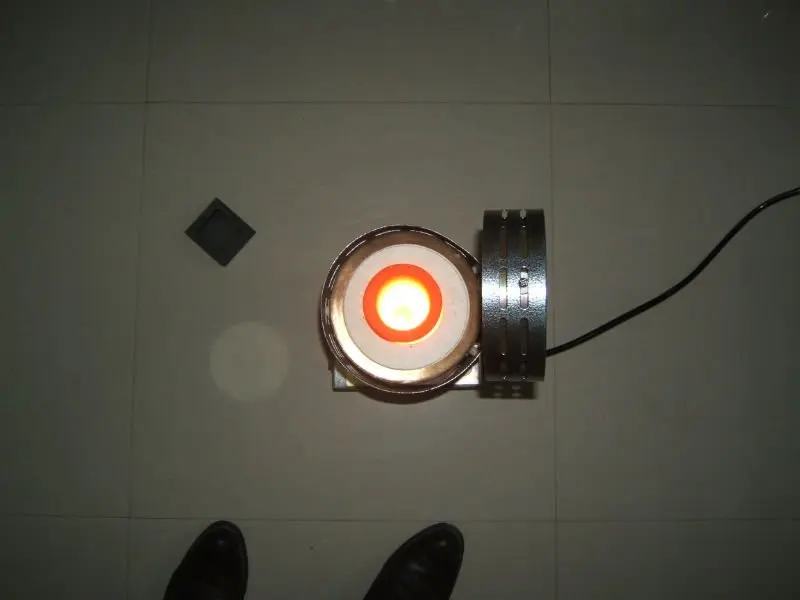

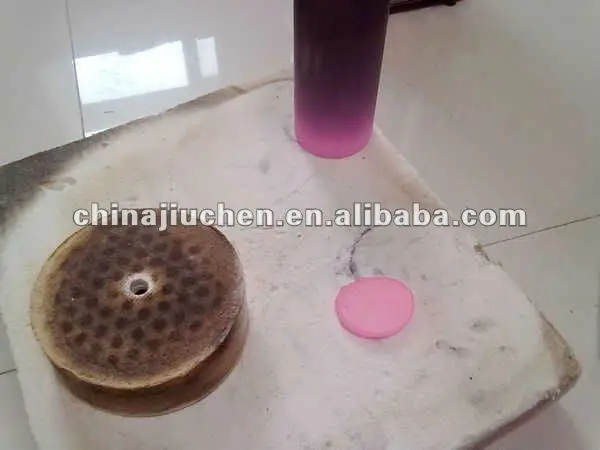

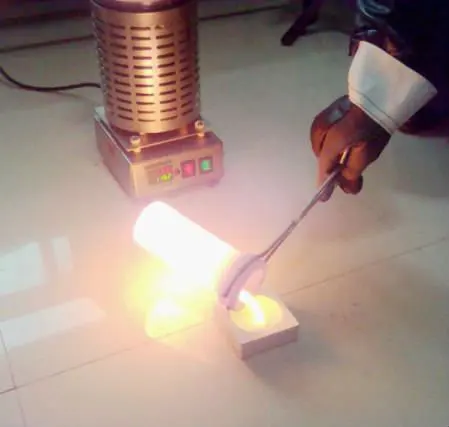

Here is furnace working (melting copper) pictures:















Characteristic:

1. Exquisite& Convenient:

Small size(170x220x370mm),light weight(N.W.:4.5KGS),independent operation.

2 . Operated simply:

The parameters can be changed conveniently by pressing arrow buttons.

The setting temperature and surveyed temperature can be shown at the same time.

3.Accurate temp control:

Microprocessor PID control, PID auto-tuning function ensure the

accuracy of the temperature control in any state

 4.High efficiency:

 Fast heating, high efficiency ,good insulation effect,lowpower.

Note:The same furnace can melt 1-3kg crucible.



Here is melting furnace structural map and size picture:





Technical Data:

	K Series
NO.	JC-K-110/220-1	JC-K-110/220-2
Volt/Power	110/220V-1KW	110/220V-2KW
Current/Frecuency	4.5 AMP /50HZ	9 AMP /50HZ
Temp display mode	°C/°F
Measuring range	Working temp:1250C    Max temp: 1300C
Heating rate	25 mins	10 mins
Capacity	1kg-3kg(coordinate with crucible)
Temp control mode	Adopting AI PID control method; Measured values (PV), set data (SV) can be shown at the same time;Set data can be changed by arrow buttons
Spare Parts	Power cord, 1kg capacity crucible, one crucible tong, ceramic members
Size	Body:170*200*350mm,Melting chamber: Dia 70*145mm,Other size is customizable

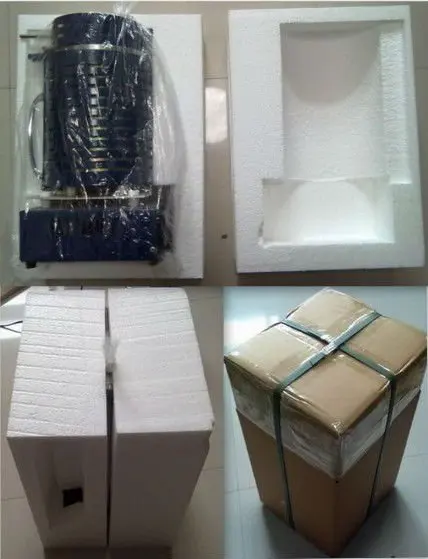

Here is the furnace standard exporting package pictures:
