80A 12v 24v 48v Max PV input 240v MPPT solar charge controller

Product Overview

Description

 80A 12v 24v 48v Max PV input 240v MPPT solar charge controller



PRODUCT DESCRIPTION:

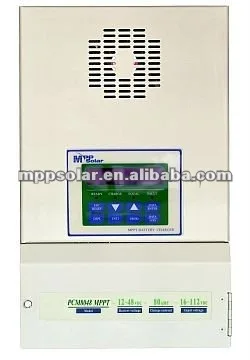

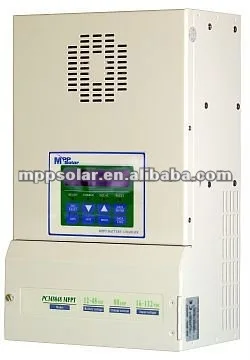

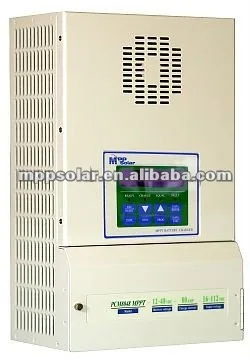

80CX Solar charge controller is an advanced 80A MPPT solar controller packed with many programmable features. Supporting large array up to 5400W, this controller has a maximum voltage input of 240V and is suitable to handle battery systems from 12V ~ 48V. Such high voltage input allows you to series-connect your PV modules and save money on combiner boxes & breakers!

Product is certified by national and EMC standard and 100% made in Taiwan, with very reliable quality.





MAIN FEATURES:

MAXIMUM PERFORMANCE & COST EFFICIENT

• ULTRA HIGH INPUT VOLTAGE OF 240VDC, IDEAL FOR SERIES-CONNECTED PV ARRAY
• SAVES MONEY ON COMBINER BOX, BREAKERS etc..
• MPPT capability increases PV energy harvest by up to 30%
• Maximum efficiency up to 92% at peak output
• Easy parallel up to 16 units to maximize charging current
• Supports large PV array up to 5200W
• 2/3/4-stage high-efficiency battery charging up to 80A

VERSATILITY & PROGRAMMABILITY

• Built-in BEM (Battery Energy Monitor) to keep track energy production and consumption
• Built-in datalogger stores up to 90 days of energy-harvest history
• Supports FLA, Gel, AGM batteries
• Programmable settings include:
  • Unit settings (system date, time, temperature, input/output voltage/current, SOC etc)
  • Battery settings (voltage, type, capacity)
  • Charging stage settings (absorption/float/equalize, time and voltage)
  • MPPT settings (san frequency, %Voc etc)
  • Auxiliary relay settings
  • Parallel settings (address etc)
  • Datalogging settings
• BVS (Battery voltage sensing) built-in to ensure precise charging of battery
• BTS (Battery temperature sensing) built-in to ensure charging safety (BTS wire included)
• BCS function available with optional shunt
• May be used for WIND systems (require optional rectifier & braking unit)

EXTENSIVE RELIABILITY & PROTECTIONs

• Over temperature
• Reverse polarity
• PV input and output overload
• Reverse current
• Battery overcharge/overdischarge

NETWORKING & COMMUNICATIONS

• Large control panel with LCD to adjust system parameters & display message
• 4 LED indicators to display system modes and information
• Communication ports built-in to parallel with other controllers
• 2 sets of auxiliary relay terminals to help control dump loads

SPECIFICATIONS:

ELECTRICAL SPECIFICATIONS
MPPT Range	16~192VDC
Max PV Input Voltage/Current	240VDC (Open Circuit) / 70A
Compatible System Voltage	12, 24, 36, 48V
Max PV Input Power	5400W
Recommended Battery Type	Flooded, GEL, or AGM Lead Acid
Nominal Battery Voltage	12/24/36/48V
Max Charging Current	80A
Standby Power	<4W
Charging Schemes	Bulk, Absorption, Float, Auto/Manual Equalization
Battery Temp. Compensation	Built-In, -5.0mV/°C/cell
Protections	Over Temperature, Reverse Polarity, Reverse Current, Input/Output Overload, Batt Overcharge/Overdischarge
LCD Indicator	PV Input Voltage/Current/Power, Battery Voltage/Current/Temp/SOC, System Date/Time/Temp, Voltage Setting, Data Log Information
LED Indicator	4, Ready/Charge/Equal/Fault
Parallel Connections	Yes, Up to 16 Units
Data Logging	Built-In, Up to 90 Days
GENERAL SPECIFICATIONS
Certification / EMC	CE / EN61000-6-1, EN61000-6-3
Operating/Storage Temp.	-20°C~50°C/ -40°C~70°C
Enclosure Type	Indoor , IP20
Working Humidity	~95%RH Max Non-Condensing
Dimension	368*196*247mm
Weight	8.3Kg





WARRANTY/QUALITY:

• CE certified/ EMC EN61000-6-1, EN61000-6-3
• 100% QC before shipment.
• Standard 1 year product warranty
• Contact us directly for warranty issues.
