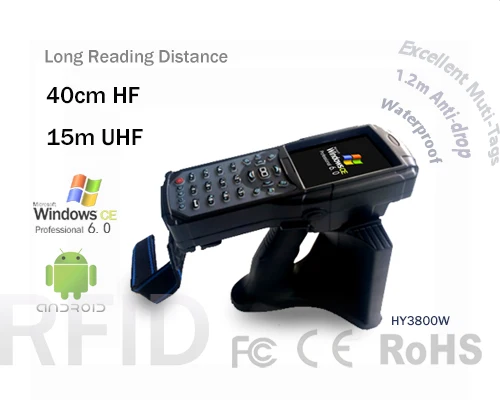

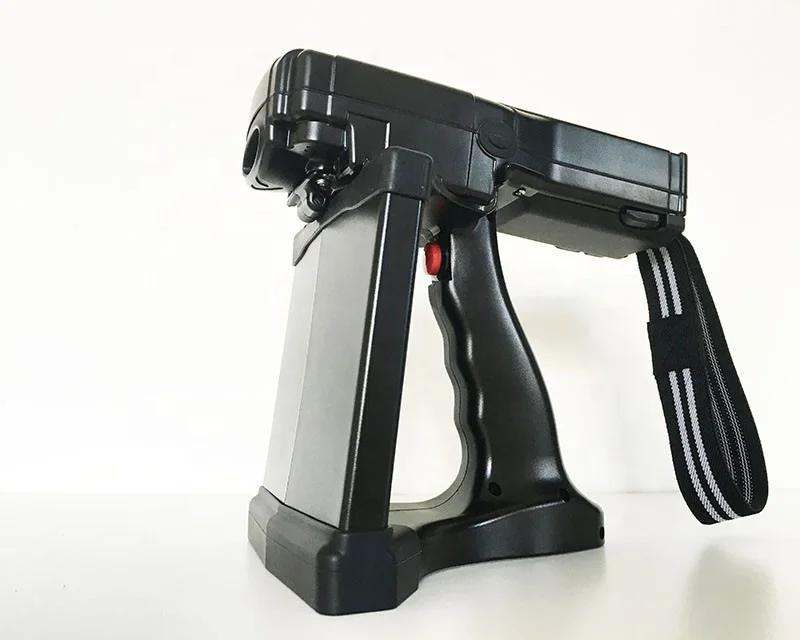

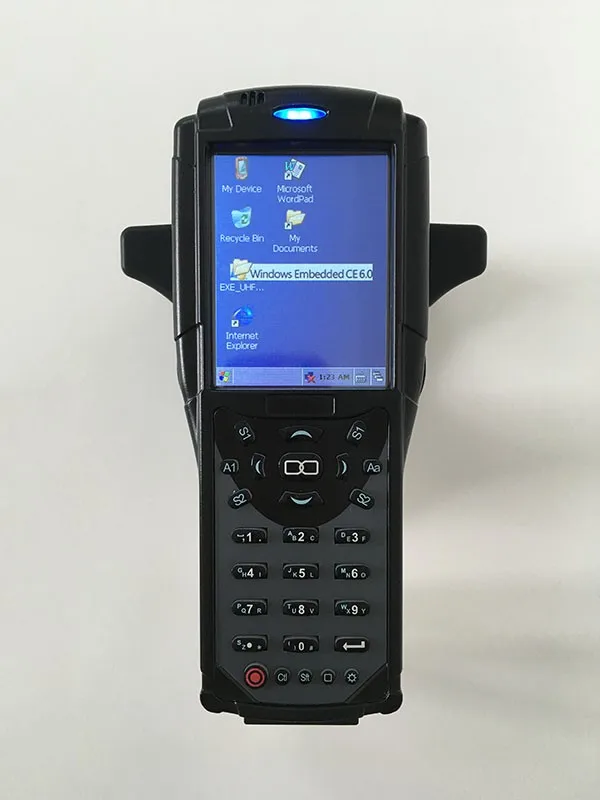

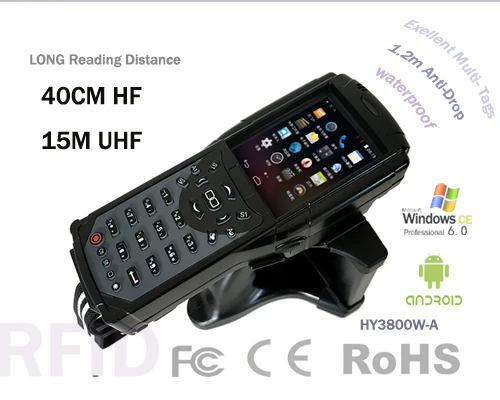

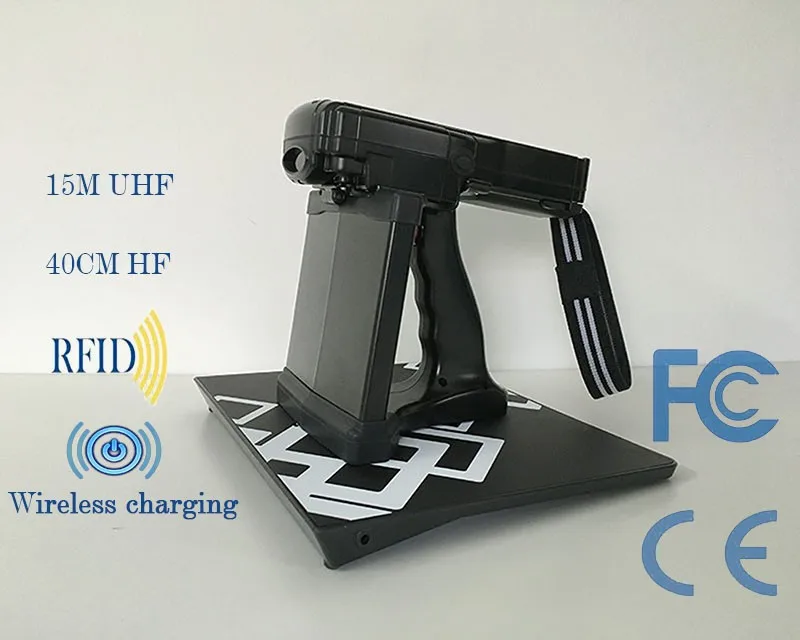

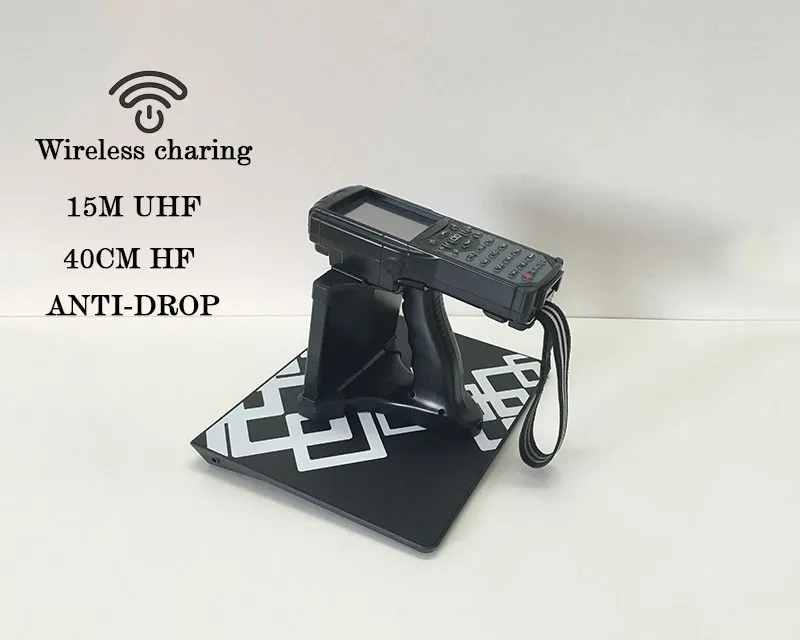

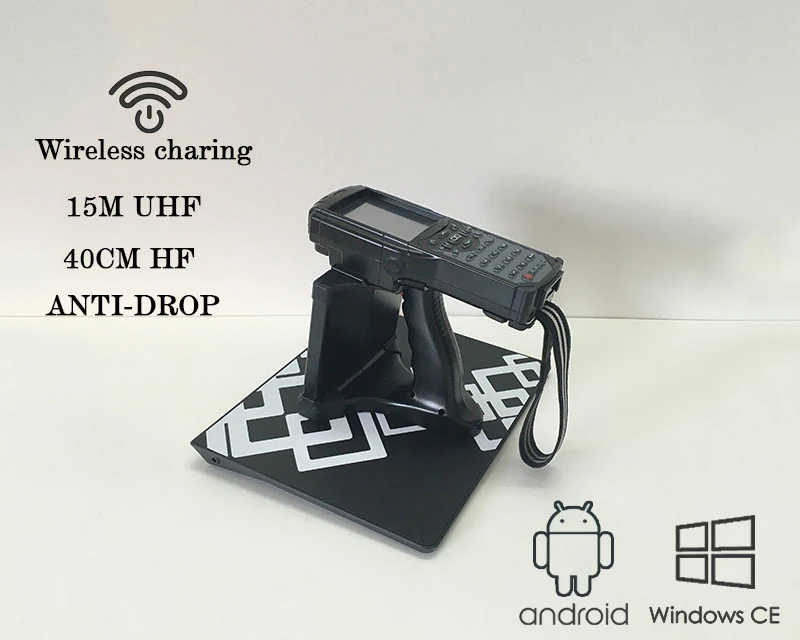

860 900Mhz UHF 15meters / 13.56Mhz HF/NFC 40cm super long reading distance Rugged RFID Handheld Scanner Portable Computer PDA

CPU

PXA3XX  (624MHZ) or 1.2 GHZ Due Core

OS

Windows CE 6.0 R3 / Android 4.4.2

(Language Customizable)

Memory

RAM

128MB

F-ROM

128MB/256MB

Barcode Scan engine

Scanner

1D /2D Laser Barcode Scanner

Module

Opticon /Moto

Scan Speed

100 times per second +-2 times

Scan Distance

60-650mm

Angle

54±5

Width

60-360mm At Max Reading Distance

Resolution

0.127-1.00mm

Code

UPC-A; UPC-E; UPC-E1; EAN-8; EAN-13; Bookland EAN; Code 128; UCC/EAN-128; Code 39; Trioptic Code 39; Code 39 Full ASCII; Code 93; Code 11; Interleaved 2 of 5; Discrete 2 of 5; Codabar; MSI; GS1 DataBar 14; GS1 DataBar Limited; GS1 DataBar Expanded;

RFID

HF 13.56MHZ

Max Reading 40cm

UHF 860-928M

Max Reading above 15m

LCD

Type

TFT-LED QVGA Touch Screen

Resolution

QVGA(240X320)Readable Under Sun

Size

3.5 inch

Input

Soft Keyboard

English, Chinese Input(Multi Language Customizable)

Hard Keyboard

30 Key

ScanKey

At the Middle

Function Module

Standard

WPA 802.11i(WPA2),WEP,TKIP,TLS,TTLS,AES,PEAP,MD5

Optional

BT V2.1+EDR

Internal 3M camera

Internal GPS Signal 48,Accuration 2.5m,Speed below 0.01m/s

Internal LF/HF/UHF RFID Reader

Internal GPRS/3G WCDMA

Power

Main Power

7.4V,2600mah/3.7V 5200mah Li-ion

RTC Battery

Chargeable Button battery

Standby

10 days

Working

Above 20 hours depends on specific situation

Extension

Micro SD/TF Slot

Size

190(L)*100(W)*120(T) mm

Weight

700g( Including Battery)

Environment

Operating Temp.

-15~+50°C

Storage Temp.

-20~+60°C

Working Humidity

5-95%

Storage Humidity
