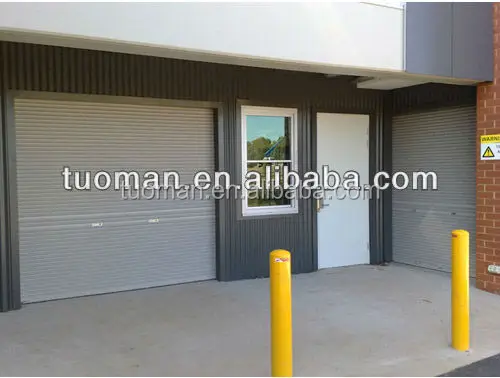

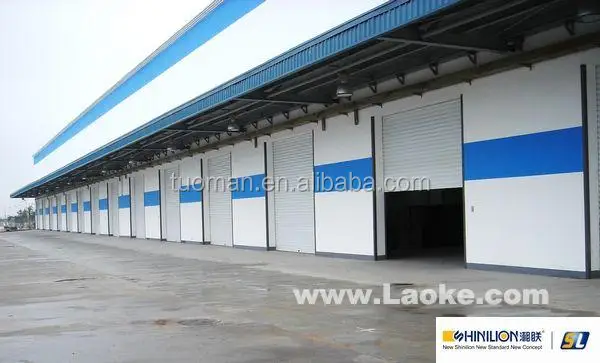

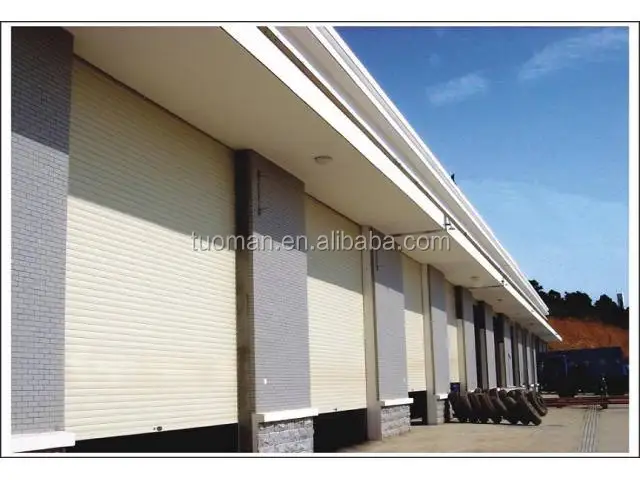

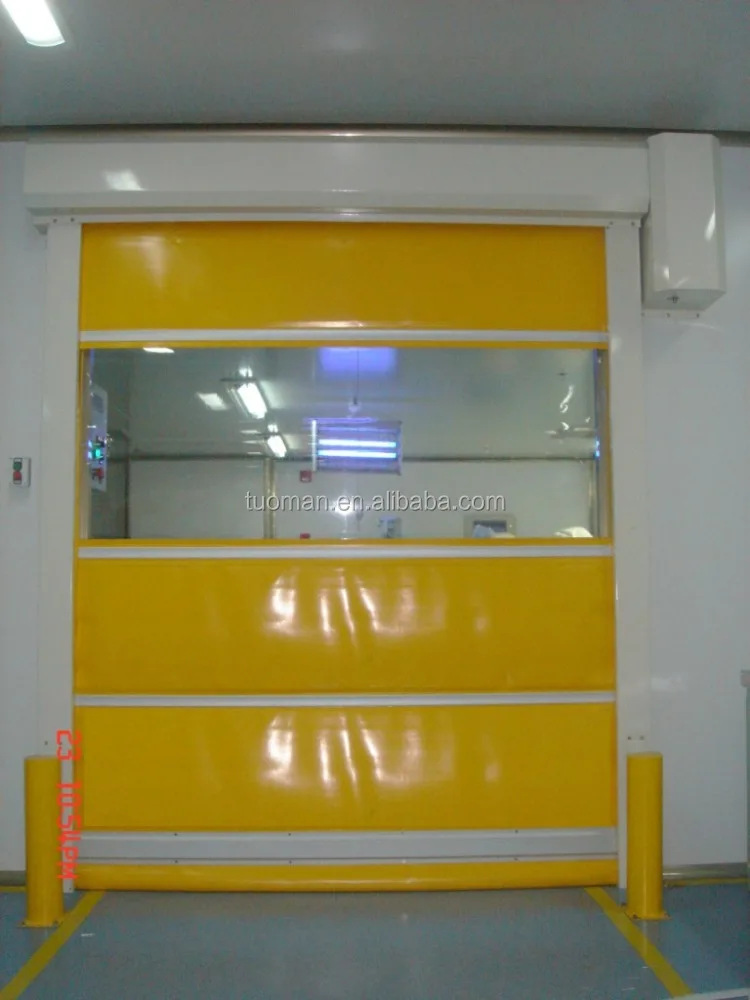

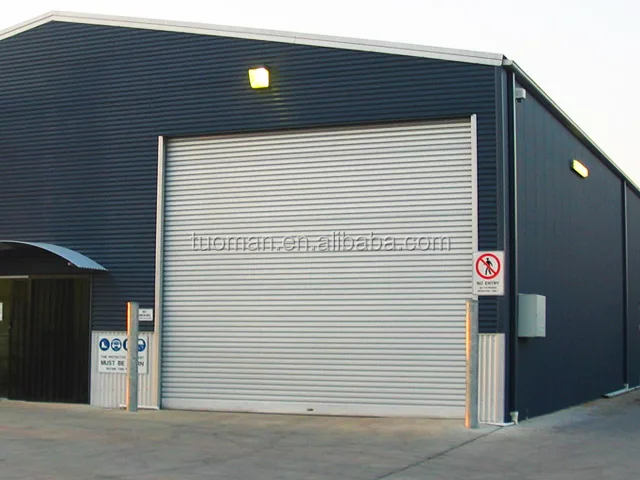

Industrial rolling door

Product Overview

Description

Industrial rolling door



TOMA INDUSTRIAL ROLLING DOOR ALUMINIUM SLATS





ITEM NO:TMS55B,55MM EXTRUDED ALUMINIUM DOUBLE LAYER SLAT

Covering surface and slat height:55mm

Nominal Thickness:0.8mm&14mm,Design weight per Sqm:6.4kg

Maximum width: 4.0m,Maximum height:3.5m

Minimum Roller Diameter:70mm,Perforated or Unperforated





ITEM NO:TMS60A,60MM EXTRUDED ALUMINIUM DOUBLE LAYER SLAT

Covering surface and slat height:60mm

Nominal Thickness:0.8mm&14mm,Design weight per Sqm:6.3kg

Maximum width:4.5m,Maximum height :4.6m

Minimum Roller Diameter:70mm,Unperforated





ITEM NO:TMS77B,77MM EXTRUDED ALUMINIUM SINGLE LAYER SLAT

Covering surface and slat height:77mm

Nominal Thickness:1.5mm&17mm,Design weight per Sqm:6.0kg

Maximum width: 5.5m,Maximum height:4.0m

Minimum Roller Diameter:70mm,Perforated or Unperforated



 ITEM NO:TMS77F,77MM EXTRUDED ALUMINIUM DOUBLE LAYER SLAT

Covering surface and slat height:77mm

Nominal Thickness:0.8mm&18mm,Design weight per Sqm:8.0kg

Maximum width:6.5m,Maximum height:6.5m

Minimum Roller Diameter:70mm,Unperforated



 ITEM NUMBER:TMS100A,100MM EXTRUDED ALUMINIUM DOUBLE LAYER SLAT

Covering surface and slat height:100mm

Nominal Thickness:0.8mm&22mm,Design weight per Sqm:8.0kg

Maximum width:7.0m,Maximum height:8.3m

Minimum Roller Diameter:90mm,Unperforated



ITEM NO:HSS05,55MM HURRICANE ROLLER SHUTTER SLAT

Covering surface and slat height:55mm

Nominal Thickness:1.4mm&14mm or 1.2mm&14mm,Design weight per Sqm:12kg or 10kg

Maximum width:4.5m,Maximum height:4.0m

Minimum Roller Diameter:70mm,Perforated or Unperforated





TOMA ALUMINUM FOAM SLAT



ITEM NO:TMS55D1,55MM ALUMINIUM FOAM SLAT

Covering surface and slat height:55mm

Nominal Thickness:0.3mm&12.5mm,Design weight per Sqm:4.6kg

Maximum width: 3m,Maximum height:3m

Minimum Roller Diameter:70mm,Perforated or Unperforated



ITEM NO:TMS77G1,77MM ALUMINIUM FOAM SLAT

Covering surface and slat height:77mm

Nominal Thickness:0.46mm&20mm,Design weight per Sqm:5.0kg

Maximum width:5.5m,Maximum height:4.2m

inimum Roller Diameter:70mm,Unperforated

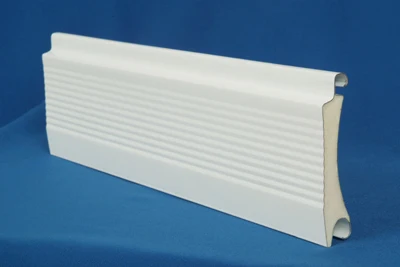

ITEM NO:TMS95A,95MM ALUMINIUM FOAM SLAT

Covering surface and slat height:95mm

Nominal Thickness:0.45mm&25mm,Design weight per Sqm:10.0kg

Maximum width:8.0m,Maximum height:6.5m

Minimum Roller Diameter:70mm,Unperforated



Standard colors for extruded aluminium slat without minimum order quantity but with extra cost if order quantity is less than 200sqm per order:

RAL9016, traffic white,RAL9010, pure white,RAL9006, white aluminium,RAL9007, grey aluminium

RAL7034, yellow grey,RAL9005, jet black,RAL7046, tele grey,RAL9001, cream

If for other special color, we need minimum order quantity 200sqm or with extra cost for special powder.



Our products are widely used at home and abroad. Our tenet is to keep a long term business relationship with the customers on the base of high quality, competitive price and excellent after-sale service.

OEM and ODM for is welcome!

We can supply both roller shuttter components and complete roller shutter ready for installation.
