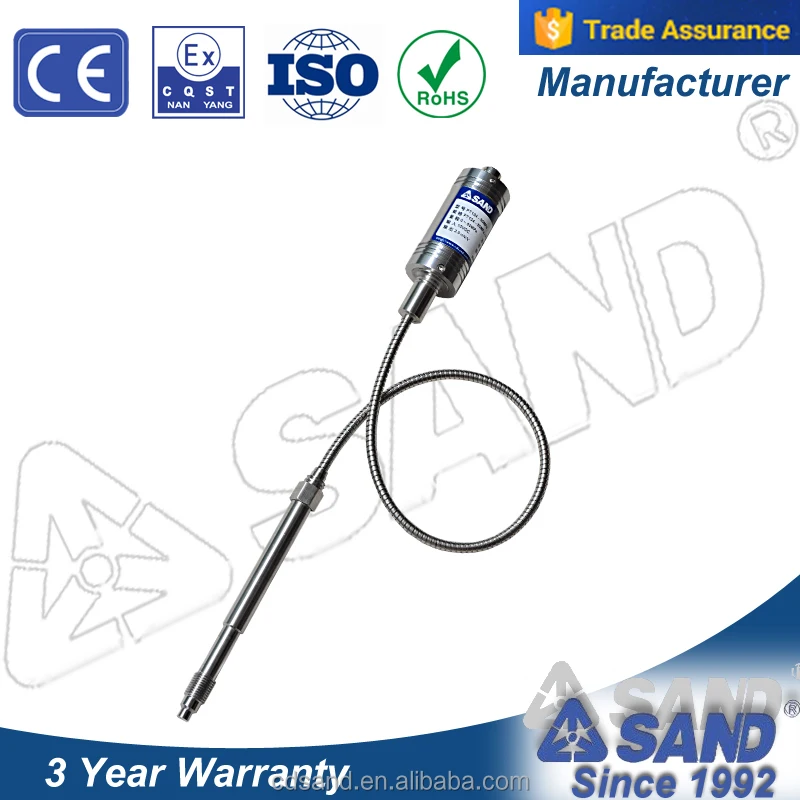

3.33 mV/V output Membrane Melt Pressure Transmitter

Product Overview

Description

PT1XX Series : PT111 Series, PT123 Series, PT124 Series, PT127 Series, PT131 Series.

High Temperature Melt Pressure Transducer (Melt Pressure Sensor)

High Temperature Melt Pressure Transmitter







Product Introduction

PT1xx6B Series High Temperature Melt Pressure Transmitter. The main applications are under the high temperature melt, fluid, gas pressure measurement and control fields in petroleum chemical industry, chemical

fiber textile machinery, non-woven fabric, nonwoven, plastic, rubber, extrusion equipment, etc. With high accuracy, good stability, output signal big, dynamic of good, strong commonality,

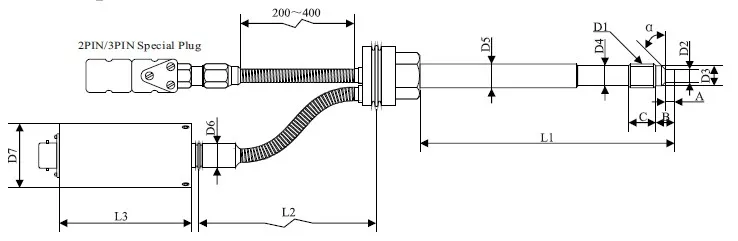

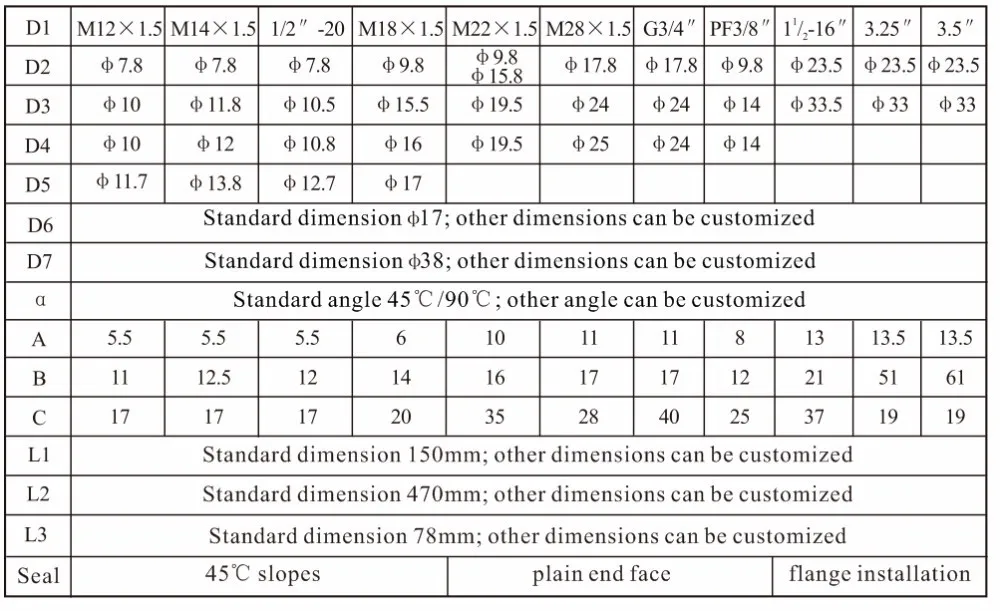

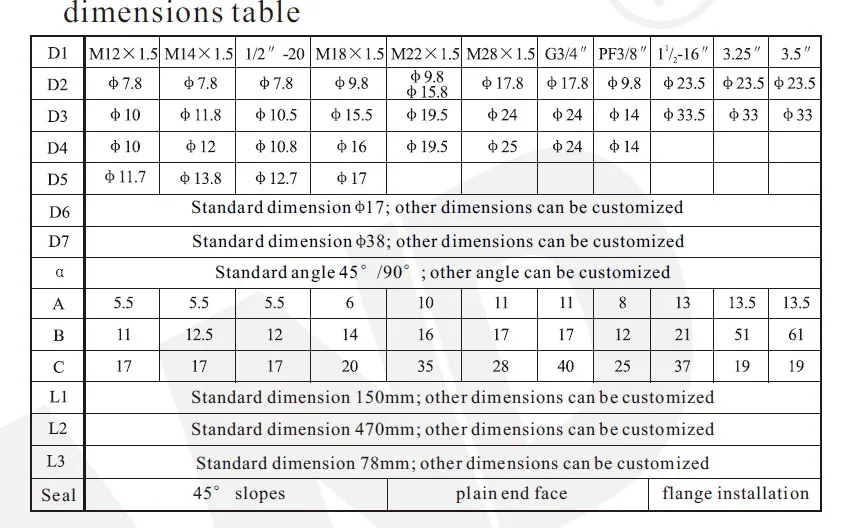

Dimensions

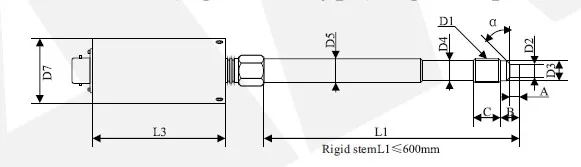

Rigid stem type

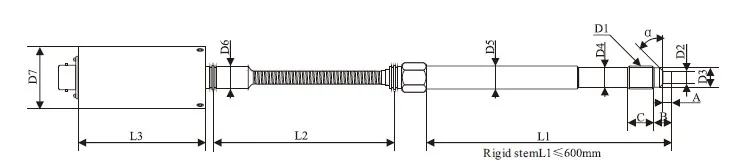

Rigid & Flexible stem type

Flexible & Themocouple type Narrow space type





Performance Parameters:

Pressure Range	0 ~ 0.5 MPa ~ 150 MPa ( 0 ~ 100psi ~ 20000psi )
Accuracy	±1.0% FS
Power	24VDC ( 9 ~ 36 V DC )
Output Signal	Current signal: 4~20mA, 0~20mA;  Voltage signal: 0~10V, 0~5V, 1~10V, 1~5V.
Probe Heat Resistance	PT1116B Series: 300°C; PT1236B,PT1246B,PT1276B,PT1316B Series: 400°C
Temperature Drift	<=0.3 MPa/100°C
Insulation Resistance	>=500MΩ/500VDC
Mechanical Connections	1/2"-20UNF, M10x1.5, M12x1.5, M14x1.5, M18x1.5, M22x1.5 etc. (Optional)
Electrical Connections	6PIN (SD02106P/SD02106S)
Thermometric Config	Thermocouple: E, J, K, S type etc.; (PT4626B Series Optional) Thermal Resistance: Pt100 etc. (PT4626B Series Optional)



Order Format:



Example1:

PT1116B-350bar-M18-150-0~10V

Note:

Product design Model "PT1116B".
Function code "B" stands for melt pressure transmitter.
Coating code "Null" stands for without coating .

Pressure range: 0 ~ 350bar.
Thread size : M18 * 1.5.

Rigid stem length:150mm .
Pressure output signal: 0~10V.



Example2:

PT1236B-5000psi-1/2"-20-150/470-4~20mA

Note:

Product design Model "PT1236B".
Function code "B" stands for melt pressure transmitter.
Coating code "Null" stands for without coating .

Pressure range: 0 ~ 5000 psig.
Thread size : 1/2"-20UNF .

Rigid /Flexible length:150mm/470mm .
Pressure output signal: 4~20mA



Example3:

PT1316B-50MPa-1/2"-20-150/470-Pt100-4~20mA

Note:

Product design Model "PT1316B".
Function code "B" stands for melt pressure transmitter.
Coating code "Null" stands for without coating .

Pressure range: 0 ~ 50MPa.
Thread size : 1/2"-20UNF .

Rigid /Flexible length:150mm/470mm .
Thermometric Config : Pt100 Thermal Resistance Temperature Sensor .

Pressure output signal: 4~20mA .





  3 Years Warranty
