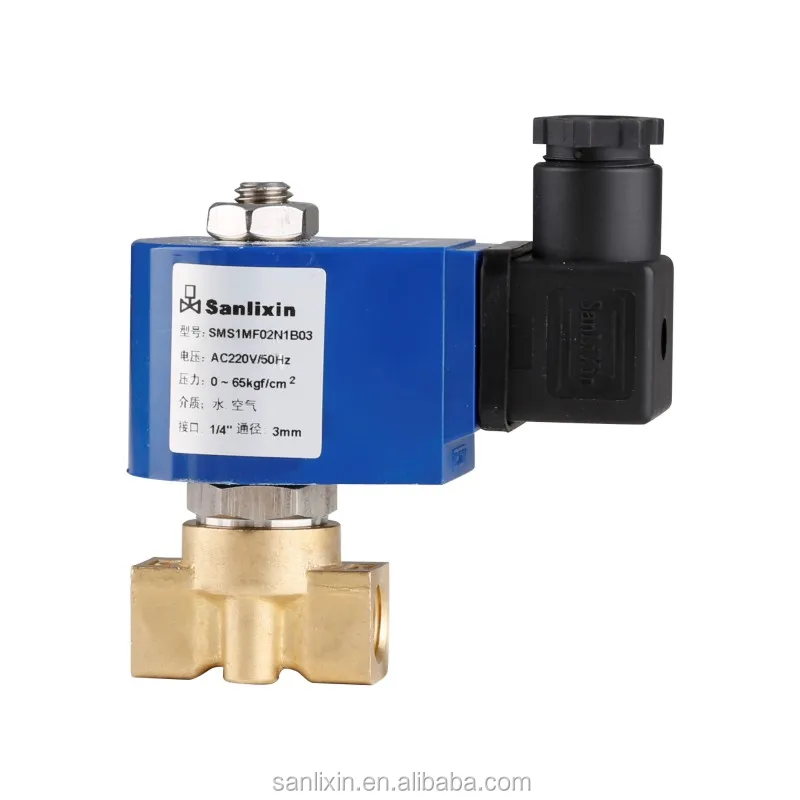

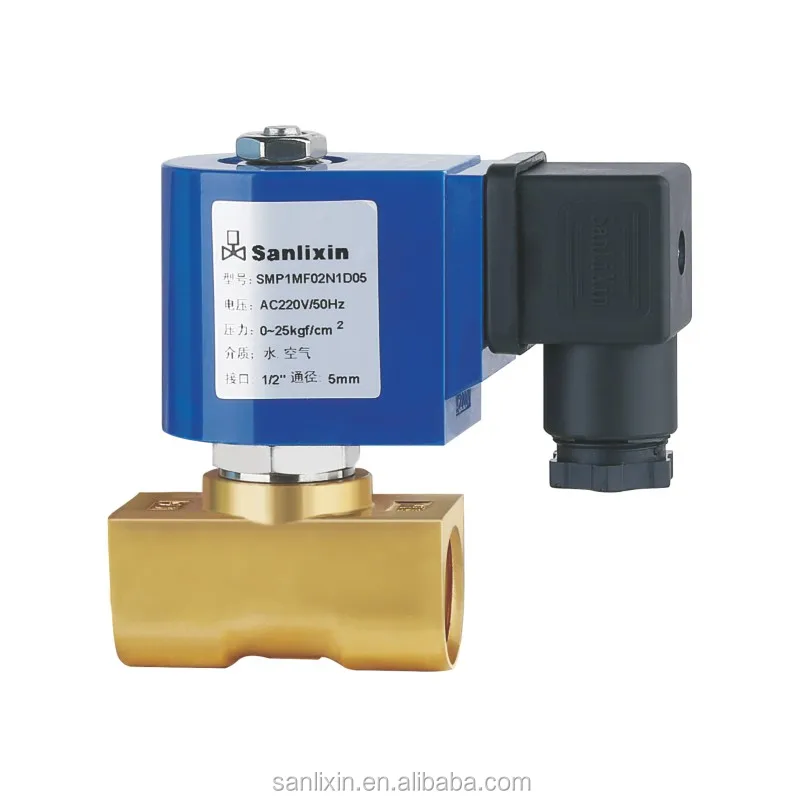

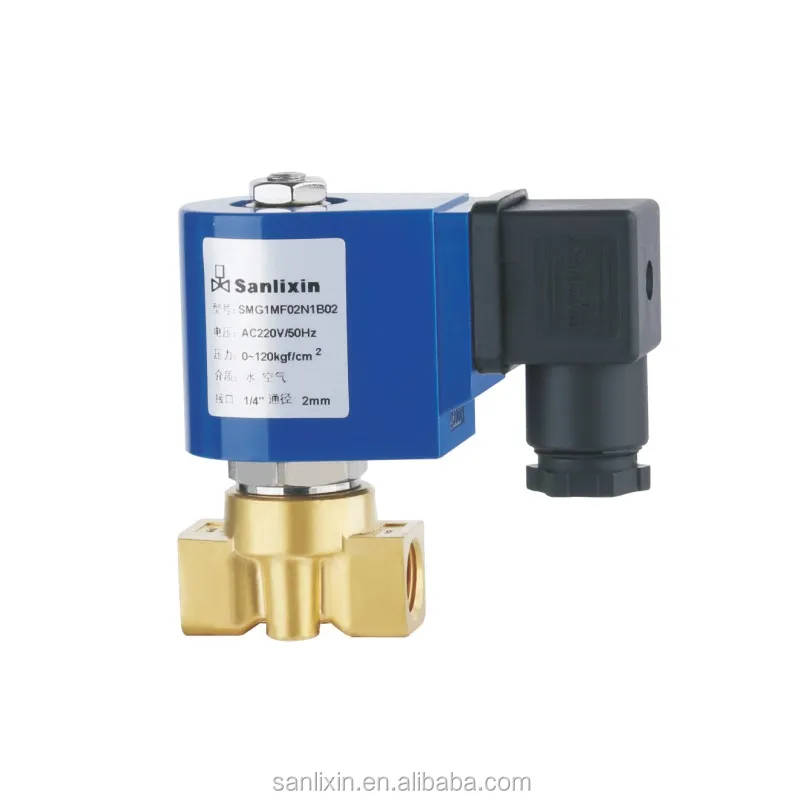

SLP compact series 2/2 way direct acting solenoid valve

Product Overview

Description



1:2-way normally open  solenoid valve,Closed when de-energizes,open when energized.

2: Serialized products,small in size .large flow rate,widely use

3:Body material:forged brass   316stainless steel

4:Ambient Temp 0-65 fluid temp 0-130

5:flow as the arrow,mounts in any position :best position is solenoid vertical and upright direction.

6:Voltage:220VAC/230VAC/240VAC/110VAC/24VAC     50/60HZ 24VDC/12VDC

    Voltage tolerance:+10% to -10% applicable voltage

7:This series valves are offered NBR VITON EPDM etc

  for series and diaphragm to provide on-off control of  various fluids.



Yuyao Sanlixin Solenoid Valve Co., Ltd specializes in designing and manufacturing all kinds of fluid solenoid valves.

Our solenoid valve have direct acting type, pilot operated type, piston types

The body can be made of brass, stainless steel, plastic, Teflon and aluminum and the seals can be made of NBR, EPDM, viton, Teflon, PTFE silicon

The valve size can be DN1.00mm to DN150mm, media can be water, hot water, gas, air, steam. Light oil, weak acid& alkali fluids etc.

So our solenoid valves are suitable for all the general purpose equipment.
