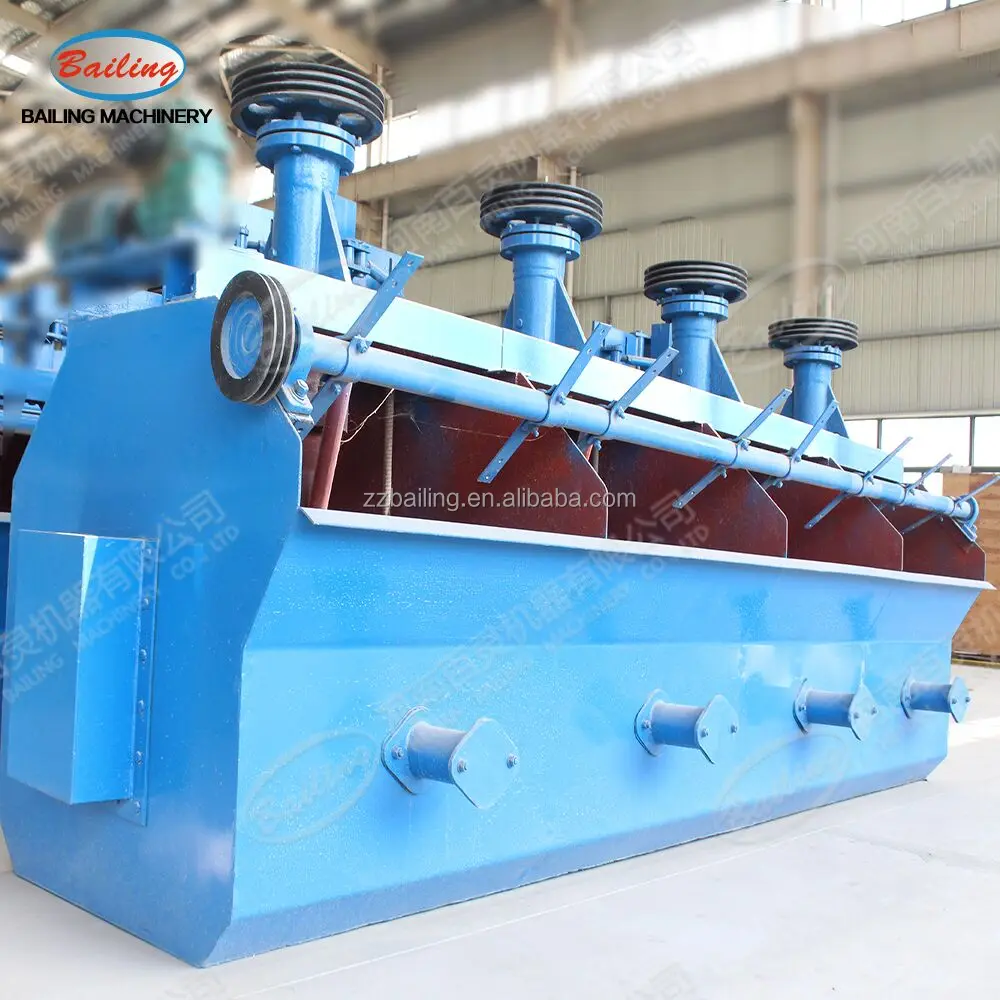

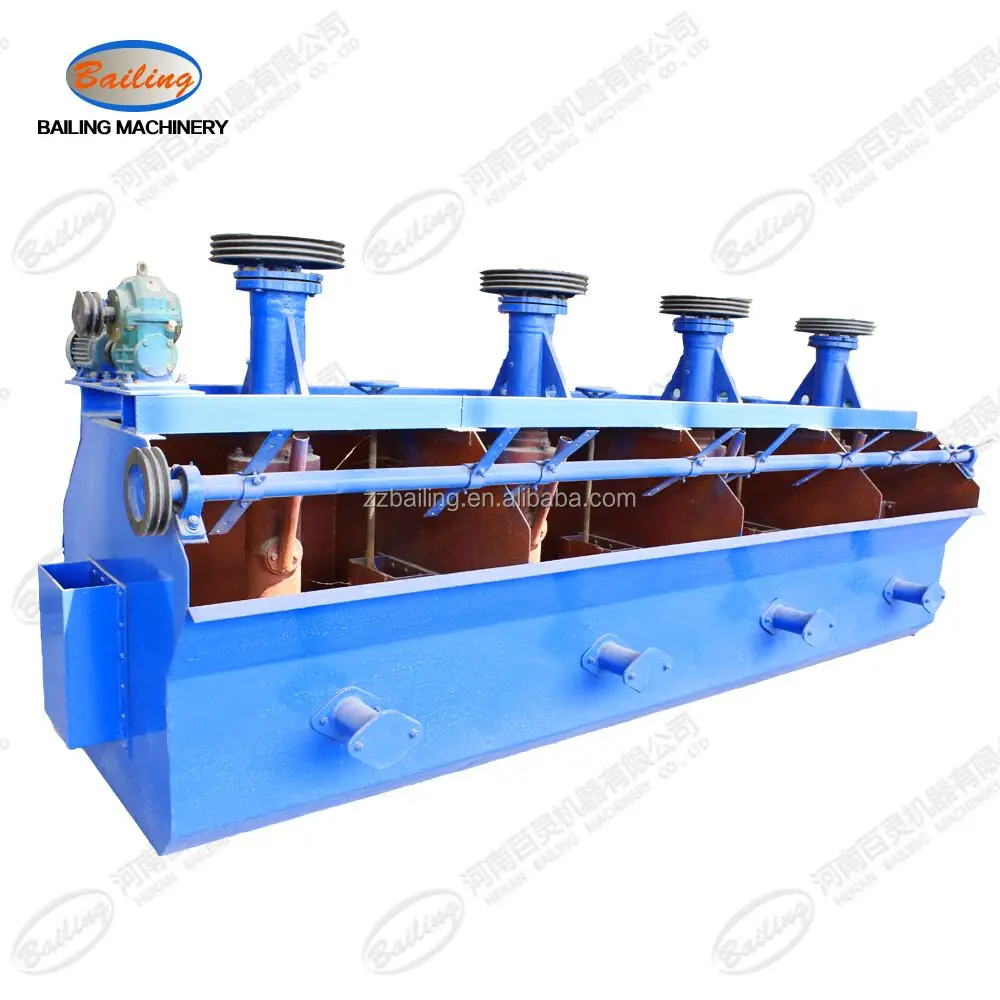

Hot sale in beneficiation plant Flotation method Copper processing plant
Description of the flotation machine mine machine:
Flotation machine can be used for separating copper, lead-zinc ore, molybdenum ore, graphite ore, fluorite ore, phosphate, selected gold, silver, iron, rare earth ore, talc and so on. It is widely used in the separation and recovery for fine minerals of ferrous metal, precious metal, nonferrous metal, non-metallic minerals, rare metal, non-metal, etc.

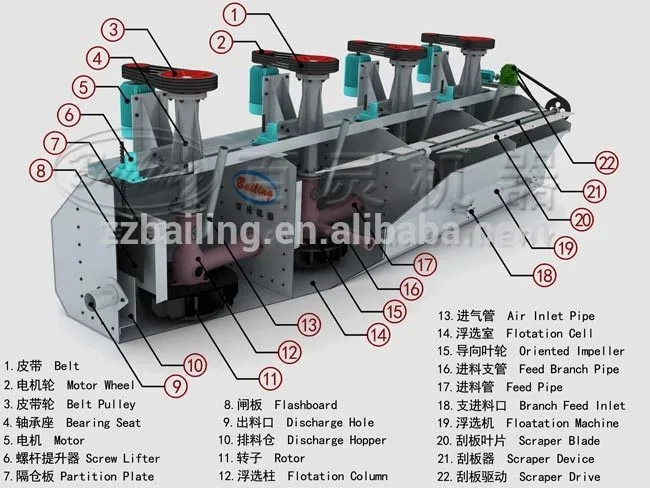

Working principle of flotation machine:

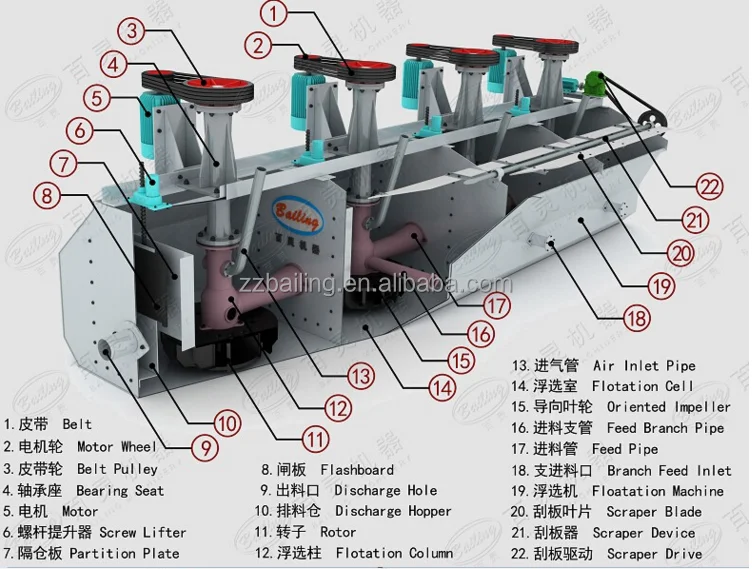

When flotation machine is working, the pulp in the cell is breathed from the surrounding in the between of impellers. At the same time, the low pressure air blew by air blower enters in though air distributor too. Pulp and air mixture totally, and then enter into the cell from the impeller. When bubbles rises foam stability region, they are collected together and flow out into bubble cell. Some other pulp flows towards the bottom of impeller, and is mixed by impeller with air again to form mineral laden bubbles. The rest will flow towards next cell until leaving tailings.
Main technical parameters of floatation machine:
Type | volume(m3) | Diameter of the impeller(mm) | Capacity (m3/min) | Impeller speed(r/min) | Motor of impeller(kw) |
XJK-0.13 | 0.13 | 200 | 0.05-0.16 | 600 | Y90L-4-1.5 |
XJK-0.23 | 0.23 | 250 | 0.12-0.28 | 500 | Y90L-4-1.5 |
XJK-0.35 | 0.35 | 300 | 0.18-0.4 | 470 | Y90L-4-1.5 |
XJK-0.62 | 0.62 | 350 | 0.3-0.9 | 400 | Y100L-4-3 |
XJK-1.1 | 1.1 | 500 | 0.6-1.6 | 330 | Y100M-4-5.5 |

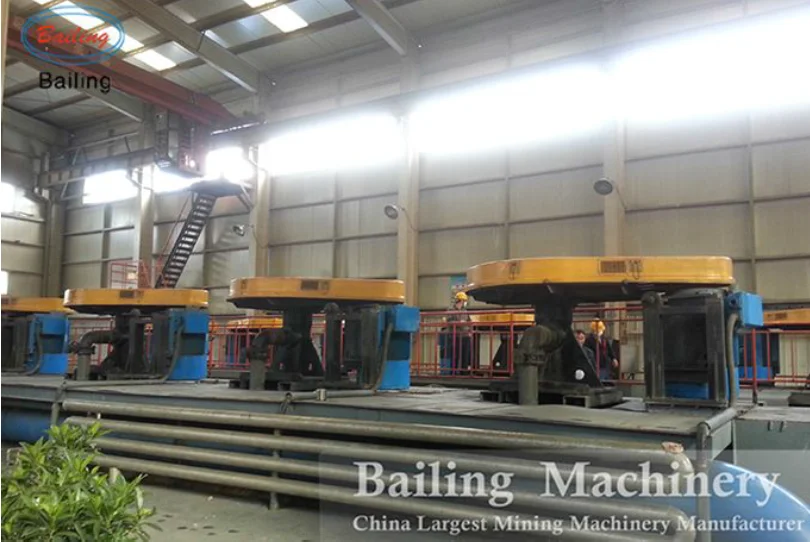

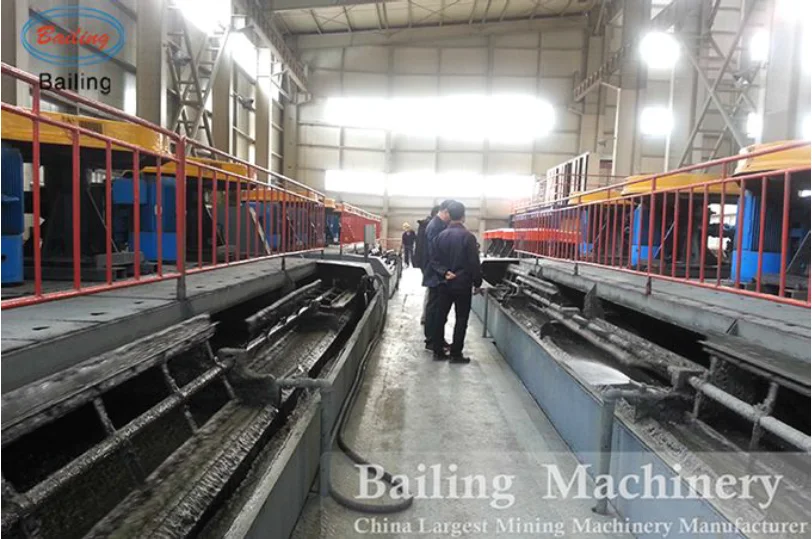

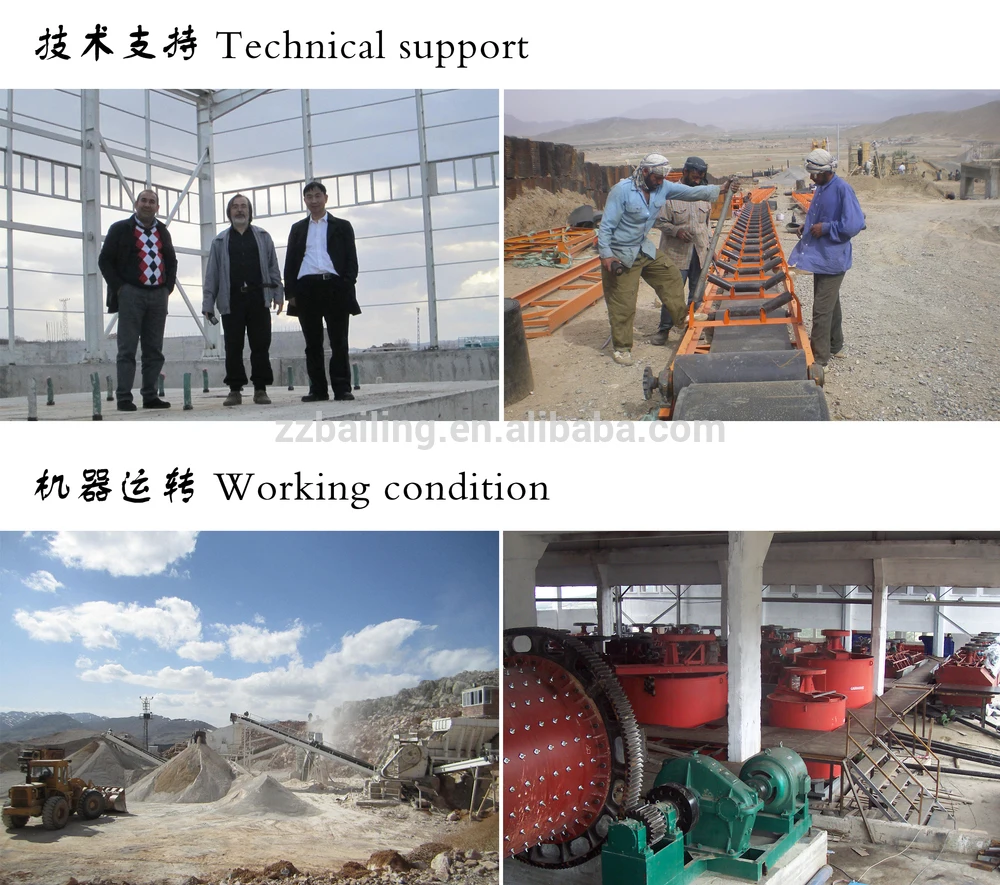

Working site :

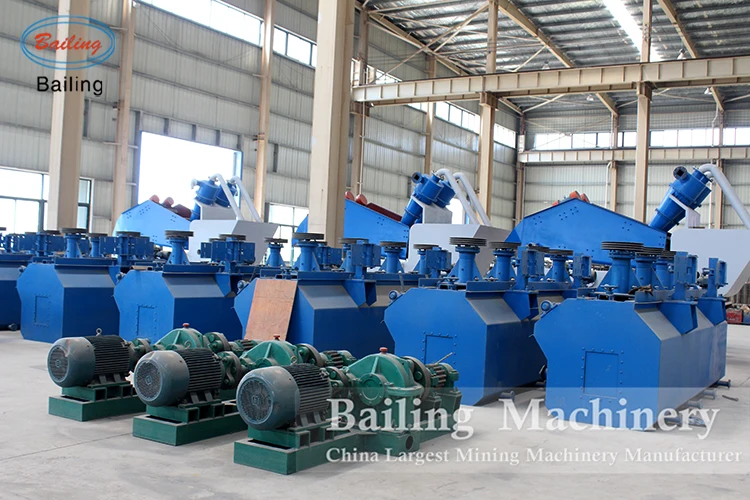

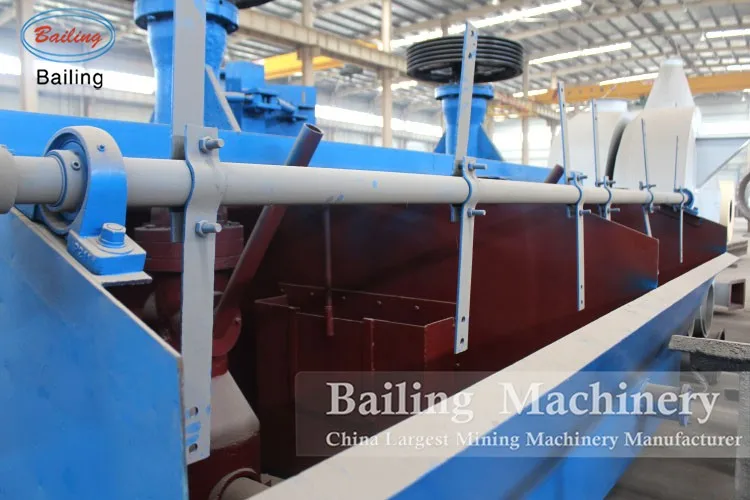

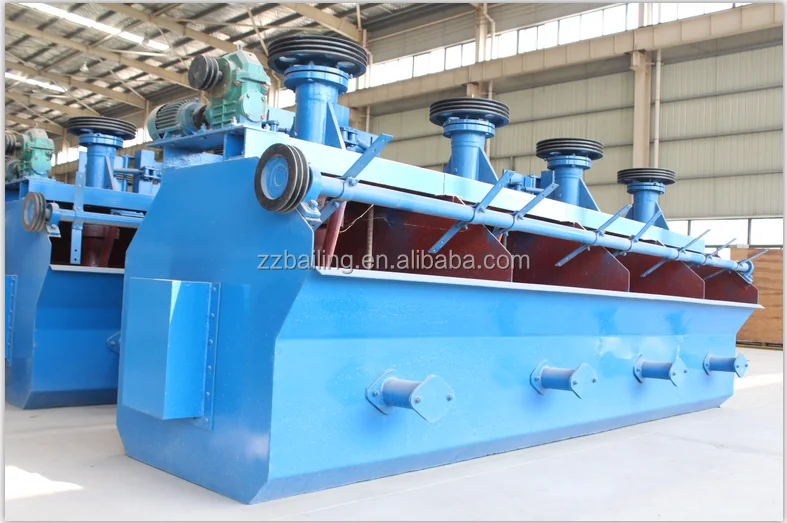

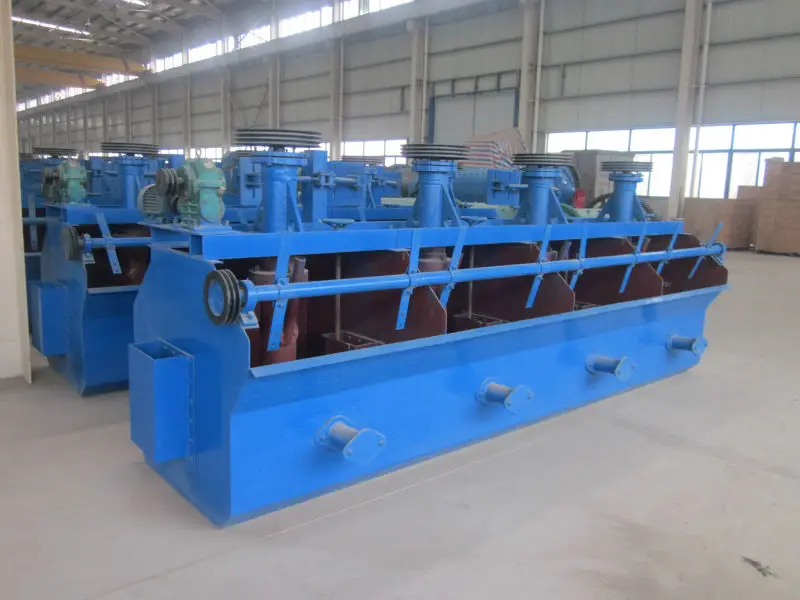

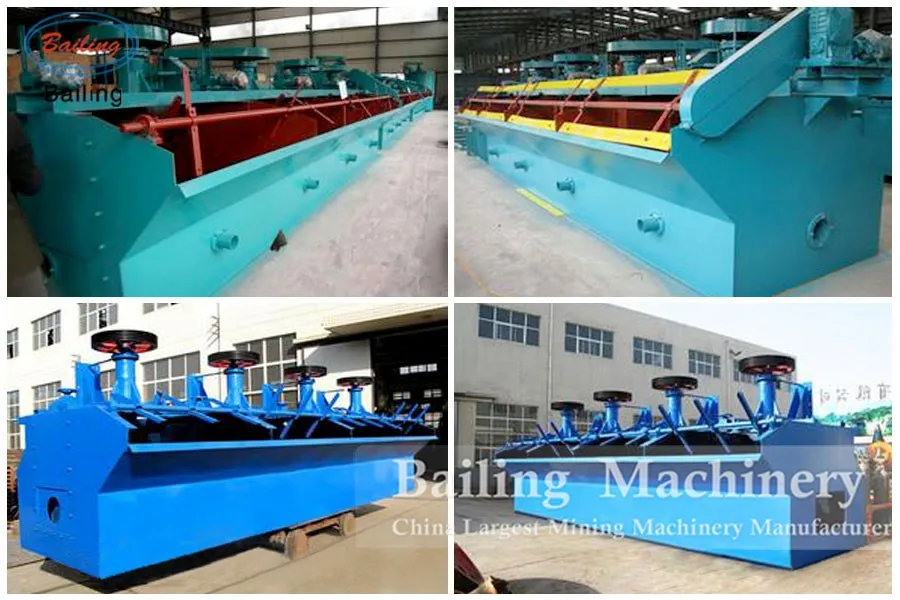

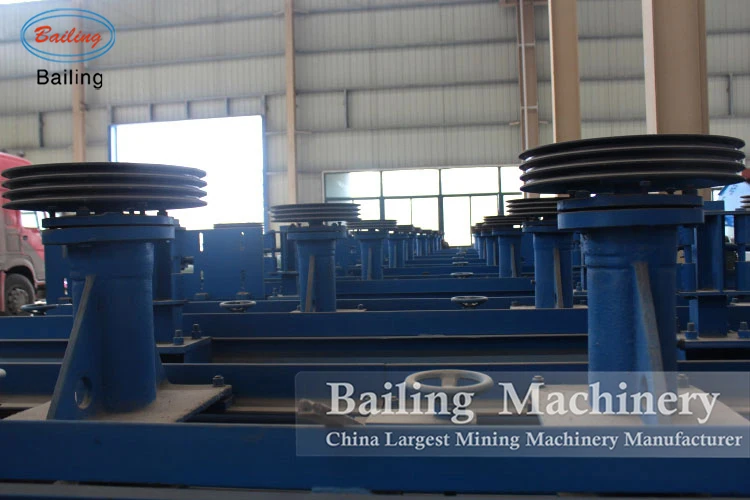

Detailed Images

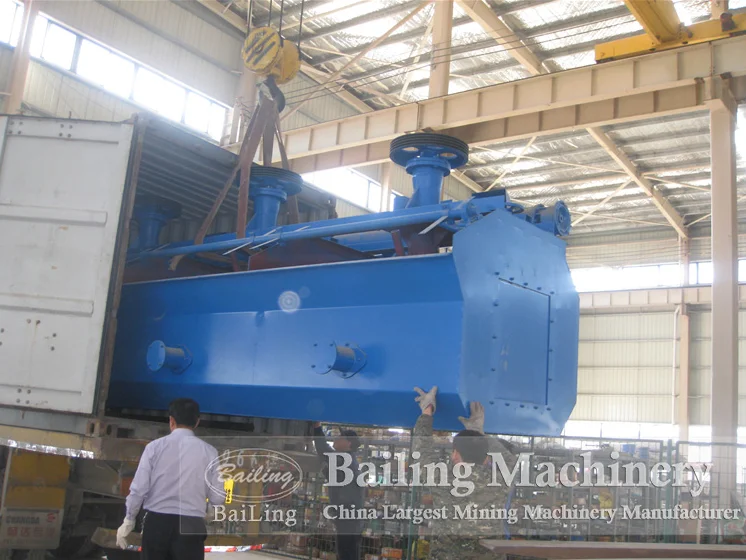

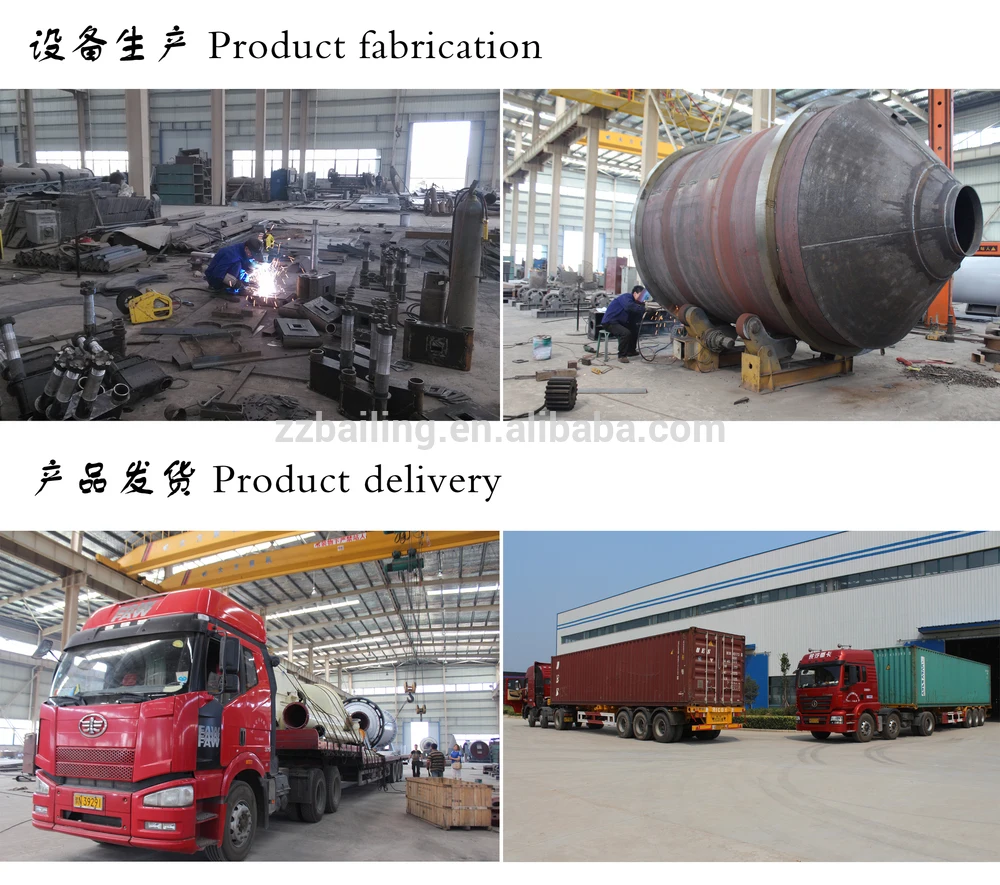

Packaging & Shipping
Flotation machine mine machine Fast Delivery
Our Services
One-Stop-Service for Your Project

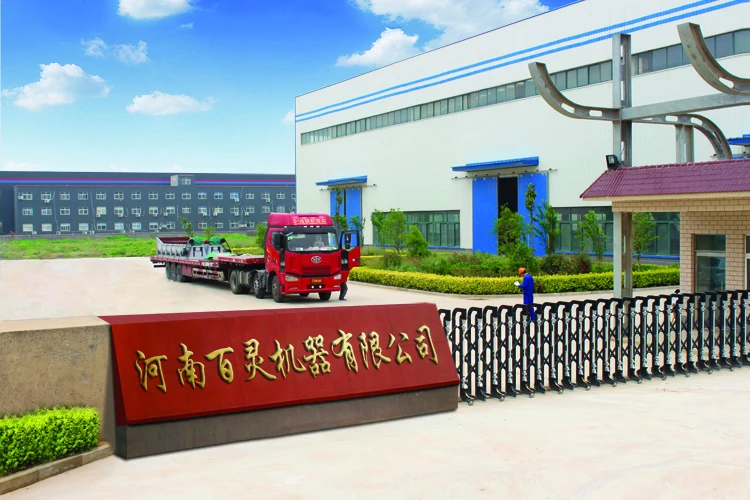

Company Information
Know More about Bailing
Certifications
FAQ
Q: 1. To which country your products have been exported before?
A: Our products have been sold to America, Brazil, Chile, Sudan, Zambia, Kenya,Turkey, Indonesia,Malaysia, Philipines, Australia, India and so on.
Q: 2. How will you help the customer install the equipment?
A: Our senior engineer will guide the installation and commissioning as well as the initial production at
Q: 3. How about the wear parts supply?
A: We offer wear parts to our customer with our most favorable price. If there are problems youcould not handle, we will send our technicians to your place and you are therefore, responsible for all thecost involved.
My friend, feel free to contact me if you need any of our help. :)
