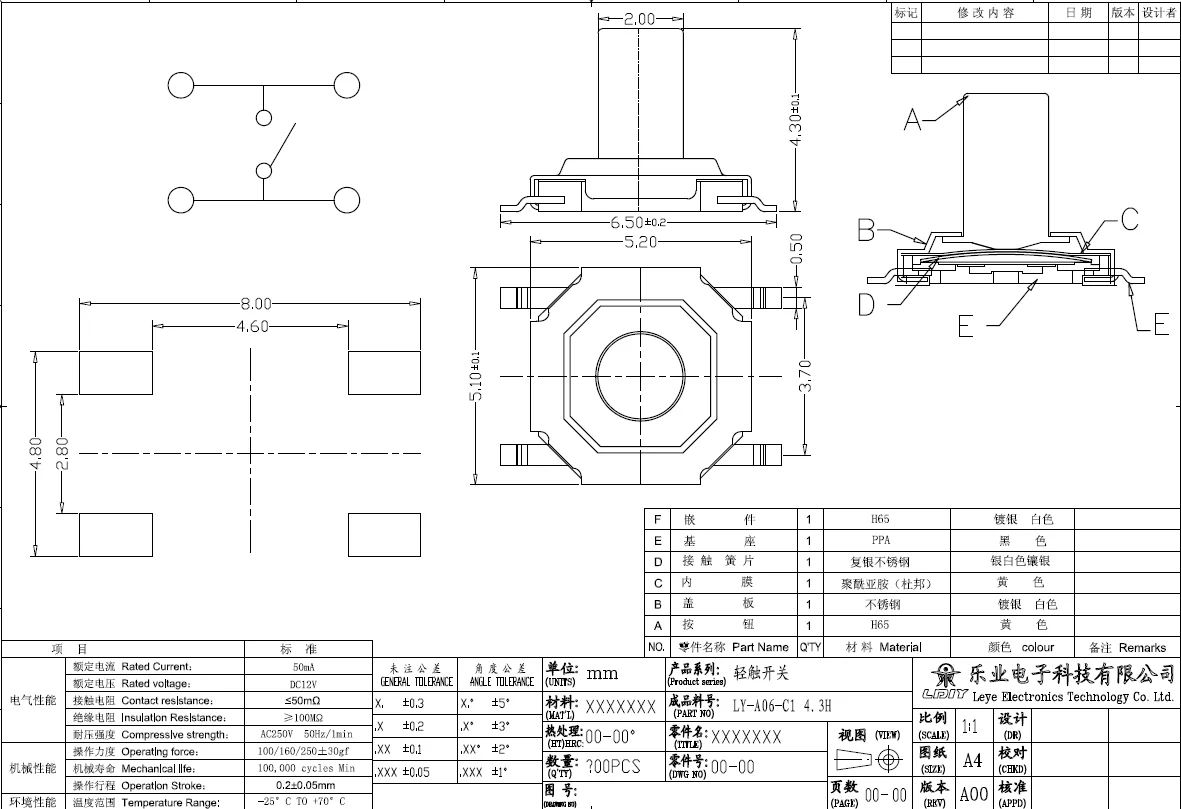

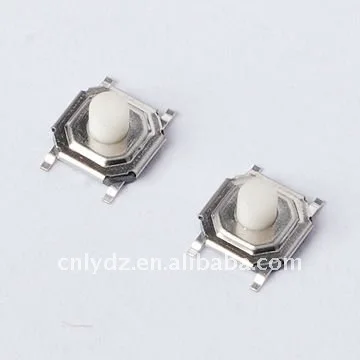

  • 5.2*5.2*4.3mm 4pin high lifetime tact Switch micro switch with different botton push botton switch
5.2*5.2*4.3mm 4pin high lifetime tact Switch micro switch with different botton push botton switch
5.2*5.2*4.3mm 4pin high lifetime tact Switch micro switch with different botton push botton switch
5.2*5.2*4.3mm 4pin high lifetime tact Switch micro switch with different botton push botton switch
5.2*5.2*4.3mm 4pin high lifetime tact Switch micro switch with different botton push botton switch
5.2*5.2*4.3mm 4pin high lifetime tact Switch micro switch with different botton push botton switch

5.2*5.2*4.3mm 4pin high lifetime tact Switch micro switch with different botton push botton switch

Share on (530336978):


Price:

Quantity:


Product Overview

Description





Rated Current
50mA
Rated Voltage
12V
Contact Resistance
≤50mΩ Max
Insulation Resistance
≥100mΩ  100V DC
Compressive Strength
AC250V  50Hz/1min
Mechanical Life
100000 cycles min
Operating Stroke
0.2±0.05mm
Operating Force
260gf±50gf
Temperature Range
-25℃~+70℃
