PT135 400 Degree C High Temperature Pressure Gauge

Product Overview

Description

PT135G  SAND Mechanical Melt Pressure Gauge







PT135 series high temperature melt pressure gauge is widely used in high temperature melt pressure measurement and control of chemical fiber, oil, brewing and plastics industries under no power supply. They adopt the imported top quality chip and can built-in pressure transducer/transmitter to support the uses with our PS pressure indicator to realize the distant pressure measurement and control.

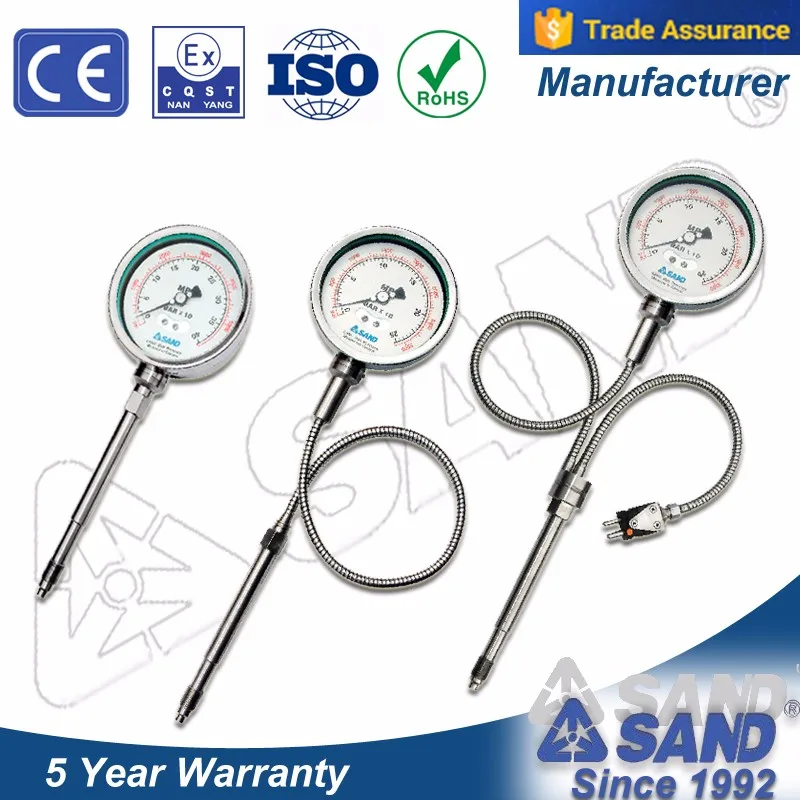

PT135 Pictures:







Model:

	Melt Pressure Gauge
Mechanical pointer type	PT135G
Built-in pressure transducer type	PT135C
Built-in pressure transmitter type	PT135B



PT135 Specification:

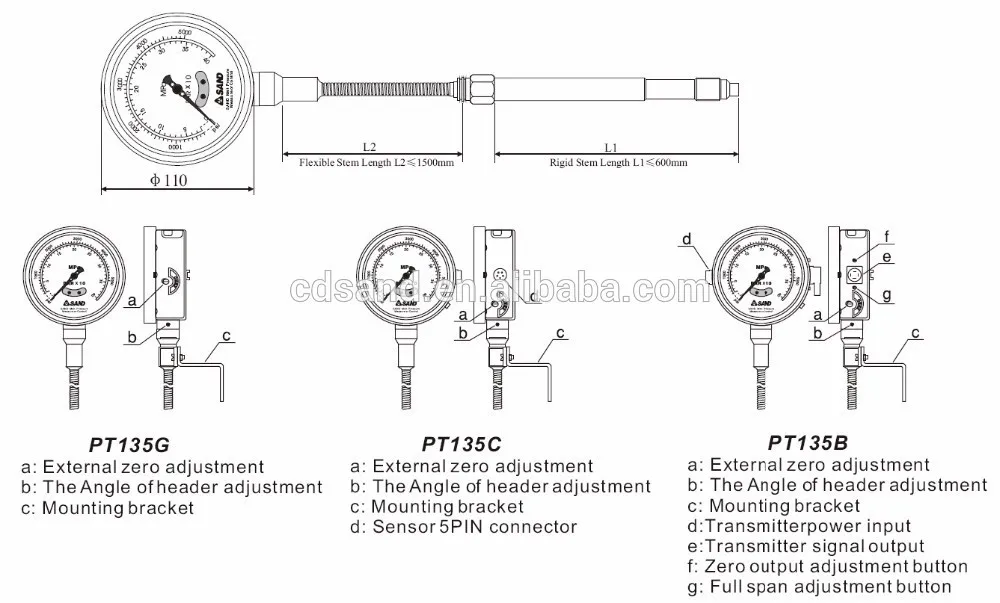

PT135 Shape Dimension:





PT135 Features:

1. External zero adjusts for easy clearing away the temperature drift;

2. Rotary header convenient to install and read;

3. Stainless steel shell;

4. Measuring temperature and pressure in same spot(optional);

5. Multiple voltage and current output models;

6. To realize the remote transmission and pressure precision measurement.



PT135G Order Format:

 Example: PT135G-40MPa-M22-150/700-E

Note:

Product Model: PT135G

Function Code"G" stands for mechanical melt pressure gauge.

Coating code "Null" stands for without coating.

Pressure Range: 0~40MPa

Process Connection: M22*1.5

Rigid Stem Length:150 mm

Flexible Stem Length: 700mm

E: E type thermocouple
