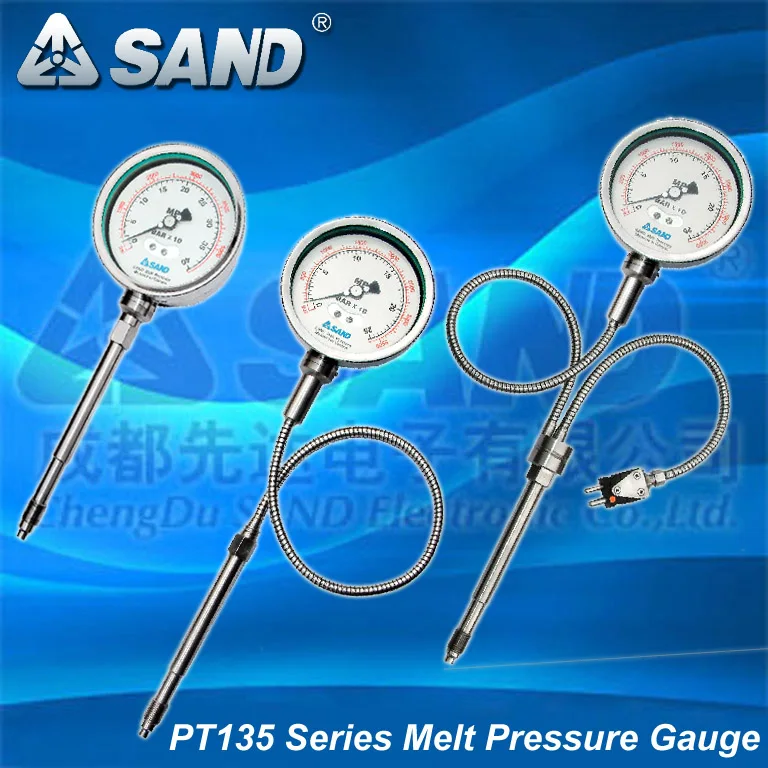

SAND PT135 High temperature melt pressure gauge for plastic extrusion

Product Overview

Description

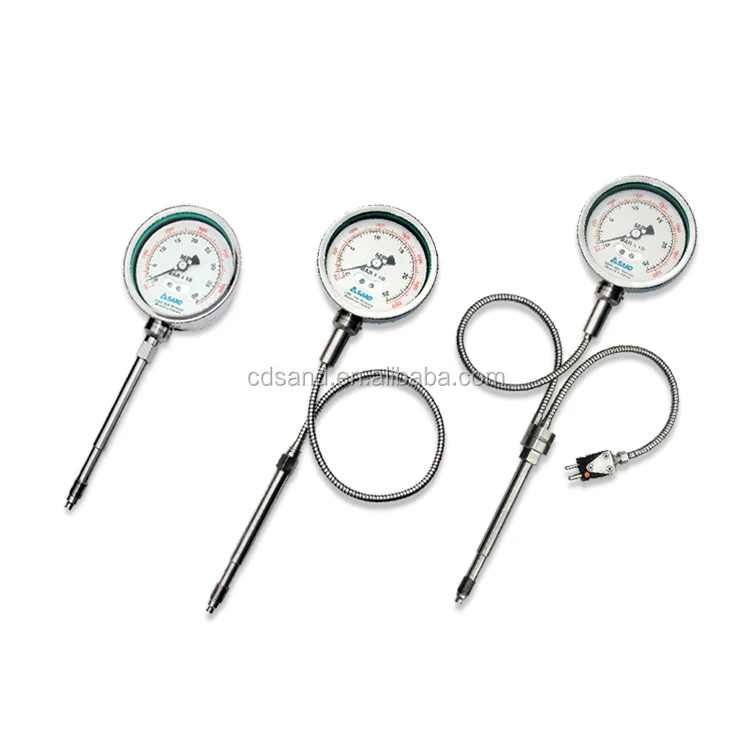

SAND PT135 High temperature melt pressure gauge for plastic extrusion







SAND PT135 series mechanical melt pressure gauges are ideal for melt pressure applications where the measurement and control is in high temperature surroundings and in the case of blackout.
The design on the rigid snout version of the mechanical gauge can be rotated for unobstructed viewing, and the optional built-in pressure transducer with 2.0mV/V output and pressure transmitter with 4~20mA output are available to monitor in remote by working with pressure indicators.Thermocouple or RTD configurations are available to provide melt temperature.



Related products

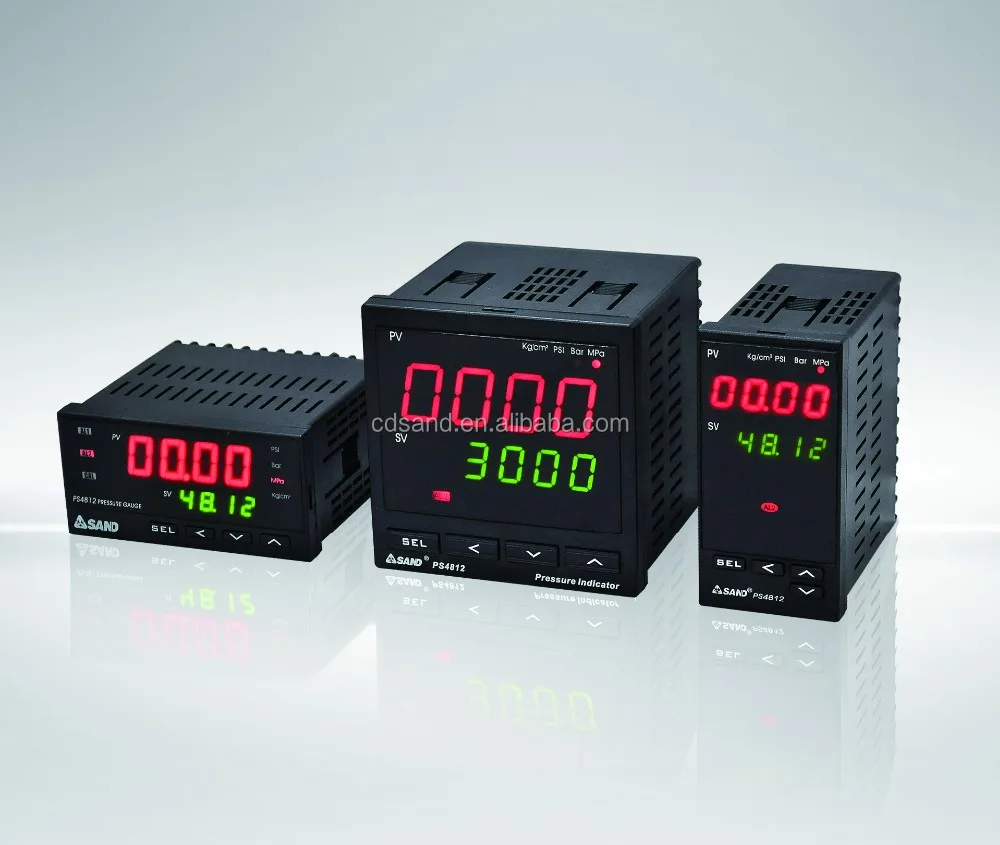

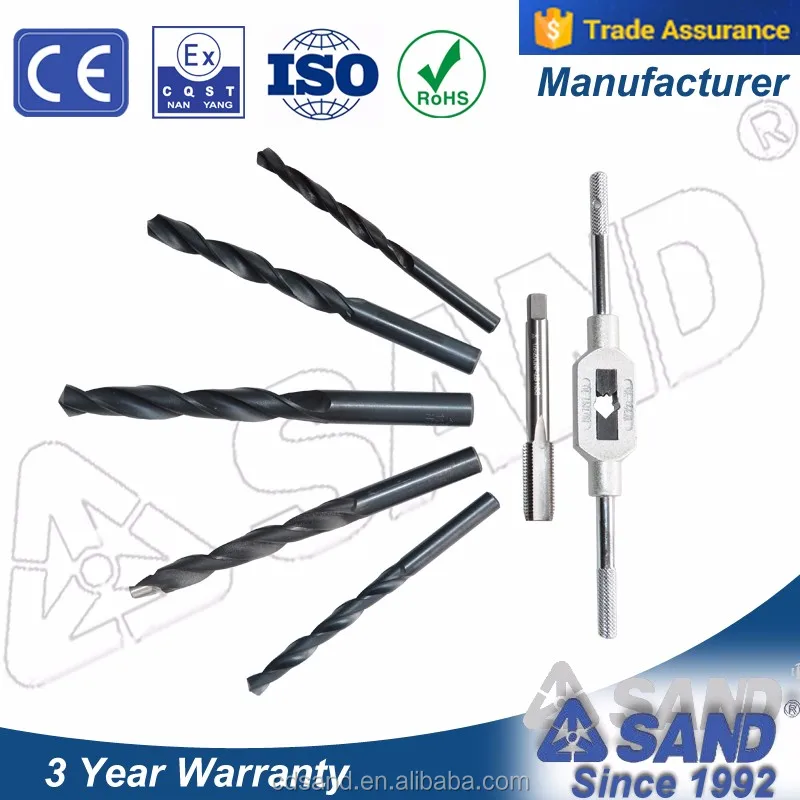

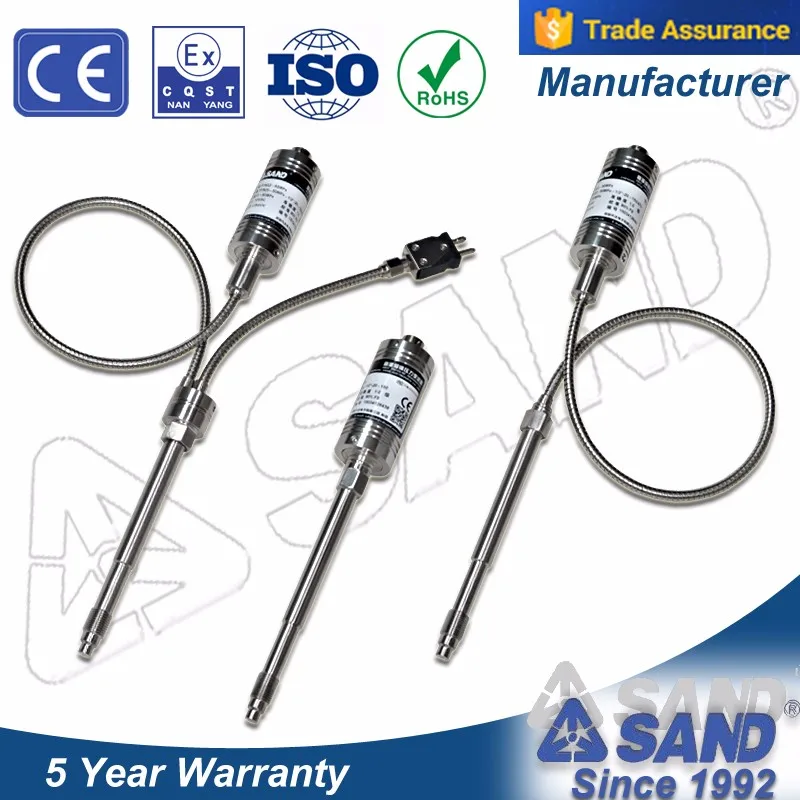

Melt pressure transducer           Pressure indicator                         Rupture disk                                   Clear tools & Drill kits







Model:

	Melt Pressure Gauge
Mechanical pointer type	PT135G
Built-in pressure transducer type	PT135C
Built-in pressure transmitter type	PT135B

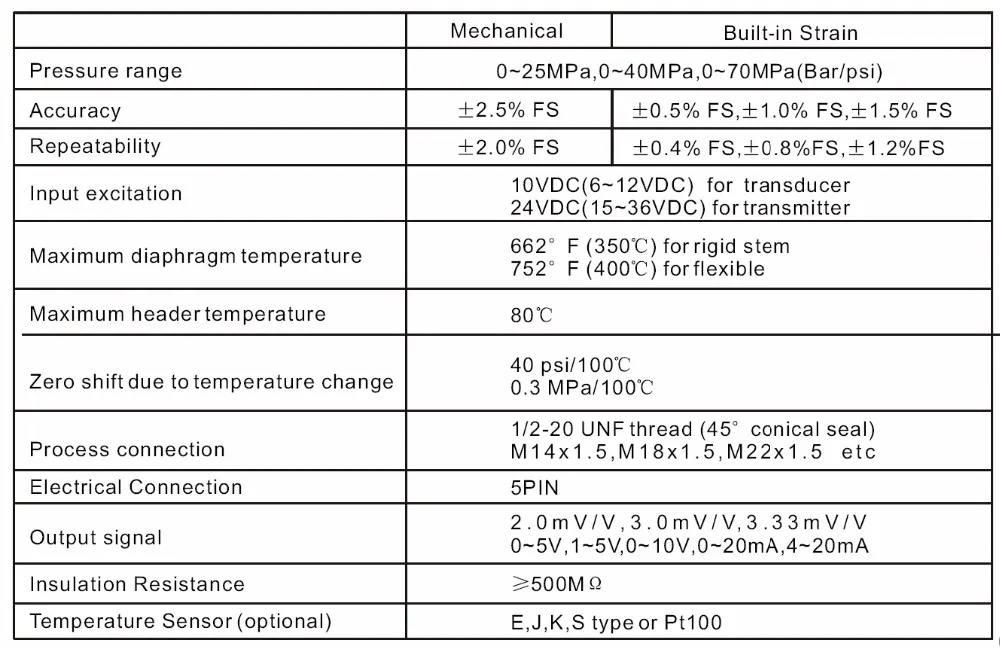

PT135 Specification

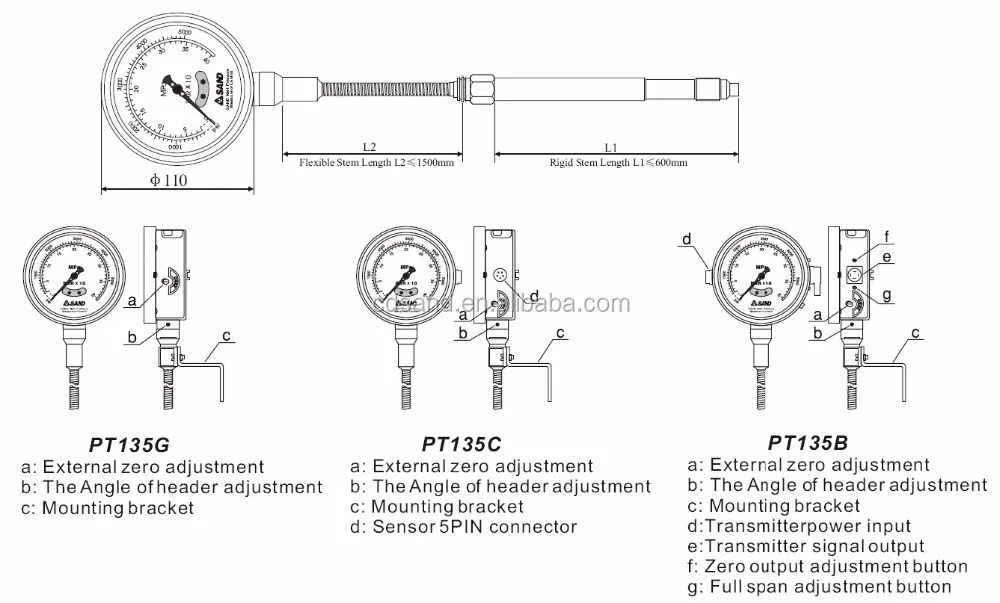

PT135 Shape Dimension

 150



PT135 Features:

1.  Direct,local readings,Mechanical design;

2.  400°C (750 F) Rating

3.  Measure / Display pressure at-line

4.  Standard diaphragm Inconel, TiN or TiAIN coating option

5. No power required.

6. Remote transmission

7. Stainless steel construction

8. Thermocouple J,E,K or Pt100 available
