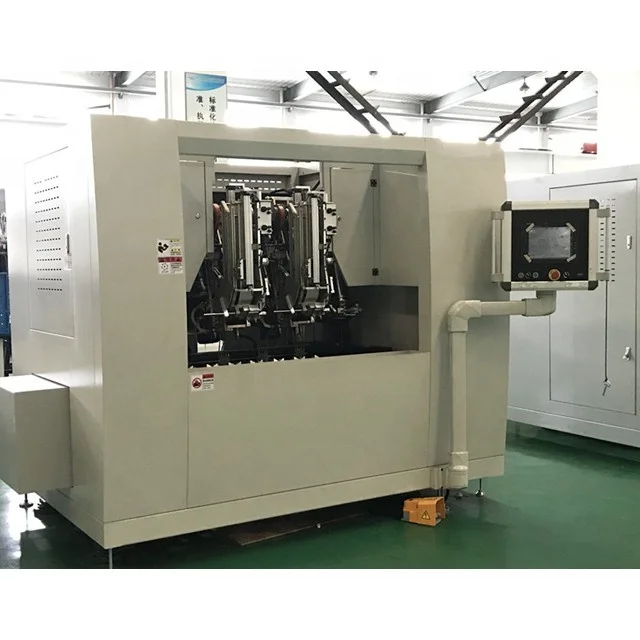

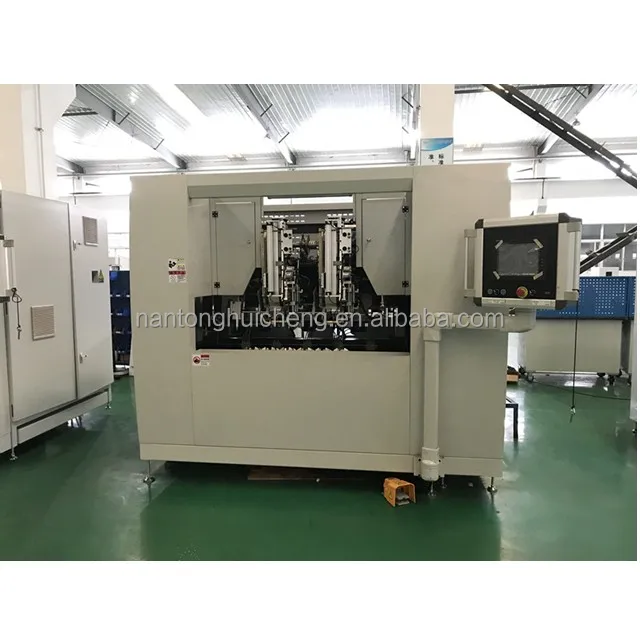

5 axis 5 heads automatic plastic snow brush industrial brush making machine

Product Overview

Description



Technical characteristics:

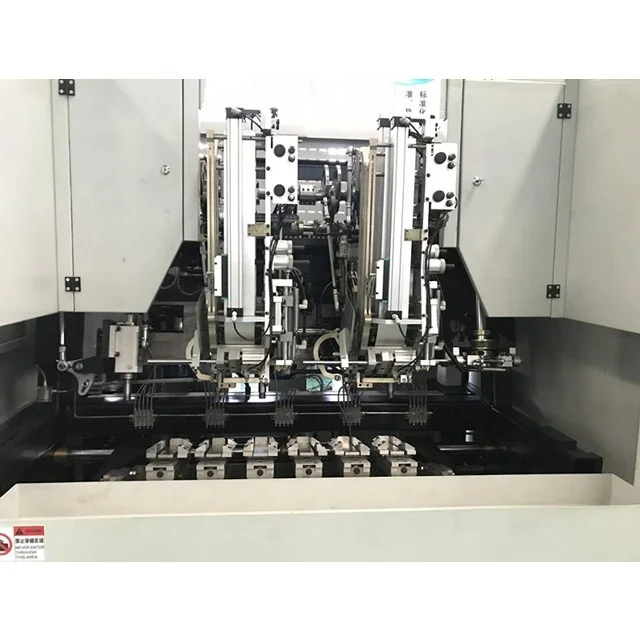

1, Equipped with three drilling heads and two tufting heads;

2, Equipped with three high speed drilling heads: hole diameter from 3.0mm up to 6.0mm, and tufting tools from min. 3.0mm up to 6.0mm. It’s selective.

3, Tufting methods: round nails or flat nails;

4, Three types of platform can be chosen as follows:

Platform for radial, parallel and radial/parallel tufted brushes

Platform for bowl brushes and semi-spherical brushes (such as toilet brushes and “Swedish style” dish-washing brushes)

5, PLC and Touch Panel Control System, displays in either Chinese or English, the operation is flexible and convenient.

6, Allow to save 2000 procedure and easy for the creation of new models

7, our machine can produce either one color or two color brush, and can drilling or tufting separately

8, setting of worktable: high-precision straight-line rail and ball screw, steady and durable.

9, Material of Brush Handle: Poly styrene, return materials, wood

10, Material of filaments: PP, PET, PVC, and STEEL WIRE

11, Application: To make varieties of toilet brush and radial brushes

12, High Speed Motor: Delta High-Speed Motor

13, AC motor: Delta Brake Motor

14, Type & Brand of Drive/Motor: Delta servo motor by default, can adopt some brand motor & driver requested by users.

15, Adjust Speed: Frequency-conversion stepless-adjustable speed

16, Replaceable Fixture: FMS type. It can be easily changed to make other kinds of brushes.

17, Head mode: Anchor or Staple

18, Program System: CNC system, high precision, stability and efficiency



Technical parameters

Maximum production speed	900holes/minute
The maximum filament length	200mm
Dia. Of tufting holes	2.5mm-8.0mm
Machine Size	2.32m*1.92m*2.22m (L*W*H)
Power Consumption	4000W
Driving Motor	AC Servo Motor
Power Supply	Three-phase 380V
Weight(gross weight)	2.3 Ton
