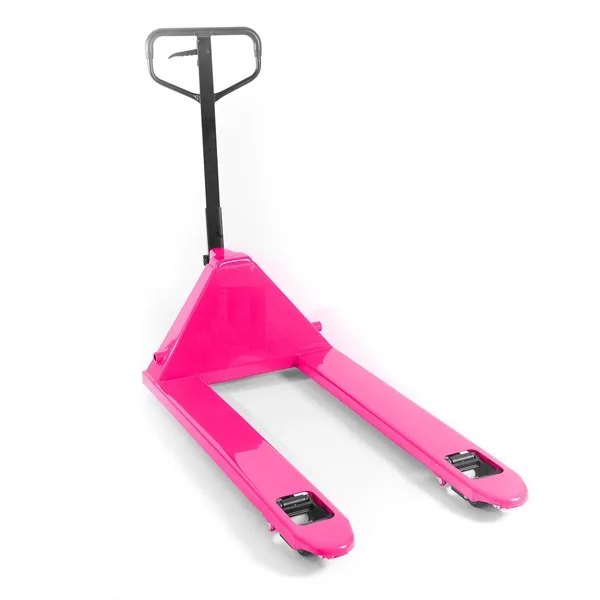

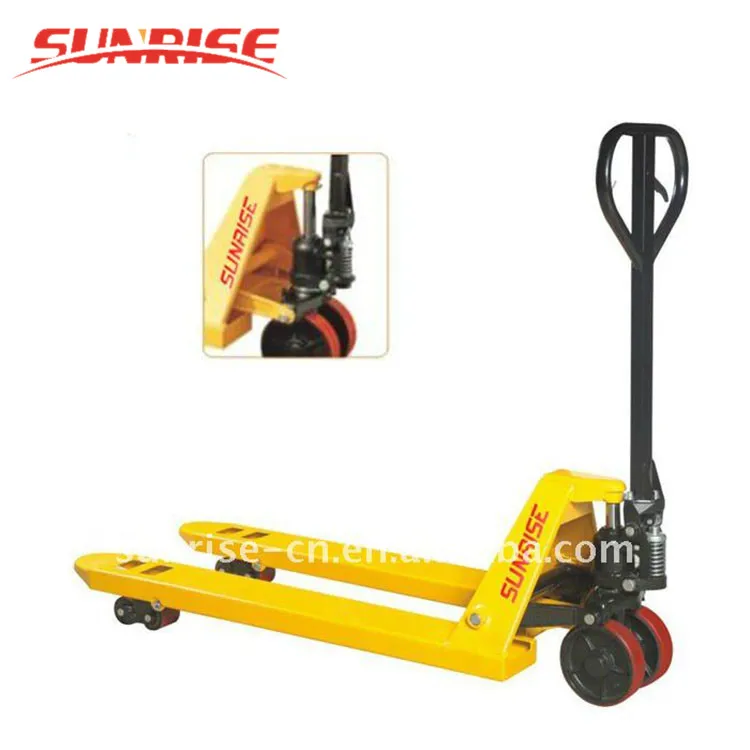

Noblelift hydraulic hand pallet jack AC20
- Category: >>>
- Supplier: Guangzhou Sunrise Machinery Equipment Co. Ltd.
Share on (531089269):
Product Overview
Description
High quality manual transpallet hydraulic self lift hand stacker
Product Description
| Item/Type | AC15/20 | AC25 | AC30 | ||||
| Capacity Q | kg | 1500/2000 | 2500 | 3000 | |||
| Min.fork height h | mm | 85 | 75 | 85 | 75 | 85 | 75 |
| Max.fork height h1 | mm | 200 | 190 | 200 | 190 | 200 | 190 |
| Steering wheel | mm | Φ200x50 | Φ180x50 | Φ200x50 | Φ180x50 | Φ200x50 | Φ180x50 |

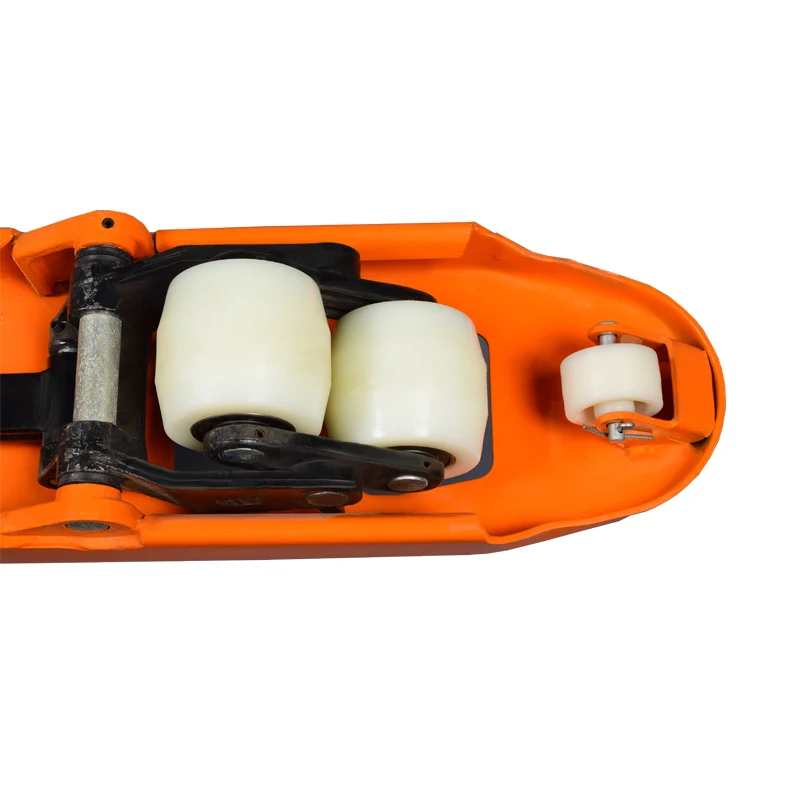

| Load roller Single | mm | Φ80x93 | Φ74x93 | Φ80x93 | Φ74x93 | Φ80x93 | Φ74x93 |
| Load roller Tandem | mm | Φ80x70 | Φ74x70 | Φ80x70 | Φ74x70 | Φ80x70 | Φ74x70 |
| Size of fork e*s | mm | 160x50 | 160x60 | ||||
| Width overall forks B | mm | 450/520/540/685 | |||||
| Fork length I | mm | 800/900/1000/1100/1150/1220 | |||||
Product show

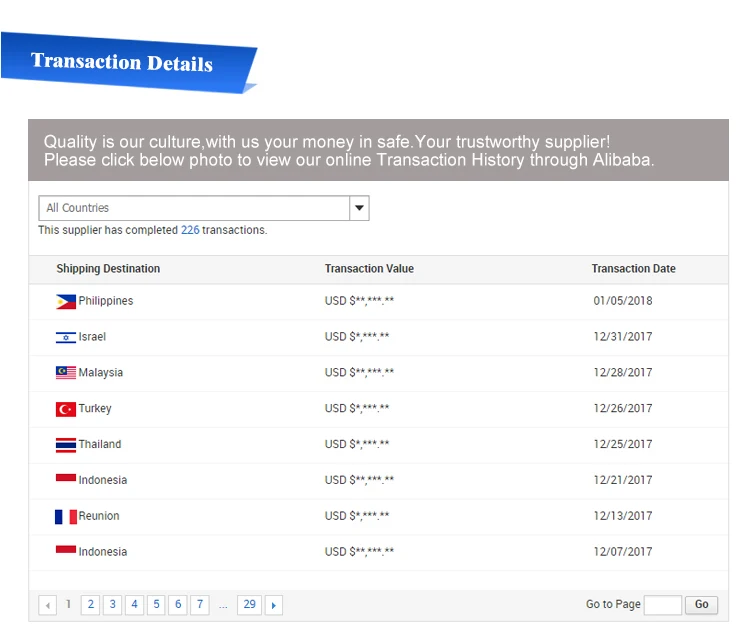

Transaction details
