3kw solar panel grid tie inverter /solar on grid tie inverter working(can connect battery)
- Category: >>>
- Supplier: Foshan,Tanfon,Energy,Technology,Co.,Ltd.
Share on:
Product Overview
Description
3kw solar panel grid tie inverter /solar on grid tie inverter working(can connect battery)
TANFON solar system, have off grid and on grid system, single phase and three phase system, protable DC solar system etc., The various types of systems to meet the diverse needs of customers. Any interest, please send inquiry to us to get more details.
Tanfon on grid solar inverter have power design 1kw 2kw 3kw 4kw 5kw 6kw 7.5kw single phase, 4kw-70kw three phase

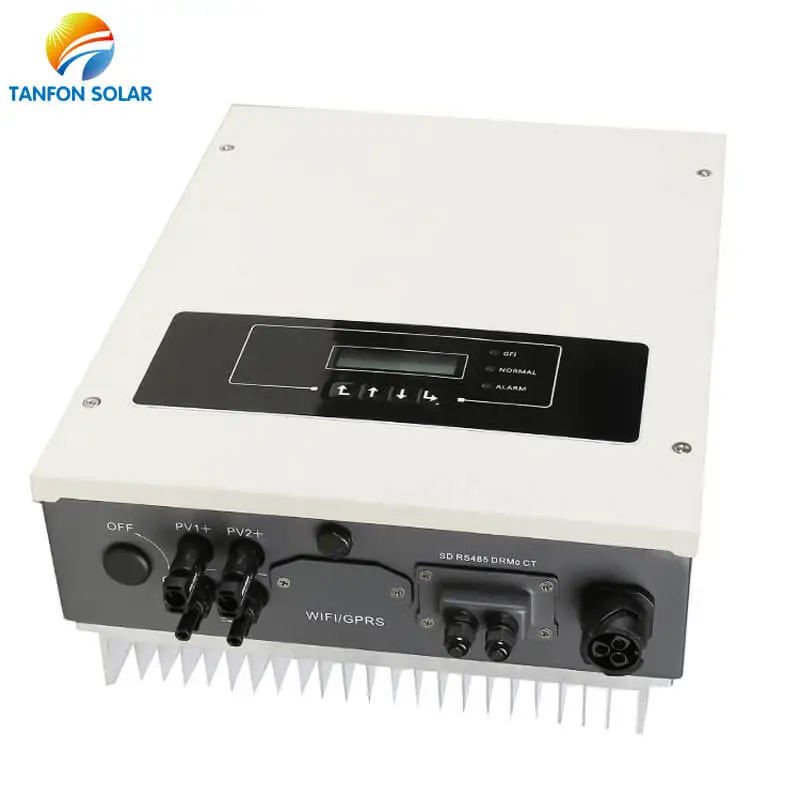

1kw to 5kw on grid inverter design:
Product Advantages (3kw-7.5kw single phase grid tie solar inverter)
High output
- The highest efficiency 98.2%
- Real-time and accurate MPPT algorithm, MPPT efficiency greater than 99.5% to ensure maximum return
- Wide operating voltage range: from 90V to 580V, compatible with various specifications of photovoltaic arrays
- Independent dual MPPT tracking for better adaptability to various rooftop power station designs
- Transformerless inverter topology is used to achieve higher inverter efficiency
Flexible and economical system solutions
- LCD screen plus combination buttons for easy viewing of inverter status information, communication connections, and system configuration
- RS485 and external Wi-Fi/GPRS (optional): System monitoring configuration is more flexible
- Mobile APP real-time monitoring is more convenient
- Built-in anti-backflow function (optional)
- Built-in sound and light alarm function
Low maintenance costs
- Transformerless design, Higher efficiency, smaller size, lighter weight
- All-aluminum stainless steel case, natural heat dissipation, enhanced corrosion protection, extended service life
- IP65 protection level, freedom of installation location
- Photovoltaic connector for easier installation and maintenance
- Flexible and mature monitoring solutions
Smart Grid Management
- Reactive power adjustable function
- When the power grid is over-frequency, automatic load shedding
- Remote active limit function
Grid tie solar inverter data sheet:
Product Type | HBF3KW |
INPUT(DC) | |
Max. Input power | 3500W |
MPPT input port quantity | 1 |
Input string quantity | 1 |
Auxiliary source start voltage | 90V |
Max. Input voltage | 600V |
Grid starting input voltage | 120V |
Rated input voltage | 360V |
MPPT voltage range | 100V-500V |
Full load MPPT voltage range | 160V-520V |
Max. input current | 11A |
Input terminal type | MC4 / H4 |
OUTPUT(AC) | |
Max. AC power | 3000VA |
Nominal AC power | L/N/PE, 220, 230, 240 |
Nominal AC voltage range | 180V-276V (according to local standards) |
Power network frequency range | 47~55Hz / 54~66Hz (according to local standards) |
Active power adjustable range | 0~100% |
Max. Output current | 13.7A |
Total harmonic component (current) | <3% |
Power factor | 1 (+/-0.8 adjustable) |
FUNCTION | |
Max. power | 98.0% |
European Efficiency | 97.5% |
Night power consumption | <1W |
Initial power | 50W |
MPPT efficiency | >99.9% |
PROTECTION | |
DC reverse protection | Yes |
DC switch | Optional |
Protection class / overvoltage category | I / III |
I / O surge Protector II) | Optional |
Safety Protection | Anti-islanding, RCMU, ground fault monitoring |
Certification | NB/T32004-2013, AS4777, VDE0126-1-1, G83/2, G59/3, C10/11, RD1699, UTEC15-712-1, EN50438, VDE-AR-N4105 |
Communication | |
Energy management unit | According to certification and requirements |
Standard communication mode | RS485, External GPRS / Wi-Fi (optional) |
Working information storage | 25 years |
General Data | |
Ambient temperature range | 25°C~+60°C (Reduced load over 45°C) |
Topology | No transformer |
Protection level | IP65 |
Permissible relative humidity range | 0~100% Non-condensing |
Max. Working altitude | 4000m |
Noise | <25dB |
Weight | 11.5KG |
Cooling method | Natural convection |
Size | 405*315*135mm |
Warranty | 5 years (can be extended 10/15/20/25 years) |
Remarks: According to the different irradiation intensity in different places, it is suggested that the input solar power can be over 1.1~1.2 times | |
Need more data of other power grid tie inverter, please feel free to contact us, we will reply within 12 hours.

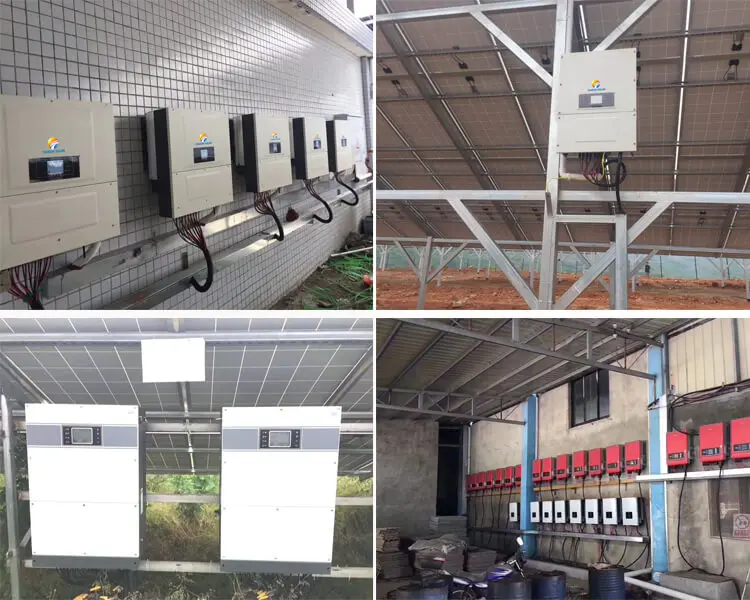

50KW on grid home solar system
Customer feedback:
Our Factory
We accept OEM and small trial orders, Please send inquiry to us or contact me for more details. All inquiries will be replied with in 24 hours.
