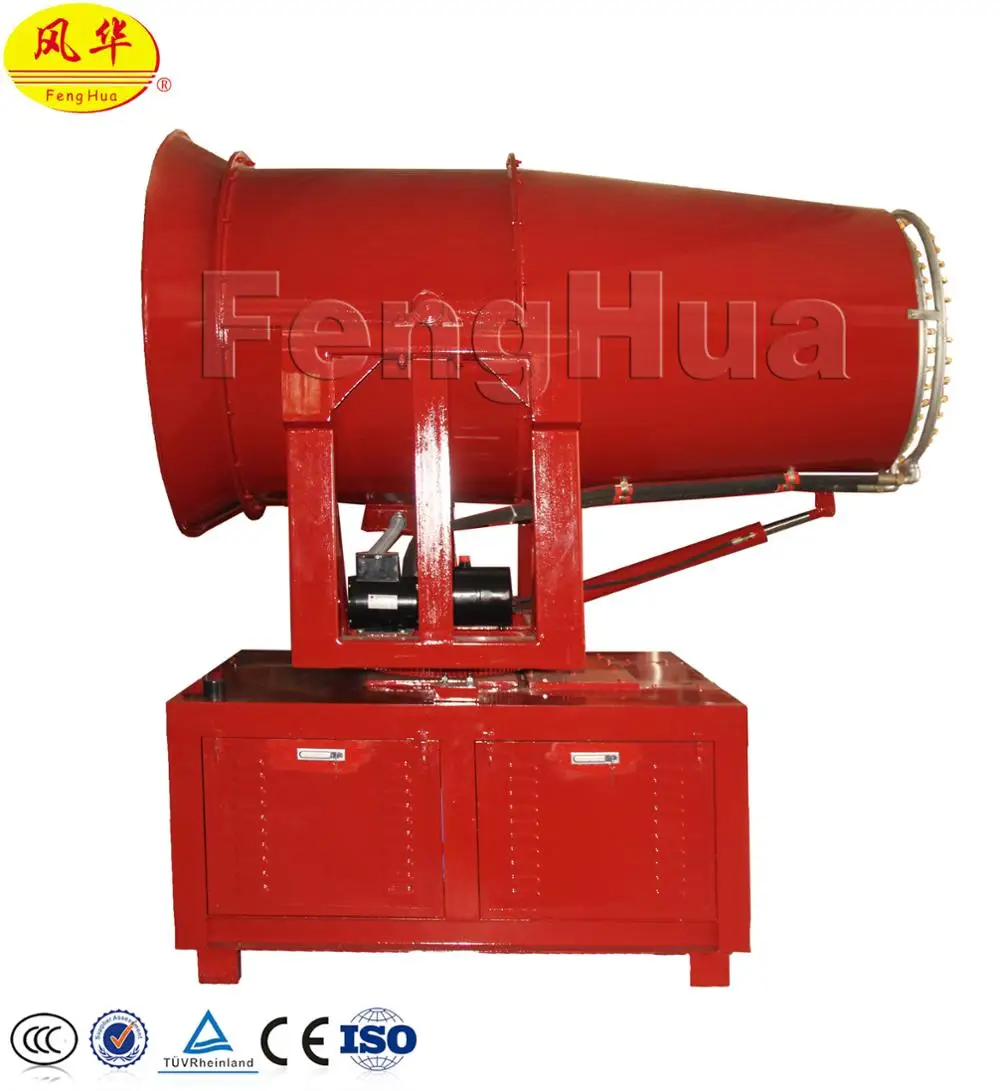

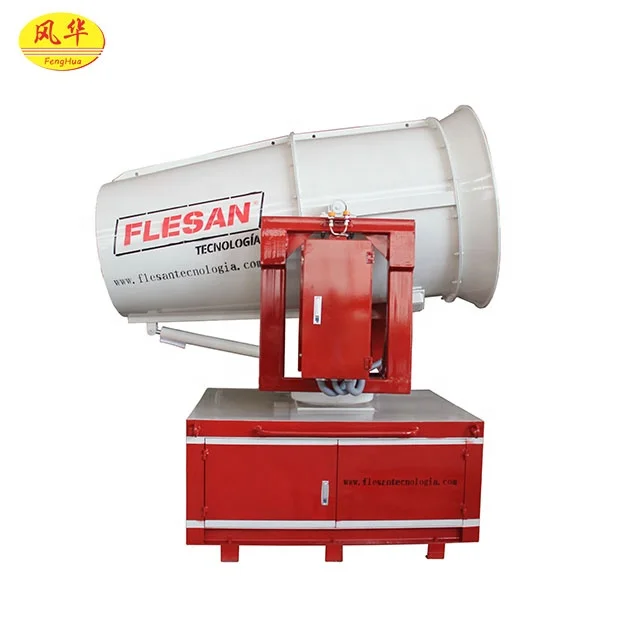

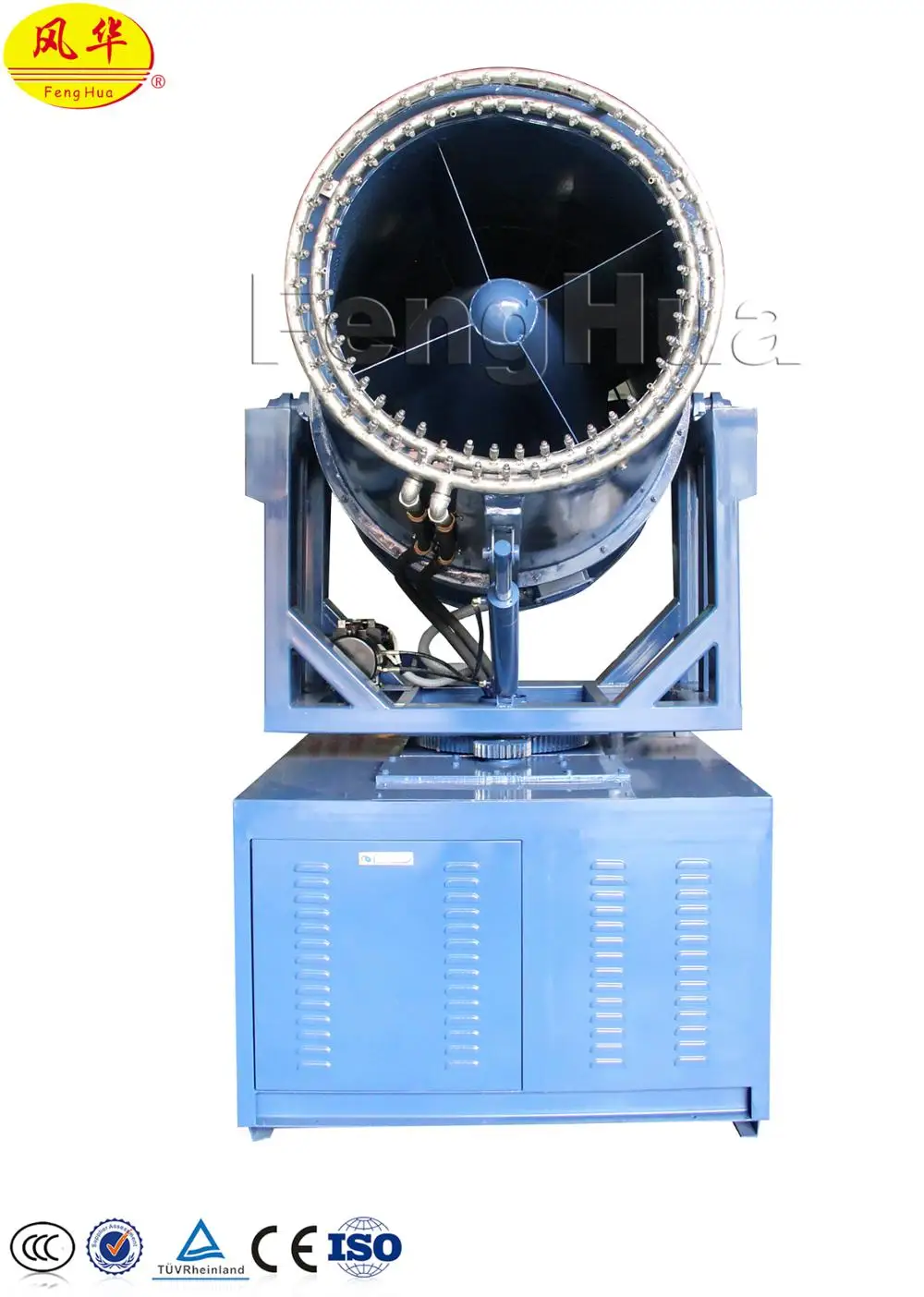

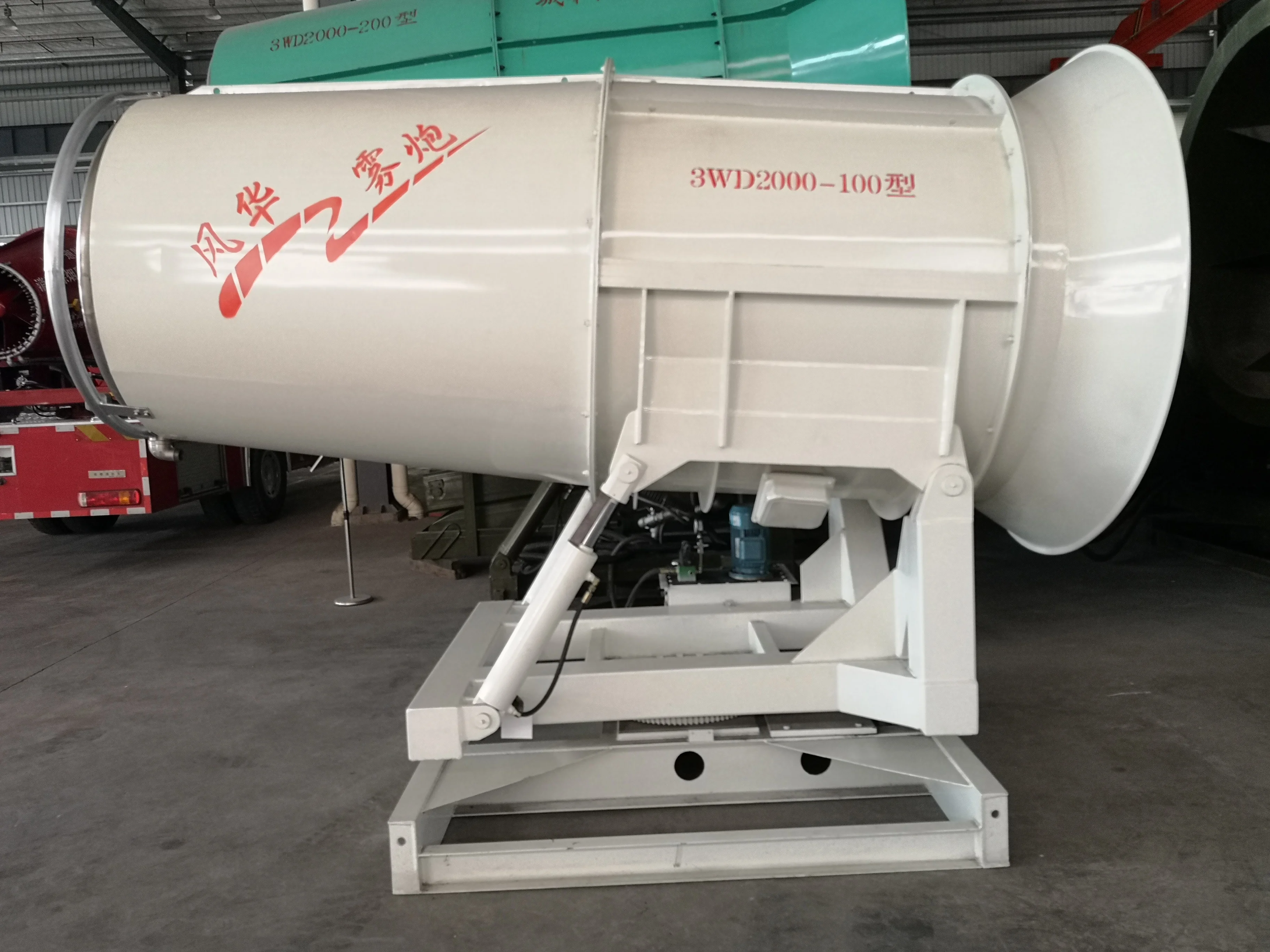

high pressure water spray,high pressure fogger spray for dust control
Product Description
What is the features of our product?
1. Professional manufacturer with over 20 years' experience, high quality, best service and competitive price, offer multiple choices of product to meet different requirements.
2.Strong capability, high & far throw range, wide coverage area, achieve precise volume spraying, high efficiency and spray speed. 3. Micro fog droplet, form a wet mist touching the floating dust, high speed knock down the dust. 4. Flexible power: three-phase 380V and diesel generator power supply optional 5. Flexible installation, fixed on the concrete platform or diesel generator-powered vehicles optional. 6. Flexible, safe & reliable to use. Remove control & manual control operation. Easily adjust the spray angle of horizontal rotation. 7. Compare to tank car, water consumption save 70% ~80%, wide coverage area
What is the Details of our product?
Model
DS-50
DS-60
DS-80
DS-100
DS-120
DS-150
DS-200
Max Throw(M)
no wind
50
60
80
100
120
150
200
Coverage Area (M2) no wind
6000
7000
13000
20000
29000
45000
62000
Volume Flow (Adjustable)
60-118
(L/min)
100-160
(L/min)
150-200
(L/min)
160-240
(L/min)
160-300
(L/min)
Fog Droplet Size (Adjustable )
30-150µm
20-200µm
30-300µm
Water Pressure (Mpa)
2.0-3.5Mpa
2.5-3.5Mpa
Power Supply
3-Phase,380V/50HZ(according to different national conditions)
Control Method
Remote Control
Horizontal Rotation Angle
320°
Pitching Angle
-10°~45°
-10°~40°
Applicable Environment Temperature
-30℃~+45℃
Color
Green, Orange, Grey, Blue or customized
What is the application of our product?
1.Environmental protection: City pm2.5/10 dust control, Disinfection epidemic prevention, City Demolition,Odor control at waste disposal & landfill sites,Humidifying, cooling and dust control on construction site, etc.
2.Industry dust suppression:Open pit mining blasting/digging/ load&transport dust , Port material storage yard dust , Wharf Bulk Ships loading&unloading dust, Iron & steel plant stockpile & slag disposal dust, Power plant coal storage yard dust, Conveyor belt blanking point dust, Coal mine crushing dust,Haul roads dust,Storage and handling of bulk materials dust, etc.
3.Agriculture protection:The sprayer can used for pest control in agriculture, orchard, garden areas,farmland, forest, road greening, grassland, pasture ,etc.

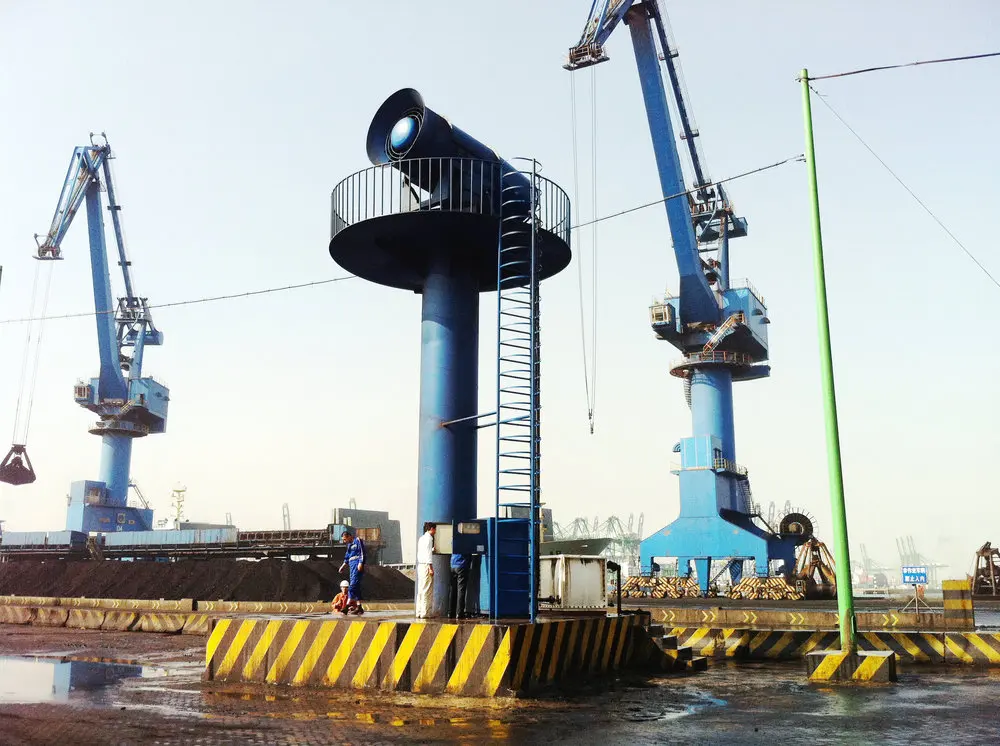

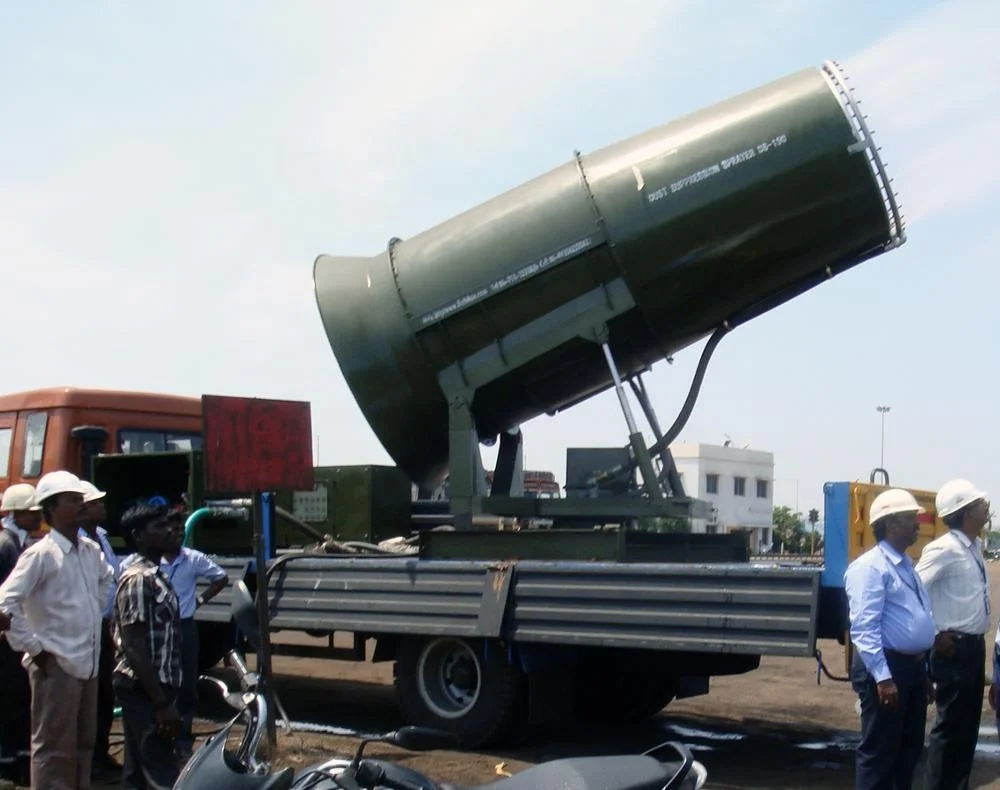

The worksite of our product
Company Information
About us
Since 1996, professional manufacturer over 20 years experience on specialized in designing and manufacturing sprayers in China.
Manufacturing according to the ISO9001:2008 quality control system guidelines.We have obtained 61
national patents since 1996 and developed the national largest dust suppression sprayer in environment protection industries. Products are widely recognized and trusted by users and can meet continuously
developing economic and social needs.
Our Services
Pre-sales Service
Customization:
For any special requests, please go to ask us for the details, we can customize the products for you if your order quantity is considerable! (Such as spare parts, water tank, material, output, pump.)
After-sales Service
1. Warranty time is 12 months from the date of commission, or 18 months from the factory delivery, the first shall prevail.
2.Special Operation and maintenance vedio guide for the Customers.
3.Technical person work-site commission service support.
We can send engineers to support you to install large sprayer machine.
4.Help you do worker training
5.On-line support every day.
Packaging & Shipping
1. Outside package: standard export plywood case 2. Inner package: air bubble film and screwed to the pallet.
3. Different design need different shipping way:LCL or FCL.(one set DS-50 Sprayer fitted into general container, LCL)
Purchase&Payment
The placing order process
Please confirm below details before you place the order:
1) Application area,special requests
2) Quantity
3) Payment terms(Port and type of shipping)
4) Kindly provide your detail contacts(name, duty, company name& address, telephone number and post code etc,the more detailed, the better!)
5) The import licenses and other certifications for custom clearance
The parment terms
1) L/C at sight ( high cost, not very advise)
2) T/T 30% deposit in advance, T/T 70% before shipment.
3) We accept TT, L/C etc. according to which one is convenient for you!
FAQ
1.Q:Are you a factory or trading company?
A: We are a factory since 1996.
2.Q:Where is your factory located? How can I visit there? A:Our factory is located in Meizhou City, Guangdong Province, China, near to the Guangzhou City, Shenzhen City andJieyang City. You can fly to Meixian airport directly. All our clients, from home or abroad, arewarmly welcome to visit us!
3.Q:What is the material of your products? A: The material is Steel A3. We can also choose material as customers’ requirements.
4.Q: What is the warranty time of your products?
A: The warranty time is 12months from the date of the commissioning, or 18months from the factory delivery, the first shall prevail. All quick-wear spare parts will be provided for free within the warranty period. After the warranty, we also can ensure that you can buy any necessary spare parts with favorable price within 5 years.
5.Q:How does your factory do regarding quality control? A:"Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2008 authentication.
