144W Flexible Thin Film Laminated Solar Panel 5392*378*1.5mm without adhesive tape

Product Overview

Description

144W Flexible Thin Film Laminated Solar Panel 5392*378*1.5mm with adhesive tape









Feature:
Solar cell components adopt for stainless steel substrate, flexible, three junction amorphous silicon thin film battery
Polymer layer pressure,not easy to fracture (no glass material)
Component terminal box can be installed stabilized voltage control circuit or preventing recoil diode
Can be moistureproof, durable and excellent water resistance
Light weight, resistant to impact, advantageous for use and carries
Use environment temperature: - 40 - + 85 degrees Celsius



Note:

Please do not excessive bending the flexible components
During transportation, installation and using process, banned foot and heavy pressure component surface.
Banned blunt scratches the surface components

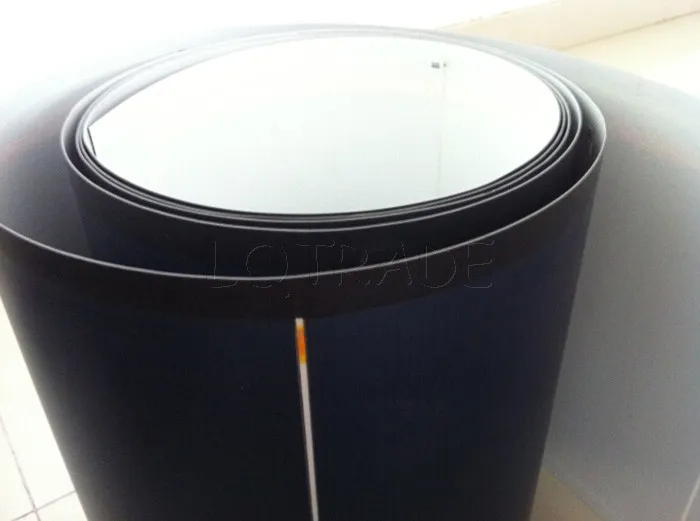

 1. Flexible

Flexible solar modules are produced utilizing a thin stainless steel substrate and flexible lamination polymers which equate to a thickness of ~1.5 mm. This allows our modules to be used for a wide variety of applications.

2. Lightweight

Flexible solar modules(~.5 lbs/sq. ft) are roughly three times lighter than rigid glass based PV modules, which means they can easily be installed on rooftops that may not be able to take the weight of glass modules and their support structures without the need for costly roof reinforcement modifications.

3. High Performance

Thin film amorphous silicon based PV modules offer better power performance in actual outdoor conditions vs. some other solar technologies that currently dominate the market.

4. Durable

Our solar modules are flexible and lightweight and do not utilize glass which make them very durable and resilient to most weather conditions.

5. Easy to Install

Our products can be integrated into a building’s roofing membrane or rolled on and adhered which allows for easy installation and also eliminates the need for roof penetrating racking structures.

Below is a comparison of a typical thin-film CdTe glass panel (~5 to ~6.8 mm thick) and our flexible, thin-film silicon module on stainless steel (~1 mm total thickness).









  Landfill





Rooftop

Golf cart&Car



Awning
