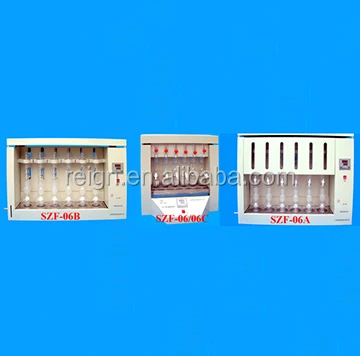

SZF 06 Soxhlet extraction System Fat analyzer

Product Overview

Description

Fat Analyzer(Soxhlet extraction System)  Soxhlet extractor

Model: SZF

Action: This multi-channel extraction heater is ideal for running up to six Soxhlet extractions simultaneously for fat analysis. The instrument features individual hot plates, reagent recovery and cooling system, and temperature control.

Features:



1. This equipment which is developed with new fat determination technology according to Soxhlet principle to determinate fat content in the way of mass determination, that is fat be dissolved in organic solvent and separated from solvent in extraction, then be dried, weighed and calculated of its content.


2. The instrument is composed of heat up extraction unit, solvent recycle unit and cooling unit. During the operation, the user could adjust the heating temperature based on the boiling point of the reagent and the room temperature, the sample is marinated and extracted repeatedly during the extraction process to achieve the fast measurement objective.


3. Test range: Food, feeds, oil plants and fattiness produce whose oiliness



Main Technical specification:



Model	SZF-06A		SZF-06B	SZF-06C	SZF-06
Test range	0.5% to 60%
Sample number	6
Power source	220V,50HZ
Power Requirement	800W		800W	800W	300W,500W
Warming time	10 min
Recycle system	automatic	semi-automatic		automatic	automatic
Recycle rate	≥80%
Temperature range	5°C-90°C		5°C-90°C	5°C-90°C	5°C-200°C
Size	740×230×655 mm		740×200×585 mm	570×230×655 mm	570×230×655 mm
Weight	23kg		20kg	23kg	23kg
